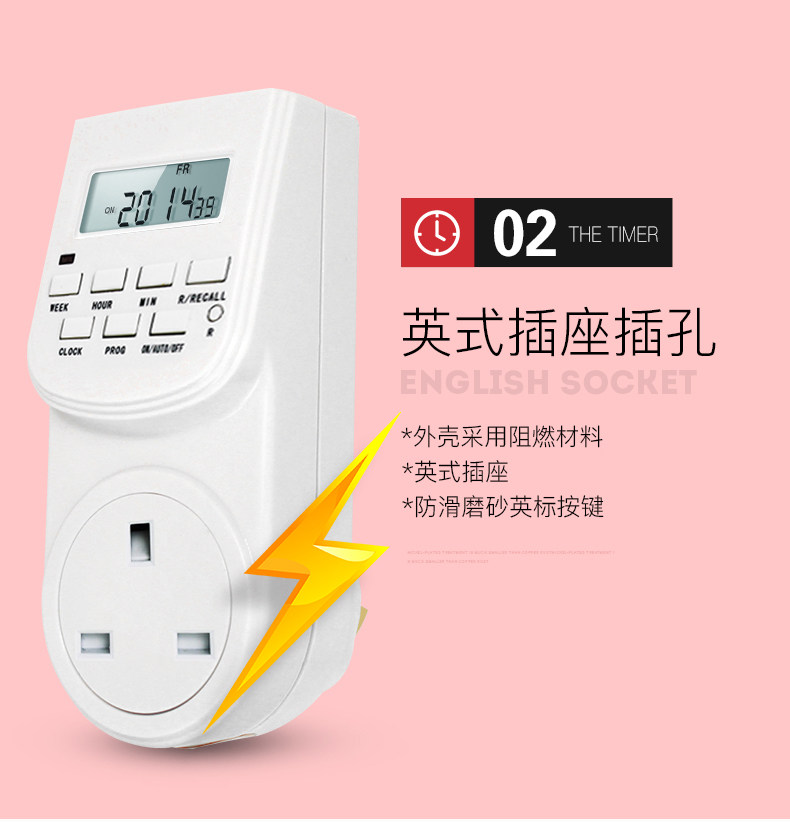

Intelligent timer controller/electronic socket/switch/Timer Adapter

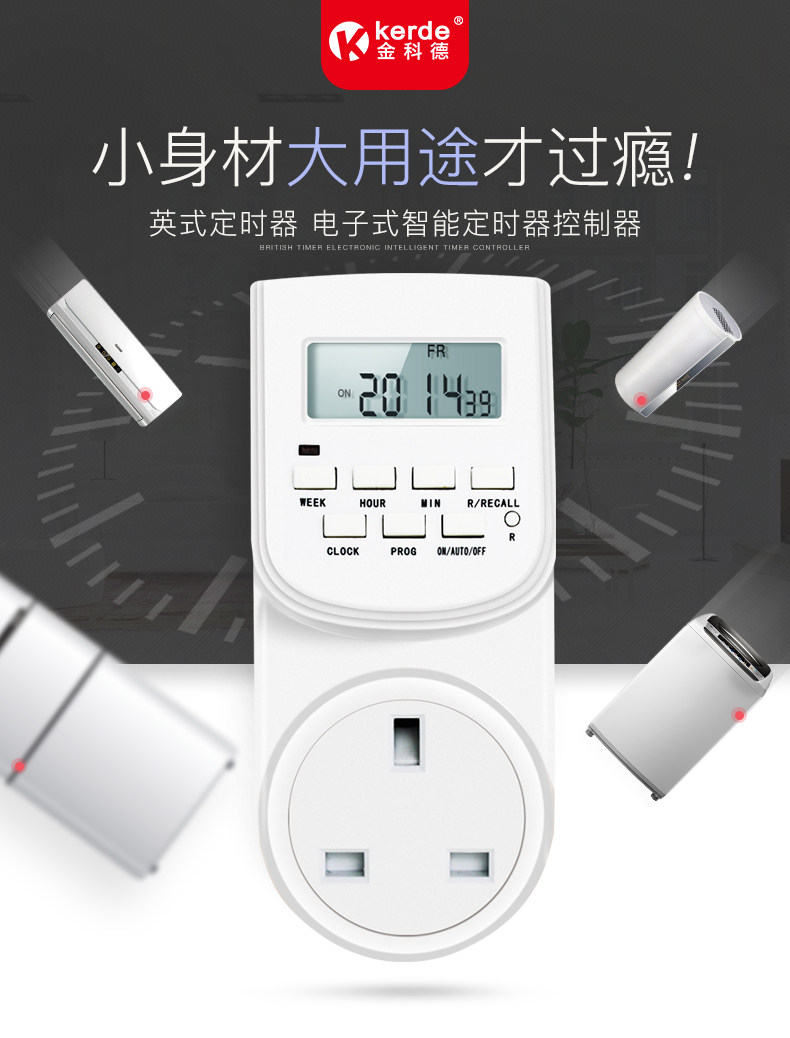

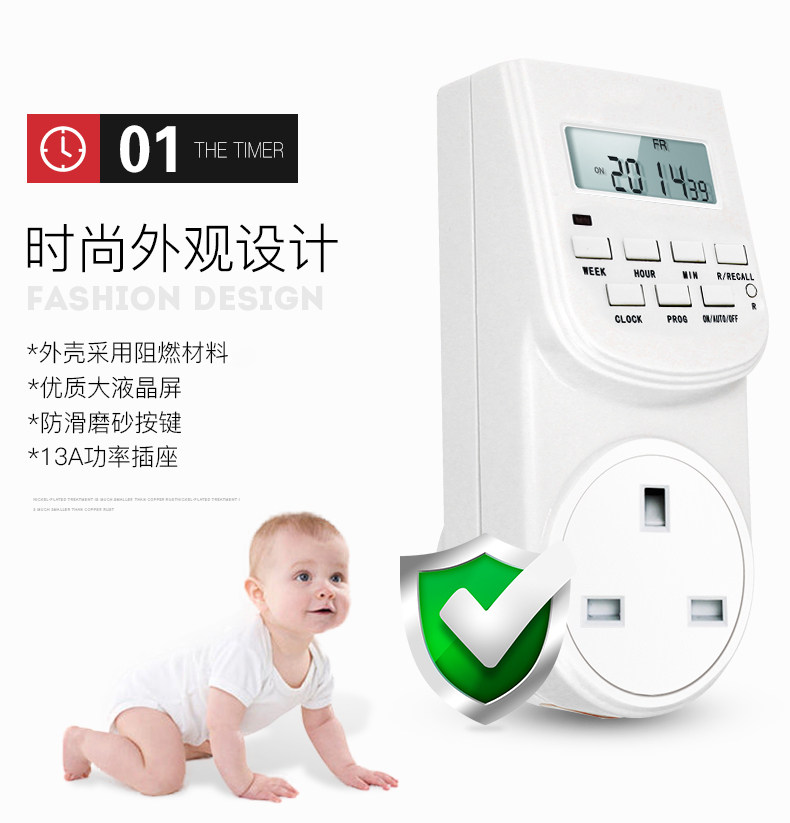

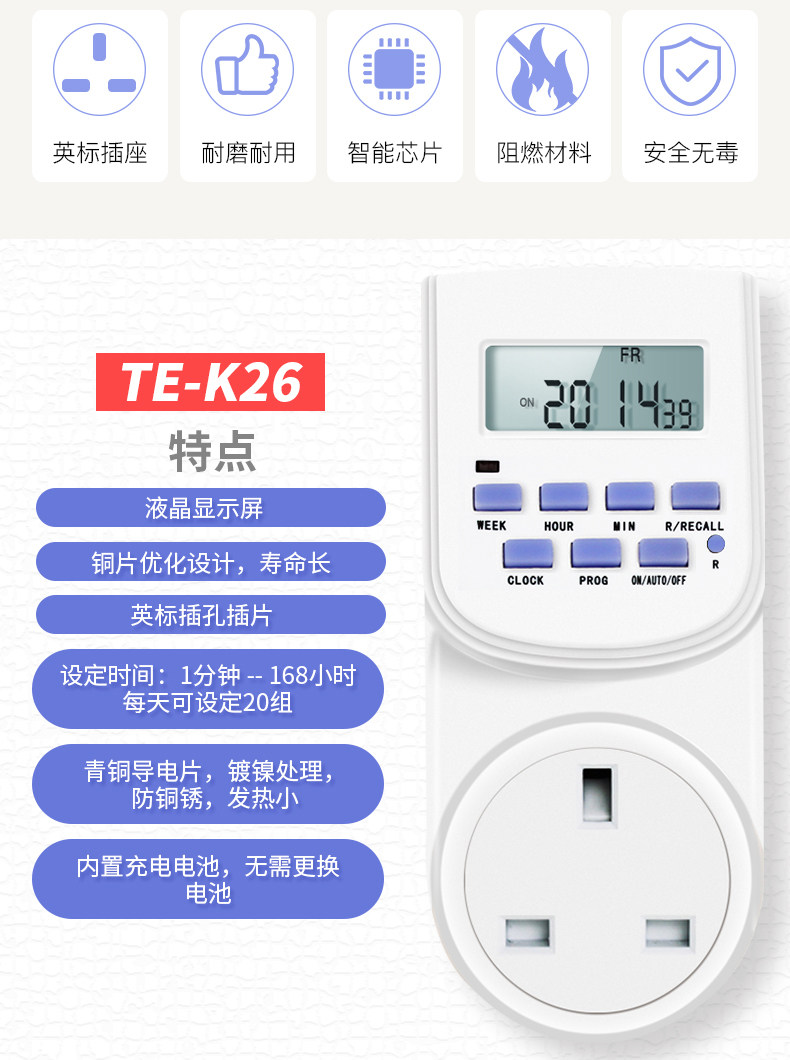

Type A: Electronic LCD
Features
1.Saves energy makes your home safer by automatically shutting off space heaters, curling irons, coffee makers , fans, cell phone chargers, lights, kitchen appliances, electric toothbrushes etc.
8 Independent Time Settings, auto on and off, as you master Mini setting: 1 MIN
Unique count down on/off. Have ETL America Safety Certificate.
2.wire grounded plug and receptacle, Plugs directly into the wall. Function mode to switch to a normal on a state or to timing condition.
Rechargeable Battery backup assures you stay on schedule even after a power outage.

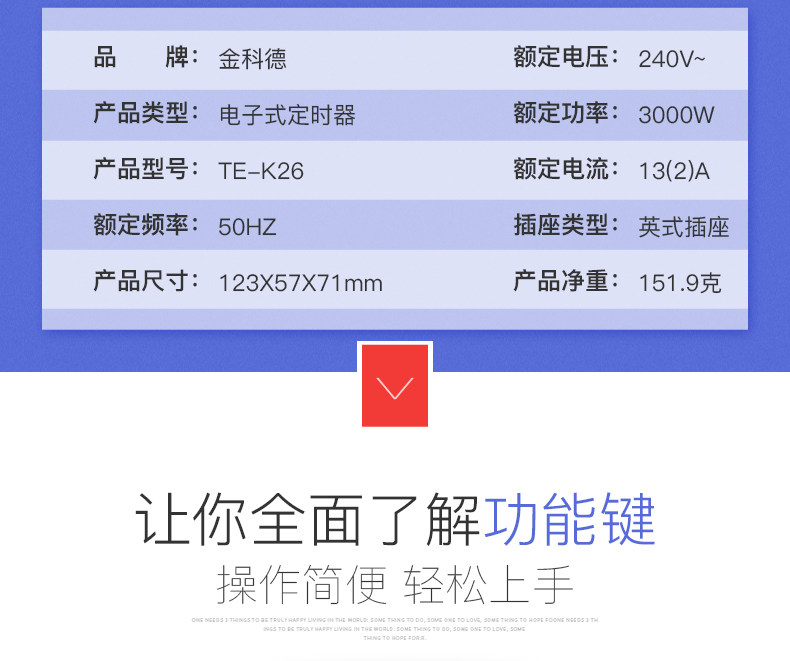

Specification
Color: White
Material: ABS
Function: Control power supply time
Plug type: UK plug
Installation: Plug-in
Operating voltage: AC 230V 50HZ
Load: 16A 3680W

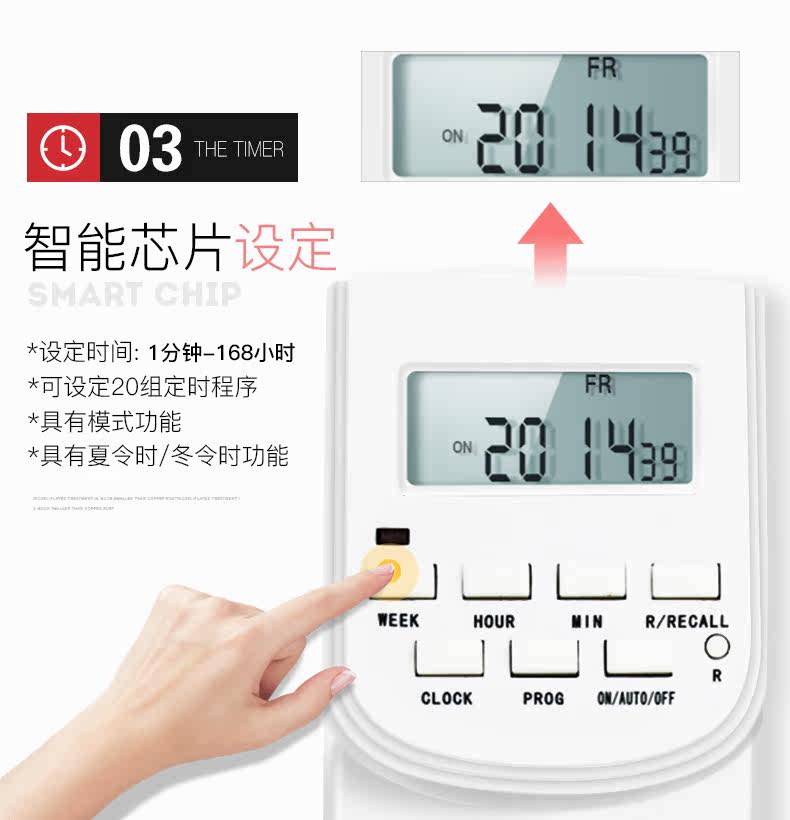

Features: 8 operating buttons, can be set hours, minutes and weeks, can be converted to DST (Daylight Saving Time), random function mode, 12/24 hours conversion system
Operating temperature: -10 ~ 40 degrees Celsius
Minimum setting time: 1 minute
Accuracy: ± 1 minute
Battery: Ni-MH 1.2 V, >100 hours (built-in)

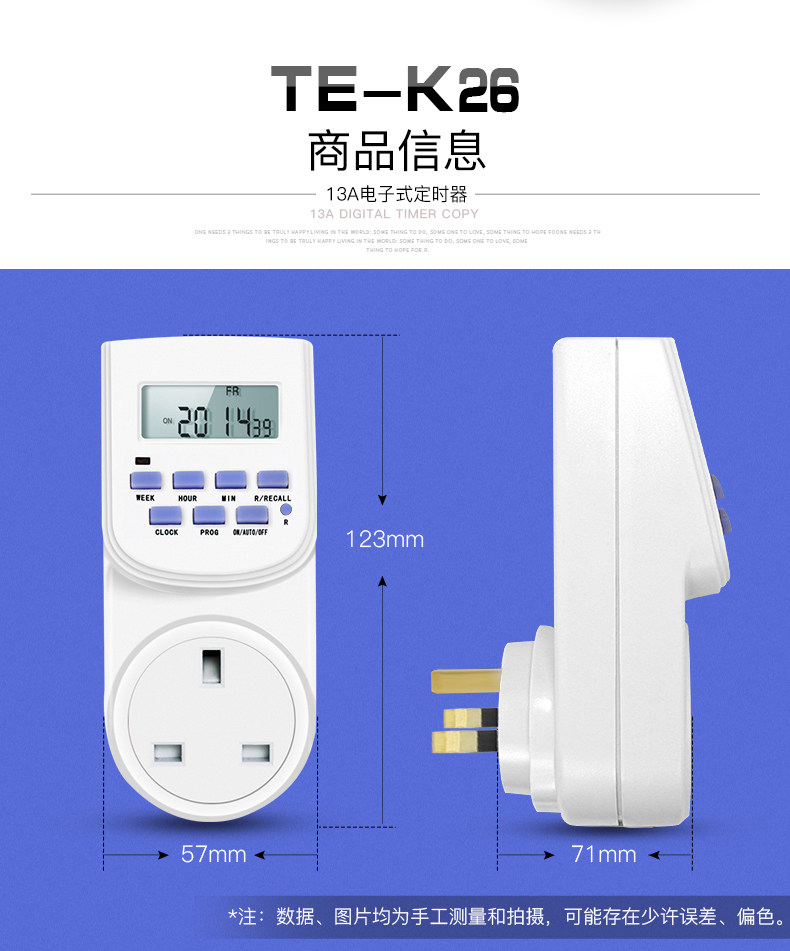

Product Dimensions:123 x 57 x 71MM

Package Include
1* Digital Programmable Timer
1* User Manual

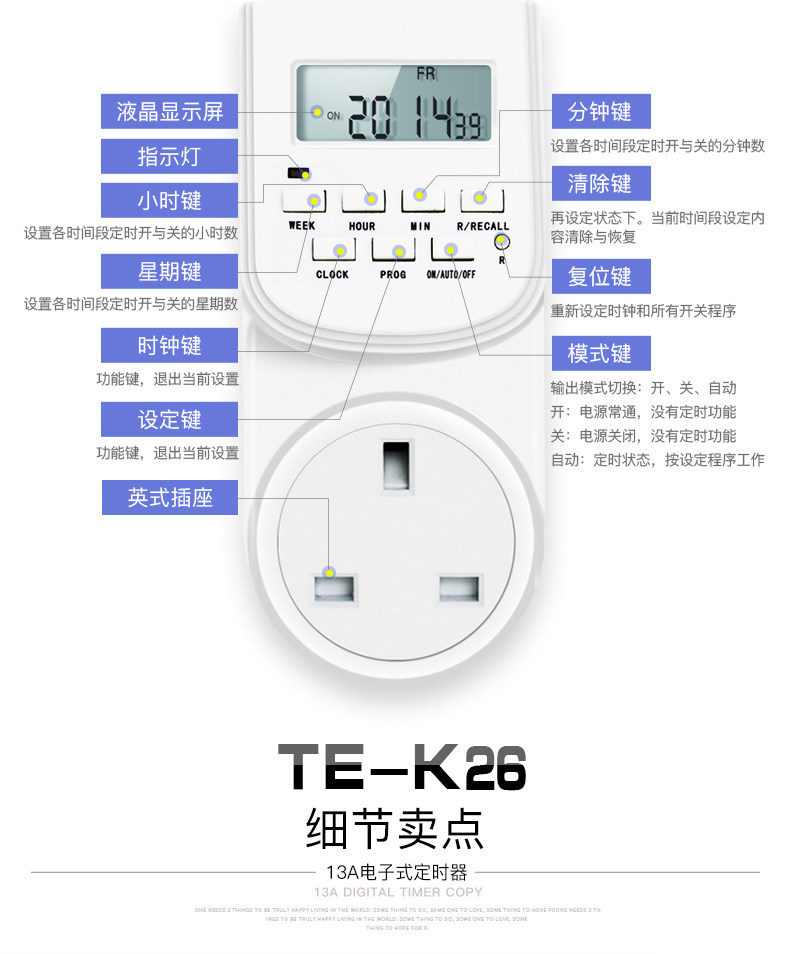

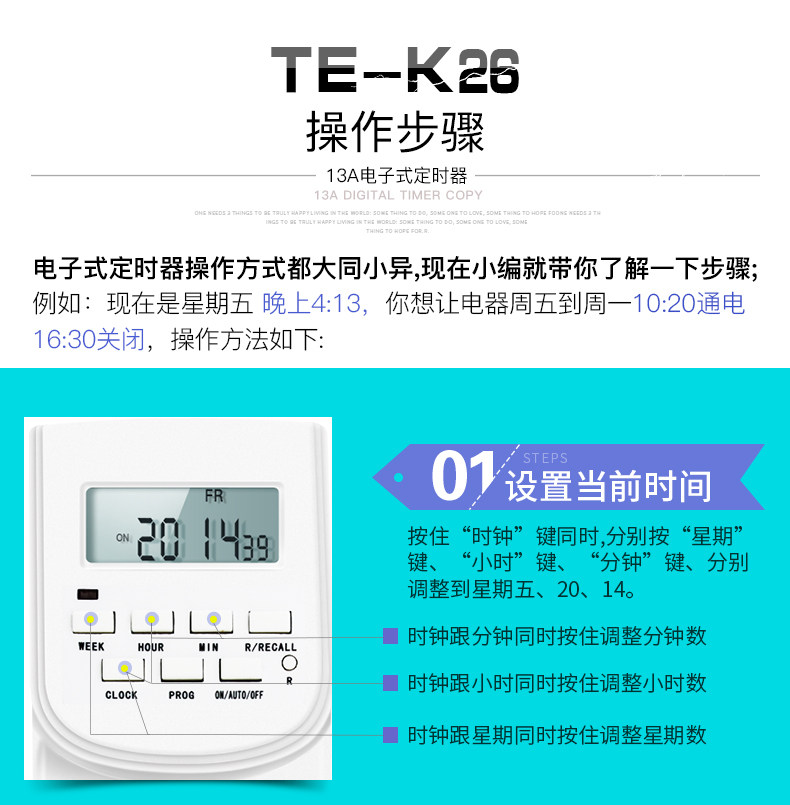

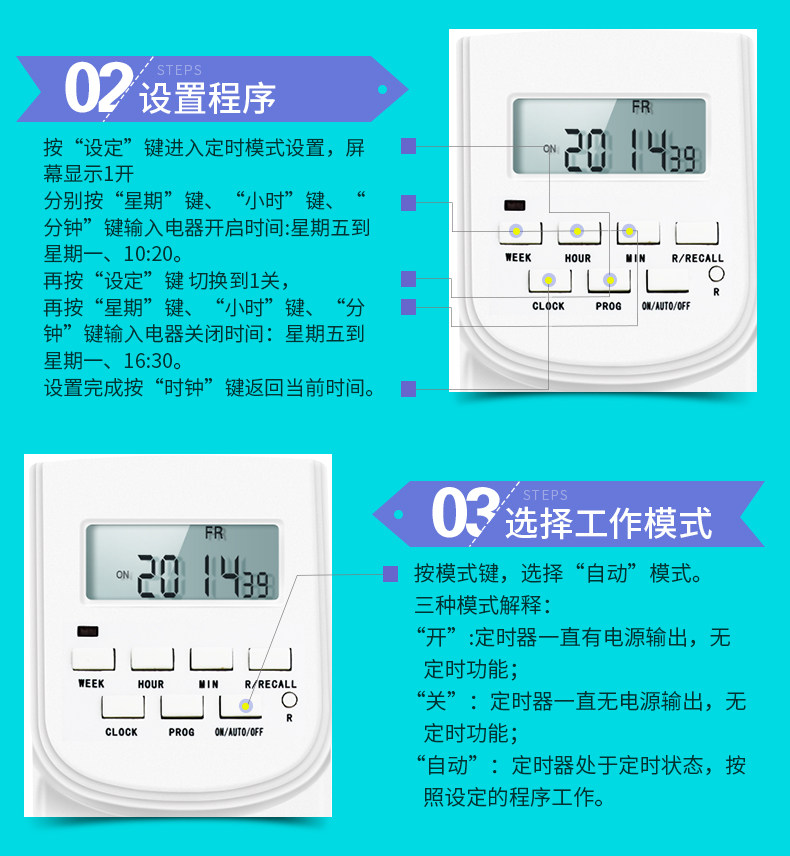

How to use

E.g. Timer turn on at 8:30am, turn off at 8:50am on Monday.

Steps 1: Press "PROG"(display 1 ON) and press "WEEK" set to "MO"; press "HOUR" set to "8"; press "MIN" set to "30".
Steps 2: Press "PROG" again(display 1 OFF) and press "WEEK" set to "MO"; press "HOUR" set to "8"; press "MIN" set to "50".
Steps 3: Press "hand symbol" button set to "ON AUTO" or "AUTO OFF".

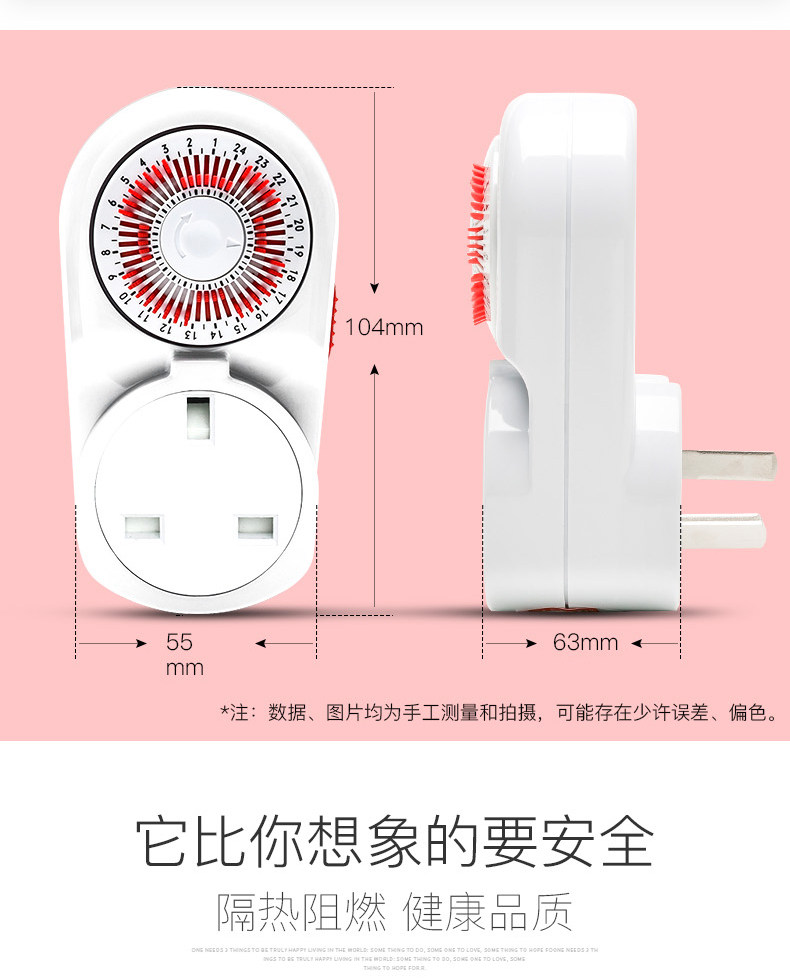

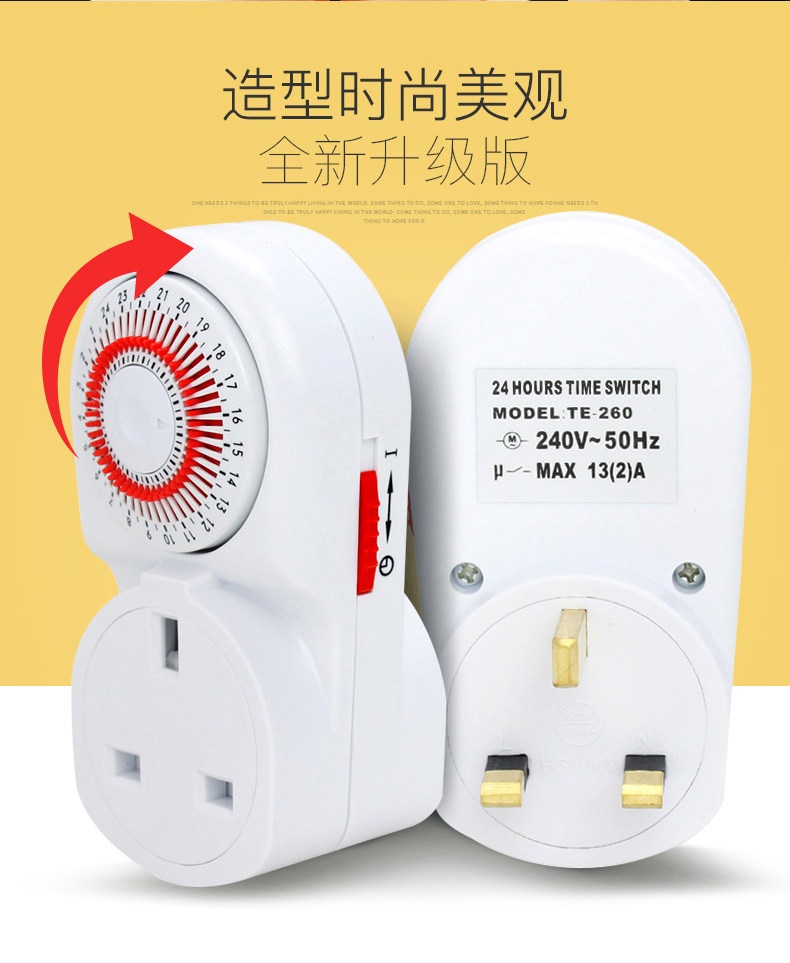

Type B: Mechanical Timer (TE-260)

Features
1.Saves energy makes your home safer by automatically shutting off space heaters, curling irons, coffee makers , fans, cell phone chargers, lights, kitchen appliances, electric toothbrushes etc.
8 Independent Time Settings, auto on and off, as you master Mini setting: 1 MIN
Unique count down on/off. Have ETL America Safety Certificate.


This is an plug timer that powers on or off your electrical devices at the desired timings.

MAIN FEATURES:
- Easy and simple to setup and use without any complicated programming required (elderly and house maid friendly)
- Helps you save electricity by turning on your devices only at the desired times remotely.

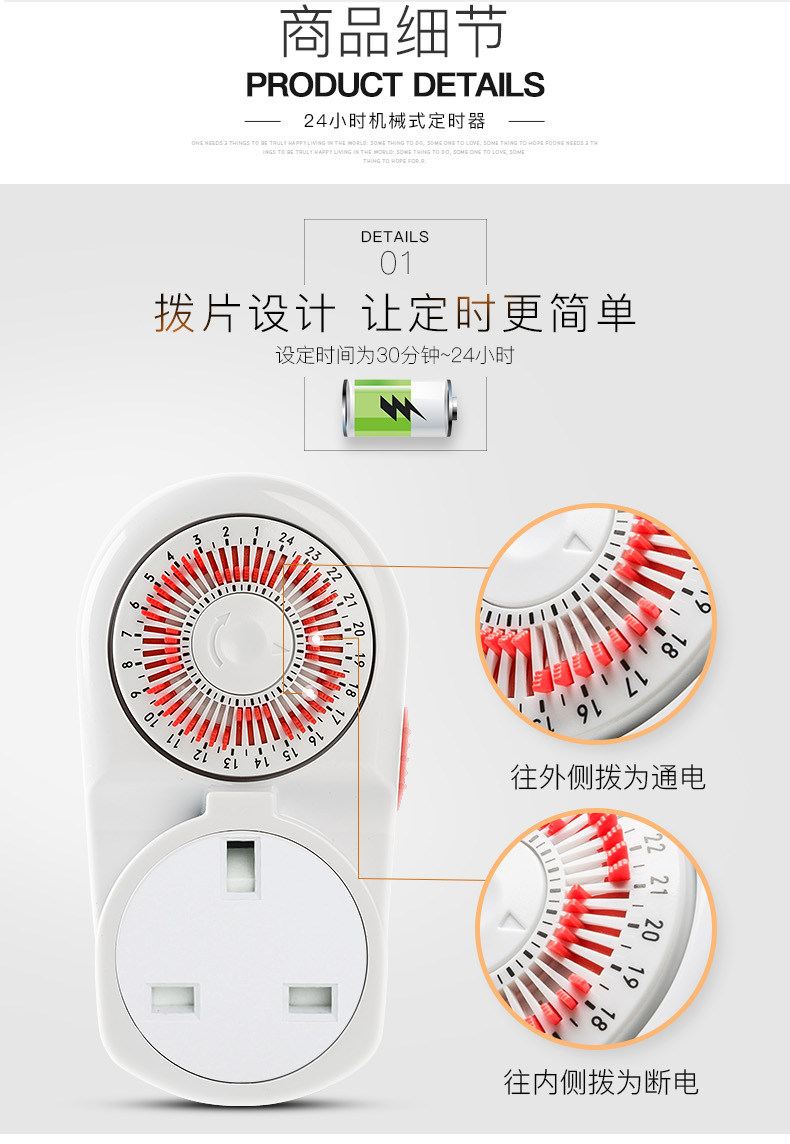

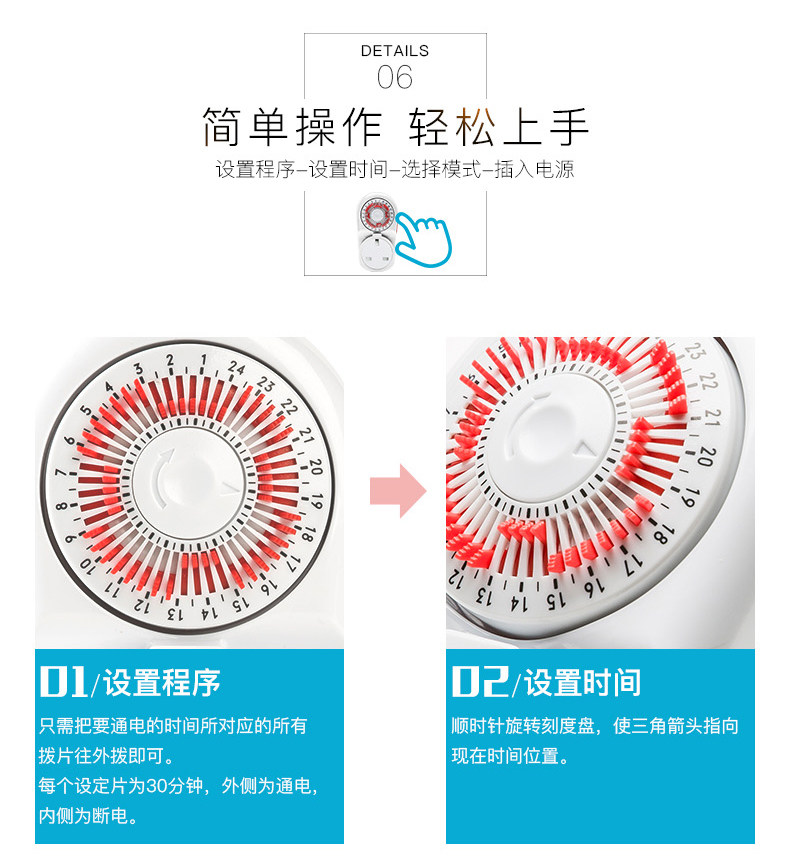

OPERATING INSTRUCTIONS

Example:
The time now is 12 noon; and you wish to turn on the plug from between 2 PM to 3 PM only

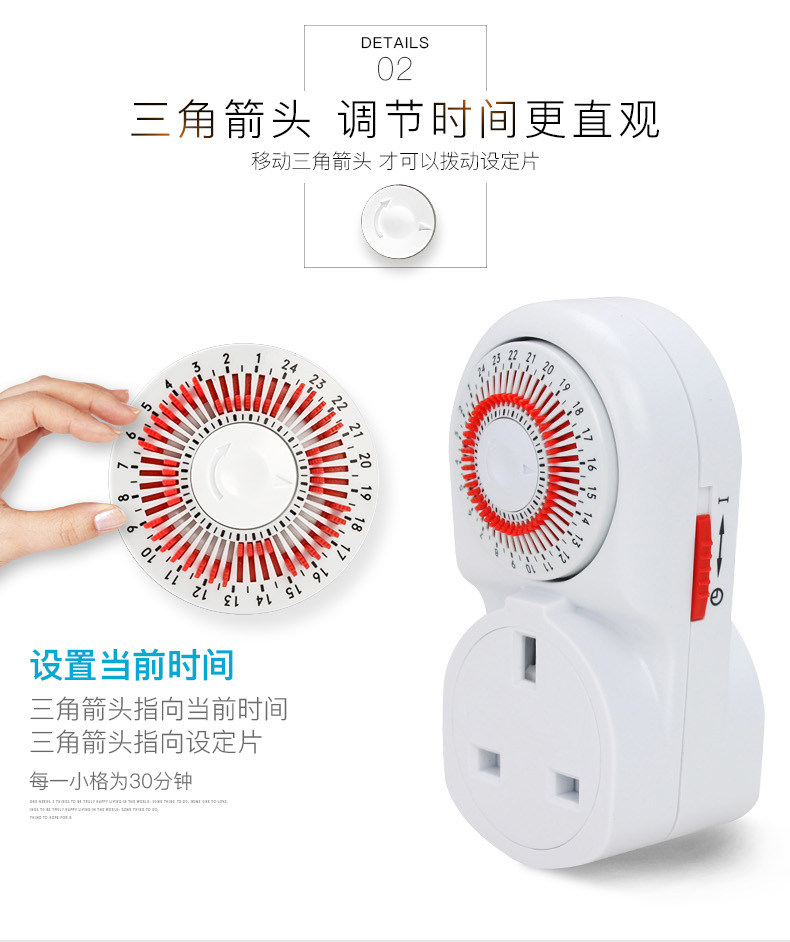

1. Ensure that all the red pins are already pushed towards the centre
2. Turn the dial so that the arrow A is pointing at the current time which is 12.
3. Push out the red pins between 14 (2 PM) and 15 (3 PM) (2 pins since each pin represents 30 MINS)

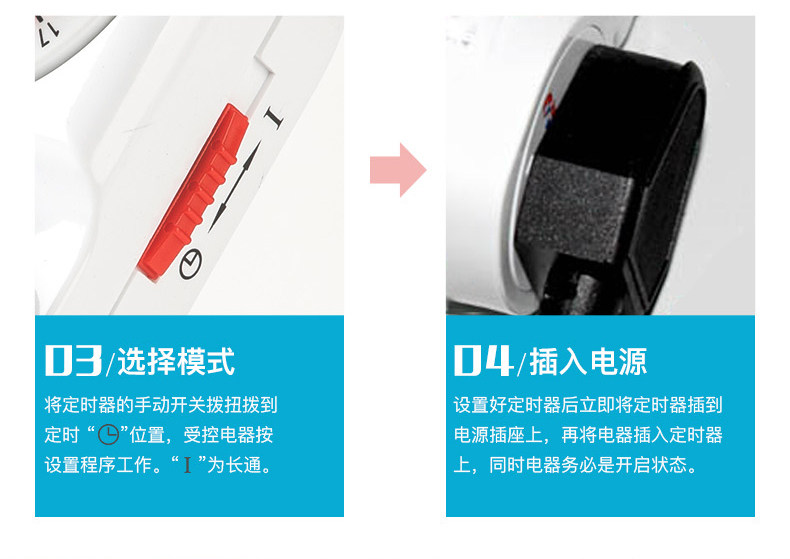

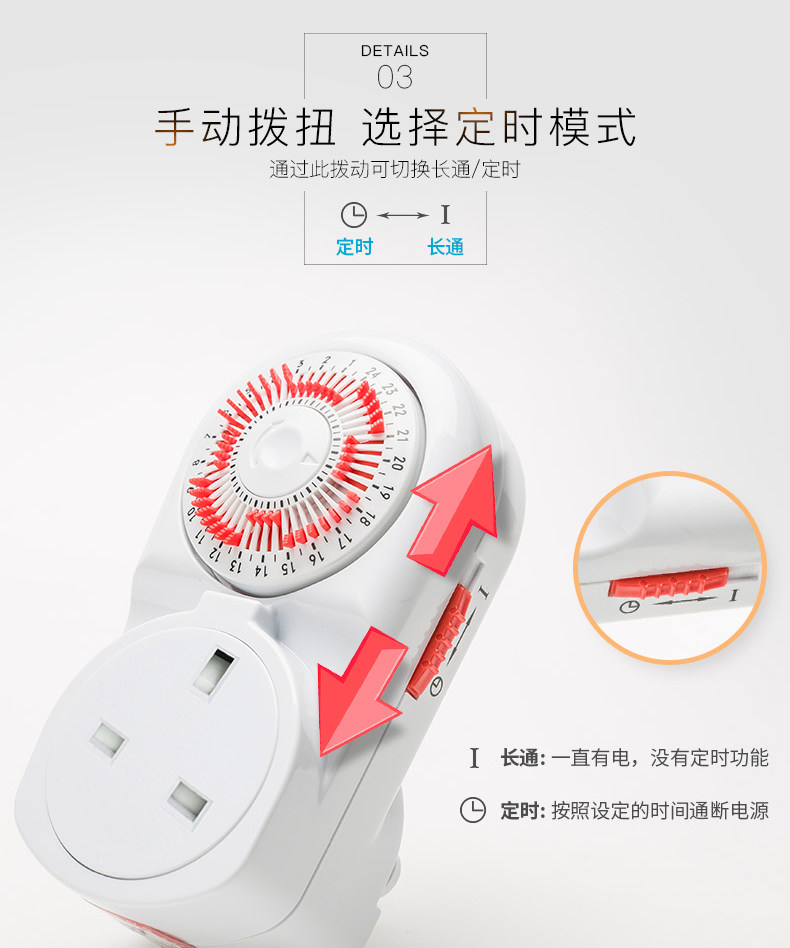

4. Ensure that the side button is switched to the ‘clock’ icon (timer is on)
5. Set up is completed and timer plug is ready to use

* * If you like to bypass the timer switch so that is permanently turn on, just slide the timer bypass switch to ‘I’.
* * Multiple timer can be set at the same time

SPECIFICATIONS:
240V 50Hz 13A
Max 3000W



Type C: Mechanical Timer Wall Plug UK Plug
 (TG-14)

Features:
Used to control the time required to open and related appliances, such as: water dispenser, water heaters, air conditioners, rice cookers, advertising lighting
Used to control the power length, Such as: electric bicycle battery, cell phone batteries, battery charging
Off the electricity needs frequent occasions. Flower pigsty, lawn sprinkler intermittent, periodic aeration tank filter, water fountains
Home security system control
15 minute minimum setting

Specifications:
UK Plug:
Power: 3500W
Voltage: 220-240V-50hz
220-240V-16A
Measurement: Approx.120 x 70 x 75mm
Material: PC
Main color: white
Net weight: 163g

Package include:
1 x Timer programmable Switch Plug

This is an plug timer that powers on or off your electrical devices at the desired timings.

MAIN FEATURES:

- Easy and simple to setup and use without any complicated programming required (elderly and house maid friendly)

- Helps you save electricity by turning on your devices only at the desired times remotely.

PRACTICAL USE EXAMPLE:

- Turn on and off your MOSQUITO REPELLENT during specific timing where mosquitoes are most active for a piece of mind from the life-threatening ZIKA and DENGUE.

- Automatically turn off your phone charger so that the battery is not overcharged

- Turn on and off your house lights at various time intervals to create an impression that someone is home while you are oversea, etc.

- Turning on your room side light in the morning so that you may wake up easily







Type D
AU Plug 240V Digital Multifunction Power Meter Voltage Current Monitor Analyzer

CE Approval
-----Save Energy, Save Money----
-------Large LCD display----
----Energy Saving Meter----

-Brief Introduction:
Power Meter Buster is a monitoring and testing instrument which determines the power consumption of a connected appliance and the cost of the electricity consumed.

-Feature:
Large LCD displayCumulative Kilowatt-Hour MonitorPower factorForecast Your CostsCalculates electricity expensesDisplays volts, amps and wattage within 3% accuracypower meter, digital power meter, power meter plug, electric power meter, energy saving power meter

Function
Mode 1: Time/Watt/Cost Display
Mode 2: Time/Cumulative electrical quantity Display
Mode 3: Time/Voltage/Frequency Display
Mode 4: Time/Current/Power Factor Display
Mode 5: Time/Minimum Power Display
Mode 6: Time/Maximal Power Display
Mode 7: Time/Price Display

Overload Display- when the power socket connects the load over 3680W, LCD on second line displays the ?OVERLOAD? with booming noise to warn the users. (selectable choice)

Specifications:
1.Operating voltage: 230V 50Hz
2.Operating current: Max. 13A
3.Wide voltage range: 230V----250V
4.Timing display range: 0second----9999days
5.Wattage display (watts): 0W----3600W
6.Voltage display range: 0V----9999V
7.Current display (amps): 0.0----16.0A
8.Frequency display: 0Hz----9999Hz
9.Minimum wattage display range: 0.0W----3600W
10.Maximum wattage display range: 0.0W----3600W
11.Price display range: 0.00?/KWH----99.99?/KWH
12.Total kilowatt-hour and cost display: 0.000KWH----9999KWH, 0.00?----9999?
13.Product size: 15.5 * 7.3 * 7.5cm / 6.1 * 2.9 * 3in
14.Product weight: 200g / 7.1oz
15.Package size: 16 * 8 * 8.5cm / 6.3 * 3.1 * 3.3in
16.Package weight: 240g / 8.4oz

Package including:
1 * Power Meter
1 * Instruction Manual

-Details Show:
