Product Description

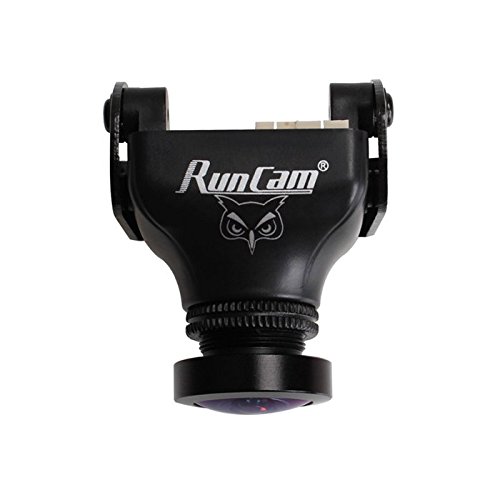

Crazepony RunCam OWL PLUS 700TVL FPV Camera OSD Wide Angle 150 Degree DC 5-22V IR Blocked Black

Introduction:
This camera keeps 700TVL resolution and excellent color rendition, supporting 5 -22V operating voltage. The board size is reduced to 26*26mm, which can reduce air resistance for FPV aircraft. Besides,the weight of camera is just 15g (with case).It is suitable for fixed-wing aircraft and Multirotor like QAV250, which are highly required in voltage and weight.

Specification:
True 0.0001Lux Starlight Camera,truly impressive
OSD menu available, easy to personalize the functions: D-WDR, BLC, Camera ID, etc.
F2.0 large aperture lens
FOV 150 wide angle
IR Blocked
Bright colors in daylight
Built-in 5-22V wide voltage
Works with 2,3,4 and 5S batteries
Standard size 26mm*26mm, suitable for the majority of mini quad frames

Parameters:
Model: RunCam OWL Plus
Image Sensor : 1/2'' Sensor
Horizontal Resolution: 700TVL
Lens FOV : 150°
Signal System: NTSC
Synchronization: Internal
OSD SET: YES
S/N Ration: >52dB
Electronic Shutter Speed: PAL:1/50100,000; NTSC:1/60100,000
Auto Gain Control(AGC): YES
Back light compenstaion(BLC): YES
Min. Lumination:0.0001Lux/1.2F
WDR: D-WDR
DNR: 2DNR
Day/Night: Auto/Color/Bandamp;W
Power: DC5-22V
Net weight: 15g
Dimensions: 26*26*30mm
--------------------------------------------------------
Package Including
1 * RunCam OWL Plus FPV Camera
1 * Standard back cover
1 * RCA Video Power Cable
1 * Hanging bracket
1 * FPV Silicone wire
1 * Base bracket
1 * 5D-OSD Menu cable

Feature

Crazepony RunCamOWL PLUS 700TVL FPV Camera OSD Wide Angle 150°IR Blocked
True 0.0001Lux Starlight Camera,truly impressive
OSD menu available, easy to personalize the functions: D-WDR, BLC, Camera ID, etc
Built-in 5-22V wide voltage, Works with 2,3,4 and 5S batteries
Standard size 26mm*26mm, suitable for the majority of mini quad frames
Brand : RunCam
MPN(PartNumber) : AP9162810LYAIA388
EAN : 0190657971980
Product Dimensions(LxWxH) : 2x2x2cm ; 136 g
