Item Descriptions:
Product introduction

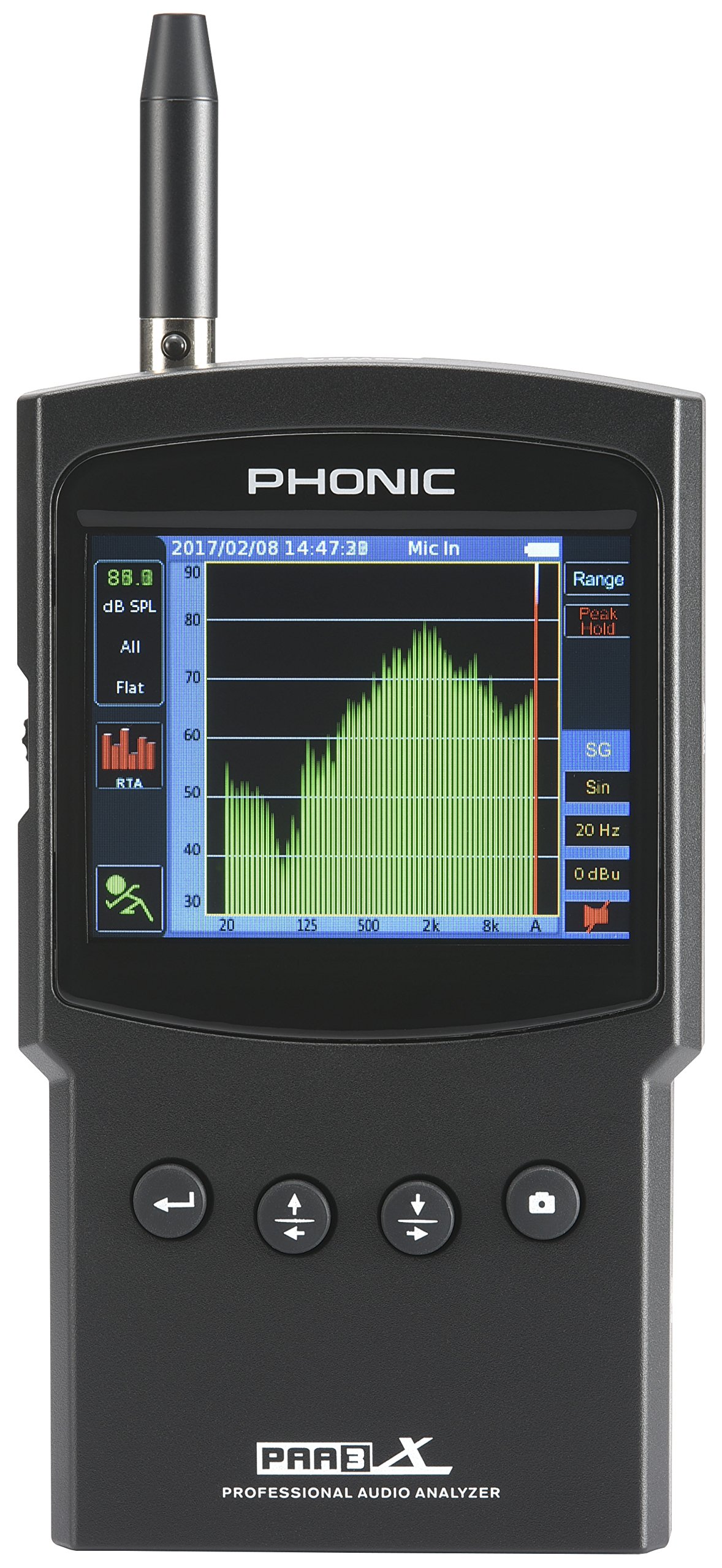

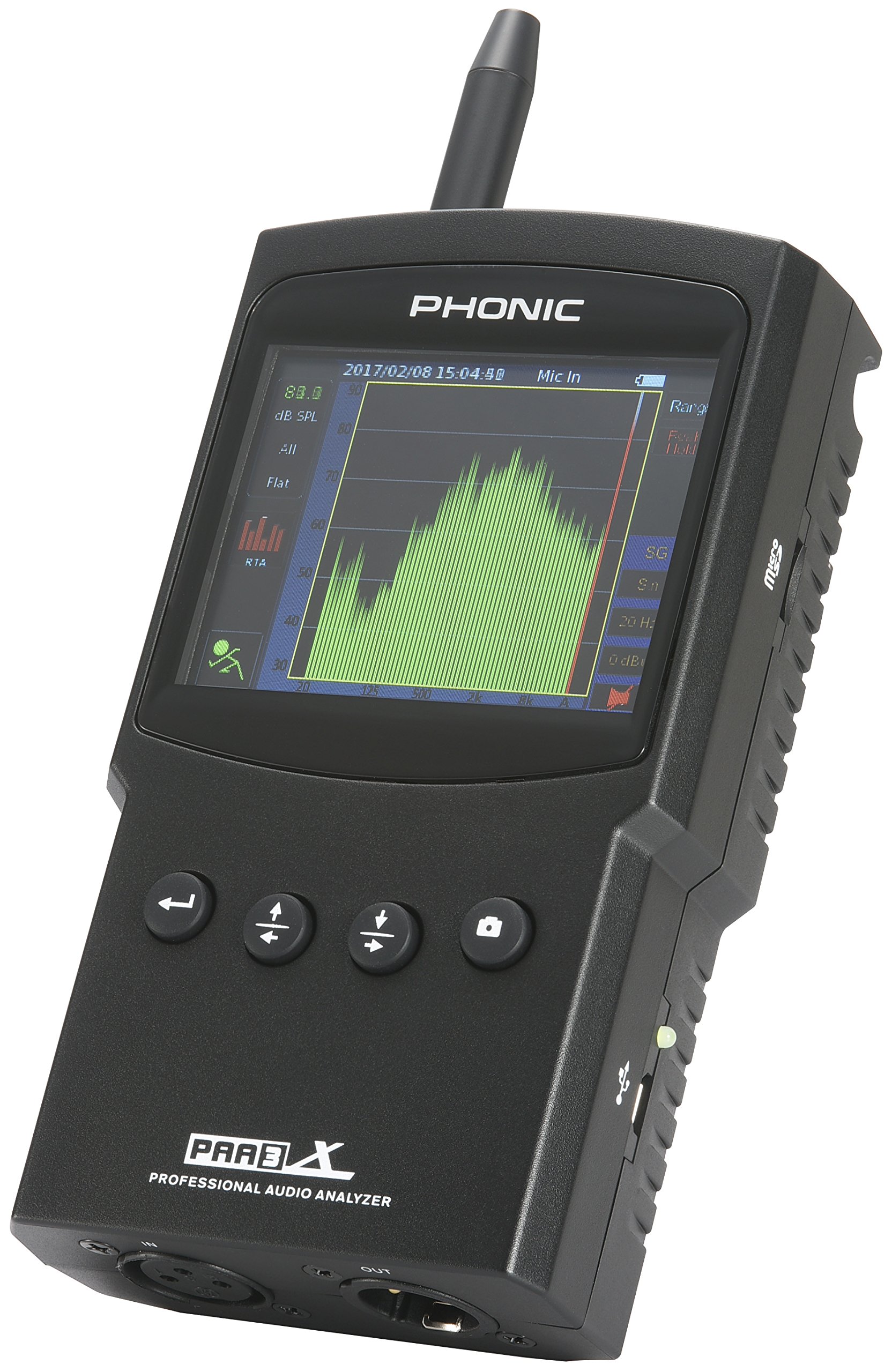

· PAA 3X is a handheld audio analyzer with various measurement functions in all-in-one.
· RTA (Real Time Spectrum Analyzer): High precision analysis is possible with 1/6 octave (61 bands).
If you want to see rough characteristics, you can change to 1/3 octave (31 band) display.
· EQ setting calculation: Displays the reverse EQ curve for the RTA measurement result, and enables EQ setting quickly.
RT60 (reverberation time measurement): It is possible to measure the reverberation time of the room, display the decay time in ms, and display the maximum / minimum level.
· High Accuracy Sound Pressure Level Meter: Max / Peak / PeakTo Peak and frequency can be measured in the range of 30 to 130 dB, and the line meter can measure dBu / dBV or voltage.
· Signal generator: It outputs pink / white noise, sine / sweep wave, polarity test signal from the XLR terminal.
· It corresponds to weighting of A / B / C / flat.
· Supports microphone calibration with standard 94 dB calibrator
· Speaker polarity measurement function
· Screen capture can be easily taken with the snapshot button and the data is saved to the SD card.
· A removable measuring microphone comes with a 5 m microphone cable, and the sound pressure level can be measured remotely.
Both the main unit and removable microphone can be mounted on the microphone / camera stand.
· It can be driven with rechargeable lithium ion battery.
AC power adapter for charging / micro USB cable included.
Ables included.
Attention (Disclaimer)> Please be sure to read
Appearance and specifications are subject to change without notice.
Features:
- Please enter model number Confirm this is compatible:
- 31 and 61 band spectrum analyzer, and inverse EQ curve display for quick EQ adjustment.
- 30 ~ 130 dB sound pressure level meter, dBu / dBV and voltage measurement line meter, speaker polarity check, signal generator.
- Reverberation decay time and maximum / minimum level indication of room, screen capture to SD card, microphone calibration at 94 dB calibrator.

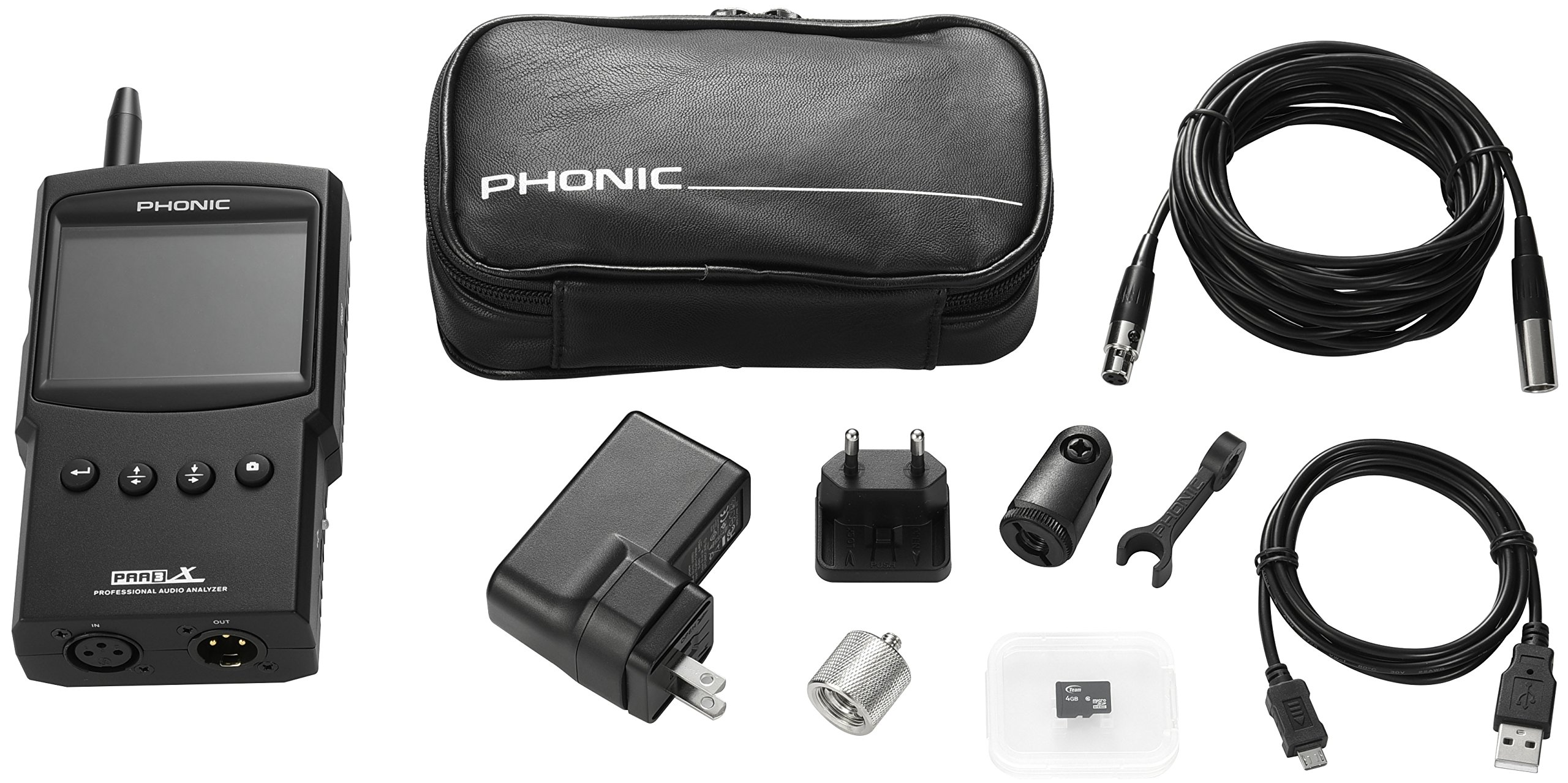

- Removable calibrated measurement microphone and 5 m microphone cable which can measure the sound pressure level remotely are included.
- Easy operation with large four buttons or a side rotary push wheel.
- Mountable microphone and body can be mounted on microphone stand.
Product information:
Shipping Weight: 1188 g
Package Dimensions: 9.40 x 23.39 x 24.41 cm
