Item Descriptions:

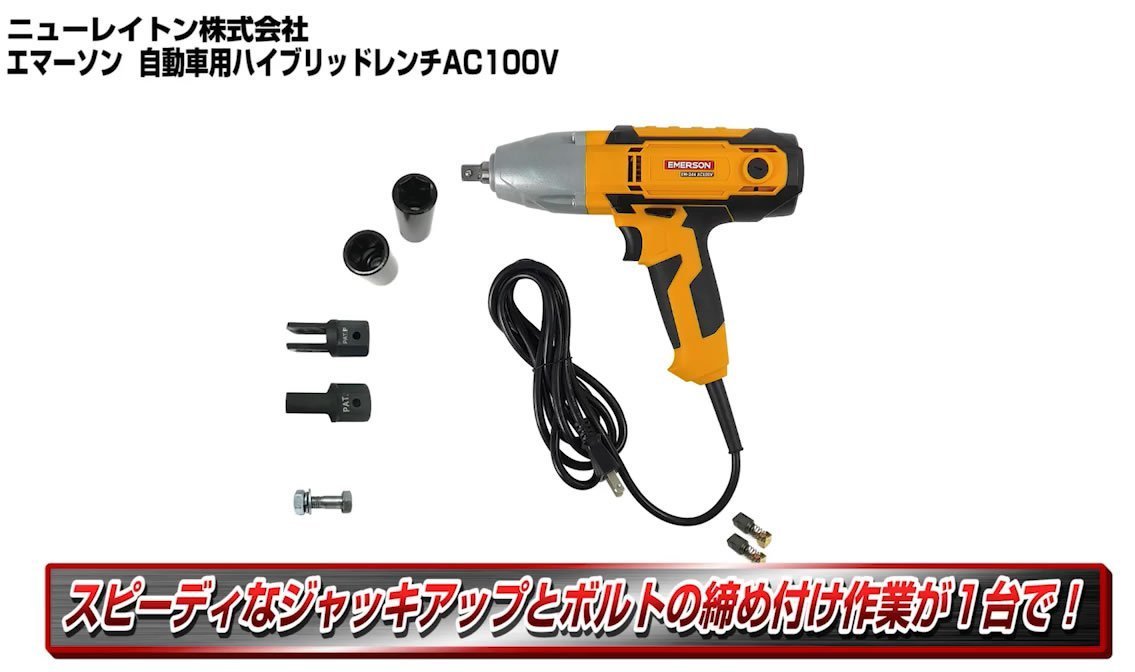

Product introduction
■ Features

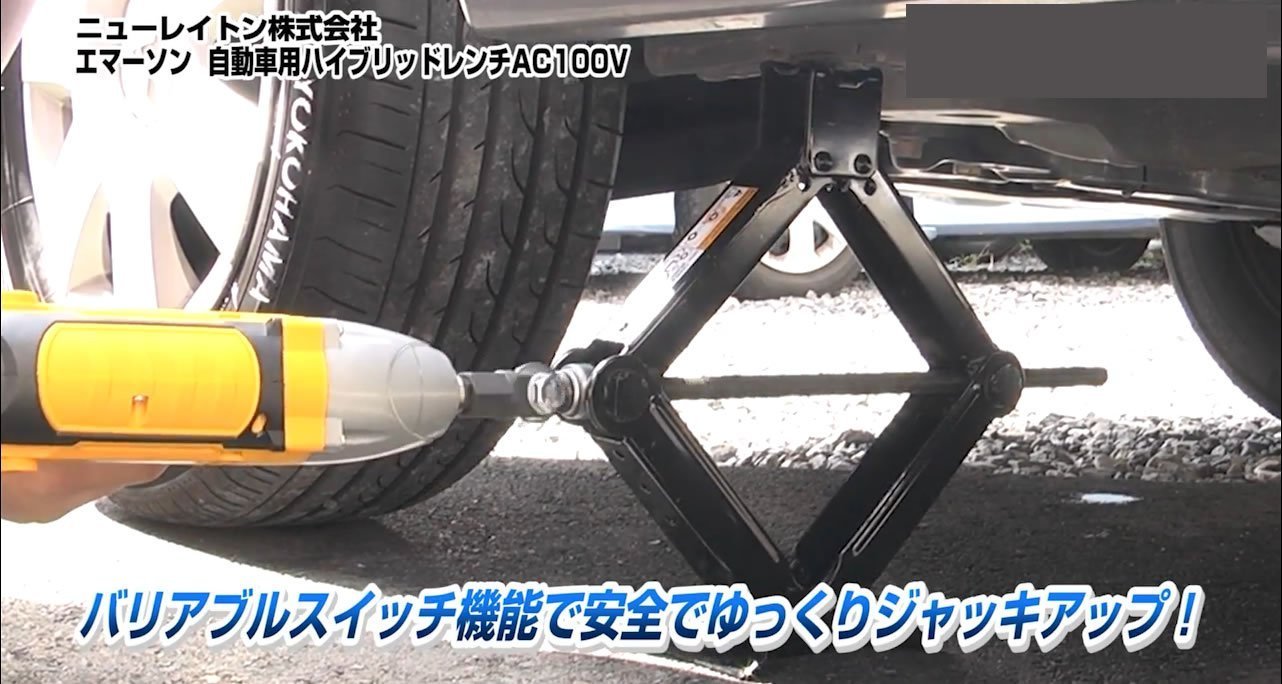

Jack-up & Impact one of 2 roles!
Do not overtighten the bolt with the torque limiter!
■ Function

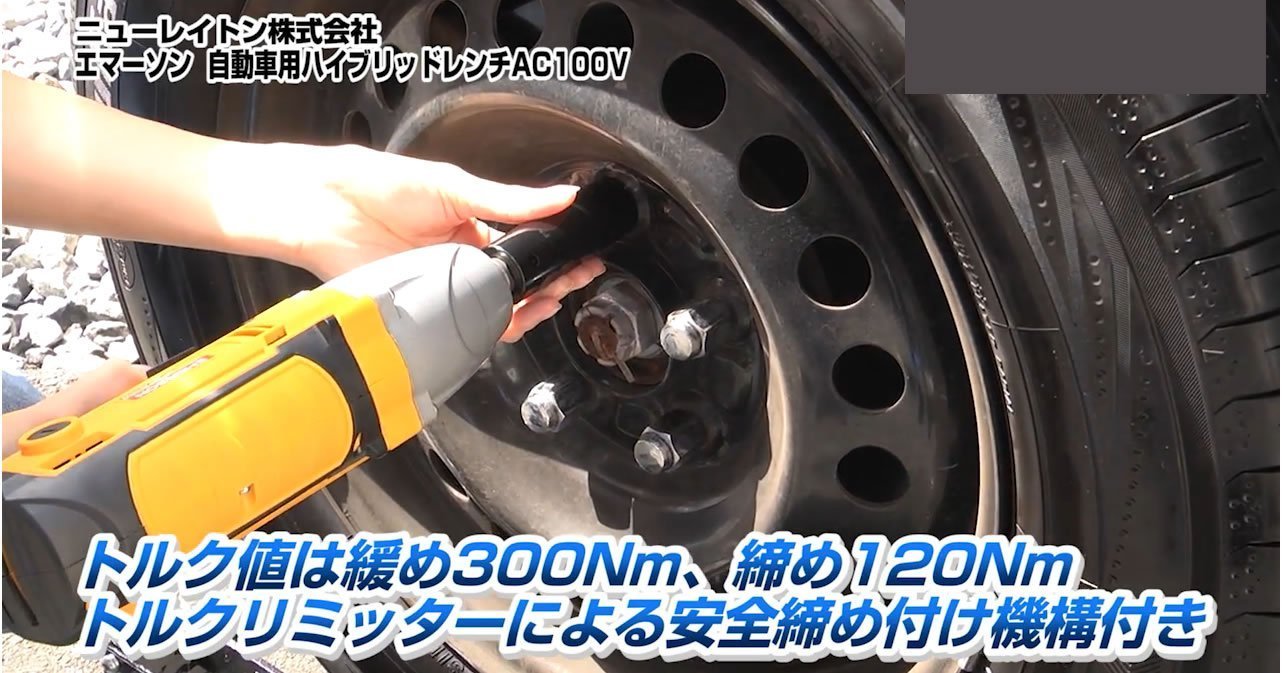

Maximum Torque: Loosen (Left Rotation) 300 Nm / Tightening (Rotate Right) 120 Nm * With Safety Tightening Mechanism
Rotation speed: 0 to 3200 min - 1
Number of hits: 0 to 4200 min - 1
Tightening capacity: M10 to M14
Cord length: 2.0 m
Insulation method: double insulation
Attention (Disclaimer)> Please be sure to read
* The torque limiter function is set to tighten at about 120 Nm by continuing to impact for about 3 seconds, but please be careful because we will not automatically stop the operation.
* After temporarily tightening with this product, please set to the proper torque with a torque wrench etc.
* A big working sound will be generated during the jack up work.
Please pay attention to the work place and work time, please use.
* When using the extension cord, please use one with sufficient thickness
(Cabtire cord or extension cord of cabtire cable)
Not only can not demonstrate the original performance, it will cause breakdown
Please refer to the table below for the extension codes that can be used for this product.
Conductor Nominal cross-sectional area Extension cord length
0.75 mm 2 20 m or less
1.25 mm 2 30 m or less
2.00 mm 2 50 m or less
Features:
- Material: Body / Reinforced Nylon, Aluminum Steel Socket / Chrome Vanadium Steel
- Maximum Torque: Loosen (Left Rotation) 300 Nm / Tightening (Rotate Right) 120 Nm * With Safety Tightening Mechanism
- Input voltage: AC 100 V 50/60 Hz Power consumption / current: Rating 450 W / 5 A Rated operating time: 10 min
- Rotation speed: 0 to 3200 min - 1 Blowing number: 0 to 4200 min - 1 Tightening capacity: M 10 to M 14
- Cord length: 2.0 m Insulation method: double insulation
Product information:
Shipping Weight: 3860 g
Package Dimensions: 11.10 x 27.30 x 35.51 cm
