Item Descriptions:

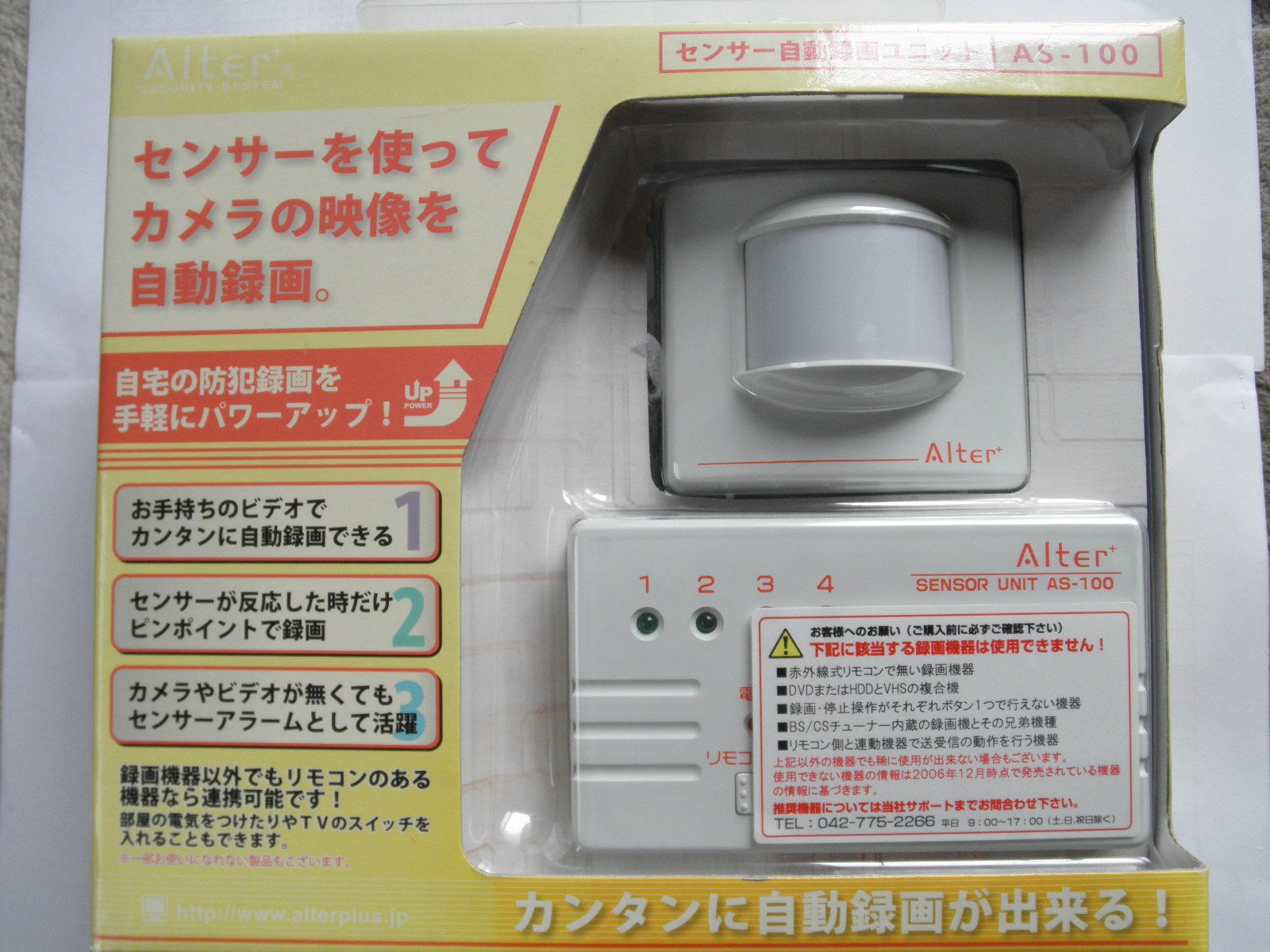

"AS-100 body"

● Learning Remote Control: Infrared method

● Remote control signal learning: 2 commands

● Remote control signal transmission distance (m): Maximum 1 (depending on usage conditions)

● Remote control signal transmission angle (°): Approx. 30

● Sensor input: Up to 4 CH

● Sensor input terminal: Mini DIN jack (6 pins)

Learning signal transmission interval: 4 steps

● Power supply: AC adapter (included)

● Power input terminal: DC power jack

● Power supply voltage: DC 12V

● Consumption current (mA): Up to 180

● Operating temperature range (° C): 0 to + 40

Dimensions (mm): W138 × H30 × D80

● Weight (g): About 172

"Human Sensor"

● Maximum Sensing Distance (m): Line about 6 to 7 (depending on usage conditions)

● Horizontal maximum sensitivity (°): Approx. 70

● Vertical maximum sensitivity (°): Approx. 45

● Power supply: Supplied from the main unit

● Operating temperature range (° C): 0 to + 40

Dimensions (mm): W 94 × H 84 × D 53

● Weight (g): About 90

"Package Contents"

● AS-100 main body × 1

● Human sensor × 1

● Connection cable (about 20m) × 1

● Sensor mounting stand × 1

● Sensor Angle Adjustment Tape x 1

● dedicated AC adapter × 1

● Remote control signal transmission cable × 1

● Mounting screw set × 1

● Instruction Manual (warranty included) × 1

Features:

• Please enter model number Confirm this is compatible:
• Learn the remote control signal of your VCR or HDD recorder twice (recording, stopping etc.).
• Automatic recording is performed by sending the learned remote control signal according to sensor's sensing.
• We made a waterproof design (IP 44) resistant to water droplets and moisture so that the sensor can be installed outdoors.
• It can be installed outdoors in places where water is not applied in large amounts.
• ● Wiring can be easily done by anyone with a single cable.
• Installation can be installed with a single screwdriver and no force is required.
• It is a simple operation that can be done with one button at the time of use.
• All the necessary items including 20 m cable are contained in the box.
• Installation is easy if there is one screwdriver.
• ● You can use it as a "sensor alarm" by using this machine alone without interlocking with security cameras and recording equipment.
• If it is a device other than a recording device, it can be linked.
• For example, it can be used to illuminate the electricity of the room when the suspicious person approaches the entrance, or to switch on the TV and appeal at home.
• You can use it varied depending on how you use not only crime prevention.
• By using a dedicated human sensor (AS-20SE (optional)), it becomes possible to create a more sophisticated system.

Product information:

Shipping Weight: 879 g

Package Dimensions: 3.40 x 13.41 x 14.20 cm
