RGB (Multi-color) Wall-mounted Glass Touch Screen RGB LED Controller - 3 Channel LED Dimmer Switch for RGB LED Lights (White)







for RGB(White)


for RGB(Black)


for sigle color(Black)


for sigle color(White)

Product Description

Features:

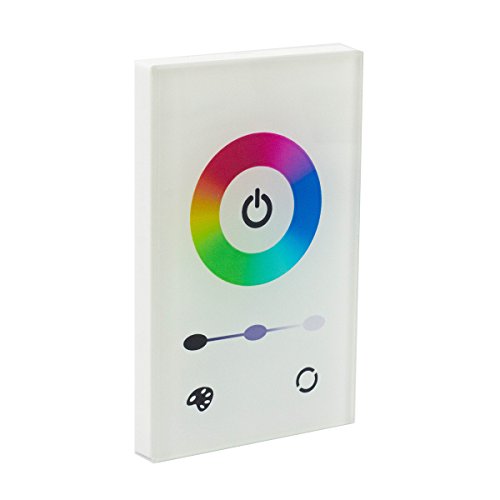

Touch panel is made of glass, fashion, smooth and against scratches
Offer 19 kinds of dynamic mode and 20 kinds of static mode switching cyclically
Easy to increase/reduce brightness and speed when in static state (26 grade brightness, 26 grade speed)
Adopts high precision capacitance touch control chip, increases the touch sensitivity, reduces trigger which caused by mistake.

Specifications:
Color: White
Working temperature:-20~60¡æ
Power supply voltage: DC 12-24V
Output:3 channel
Connect way: common anode
Output current:<4A (each channel)
Output power: 12V:<144W, 24V:<288W
Static power consumption:<1W
Net weight:155g
External dimension: L74 X W120 X H41.8mm

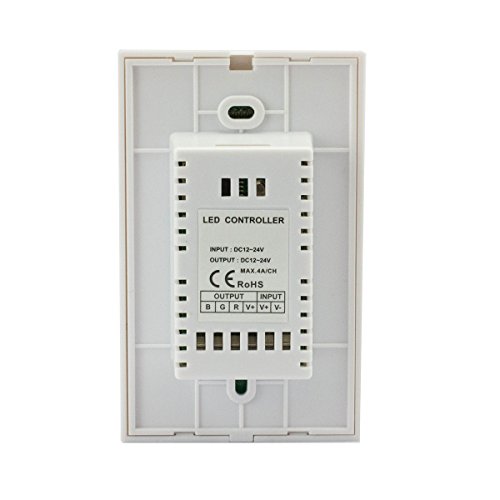

Interface Instruction:
Input:power input pins, input voltage range is 12-24V, V- connect negative and V+ connect positive
Output:
power output pins, output voltage is 12-24V, output maximum current is 4A;
V+ is common anode
R is red light interface
G is green light interface
B is blue light interface

Interface Instruction:
Input:power input pins, input voltage range is 12-24V
Output: power output pins, output voltage is 12-24V, output maximum current is 8A;

Package Included: 1x Glass Touch Pannel Full-color Controller 1x User Mannul


Feature

Compatible with most 12V-24V RGB LED light strips
Easy to increase/reduce brightness and speed when in static state (26 grade brightness, 26 grade speed)
Offer 19 kinds of dynamic mode and 20 kinds of static mode switching cyclically
Glass control panel: Smooth to touch and easy to clean
Elegant appearance£ºClassical rectangle controller body; perfect decorative wall switch
Brand : HONGYUE
MPN(PartNumber) : MAX712
EAN : 6921407628694
Package Dimensions(LxWxH) : 16x11x7cm ; 159 g
