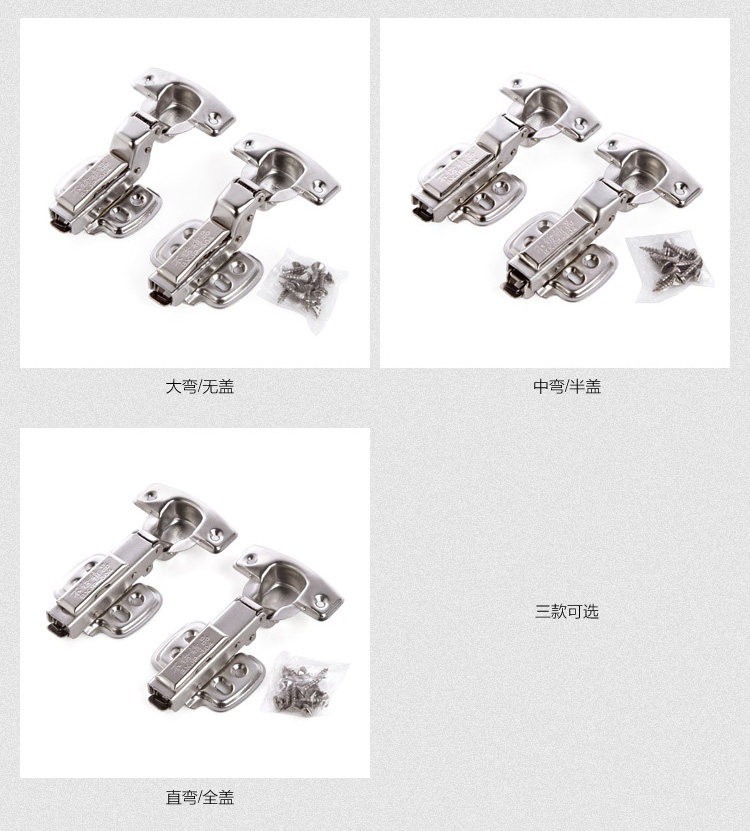

color 1 固装 冷轧钢直臂=全盖,
Fixedly mounted cold-rolled steel arm = Full cover,
color 2固装 冷轧钢中弯=半盖,
Fixedly mounted in cold-rolled steel curved lid = half,
color 3固装 冷轧钢大弯=不盖/内藏,
Cold-rolled steel is secured to Big Bend = no cover / built-in,
color 4固装1.2mm不锈钢直臂=全盖,
Fixedly mounted 1.2mm stainless steel arm = Full cover,
color 5 固装1.2mm不锈钢中弯=半盖,
Fixedly mounted 1.2mm stainless steel curved lid = half,
color 6固装1.2mm不锈钢大弯=不盖,
Fixedly mounted 1.2mm stainless steel does not cover = Big Bend,
color 7 自卸1.5mm一体管直臂=全盖,
Dump 1.5mm one tube arm = Full cover,
color 8 自卸1.5mm一体管中弯=半盖,
Dump = 1.5mm one tube bend half cover,
color 9 自卸1.5mm一体管大弯=不盖,
Dump Big Bend = 1.5mm one tube does not cover,
color 10 固装1.5mm一体管直臂=全盖,
1.5mm tube is secured to one arm = Full cover,
color 11 固装1.5mm一体管中弯=半盖,
Fixedly mounted 1.5mm one tube bend = half cover,
color 12 固装1.5mm一体管大弯=不盖
Fixedly mounted 1.5mm one tube does not cover Big Bend =
问:铰链的型号如何选择?

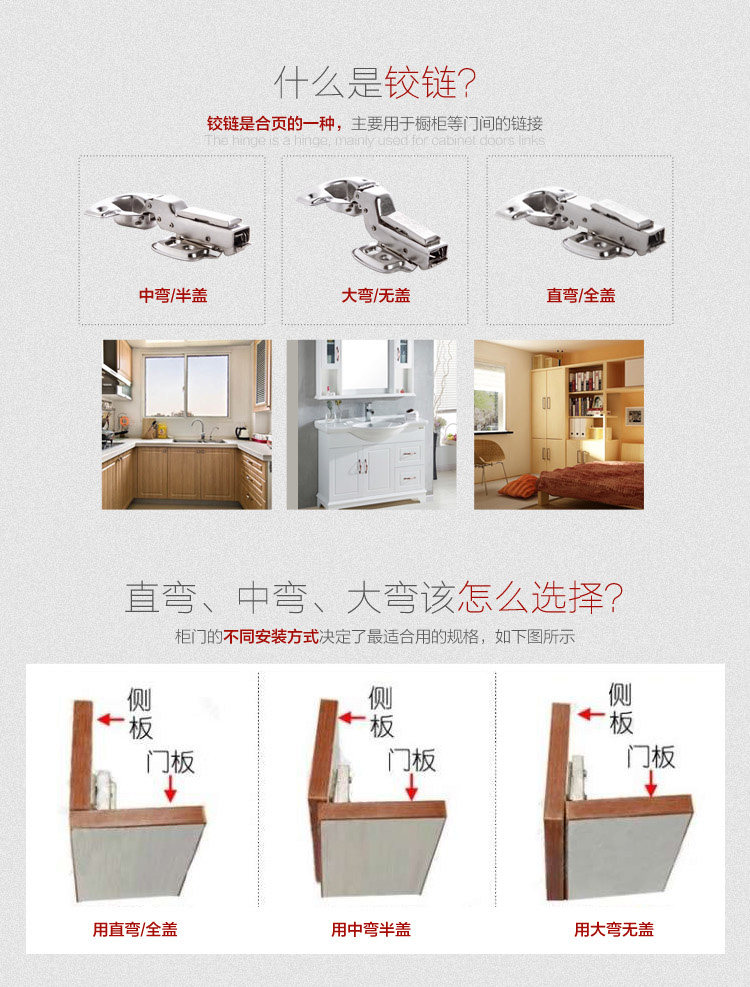

答:通常橱柜用的木板厚度是18mm,全盖(直弯/直臂/全压/全扣)就是能全部盖住侧板的,半盖(中弯/小弯/半压/半扣)就是盖住侧板9mm(也就是一半),不盖(大弯/不扣/不压/内藏)就是置于侧板的内侧,有的地方也叫内藏式!具体如图所示
Q: How to choose hinge model?
A: Usually a wooden cabinet with a thickness of 18mm, full cover (curved straight / arm / full pressure / full deduction) which is able to cover the entire side of the semi-cover (in the bend / small curve / semi-pressure / semi deduction) cover plate is 9mm (ie half), do not cover (big bend / no deduction / no pressure / built-in) is placed inside the side panel, and in some places also called concealed! Specifically, as shown in Figure
 | | |  |
