Product Description
All of ICAN frame and wheelset will have 730 days warranty
Finish: UD matte
Frame Size: S/M/L
Wheel Size: 27.5er
Seat Post: 31.6mm (no including)
Seat Post Clamp:34.9mm (no including)
Bottom bracket: 73 mm BSA threaded
Suspension travel: 110mm
Headset : Top: 1-1/8" , Down:1-1/2"
Cable Routing : All Inner Cables
Brake: Disc Brake
Weight: 1960 -45g(S)
Axle:135x9mm/142x12mm

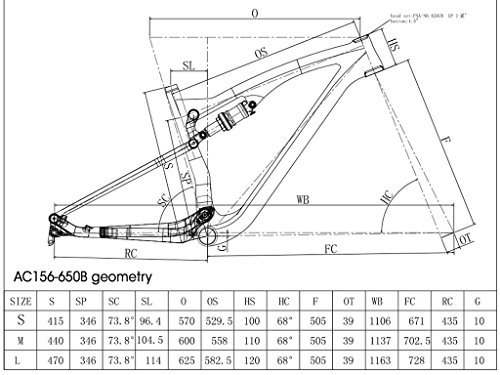

Size S(you can see other size geometry on the photo)
Top Tube (effective): 570mm
Seat Tube (BB Center to Top): 415mm
Chain Stay (actual): 435mm
Seat Tube Angle: 73.8¡a
Bottom Bracket Drop: 10mm
Head Tube Length: 100mm
Head Tube Angle: 68¡a
Fork offset: 39mm
Wheelbase 1106mm
