Item Descriptions:

Product description

This product is an outdoor camera that can be waterproofed with HDTV.

It can be used for outdoor thief, household crime prevention, animal monitoring and outdoor hunting.

It is concealed, waterproof, dustproof specification, it can be installed outdoors, intelligent monitoring of dubious people and animals can be done, photos and videos can be automatically taken and recorded.

This is a new outdoor intelligent surveillance camera with three sensors installed.

Product is dormant from everyday, power consumption is very low.

If there is an animal moving in front of the camera, the sensor rapidly identifies and activates the camera within 0.2 - 0.6 seconds, takes pictures and video, and saves it on the SD memory card.

• With 8 million CMOS sensor

• Movie resolution of 1920 × 1080 P (25 fps), 16 million pixels

• Clearly reflected on the monitor for confirmation of 2.4 inch · 480 * 234 pixel TFT-LCD

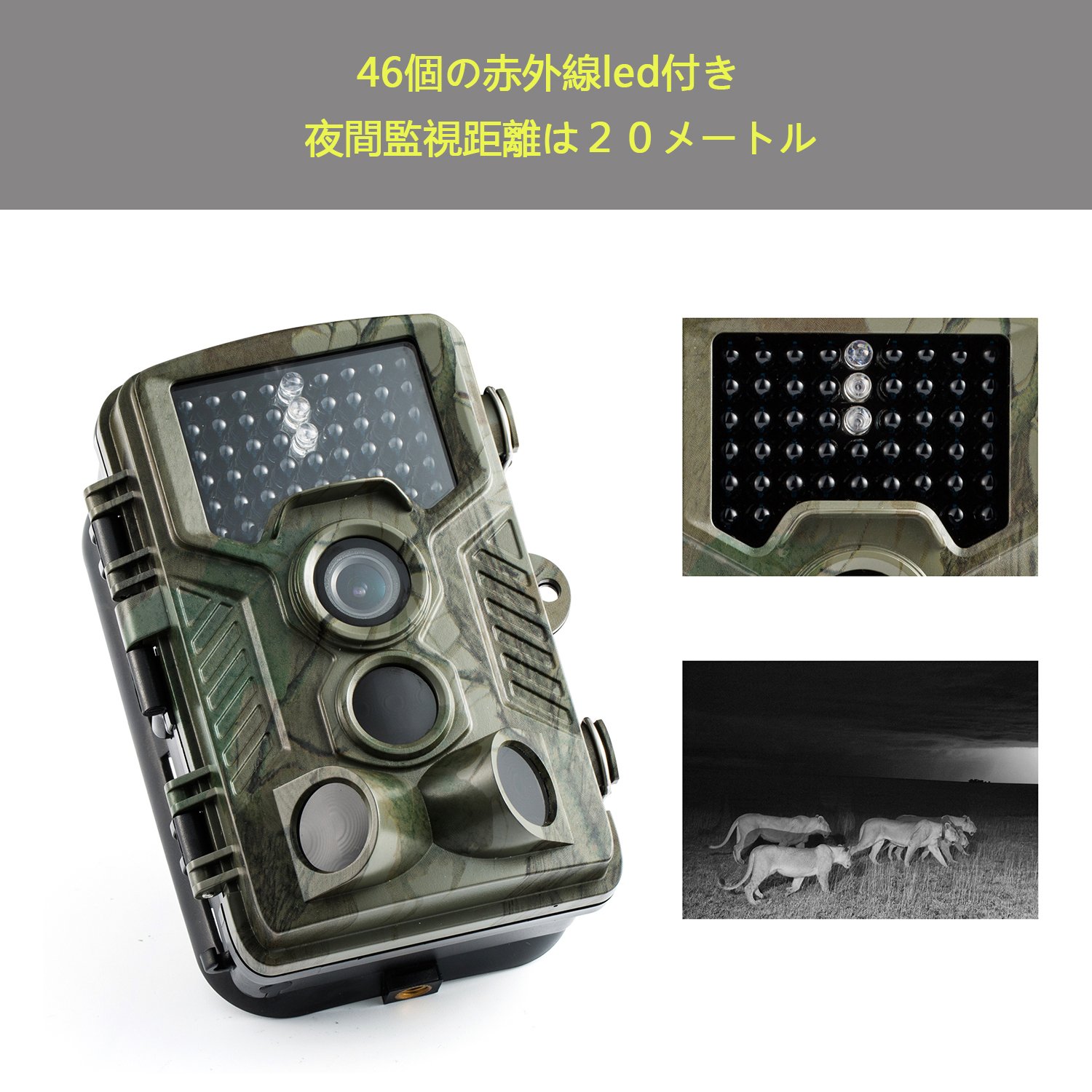

• 49 infrared LED lights, sensing distance of 20 meters

• Automatic filter design, sharp color images during the day and clear black and white images at night.

• Unique three sensor zones and design, improve detection range and coket speed.

• You can take pictures with tremendous speed.

Just 0.5 seconds from dormant state to completion of filming,

The fastest is 0.2 seconds.

• Camera name can be set, camera monitoring position can also be recorded

• Time, date, temperature, moon phase, camera name, etc. can be watermarked.

• Protected by password setting.

• Electrical quantity indication function

• Built-in temperature detector

• Built-in microphone and horn

• USB 2.0 and TV-OUT functions

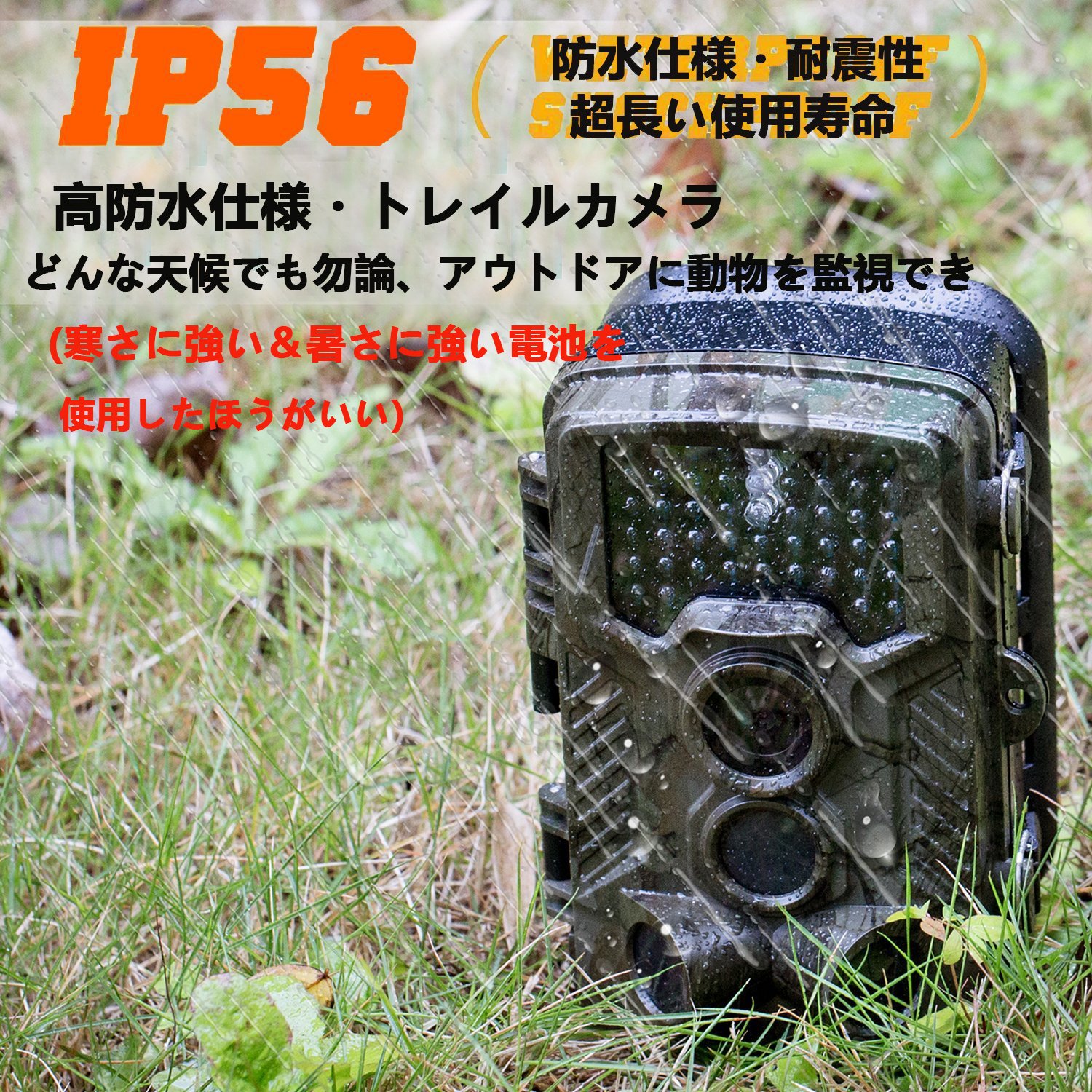

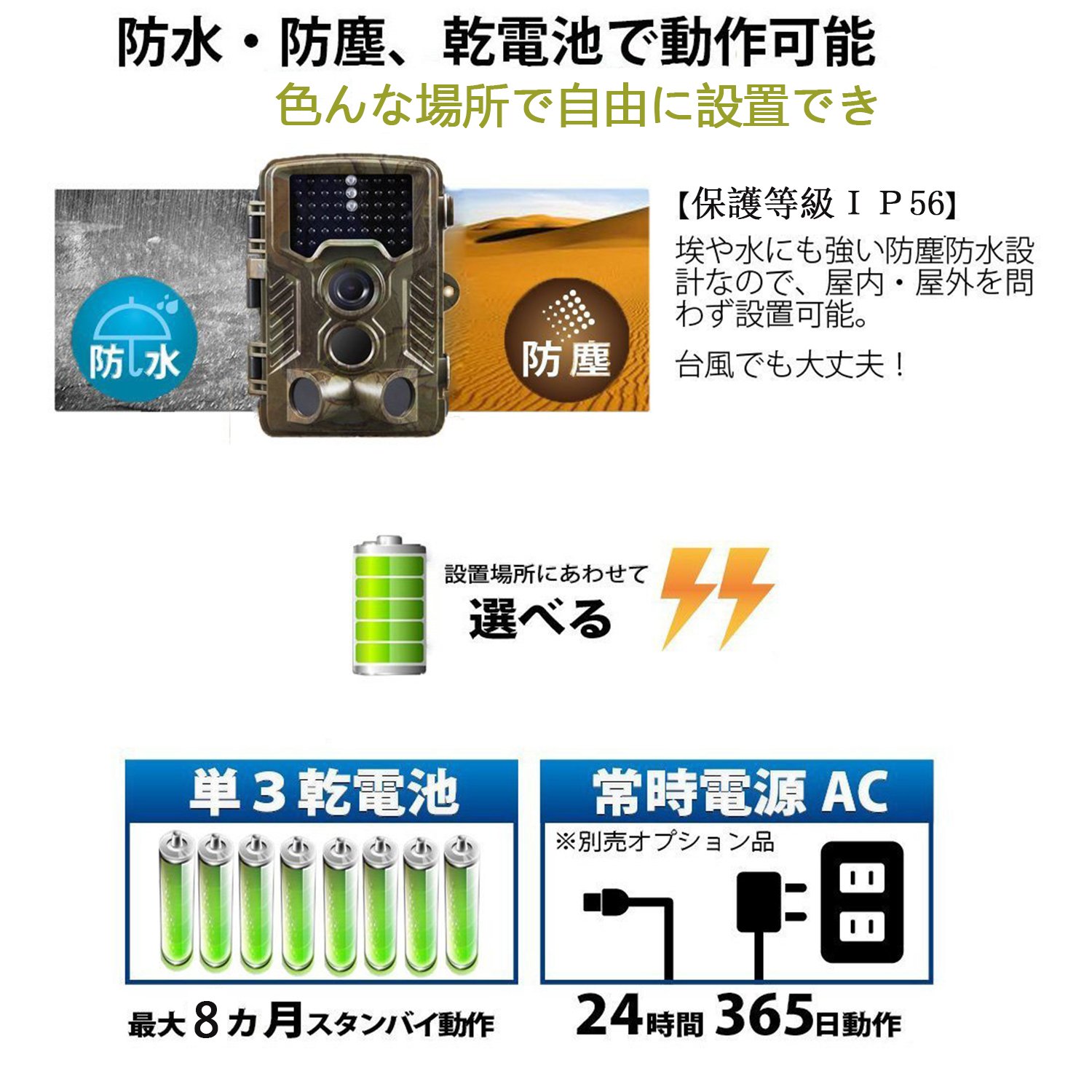

• IP 56 Waterproof / Dustproof Design

• Can be used at extreme temperatures between -20 ° C and 60 ° C.

• Electricity consumption is very low, with 8 dry cells the standby time is up to 6 months.

<Operation preparation>

8 batteries are required.

(DC connection is 12 V adapter)

Please use the SD card of CLASS 4 or higher.

I will recommend CLASS 6.

Please unlock the SD card before inserting the SD card.

Switch: OFF / Turn off, TEST / setting mode, ON / monitoring mode

Please initialize 1 before using the memory card for the first time.

Unlock the camera, open the battery box → insert the battery → insert the SD card → press SWITCH to TEST → press MENU → initialize the SD card → select Recovery setup → select the time of the system and fix it.

When the power is insufficient, it automatically enters the standby state.

How to use wall mount

Using a wall mount, the camera can be fixed to a wall or ceiling.

Once fixed to the wall or ceiling, please check the condition of the screw and nut once.

<System setting>

Toggle up / down button and change recording and recording mode.

Press the menu button (MENU) to enter the menu setting.

Press the menu button again to return to the previous screen or close the setting.

Press the up / down button to browse the menu.

Press the OK button to enter the option.

Browse up / down buttons.

Press the OK button to confirm the setting.

mode

There are three modes: photos only, recording only, photo & video.

Format of memory card

After formatting the memory card, delete all data forever.

When using a new memory card, or when that card has been used for another device, format it before using it.

Select 'Yes' and press the OK button to confirm.

While formatting, the message "Please wait a moment" appears on the LCD monitor.

<Elimination of failure and failure>

1. Can not boote → Check if the battery has electricity.

If you replace the new battery, please try again.

Make sure that it is connected with correct polarity.

Please install 8 batteries.

2. Automatic Shutdown → Check if the battery has run out (You can check if there is power on the display.) Please reset "automatic closing".

3. I can not play smoothly on my computer → Please try with another computer.

Please copy the file to your computer and try again.

Please check whether the speed of the SD card has reached CLASS 10.

Please try also to replace the SD card.

4. After connecting to the TV, it does not appear → Check the status and connection of the TV / OUT cable.

Also check the setting of TV output method.

5. Can not shoot or record → Check whether the battery has electricity or not and that the SD card is inserted.

6. The image is blurry or out of focus → Please check if there is dirt on the lens of the camera.

7. SD card can not be used → Please initialize once.

Please also replace the SD card.

8. I can not download or I can not find my camera with my computer → Check the status and connection of the USB cable.

Moreover, the SD card may have broken.

Please try with another computer.

9. The sound of video playback is bad → Adjust the volume.

Please check whether the hole is blocking the recording hole.

10. Do not work sideways PIR → Please reset the side PIR in the system setting

11. Work only during a certain time period → Please re-set the timing mode with system setting

12. Forget password → Enter OPEN and cancel.

Features:

• Please enter model number Confirm this is compatible:
• It has a trigger speed of 0.2 seconds with a 16 million pixel digital camera with 8 million CMOS sensors, so it appears clearly.
• Sharp and clear color images during the day and clear black and white images at night.
• In standby operation very low consumption voltage, long operation time is provided.

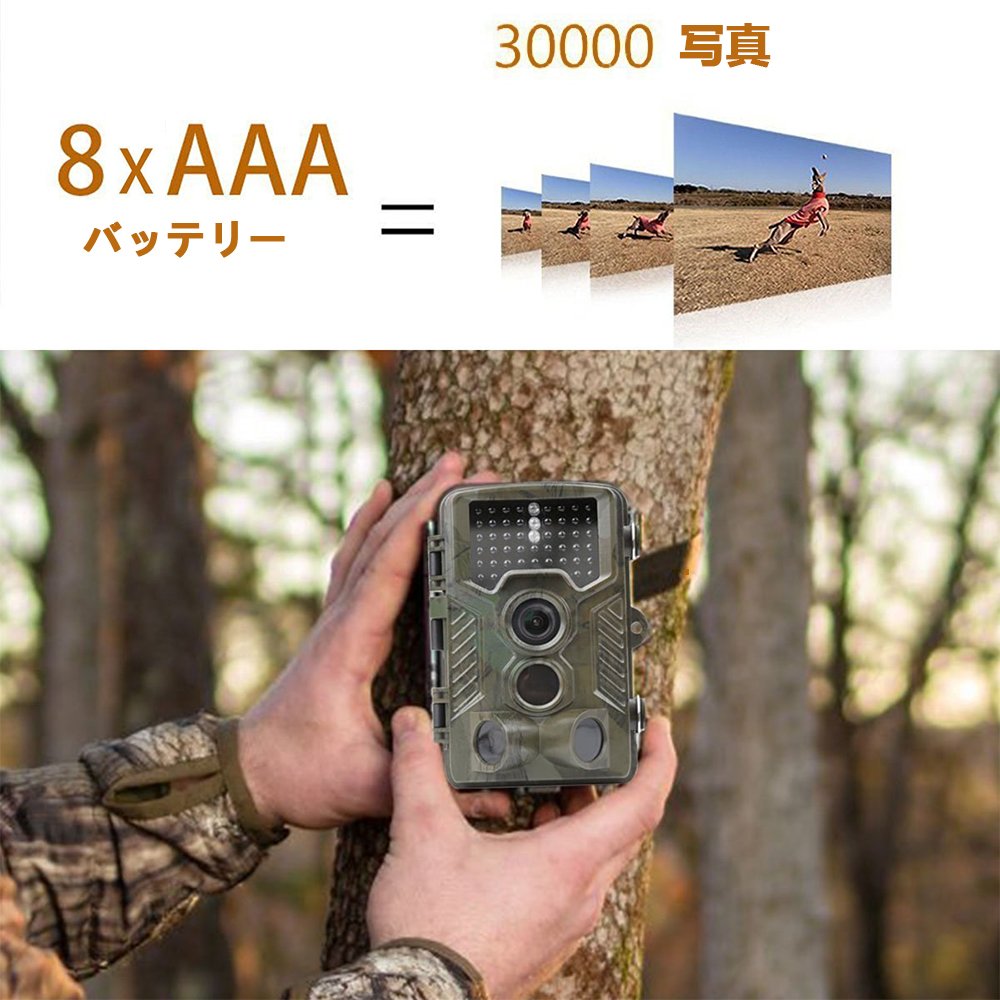

• If you use 4 AA batteries in standby mode, you can reach up to 3 months and use 8 AA batteries will reach up to 8 months.
• We support multiple languages ​​including Japanese, English, Spanish, French, I, Dutch, Chinese, Portuguese.
• 3-60 seconds and 1 minute - 60 minutes automatic recording setting, you can record with a micro 32GB SD card.
• You can connect to the TV.
• Although the degree of protection is IP 56, it is resistant to dust and water, and it is dustproof and waterproof design so it can be installed indoors or outdoors.

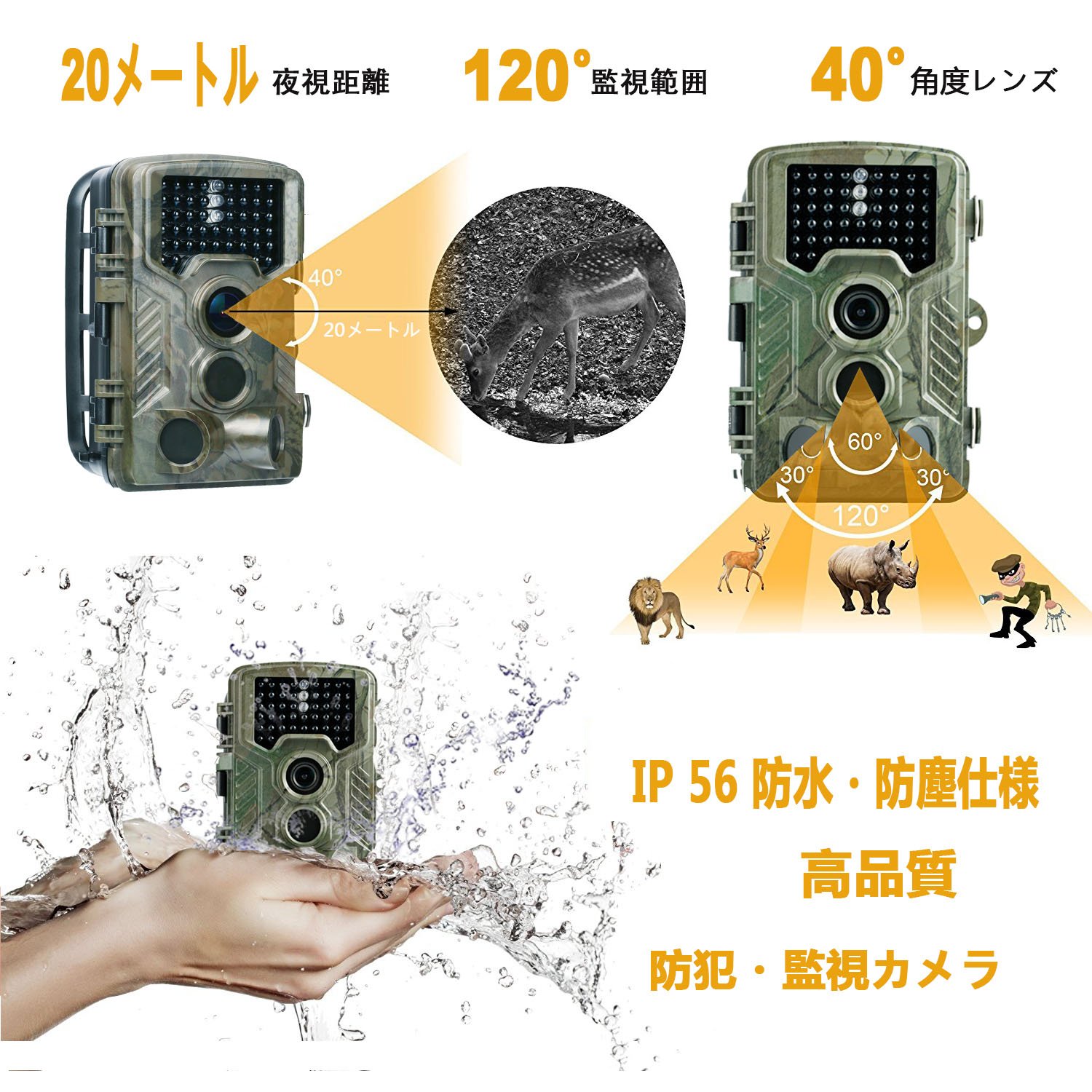

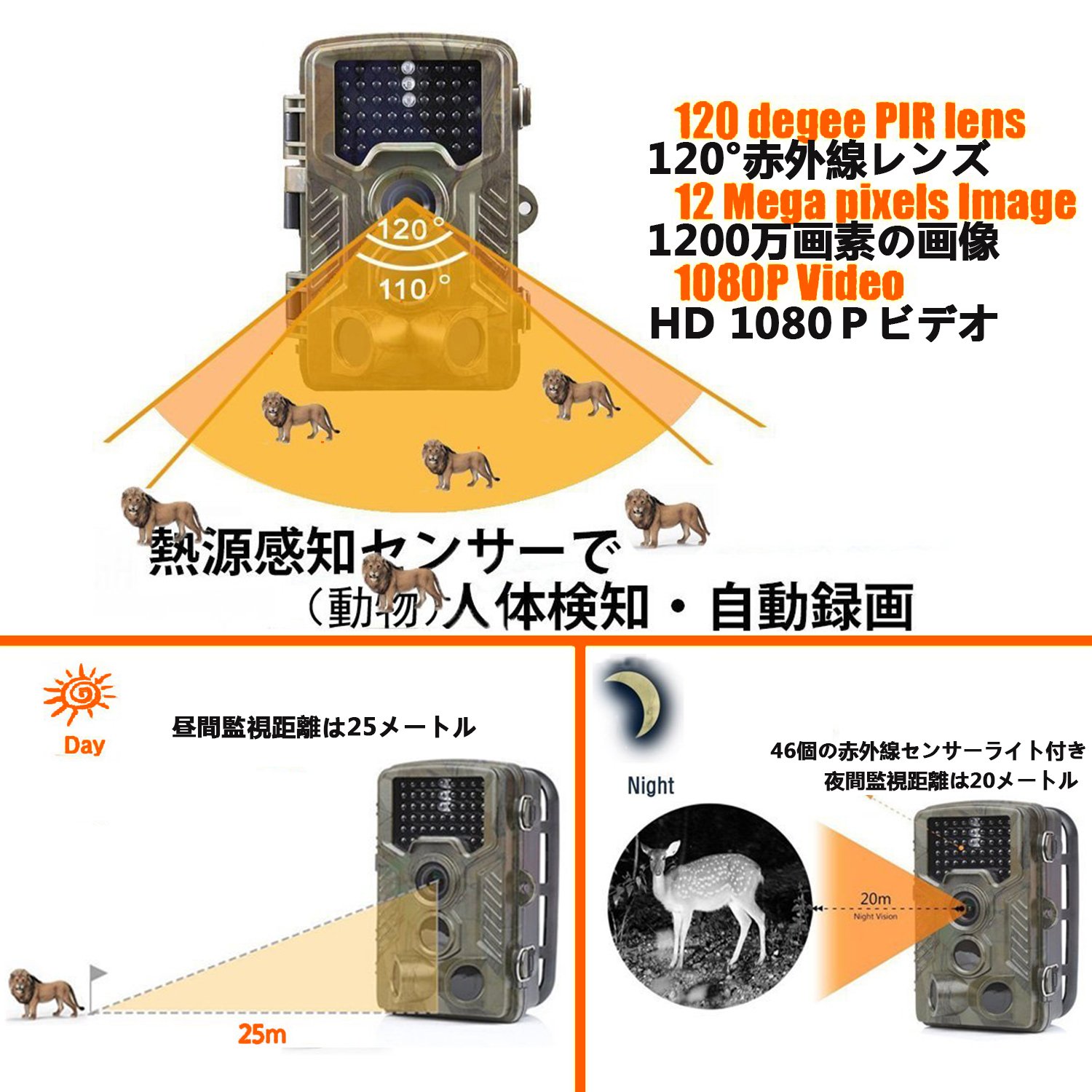

• Unique sensor design provides wider detection angle and improves camera response time.
• It can be used at extreme temperatures between -20 ° C and 60 ° C.
• Compact size, about 13.5 x 9.0 x 7.6 cm.
• Ideally it is suitable for use with a roof.
• Since date, time, temperature and lunar phase can be displayed on the image, it is the best machine for wildlife observation.
• (It is also possible to set not to record.) With a motion sensor and a digital camera with an infrared irradiation function, photographs are taken automatically in response to moving objects, if you set them on the path of animals.
• Fasten the strap Easy to operate, quick assembly and match the position of the camera.
• Using the function of the serial number, the location can be encoded in the photo.
• When using multiple cameras, this function can easily identify the location when viewing the picture.
• (Please note: Recently, the number of fraudulent cases has been increasing rapidly since we are selling suspicious items suddenly, so the fraud cases are selling at a big discount for expensive items, send a false notification number to the customer,
• Please note that products will not be shipped.)

Product information:

Shipping Weight: 680 g

Package Dimensions: 10.11 x 12.60 x 19.99 cm
