Specification:
Color: Black
LED: Green LED for Power indicator
USB: Compliant USB 2.0 free port
Support System: Windows 2000, XP/7/Vista, Pentium III 800 above
Format Support: 4 GB Hard Drive Space
Memory: 256MB of RAM
Video system supported: NTSC, PAL, Video format

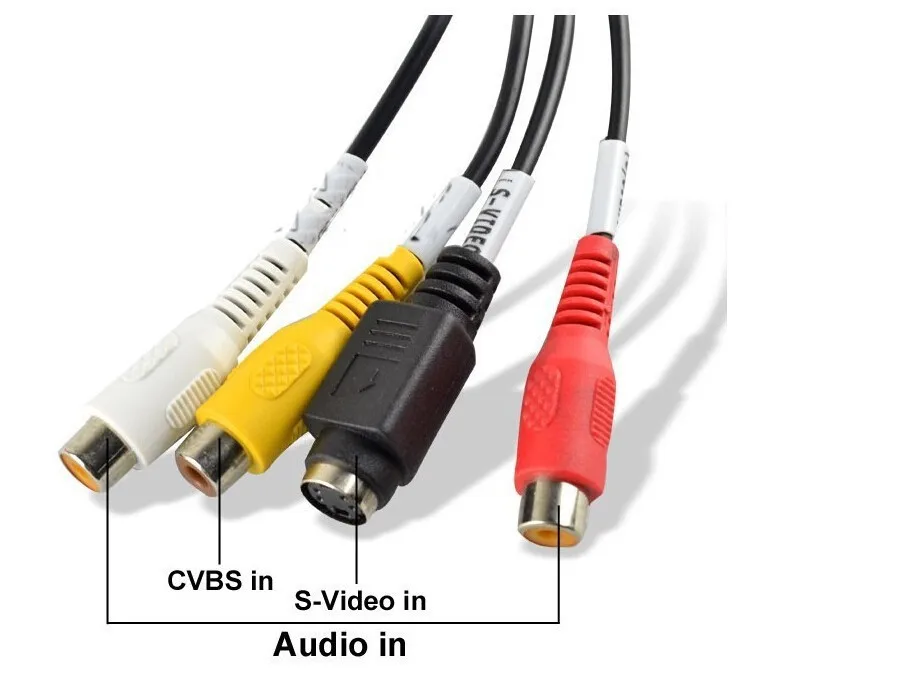

Video input: One RCA composite, One S-Video.
Audio input : Stereo audio (RCA)
NTSC: 720 x 480 @ 30fps
PAL: 720 x 576 @ 25fps
Color: Black
Gross Weight: 106 g/0.23 lb.
Net Weight: 63 g/0.14 lb.
Object Size: 9 x 2.6 x1.4 cm/3.54 x 1.02 x 0.55 inch
Package Size: 18.8 x 17.8 x 4 cm/7.40 x 7.01 x 1.57 inch

Feature:
Include Professional and easy to learn & used video editor software: Ulead Video Studio SE DVD
Supports Brightness, Contrast, Hue, and Saturation control
Popular USB 2.0 interface and not need other power
Capture Video though USB 2.0 interface

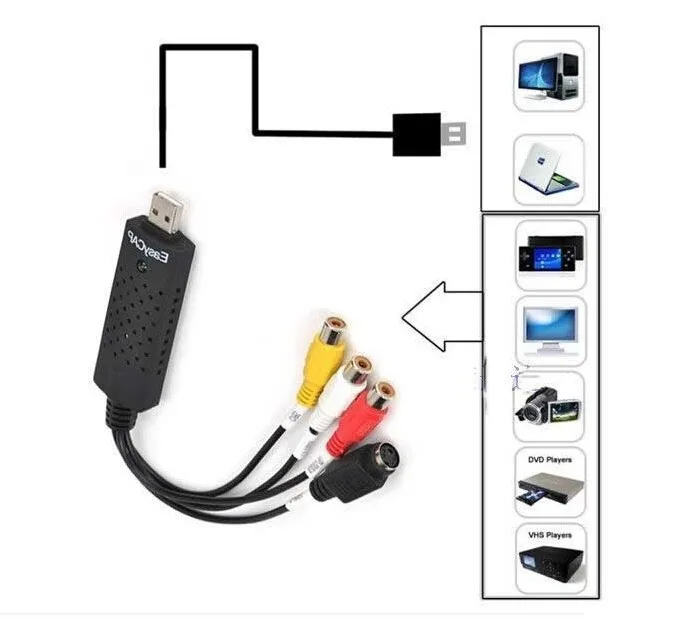

Applying to internet conference / net meeting
High plug & play
Supports high quality video resolution
Supports for All Formats: Record in DVD+/-R/RW, DVD+/-VR, and DVD-Video.
Supports output Formats: DV, AVI, MPEG, WMV, VCD, DVD

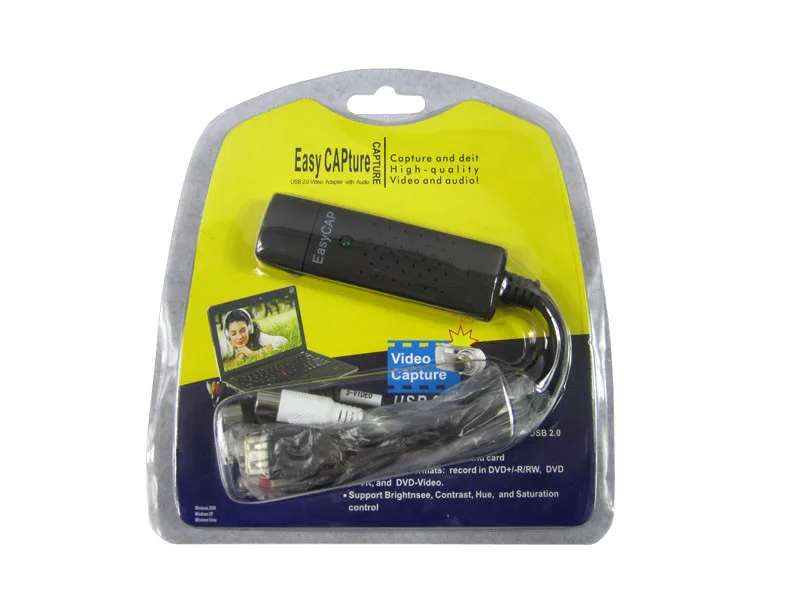

Package Includes:
1 x USBDVR USB 2.0 Video Adapter with Audio
1 x USB Cable
1 x Software on CD-ROM

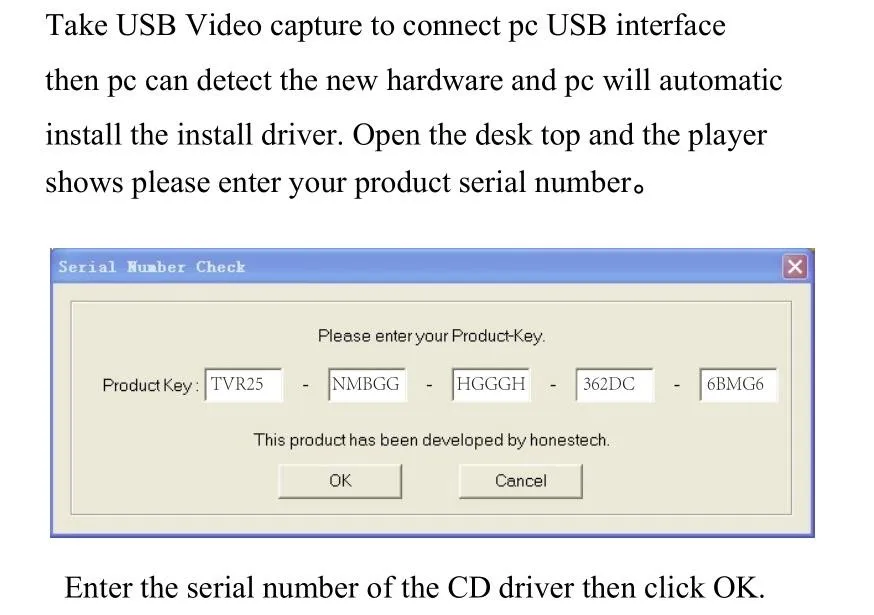

EasyCAP user manual describe
EasyCAP DC60 007 Chip 06
EasyCAP DC60 007 Chip 04
EasyCAP DC60 007 Chip B

EasyCAP DC60 007 Chip 05HTB1HgdfFVXXXXX_XXXXq6xXFXXXoHTB1VOo9FFXXXXXYaXXXq6xXFXXXB
