| | UK (3 pin) Type Features - Range Extender mode boosts wireless signal to previously unreachable or hard-to-wire areas flawlessly
- Extra outlet makes power available for other electrical devices
- Miniature size and wall-mounted design make it easy to deploy and move flexibly
- 2 fixed external antennas provide excellent WiFi coverage and reliability
- Easily expand wireless coverage at a push of Range Extender button
- Smart Signal Indicator Light help to find the right location to place the range extender
- Ethernet port allows the Extender to function as a wireless adapter to connect wired devices
- 300Mbps wireless data rates ideal for video streaming, online gaming and internet calling
- Supports domain name-based login (http://tplinkextender.net) for advanced management
- Compatible with other 802.11n/g/b wireless devices
- Advanced 64/128/152-bit WEP, WPA-PSK / WPA2-PSK encryptions protect your network from security threats

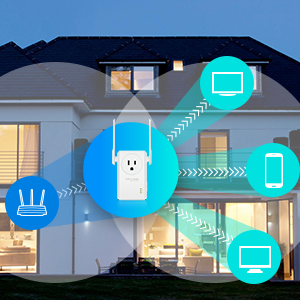

Far-Reaching Wi-Fi Coverage Extends your network's Wi-Fi and delivers reliable N300 wireless coverage to hard-to-reach areas in your home. Find the perfect recipe in the kitchen, stream your favorite show in the bedroom, and stay connected in your home office. Connect a smart TV, game console, or another device directly to Wi-Fi using the Ethernet port. Works with any Wi-Fi router or access point to give you farther range and better coverage.
View larger Find the Perfect Setup Spot Plug it into any outlet for immediate and maximum Wi-Fi range extension. Find the best spot to set up with the Intelligent Signal Indicator. Easily moves to any outlet for flexible installation and customization. Other Benefits
|
|
|
|
|---|
Reach Farther Two external antennas provide excellent coverage and reliability no matter where you connect in your home. | Outlet Passthrough Built-in power socket keeps your outlet free for other uses. | One-Button Setup Press the Range Extender button and your routers WPS button to instantly connect and expand your Wi-Fi. | Industry-Leading Warranty 2-year warranty, 24/7 unlimited technical support by phone and email. |
Specifications : | HARDWARE FEATURES |
|---|
| Standards and Protocols | IEEE 802.11n, IEEE 802.11g, IEEE 802.11b |
|---|
| Interface | 1 * 10/100Mbps Ethernet Port (RJ45) |
|---|
| Plug Type | EU, UK, US |
|---|
| Button | RE (Range Extender) Button, Reset Button |
|---|
| Antenna | 2 * external |
|---|
| Dimensions ( W x D x H ) | 4.3x 2.6 x 3.0in. (110.0 x 65.8 x 75.2mm) |
|---|
| Power Consumption | About 3W |
|---|
| WIRELESS FEATURES |
|---|
| Frequency | 2.4~2.4835GHz |
|---|
| Signal Rate | 11n: Up to 300Mbps (dynamic)
11g: Up to 54Mbps (dynamic)
11b: Up to 11Mbps (dynamic) |
|---|
| Reception Sensitivity | 270M: -69dBm@10% PER
130M: -69dBm@10% PER
108M: -69dBm@10% PER
54M: -69dBm@10% PER
11M: -86Bm@8% PER
6M: -89dBm@10% PER
1M: -91dBm@8% PER |
|---|
| Transmit Power | < 20 dBm (EIRP) |
|---|
| Wireless Modes | Range Extender |
|---|
| Wireless Functions | WMM (Wi-Fi Multimedia)
Wireless MAC Address Filtering
Wireless Statistic
Domain Login Function |
|---|
| Wireless Security | 64/128/152-bit WEP
WPA-PSK / WPA2-PSK |
|---|
| OTHERS |
|---|
| Certification | CE, RoHS |
|---|
| Package Contents | 300Mbps WiFi Range Extender with AC Passthrough TL-WA860RE
RJ-45 Ethernet Cable
Resource CD
Quick Installation Guide |
|---|
| System Requirements | Microsoft® Windows® 98SE, NT, 2000, XP, Vista or Windows 7, 8, Mac® OS, NetWare®, UNIX® or Linux. |
|---|
| Environment | Operating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing |
|---|
