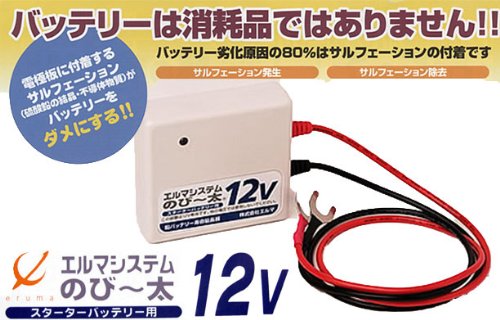

ELMA SYSTEM BATTERY Lifetime Extension Life Extension Device 12 12 V Lead Battery Starter for Extra Extension 12 NN-12

Item Descriptions:

In case

The development of the battery life activation device is a social technology that the era is exactly the time required to reduce the waste of "dilute sulfuric acid" and "lead" and contribute to the environment to protect precious resources.

Here we introduce the lead battery life activation device "ELMA SYSTEM", which exceeds the concept of recycling so far, such as a method of taking out lead and reusing it, a method of injecting a special toughening agent,

It is a thing.

Currently, batteries used for automobiles, electric forklifts, ships, and others vary depending on the application, but it is currently the case that they are discarded in 2 to 5 years.

However, are these batteries really long-lived?

Originally, the electrode plate itself of the battery itself is designed to have about 10 years.

So then why does the battery's performance drop in about five years?

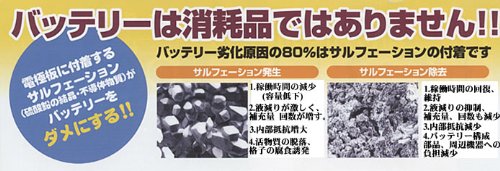

Sulfuric acid in the electrolyte and lead in the electrode are crystallized while sulfuric acid in the electrolyte solution is repeatedly charged and discharged by usual use, and sulfate (sulfation) adheres to the electrode plate.

If the attachment of lead sulfate exceeds 50% of the capacity of the electrode plate, it can not be charged and it is judged that it is a lifetime.

70% - 80% of the cause of deterioration of the battery is this "sulfation".

So we focused on "sulfation", succeeded in removing it, battery life extension and regeneration realized "Elma System".

Pulse wave is applied to the electrode, the "sulfation" is decomposed and removed without damaging the electrode plate, the diluted sulfuric acid is returned to the original electrolyte solution and it is restored to the same state as new to restore the function of the battery

Furthermore, maintaining that state makes it possible to use until the original lifetime of a lead battery.

(PAT, P2001-402237) Install to the battery terminal and start cleaning with residual current.

World patent patented (Japanese Patent No. 3902212)

Please tell me the principle of Elma System.

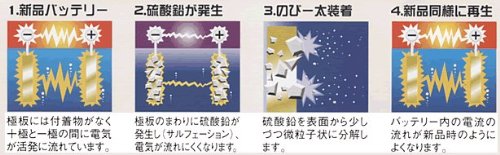

Sulfation (crystallization of lead sulfate) adhering to the electrode inside the battery becomes a resistance and impedes the current.

By applying a special pulse wave from the tip of the sulfation, lead sulfate crystals are gradually decomposed from the surface into fine particles without damaging the tip.

The disassembled sulfation will melt into the battery liquid by charging and will return to the original.

What effect does the Elma system have on the battery?

The battery life will be extended.

The electrode plate of the battery is in a state where electricity is easy to flow and it approaches similar state as a new one.

Can Elma System make electrodes as well as a new one?

No, I can not.

It is a device for removing sulfation adhering to the electrode.

It is not a thing to renew the electrode plate itself.

Is it effective even when the battery is damaged?

No.

Elma system is not a device to repair electrode breakage.

What happens to the sulfation removed by Elma System?

It will return by charging the battery liquid.

Charging with lead sulfate causes a chemical reaction and returns to the original dilute sulfuric acid (electrolyte).

Can Elma system be used in addition to lead batteries?

No, I can not.

It can be used for sealed type of calcium battery · lead battery.

Is there energy conservation effect by Elma System (Nobuya)?

Yes.

In automobiles, improving the charging effect of the battery improves engine startup, reduces the burden on the alternator, and effectively reduces fuel consumption.

Is it effective even if it is attached to a hybrid car?

Depending on the type of battery there is an effect.

Hybrid cars using lead batteries are possible.

Is the Elma system giving out special pulses?

It is a special pulse of microsec unit (1 / 1,000,000 seconds).

Is the special pulse current of the Elma system influenced by the noise on the electric system?

No there is not.

In VCCI technical standard V_3 / 02.04, 2003, CLASS-A is cleared in the interference electric field strength measurement result.

Does it affect the electrode plate (breakage or breakage of lead)?

From the metal work function, lead sulfate is even softer, although the lead is softer.

It takes 0.6 seconds to penetrate lead from the surface.

Elma systems only flow in nanosec units.

(Nanocec 1 billion minutes / 1 second)

Of course, because it is less than 0.6 seconds, it does not damage the electrode plate only by optimum molecular decomposition of lead sulfate.

I have heard stories of similar products, but where is it different?

Erma system also has a special pulse current flowing "during charging" and "during discharging".

During charging, remove sulfation and prevent sulfation when discharging.

What is the power supply of Elma System?

It is a battery.

Use the battery to install the Elma system as the power supply.

The operation lamp lights up during operation.

How is the waterproofness of Elma System?

The internal electronic circuit is made considering water resistance.

So do not worry about normal use.

It is waterproof (JIS C 0920 JIS C 0034) and has been used for leisure boats and the like for ships.

What is the heat resistance temperature of Elma System?

It is -30 ℃ to 90 ℃.

How long is the warranty period of Elma System?

Elma has a 3-year warranty.

However, it is not the guarantee of the battery itself.

Is installation of Elma system easy?

it's simple.

Just connect the red wiring from the main unit to the positive (+) of the battery and the black wiring to the minus (-) of the battery.

Then fix the Elma System main unit.

In that case, securely tighten the loosened nut.

After installing Elma system, when the state of the battery improves, is it OK to replace the Elma system with another car?

No.

Please use Elma System as it is.

If you remove the Elma system, sulfation will occur again.

Does the sulfonation phenomenon occur even if the battery is removed from the car body?

Yes.

Even if the battery itself is discharged naturally.

(Spontaneous discharge is more conspicuous in spontaneous discharge)

When is the Elma System effective to install?

Please install as soon as possible.

You can feel the maximum effect with the used second battery in use, but the highest effect can be obtained because the damage of the electrode plate is small when it is attached to the new battery.

We strongly recommend you to install it early.

Is it effective even if it is attached to a new battery?

Yes.

Battery liquid has been injected into the commercially available battery from the beginning.

In the case of long-term stock etc., lead sulfate has already adhered by self discharge.

By attaching Elma System, lead sulfate is decomposed and it can be used for a long time.

How effective will it appear when wearing Elma system?

Eco Pure · Beauty will be effective as early as two weeks.

The period until the effect appears varies depending on the state of the battery, but from customer reports it is effective in 2 weeks to 1 month.

Is the Elma system effective also for the battery that caused the battery to rise?

Yes.

However, depending on the number of times battery rise occurred, the age of use, depending on the condition of use, the electrode plate may be damaged and may not be recoverable.

CCA) Please judge whether it is better to replace the battery with the tester's measurement result.

The battery rise will change depending on how you ride the car.

There are people who are short people and half a year (collection and delivery vehicles etc), long people who do not change batteries for 4 years or more.

That means that way of driving everyday is related.

(However, sulfation is proceeding inside the battery)

When you install the Elma system, you can always keep it in a battery like a new one.

How long can you use the battery once you attach the Elma System?

Originally the battery (outer box etc) (JIS standard) is designed to be physically ten years.

By attaching it to a new battery (JIS standard) at an early stage, it will be nearly as close to 10 years as the life of the battery.

The usage period will be shortened if the collapse of the electrode plate, dropout of separation, etc. occurs in accordance with the use environment of the car.

Is the voltage of the battery kept by installing the Elma system?

Yes.

The voltage of the battery can be made as good as new.

The voltage of the battery is normal and the normal voltage can be supplied when the charge state is sufficient.

Elma System is a device that works to keep the charge capacity normal.

* Suppose, for example, that the battery charge capacity is 100.

As the years go by, the capacity gradually decreases to 90, 80 · · · by sulfation.

Some batteries are 100% charged in the usage situation of individual cars, some batteries are charged only by 50%.

Therefore, when considering voltage, charge capacity and charge rate become problems.

The Elma System improves the charge capacity to normal, but the charge rate is the responsibility of the person using the car.

Please understand this point well.

Do car parts also prolong life?

We will extend the life of electrical parts.

By installing the Elma system, stable supply of electricity becomes possible, engine startability is improved, stable operation of electrical components is kept, the load of the generator etc. is reduced, and the parts last longer.

Is Elma system only fitted to cars?

No.

In addition to ordinary passenger cars, Elma system is compatible with all lead batteries such as UPS emergency power supply, golf cart, electric wheelchair, construction machine and ship, and can be used in a wide range.

Is Elma system made in Japan?

Yes, it is made in Japan.

Features:

L70 × W 55 × H 22 (mm) 100 g Frequency: 10,000 Hz Consumption current: 12 V / 20 mA Cable length: 500 mm
LED display Automatic stop function when discharging Waterproof processed Heat resistant temperature -30 ℃ to 90 ℃
Various environmental tests Clear VCCI Measured PL method Compatible manufacturer's warranty 3 years Service life approximately 10 years
Made in Japan Application: 2000 cc or more or vehicles with battery capacity 50 Ah or more
Passenger car 12V truck 12V Wagon car 12V Boat 12V Ship 12V heavy machine 12V Construction machine 12V

Product information:

Shipping Weight: 127 g

Package Dimensions: 5.69 x 10.21 x 12.29 cm
