Item Descriptions:

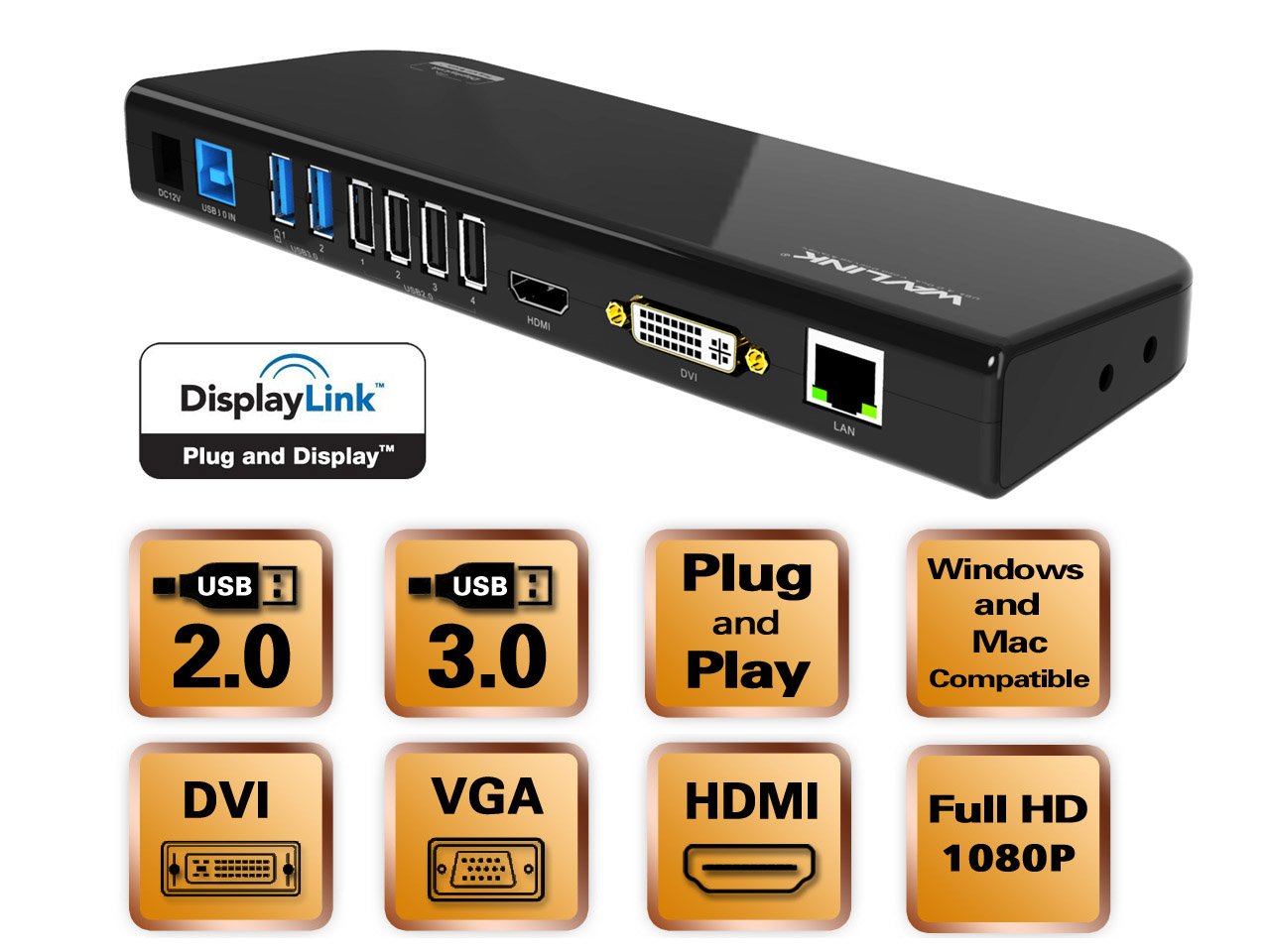

Wavlink USB 3.0 UG39DK1 Docking Station Features:

With this product, you can connect various devices to a Windows tablet, laptop, etc. with just one USB cable.

We also support Windows 10 by updating the driver and firmware.

Even PCs with USB 2.0 ports are compatible, so you can connect without problems.

If you connect an external monitor via two graphic ports, HDMI and DVI, you can set it up as a duplicate or extended desktop just like a monitor connected directly to the system.

Since a DVI to VGA conversion adapter is also included, you can also connect a VGA monitor.

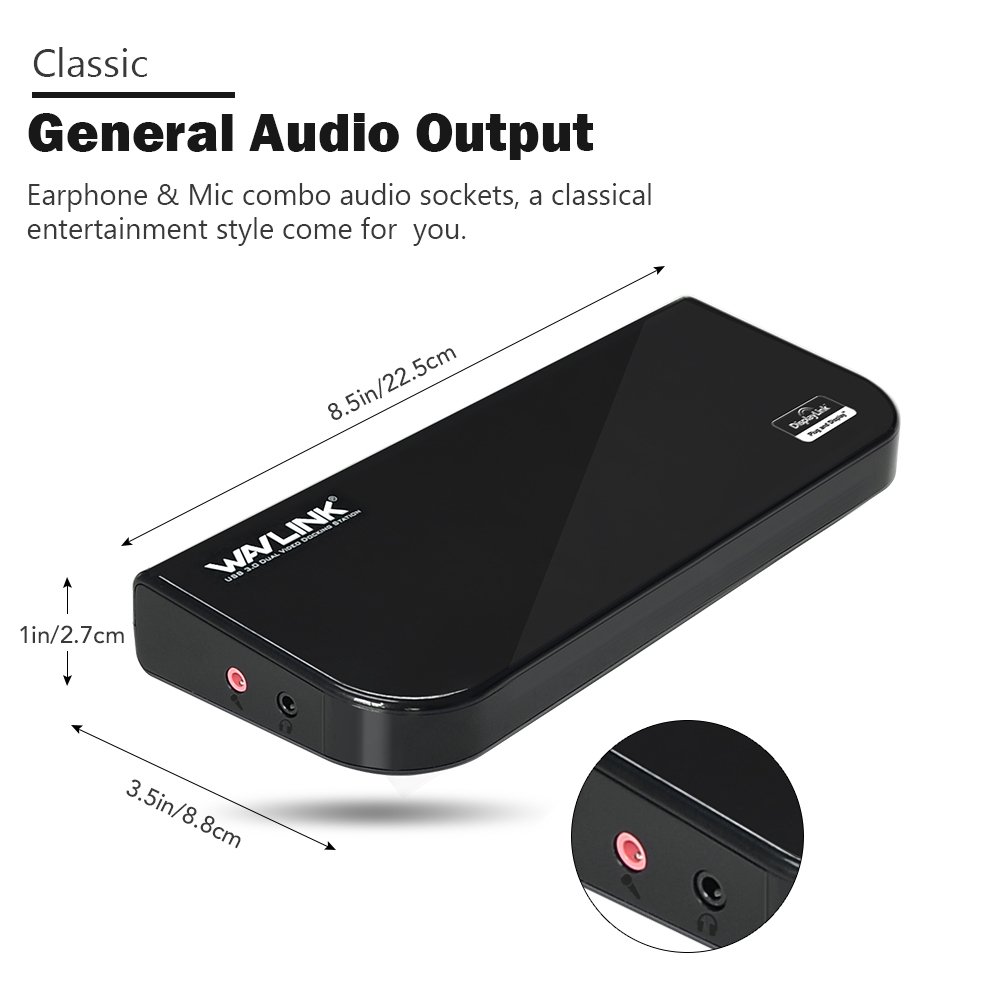

It also has a Gigabit Ethernet port, a voice input / output port, and two quick 3.0 charging ports, two USB 3.0 and two USB 2.0 ports.

Note: The USB port of this docking station is for normal data transfer.

There is no function to supply power to the host system (Windows computer or tablet).

It is necessary to connect the power supply to the host system.

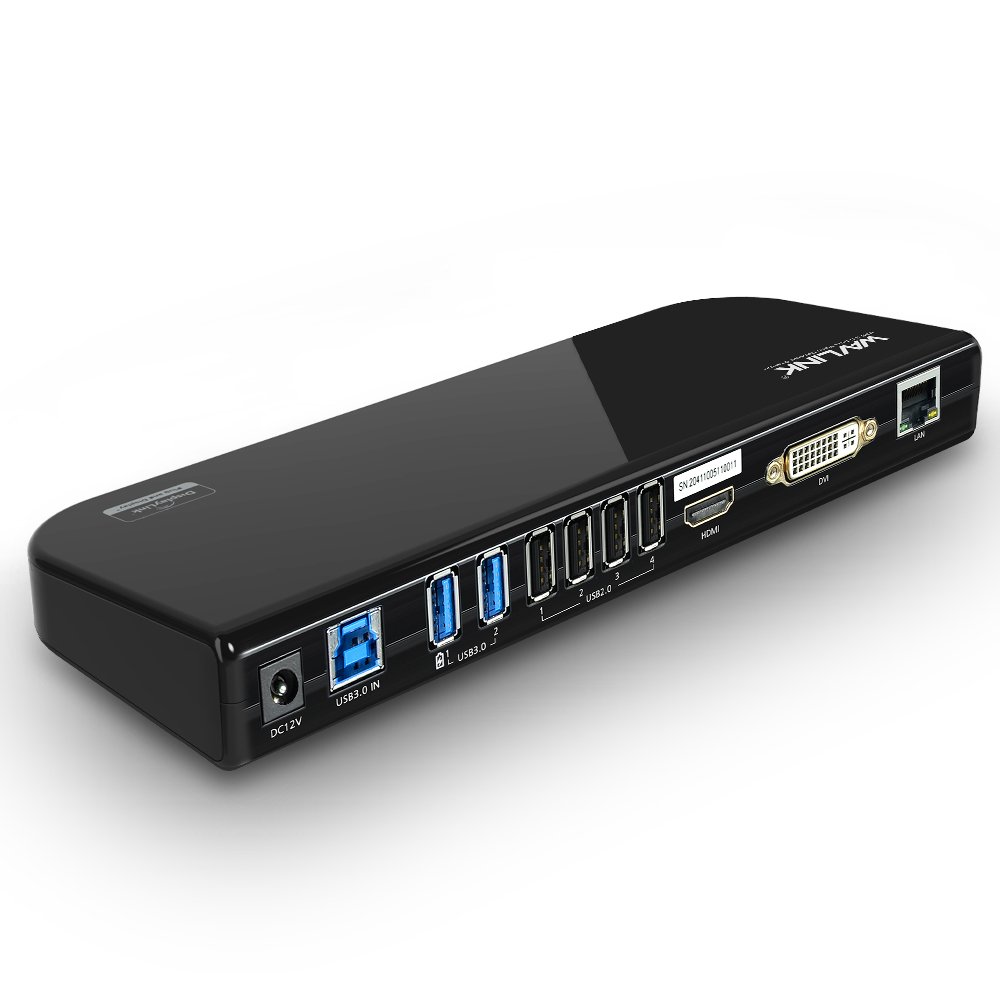

Wavlink USB 3.0 UG39DK1 docking station specification:

One DVI port and one HDMI port

(HDMI and DVI output highest resolution supports display resolution of 2048x1152), RJ - 45 Gigabit Ethernet port (also supports 10/100/1000 Ethernet), audio output port for external headphones and speakers and input port for microphone

, Two USB 3.0 ports (corresponding to external hard disk, USB graphic adapter, etc.), 4 USB 2.0 ports (corresponding to mouse, keyboard, printer etc)

Note 1) When setting the HDMI monitor resolution to 2560 × 1440, only one monitor can be connected.

When using two monitors, please set each maximum resolution to 1920 x 1200.

When setting to 2560 x 1440 resolution, you need to prepare high speed HDMI cable and the refresh rate is up to 50 Hz.

It supports up to 60 Hz at lower resolutions.

When setting to 2560 x 1440 resolution, the monitor side must also support this resolution.

Please note that many 2560 x 1600 compatible monitors do not support 2560 x 1440 resolution.

Installation method:

Landscape

1) Place the docking station flat on the table using adhesive plastic padding on the back of the docking station.

You can wipe with a damp cloth, etc. and reuse the adhesive pad after drying.

2) Before attaching the docking station to the stand, you need to push down on the plastic pad to remove it.

3) When plastic padding begins to move, push the plate to the left.

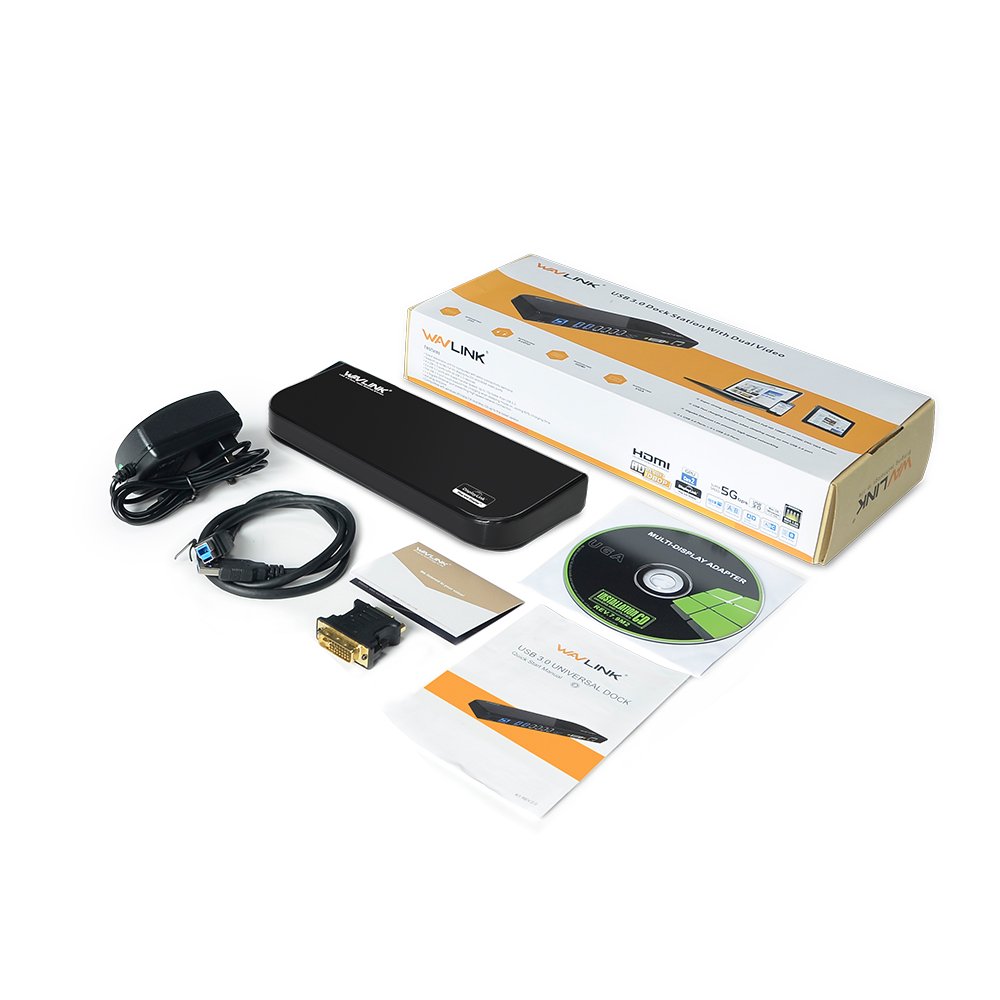

Packing content:

1 x Wavlink USB 3.0 Universal Docking Station

1 x 12V / 2A (24W) power adapter

1 x USB Type A - Type B 3.0 cable (USB 2.0 compatible)

1 x DVI to VGA port conversion adapter -

1 x Driver - CD

1 x Japanese + English version instruction manual

Features:

• Please enter model number Confirm this is compatible:
• 1080P HDMI and DIV graphic ports support up to 2048x1152 / 1920x1200 resolutions.
• Since a DVI to VGA conversion adapter is also included, you can also connect a VGA monitor.
• Two displays via USB 3.0, 10/100/1000 Ethernet, audio out, two more USB 3.0 ports (USB 2.0 compatible) NOTE: If you use this docking station with a Windows tablet that only has microUSB,
• Please note that it is necessary to purchase an OTG cable that converts full size USB to microUSB separately.

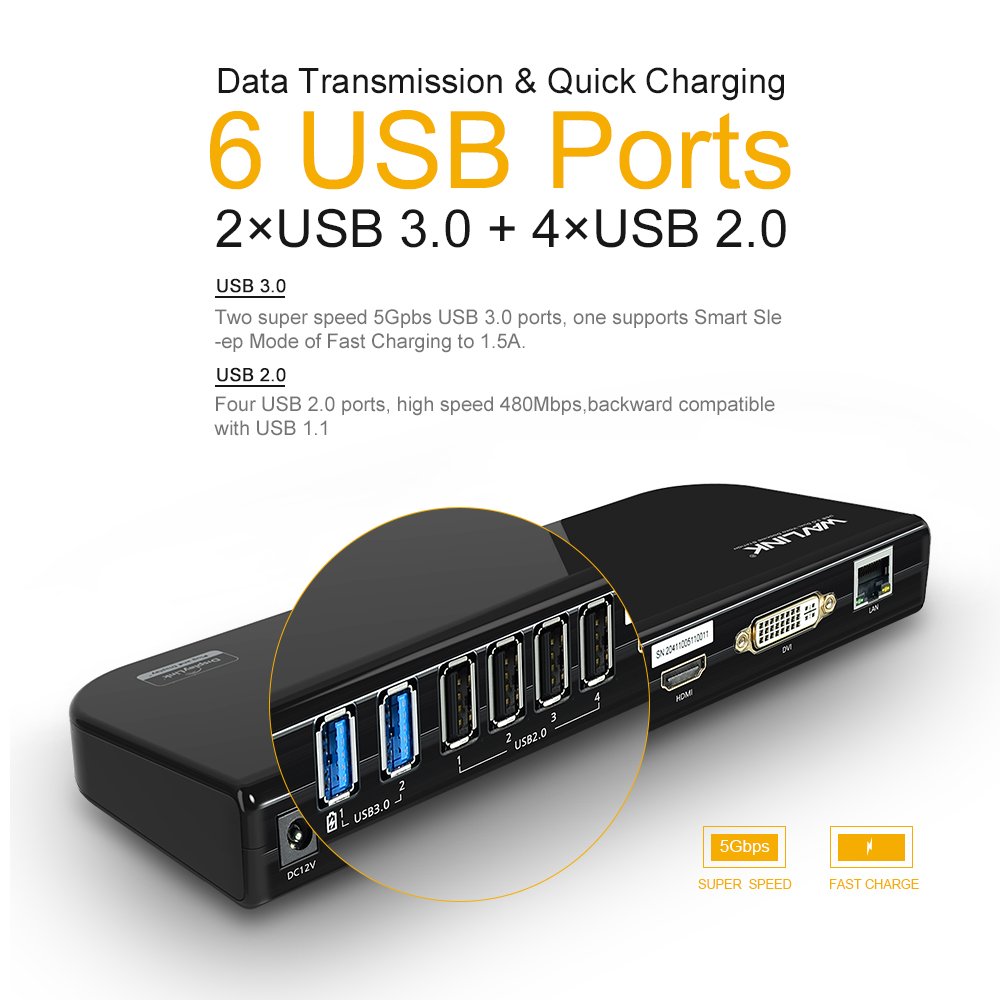

• Four USB 2.0 ports support USB 2.0 devices, for example: scanner, digital camera, keyboard, mouse, printer etc
• The fast charge port supports iPhone, Samsung, and other smartphones (iPad and tablet not required) up to 1.5A.
• We are applying USB 3.0 GPU certified with DisplayLink.
• Compact and slim square body, LED display, setup realized easy operation.

Product information:

Shipping Weight: 721 g

Package Dimensions: 6.30 x 15.59 x 35.10 cm
