Item Descriptions:

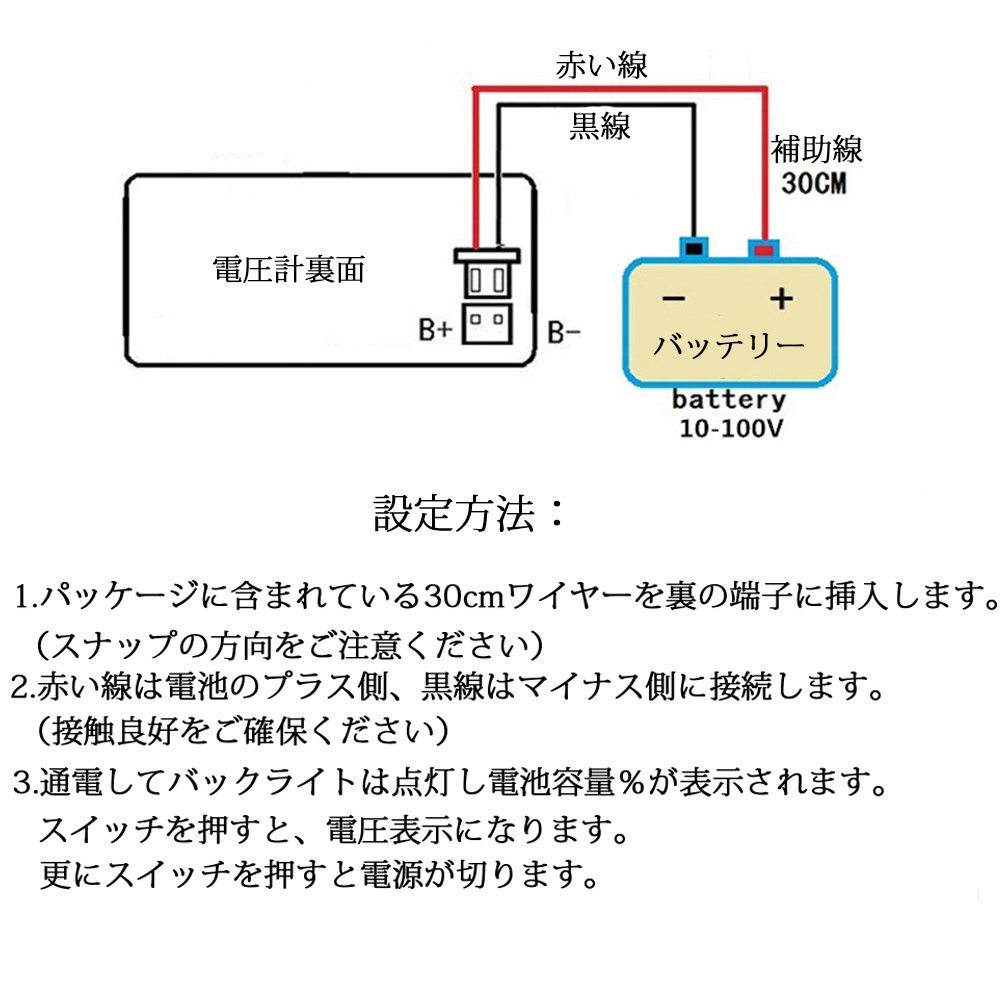

how to use:
1. Insert the 30 cm wire included in the package into the back terminal.
(Please note the direction of the snap)
2. Connect the red wire to the positive side of the battery and the black wire to the negative side.
(Please ensure good contact)
3. The backlight lights and the battery capacity% is displayed with energization.
Press the switch to display the voltage.
Press the switch again to turn off the power.
How to change the default specification:
1. Set the mode by connecting the power supply while holding down the switch of the table.
2. In that state, press the switch to select L (lead storage battery), P (lithium battery), F (Fe battery).
3. Depending on the battery code, if a suitable type is found, turn off the power and confirm the setting.
4. Voltage automatically corresponds to 10-100 V, there is no need to install.

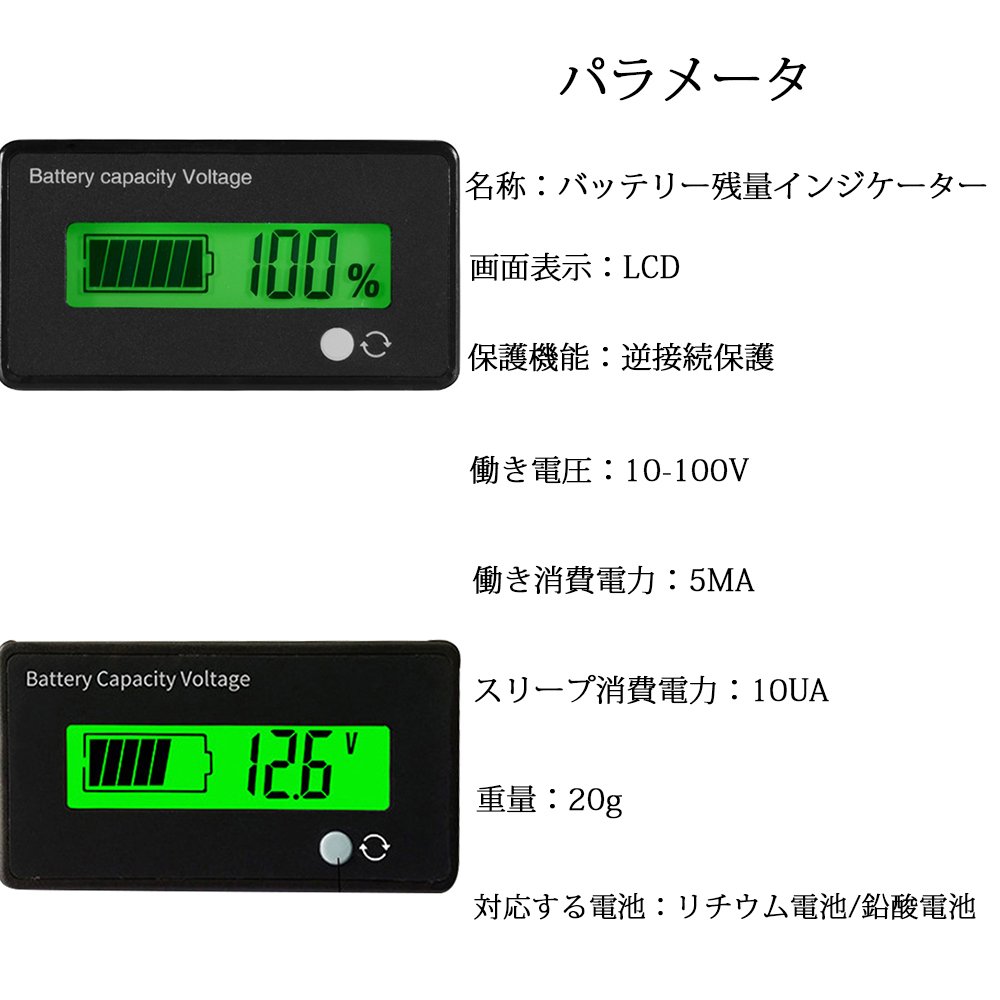

Features:

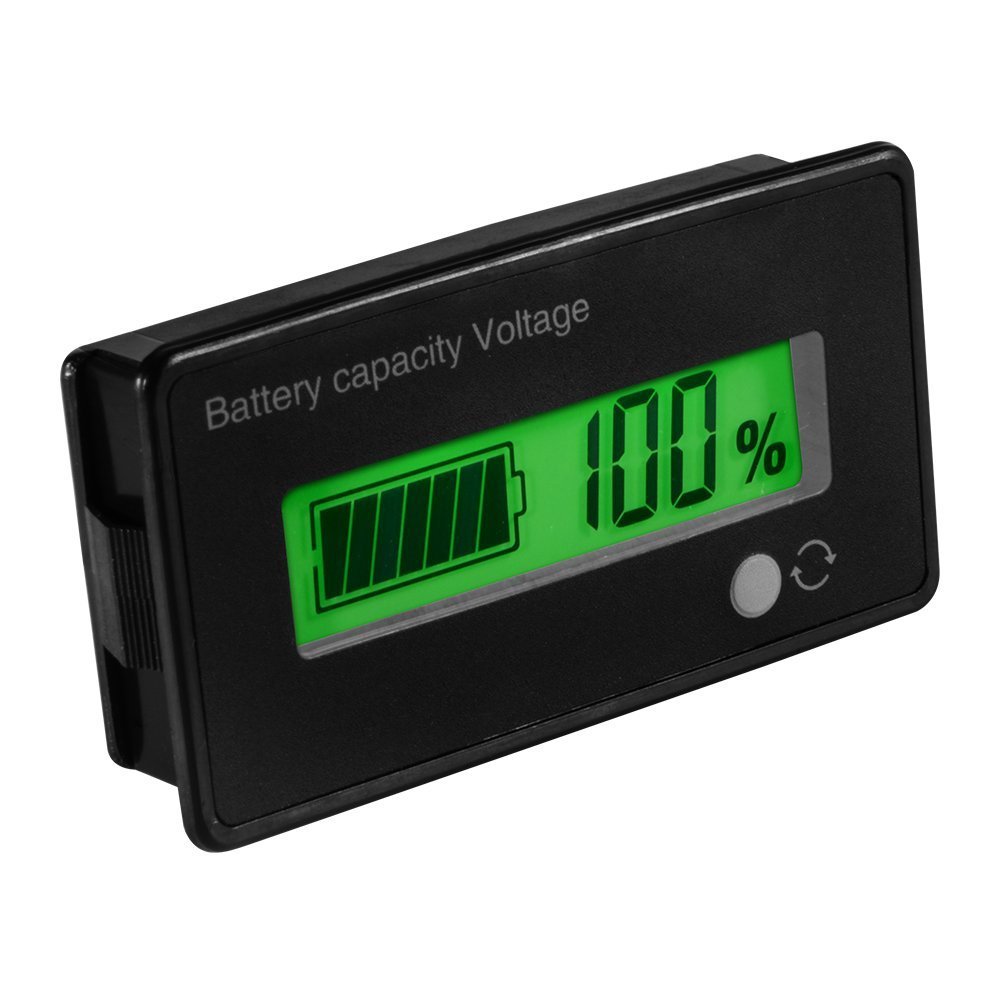

- ※ Large screen: LCD display, surface pvc gel sheet is clearly easy to see the battery capacity and voltage.
- The green backlight can read the value easily even in a dark environment.

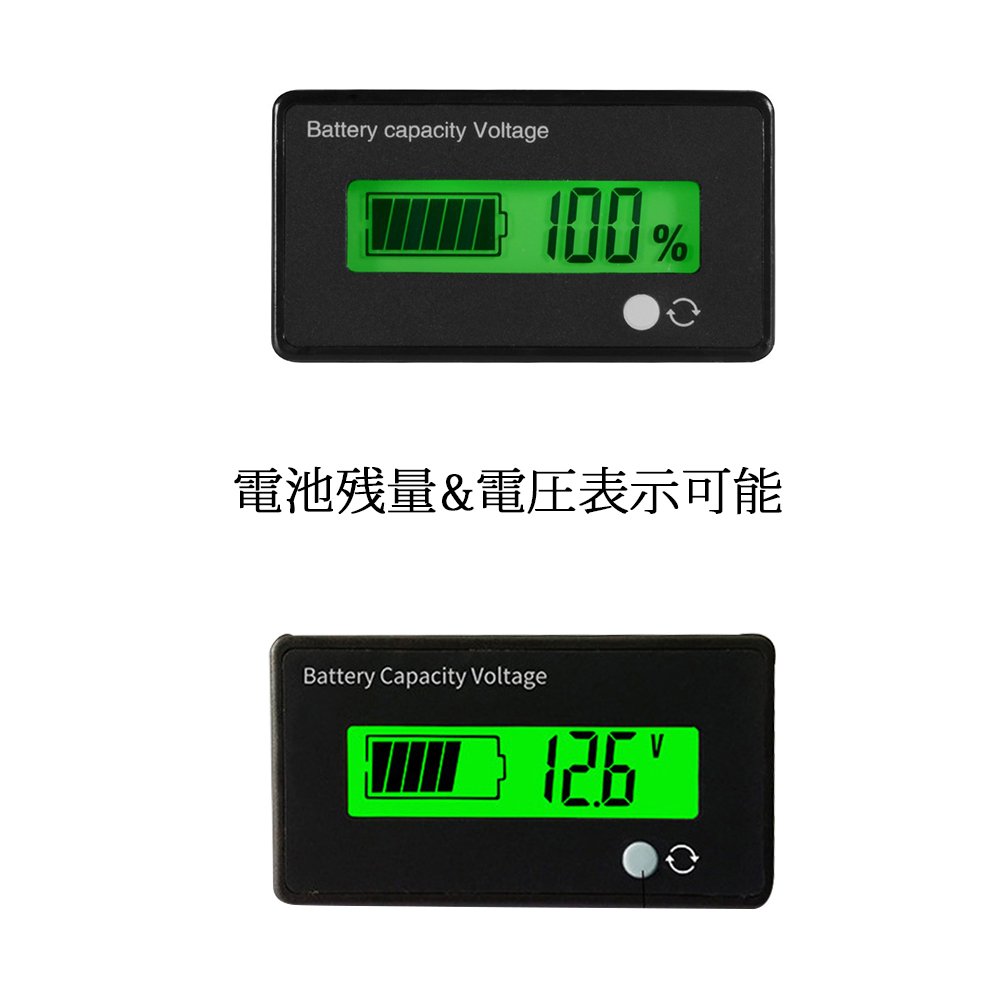

- * Convenience: Toggle battery remaining (%) → voltage (V) → power off (off) with one touch.
- ※ Safety: With reverse connection protection, reverse connection will not burn the product.

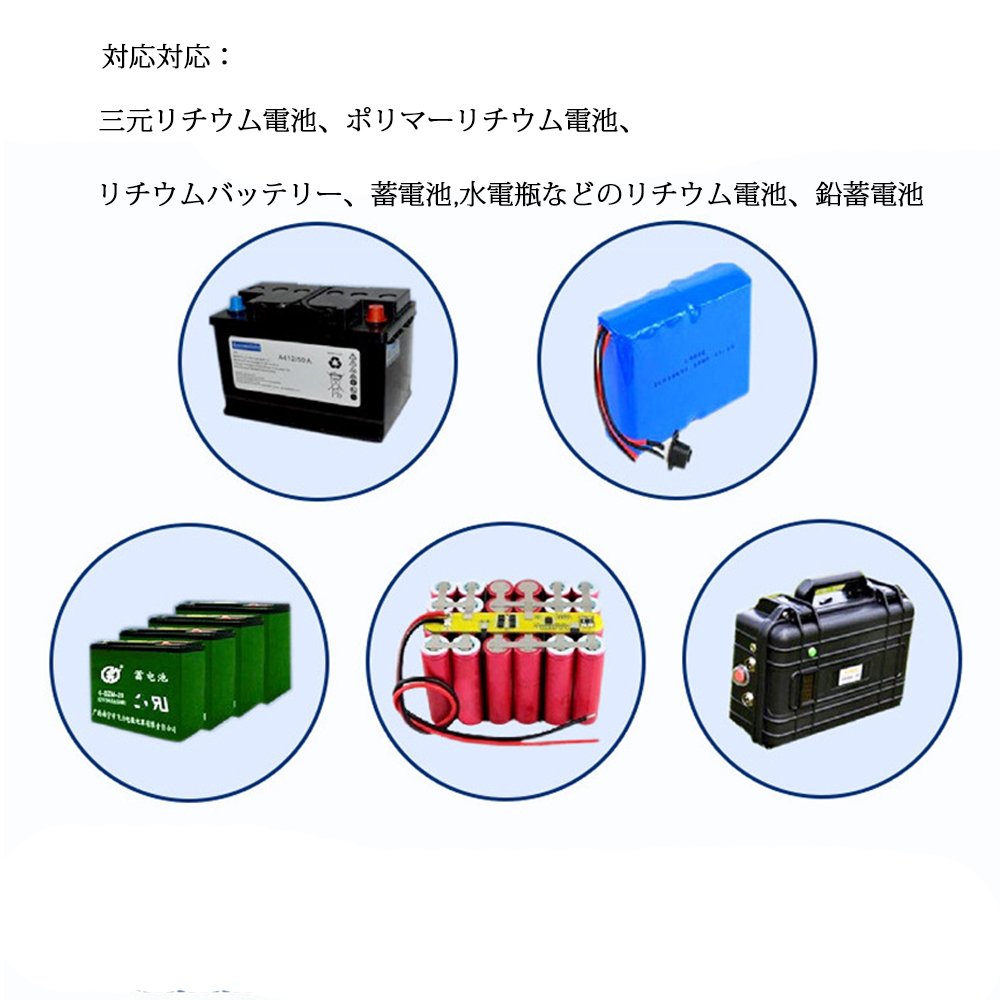

- ※ Application: Automobile, scooter, instrumentation equipment, mobile portable equipment, medical equipment etc.
- * Corresponding battery: lithium battery: 3 - 22 pcs 4.27 V.
- Lead acid battery: 12 V, 24 V, 36 V, 48 V, 60 V, 72 V, 84 V
Product information:
Shipping Weight: 40 g

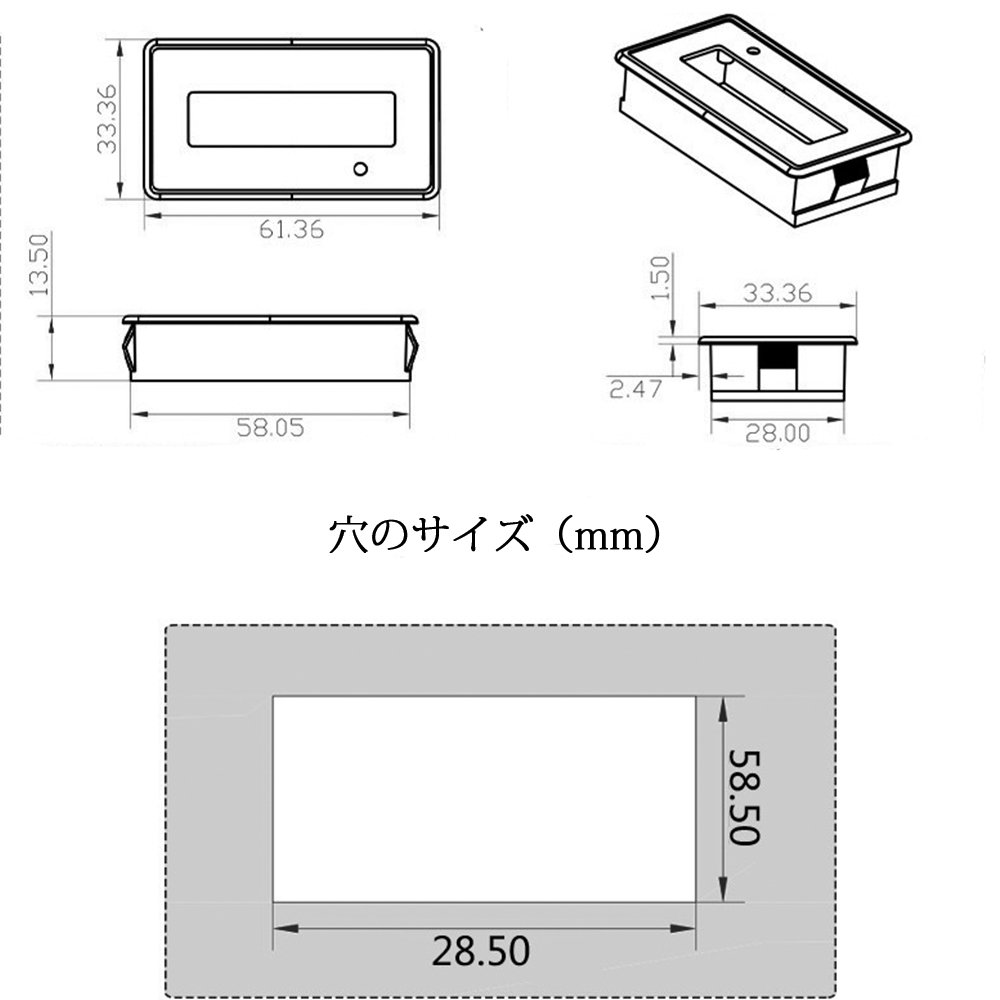

Package Dimensions: 1.78 x 4.83 x 6.86 cm
