Item Descriptions:
Characteristic
If the signal is weak or the image on the TV is unstable, use a booster (amplifier) to increase the reception of the signal.
DC 5 V 100 mA power can be obtained, enhancing antenna performance in areas difficult to receive.
The noise figure is lower than 4 dB, ELN cable is used, reducing damage and maintaining the continuity of the received signal.
Enlarge signals of VHF, UHF and FM frequencies.

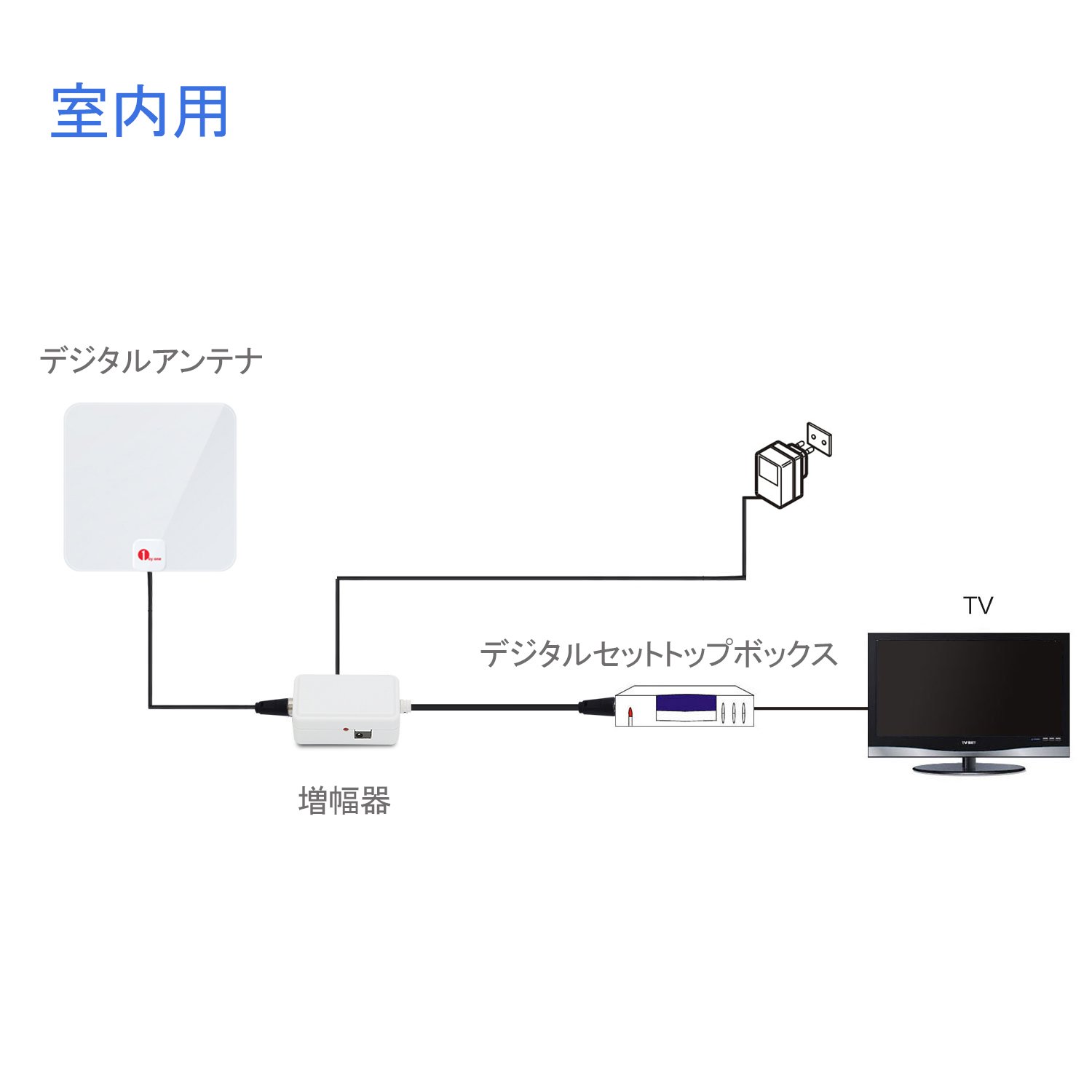

How to install

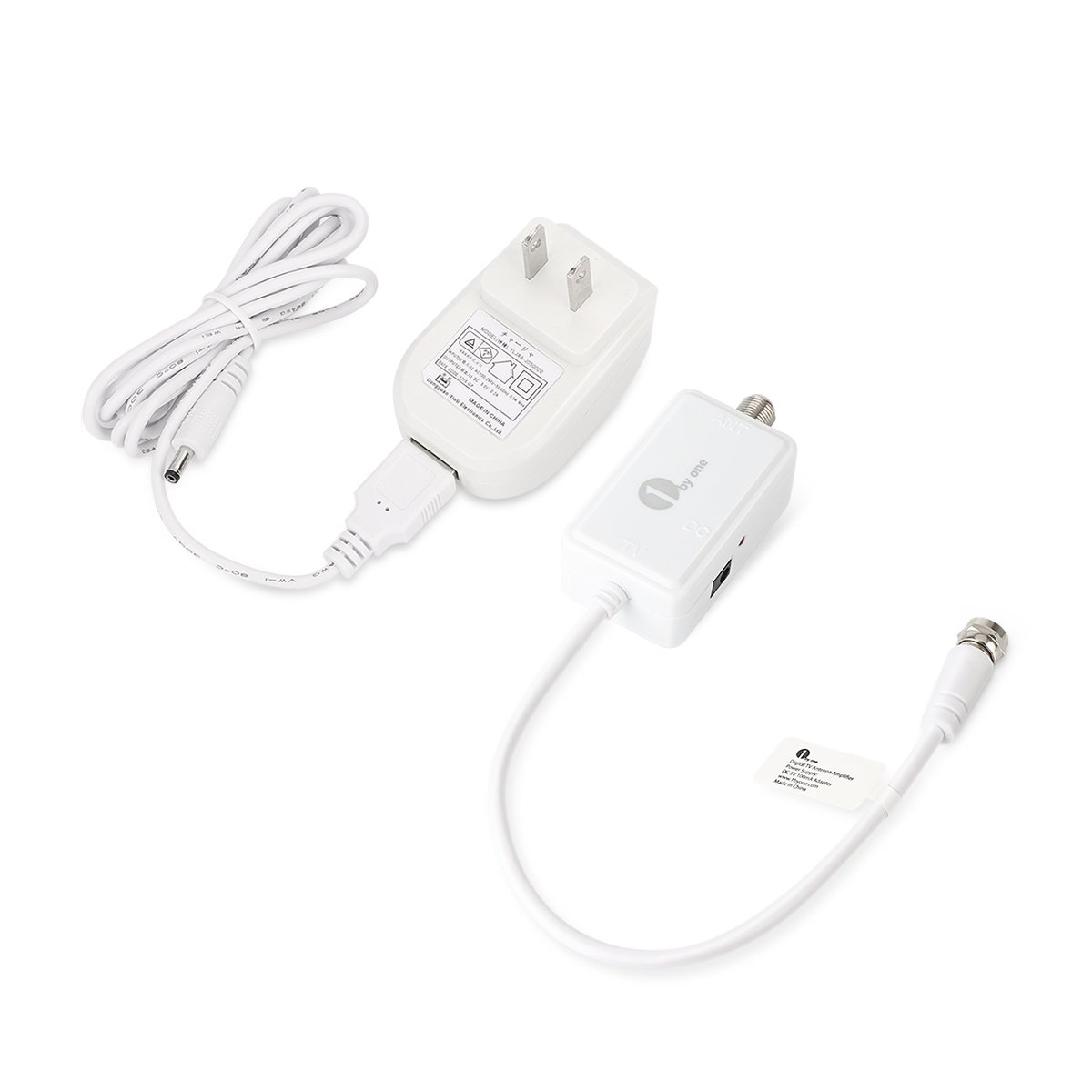

Remove the booster (amplifier) and power adapter.
Connect the booster (amplifier) to the antenna and the set top box.
Connect the set top box to the TV.
(You do not have to use a set top box when using high definition television.)

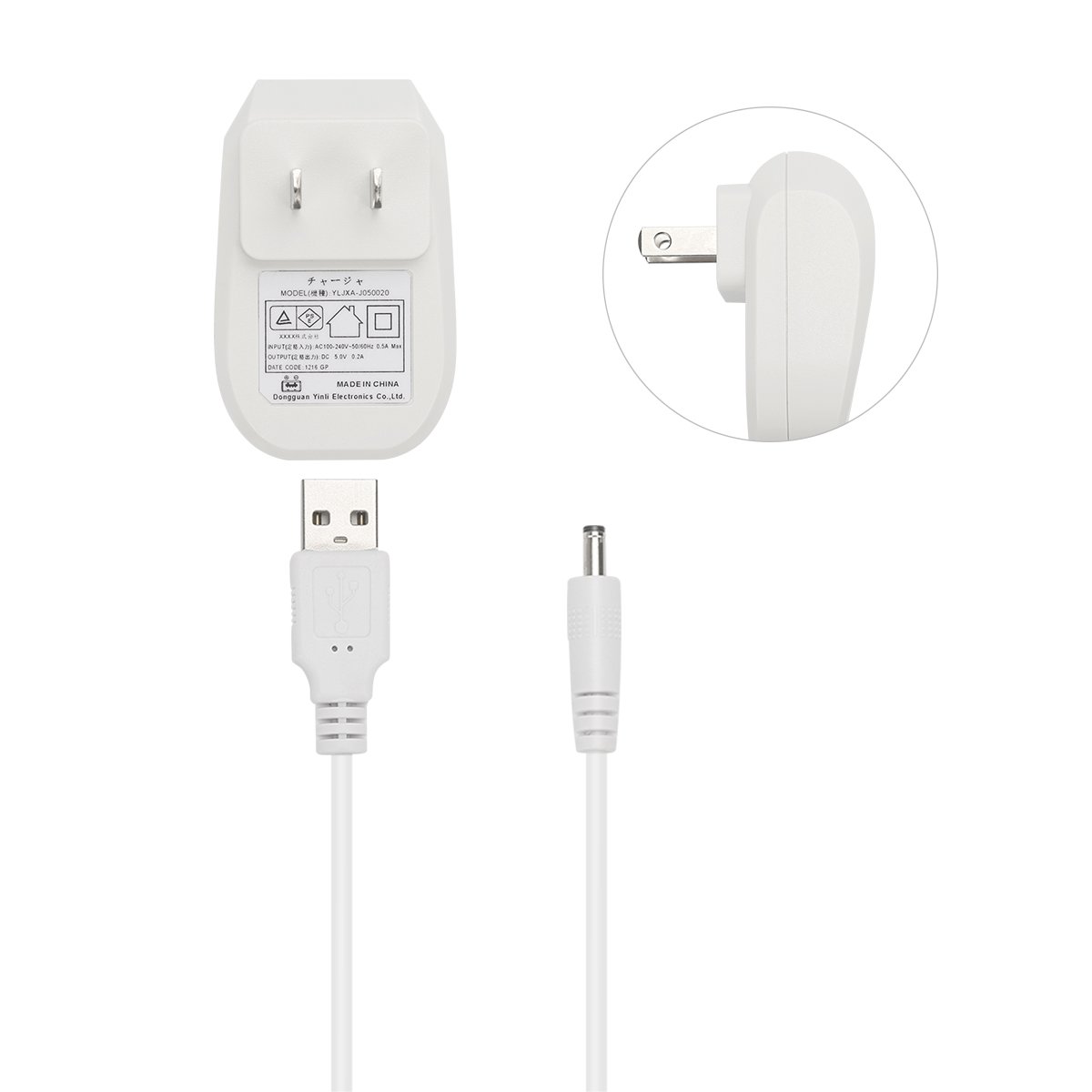

Using the power adapter, power the booster (amplifier).
Please connect all cables safely and correctly.
please note
The booster (amplifier) needs electric power to function properly.
If you use a booster (amplifier) and the received signal of the antenna is not improved, place the antenna near the signal tower.
Please note: If you move the antenna, you will need to scan the channel again.
specification
Frequency range: 470 - 710 MHz
Gain 20 dB
Output level: 100 dBuV
Low noise figure: 4 dB or less
Power supply: Power switch 5 V 200 mA
Application: Applies to antennas without boosters.

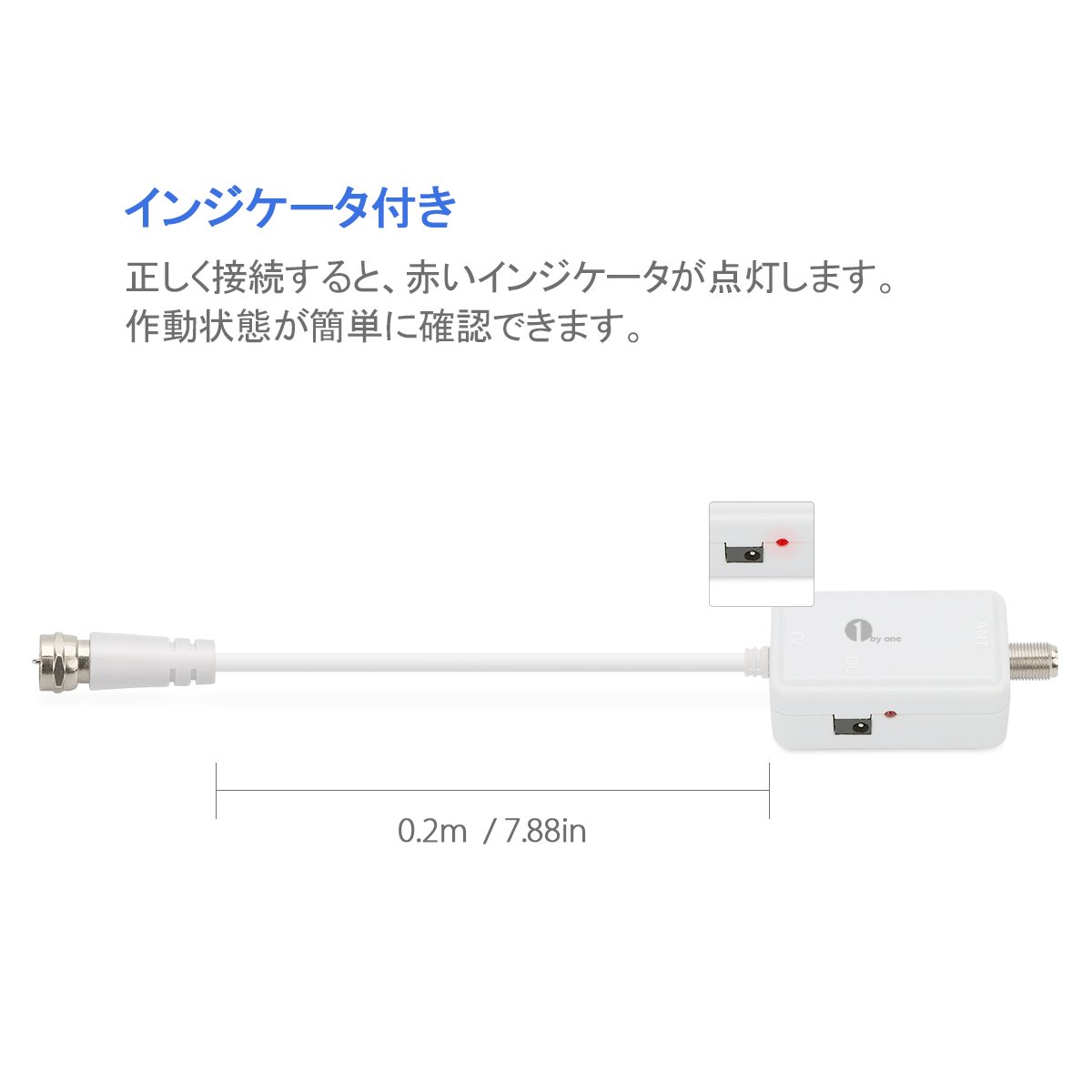

Energy saving power supply with LED indicator
Warranty period: 1 year (If you have something, please contact us.
Features:
- Please enter model number Confirm this is compatible:
- Booster Features: Booster (amplifier) reinforces the signal weakened by obstacles between home and signal tower.
- 【※ Note: Please note that 1byone products are only 1byone Japan is an authorized dealer.
- Number of receive channels: The number of receivable channels is ultimately determined by how many television programs are released on the local signal tower.
- Other factors affecting the reception of signals are also related to the distance of the receiving tower from the home, the topography, the weather and the environment.
- Signal up with a booster: If the signal is weak or the picture on the TV is unstable, use a booster (amplifier) to boost signal reception.
- Remarks: If your home is very close to the signal tower and the signal is very strong, we do not recommend using a booster (amplifier).
- If you use a booster (amplifier) when the signal is very strong, there is a possibility of weakening the received signal.
- Warranty: Since we provide a one-year warranty, please contact us if you have any initial malfunction or anything you need to help when using this product.
Product information:
Shipping Weight: 140 g
Package Dimensions: 5.41 x 8.71 x 11.51 cm
