Brand: Maxtor MT-1601UK-CH USB automatic infrared multi computer switchwith plasma remote switch button two switching methods

Machine new upgrade of the previous button operation will fail engineers havein American imported special chip to chip wire 1.5 meters 4 to 1.8 meters 8 to 3 meters 4 bands new remote control of a strong signal buyers buy package upgrade



Introduction

Thank you for purchasing the 16 intelligent KVM switch. The KVM switch with simple operation， strong compatibility， can save time and money space equipment and functions for your. It can control 16 computer with a keyboard mouse monitor. It can be used to keyboard and mouse simulation start complete computers at the same time.

Characteristic

1， the 16 port KVM switch， supports the standard USB2.0 interface

2， support hot plug

3， support DOS WIN7/VISTA， WIN95/98/2000/2003/2008/ME/XP，

WINNT， UNIX， LINUX operating system

4， support remote infrared control switch

5， automatic scanning， support a key reset function

6， good image quality， the resolution can reach 1920*1440， broadband 250MHZ

7， USB port power supply， can not use the AC adapter

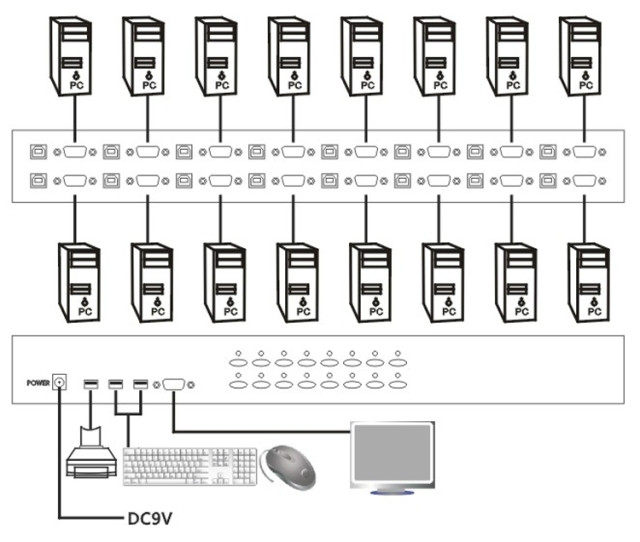

Hardware installation

Please ensure that you have closed all the peripheral equipment and the host computer before installation.

1 the special cable connected to the KVM switch of the computer host port

2 will be a keyboard mouse monitor receives the KVM switch control {console} port

3 then open the host computer power supply and complete its boot processcan use the KVM switch

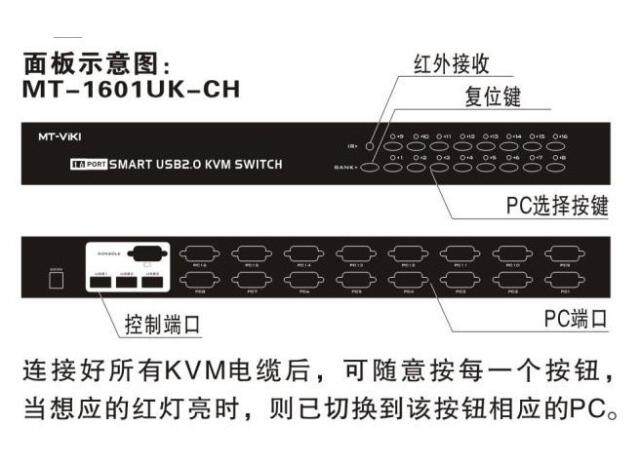

Schematic diagram of the panel

Troubleshooting

Please ensure that you have all connected cable. To avoid confusion， the available number for each computer host ID of all cable

Power 1 KVM switcher provides port by a host computer

2 when the computer is started please don't press any key on the keyboard，otherwise cause the keyboard error or end PC cannot detect the keyboard

3 computer can start normally， but the keyboard does not work in the inserted into the computer， please ensure that the keyboard is working. Can try to useanother type of keyboard， but can only use 101102 or 104 key keyboard

4 PC startup process was not detected in the mouse， is inserted into thecomputer time please ensure that the mouse is working.

5 when the switch port. Please do not move the mouse mouse or pressing themouse button
