-. Binding : Electronics
-. Brand : Pofung
-. Color : Black
-. EAN : 0811820021270
-. Feature : Frequency range: 136.00 to 174.00, 400.00 to 520.00MHz / Output: 5/1W; 128 channels / High and low-power switchover / Frequency step setting; Battery-saving; VOX function / 50 CTCSS and 104 DCS codes
-. Label : Baofeng
-. Manufacturer : Baofeng
-. Model : UV-Ten4
-. MPN : UV-Ten4
-. PackageQuantity : 1
-. PartNumber : UV-Ten4
-. ProductGroup : CE
-. ProductTypeName : TWO_WAY_RADIO
-. Publisher : Baofeng
-. Studio : Baofeng

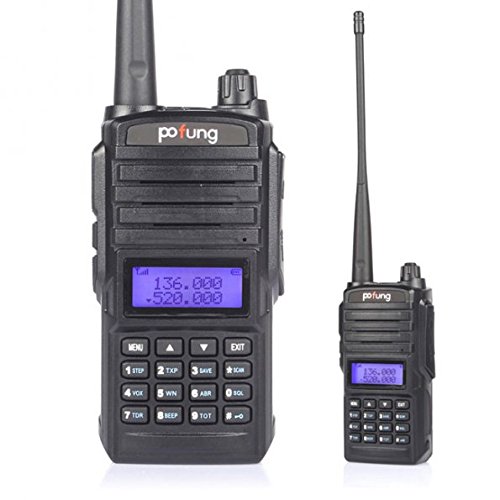

-. Title : Pofung UV-TEN4 Two-Way Radio, Dual Band UHF/VHF Ham 136-174/400-520MHz
-. UPC : 811820021270
Function

* Output: 5/1W
* Frequency range: 136.00 to 174.00, 400.00 to 520.00MHz
* High and low-power switchover
* VOX function
* Wide/narrow band selection
* Automatic-back light
* Time-out timer (TOT)
* 50 CTCSS and 104 DCS codes
* ANI code
* PC or manual program
* DTMF encode
* PTT-ID
* Busy channel lock function
* Emergency alarm
* Priory scanning function
* 1750Hz burst tone
* Low-battery warning
* U/V cross band dual display

Specification

* Frequency Range: 65-108MHz(only commercial FM radio reception); VHF:136-174MHZ, UHF 400-520HZ (TX/RX)
* Memory channels: Up to 128 channels
* Frequency Stability: ±2.5ppm
* Frequency Step:: 2.5kHz / 5kHz / 6.25kHz / 10kHz / 12.5kHz / 20kHz / 25kHz
* Antenna Impedance: 50Ω
* Operating Temperature: -20 to +60 'C
* Supply voltage: Rechargeable Lithium-lon mAh 7.4V/1800
* Mode of operation: Simple or semi-duplex

Transmitter

* Output power: 5W / 1W
* Modulation Mode: F3E
* Maximum deviation: ＜±5kHz(Wide) / ＜±2.5kHz(Narrow)
* Spurious Radiation: ＜7.5μW
* Adjacent Ch. power: ≤-65dB / ≤-60dB

Receiver

* Receiver sensitivity: 0.2 μ v (at 12 Db SINAD)
* Intermediation: 60dB
* Audio output: 1W
* Adjacent channel selectivity: 65dB
* Spurious response: 65dB
* Receiving current: ≤380mA

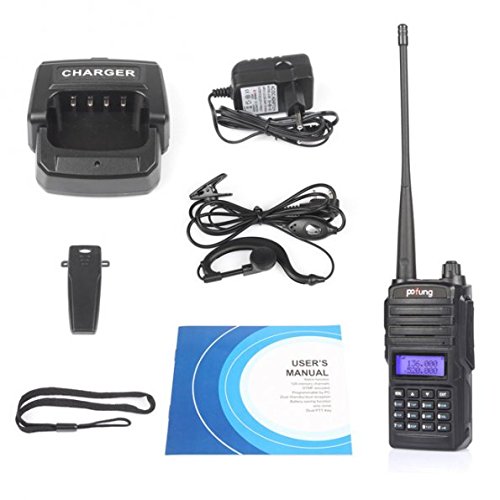

Package Content

1 x UV-TEN4
1 x 7.4V 1800MAh Li-ion Battery
1 x SMA-Female Dual Band Antenna
1 x Belt Clip
1 x Manual
1 x Charger with Cable/PSU
1 x PTT Earpiece with mic
1 x wrist strap
