Item Descriptions:

Product introduction

Nikon SLR digital camera exclusive use interchange lens full size FX format use possibility

From Amazon

Crisp telephoto zoom lens that responds to professional trust

Open F value is bright 2.8 and constant.

Optical performance optimized for FX format, stable high performance from center to periphery, from infinity to close range.

Adopted nanocrystal coat that gives clear images with little ghost and flare.

VR mechanism that demonstrates high blur reduction effect (camera shake correction effect 3.5 steps

) Supports telephoto shooting with sharp images.

※ Compliant with CIPA standard.

However, when FX format compatible lenses are used in FX format digital single lens reflex, DX lenses are in DX format digital single lens reflex.

The zoom lens is measured at the most telephoto side.

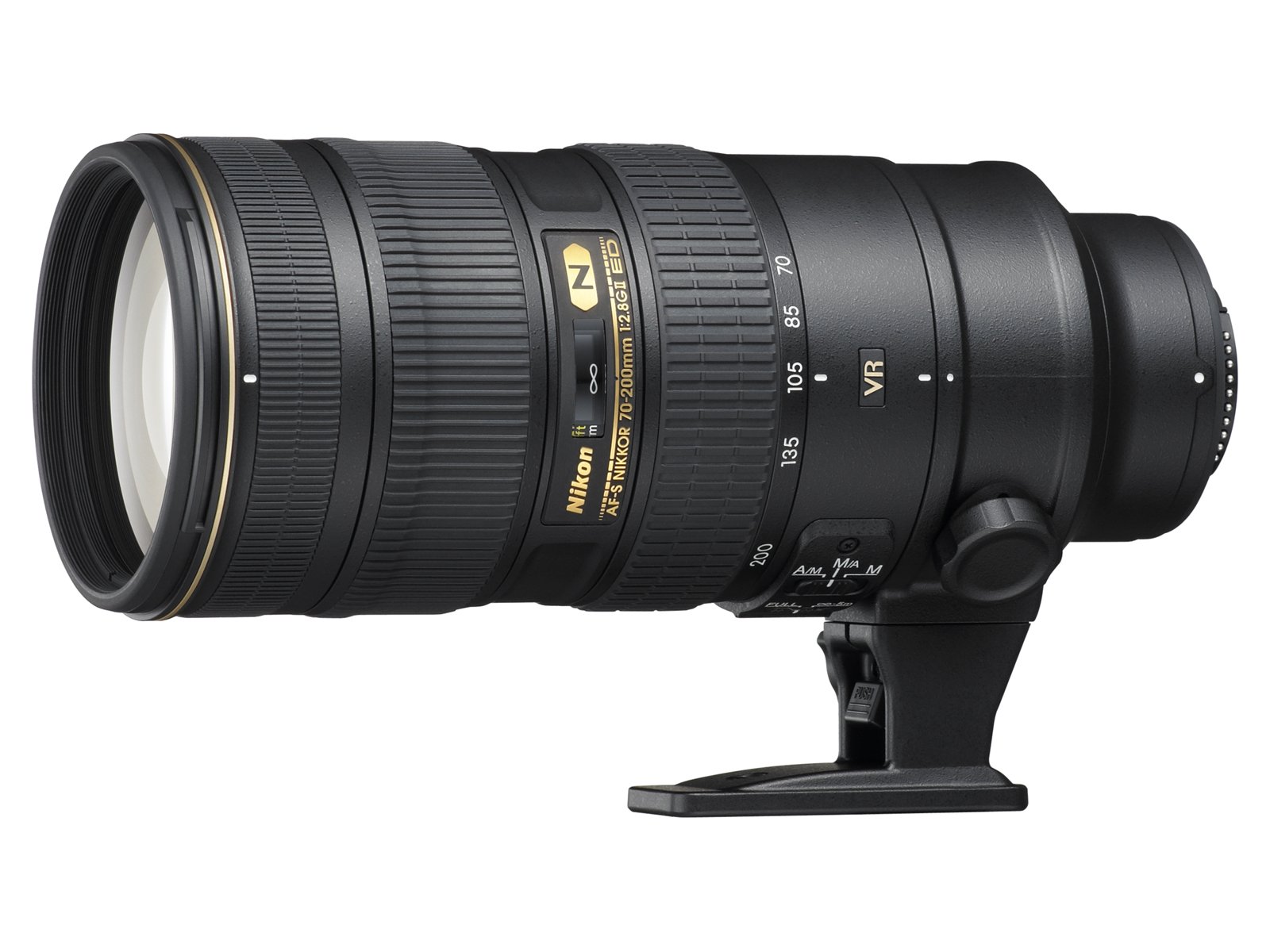

AF-S NIKKOR 70-200 mm f / 2.8 G ED VR II specification table

Model

Nikon F mount CPU built-in G type, AF-S zoom lens

Focal length

70 mm - 200 mm

Maximum aperture ratio

1: 2.8

Lens configuration

16 groups of 21 (7 ED lenses, nanocrystal coat)

Angle of view

34 ° 20'-12 ° 20 '(35 mm single-lens reflex camera, digital single lens reflex camera of FX format)

22 ° 50'-8 ° (DX format digital single lens reflex camera)

When DX format digital single lens reflex camera is installed:

Corresponds to field angle of 105 mm - 300 mm lens (FX format / converted to 35 mm format)

Focal length scale

70, 85, 105, 135, 200 mm

Shooting distance information

Can output shooting distance information to the camera

zooming

Rotary type with zoom ring

Focusing

IF (Nikon internal focusing) method, auto focus with ultrasonic motor, manual focus possible

Image stabilization

Lens shift method by voice coil motor (VCM)

Image stabilization effect: 3.5 steps *

VR mode: NORMAL / ACTIVE

Blurring correction when using a tripod: None

Photographing distance scale

∞ ~ 1.4 m, 5 fft (together)

Shortest shooting distance

1.4 m (zoom all area)

Maximum shooting magnification

1 / 8.6 times

Number of diaphragm blades

9 pieces (round drawing)

Aperture method

Auto iris

Maximum throttle

f / 2.8

Minimum aperture

f / 22

Metering method

In the CPU interlocking type camera, open metering

Focus limit switch

Two-stage switching of FULL (∞ ~ 1.4 m) and ∞ - 5 m

Attachment size

(Filter size)

77 mm (P = 0.75 mm)

Mount adapter FT 1 Compliance

AF drive possible

Tripod seat

360 ° rotating tripod seat ring with position indicator (90 °), removable only for tripod seat

Size

Approximately 87 mm (maximum diameter) x 205.5 mm (from the bayonet mount reference surface to the lens tip)

mass

About 1,540 g

accessories

· 77 mm spring type lens cap LC-77

· Back cover

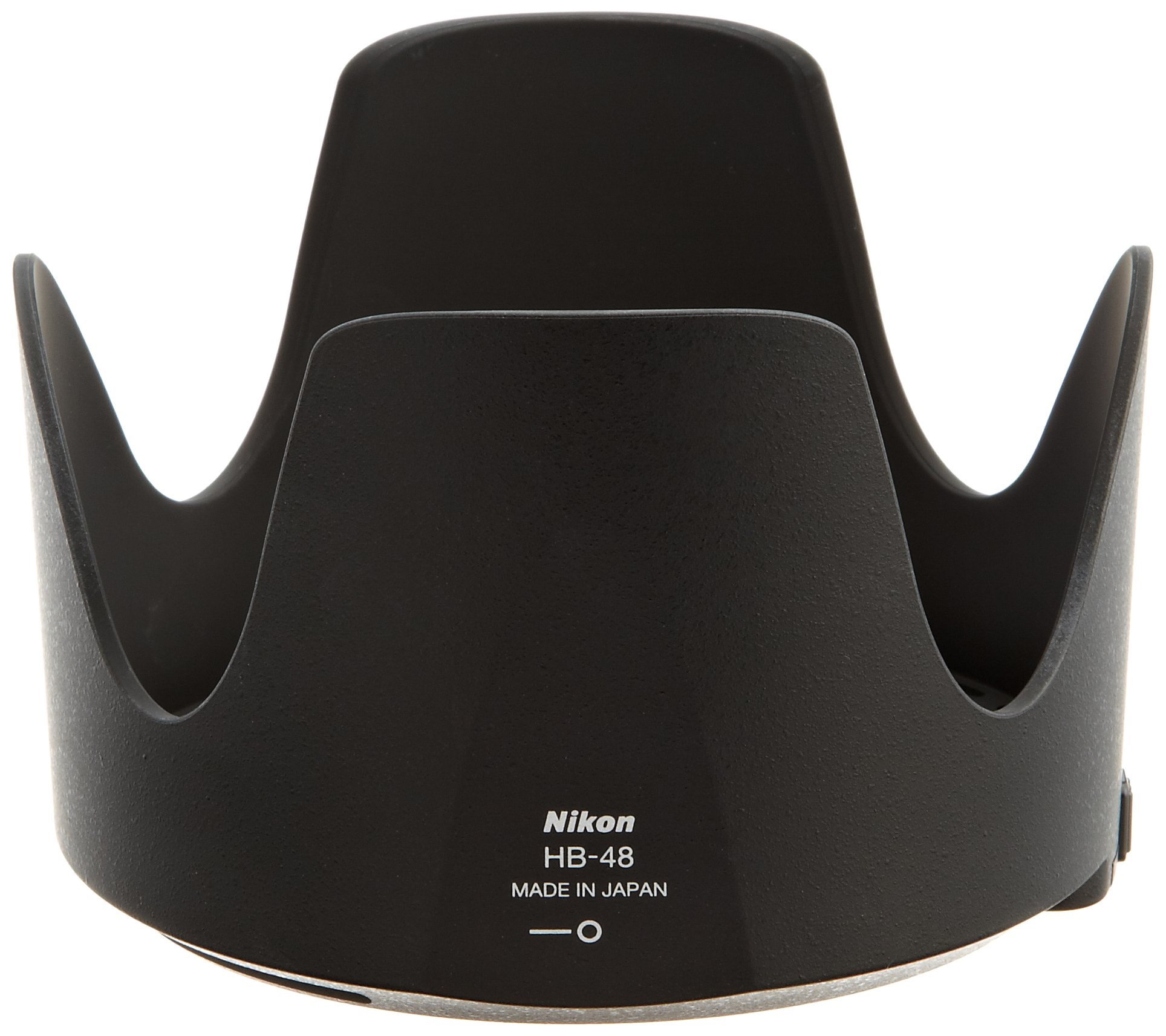

· Bayonet food HB-48

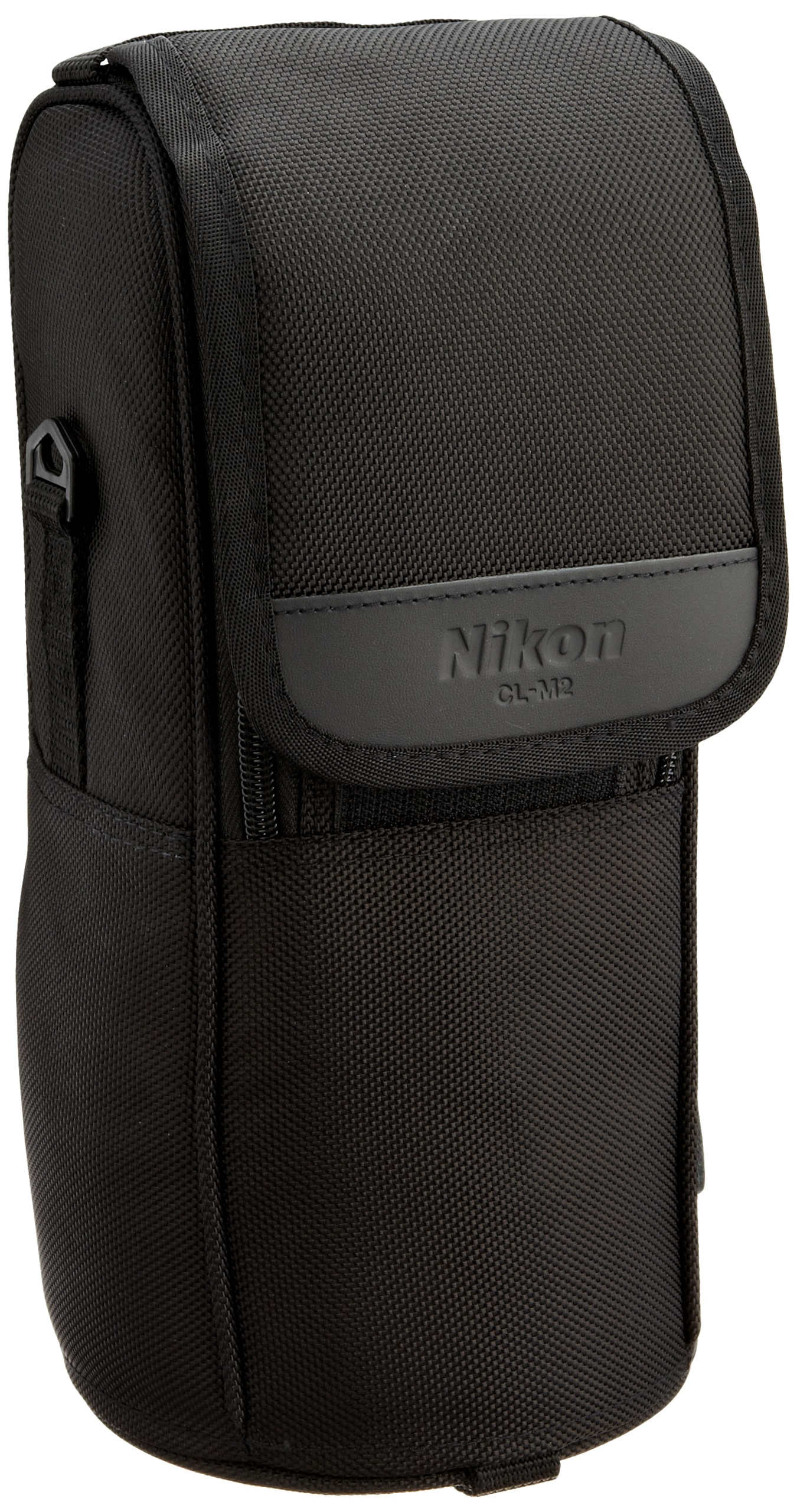

· Semi-soft case CL-M2

※ Compliant with CIPA standard.

When using FX format digital camera.

Measure at the most telephoto side.

MTF performance curve diagram

Wide

Tele

Lens configuration diagram

Yellow: ED lens

Nikon's lens brand, NIKKOR

Look for lenses by type, such as wide angle and single focal point

NIKKOR lens store

Search by chart on the basis of focal length and F value

NIKKOR Lens Chart

Features:

• Please enter model number Confirm this is compatible:
• 2185

Product information:

Shipping Weight: 2472 g

Package Dimensions: 19.30 x 19.30 x 32.26 cm
