数据线适用范围: 打印机
Data line of application: printer

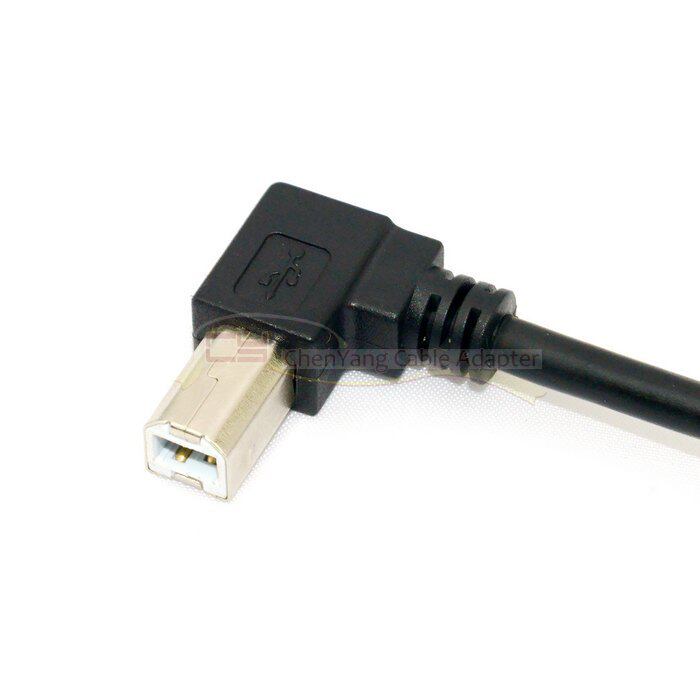

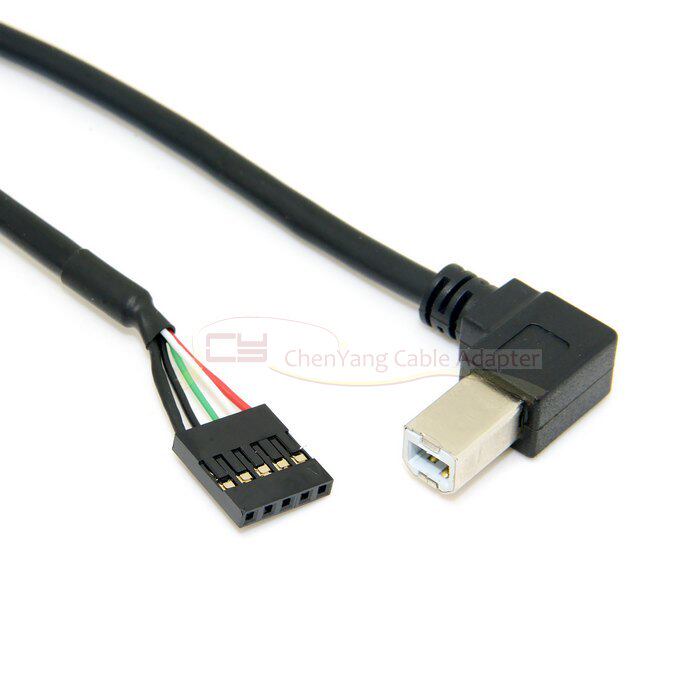

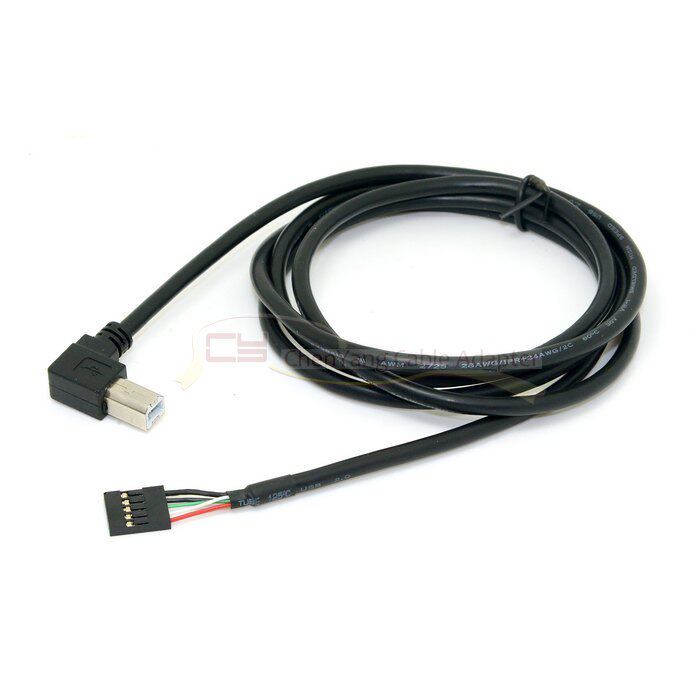

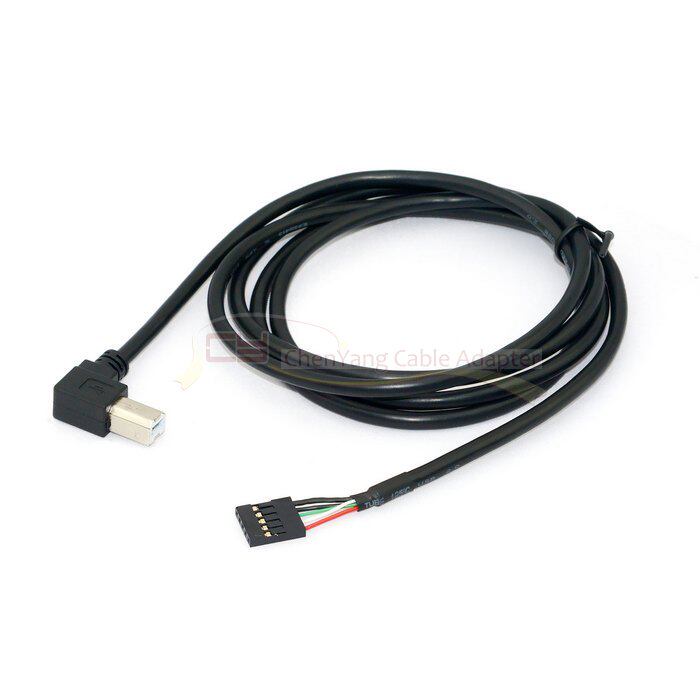

主板5针转USB2.0-B公90度右弯转接线 主板插针5Pin转USB扩展线 1.3m

插主板的USB插针转成USB-B口,请注意插的方向,不要插反或插偏了。

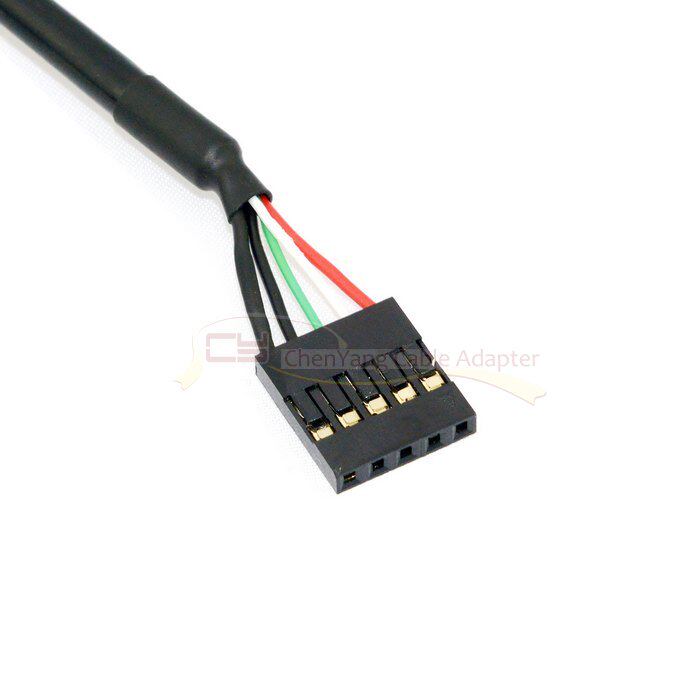

脚定义(从红色端起):

红色V+,白色D-,绿色D+,黑色GND,黑色屏蔽GND
Motherboard 5 pin to USB2.0-B male 90 degree right bend adapter motherboard pin 5Pin to USB extension cable 1.3m

Insert the motherboard USB pin into USB-B port, please note that the direction of insertion, do not insert the wrong side or inserted.

Foot definition (from the red end):

Red V +, white D-, green D +, black GND, black shield GND
