Item Descriptions:

Product function

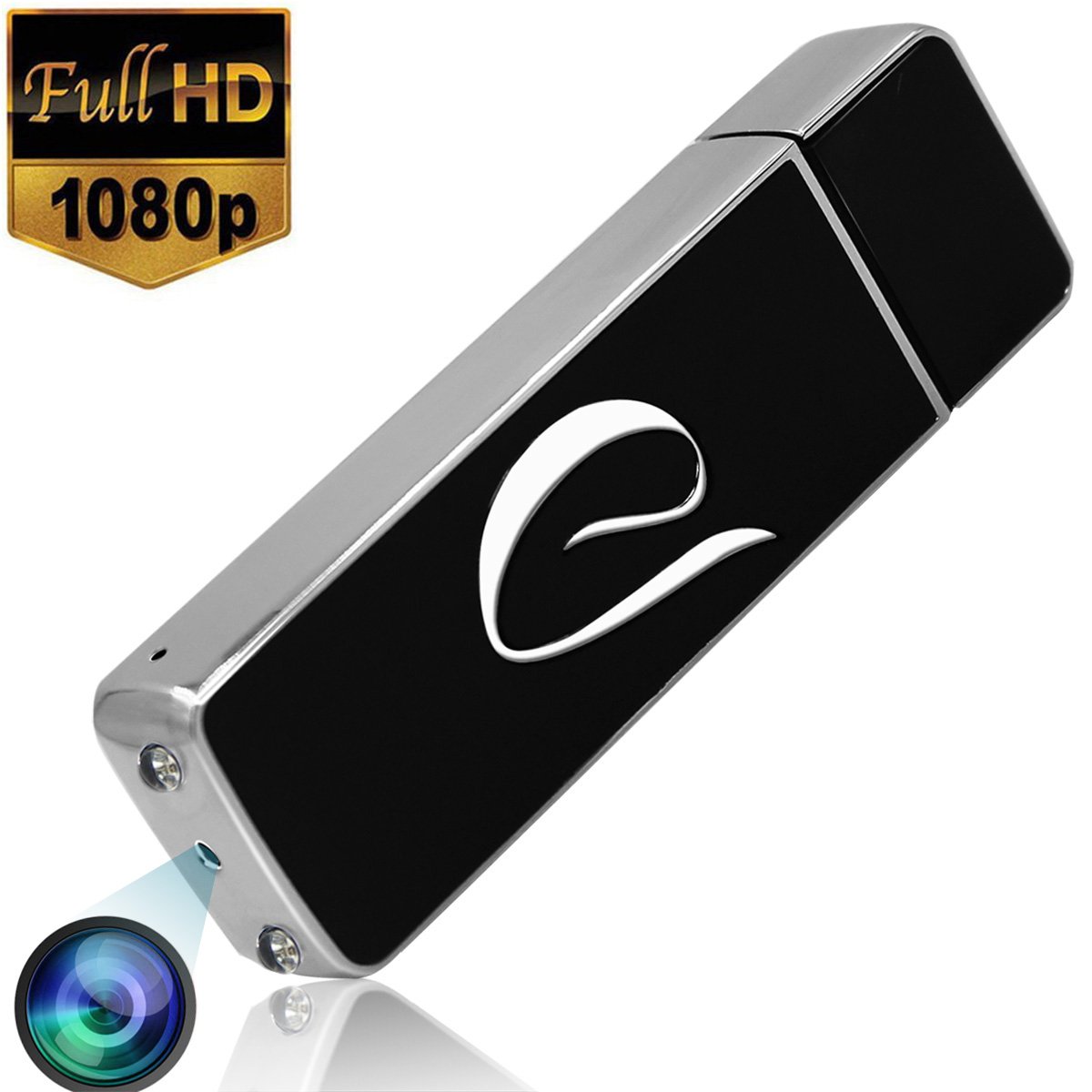

For USB memory type video cameras, movie shooting and still image shooting are available.

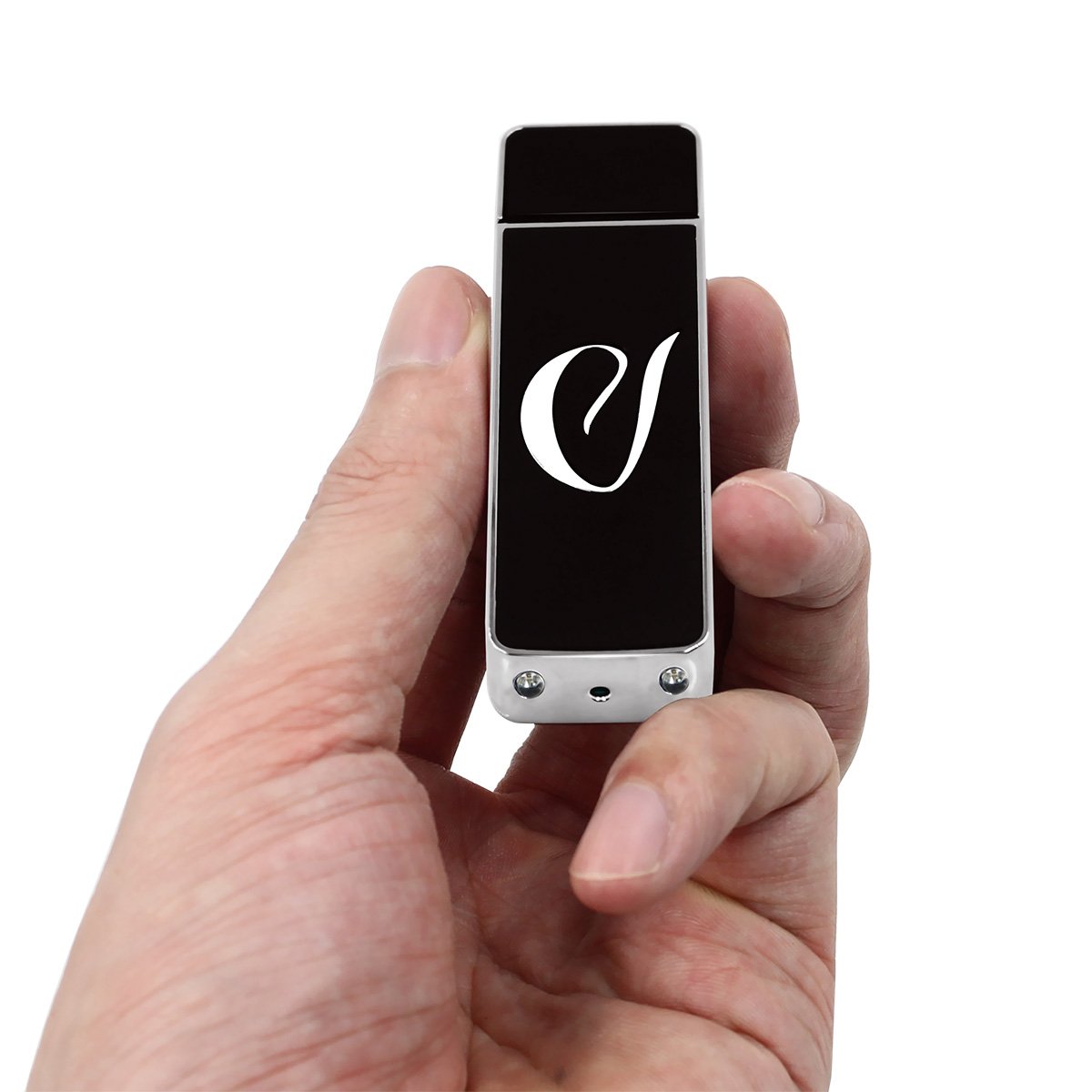

It looks like normal USB memory.

Since we do not know almost all the shooting buttons and status LED lamps, only you who knows how to use can check the current status.

Built-in battery in the body, with 300 mAh rechargeable battery, so microSD supports up to 32 GB, convenient as minutes for negotiations and long conferences.

It is a video camera that can also be used as a USB memory.

If you remove the main body cap, the USB terminal is mounted and it is easy to transfer without cables.

When connected to a PC it will be recognized automatically and can be played immediately.

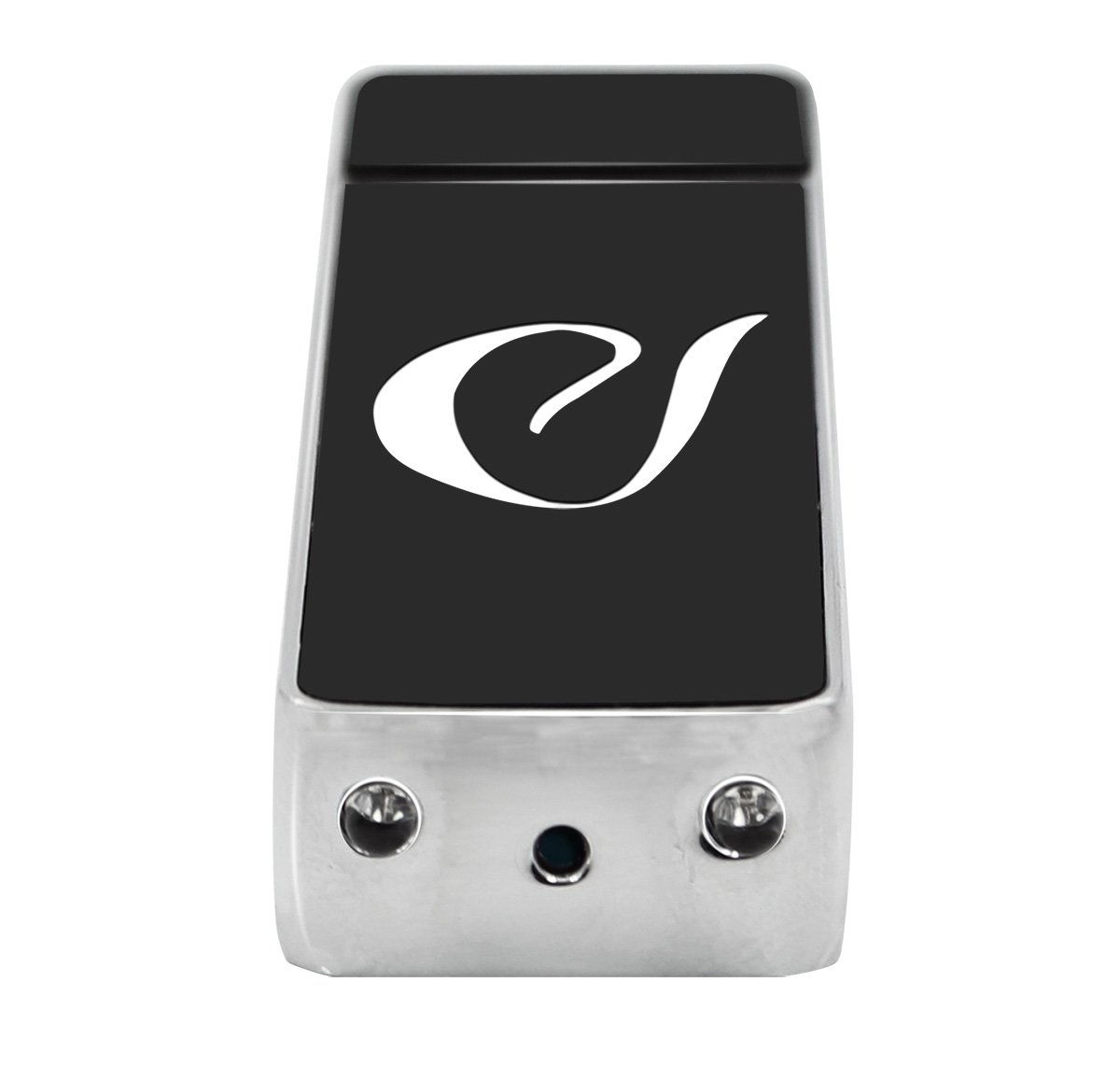

Since infrared rays are installed, I shoot clearly in black and white even in the dark at night.

Product Specifications

[Movie file] 1920 × 1080 pixel AVI format

[Frame Rate] ~ 30 FPS

[Low subject illuminance] 1.0 Lux (when using infrared: 0.0 Lux)

[Still image file] 1920 * 1080 pixel JPG format

[Built-in microphone] High sensitivity microphone

【Interface】 USB 2.0

[Memory] microSD card compatible with 32GB ※ microSD card is not included in this product.

In case

[Operating time] ~ about 1 hour 【charging time】 about 3 hours

* It is a standard of battery performance at the time of initial full charge.

In case

※ Operating time varies depending on the customer's environment · location of use.

In case

* Battery running time is the theoretical value and it does not guarantee operating time.

In case

[Size] Body: About 79 × 24 × 12 mm (length × width × thickness)

[Supported OS] Windows 10 / 8.1 / 8/7 / VISTA / XP / 2000 / Me (operation verified settled)

【Battery】 lithium polymer rechargeable battery 【waterproof】 non-waterproof

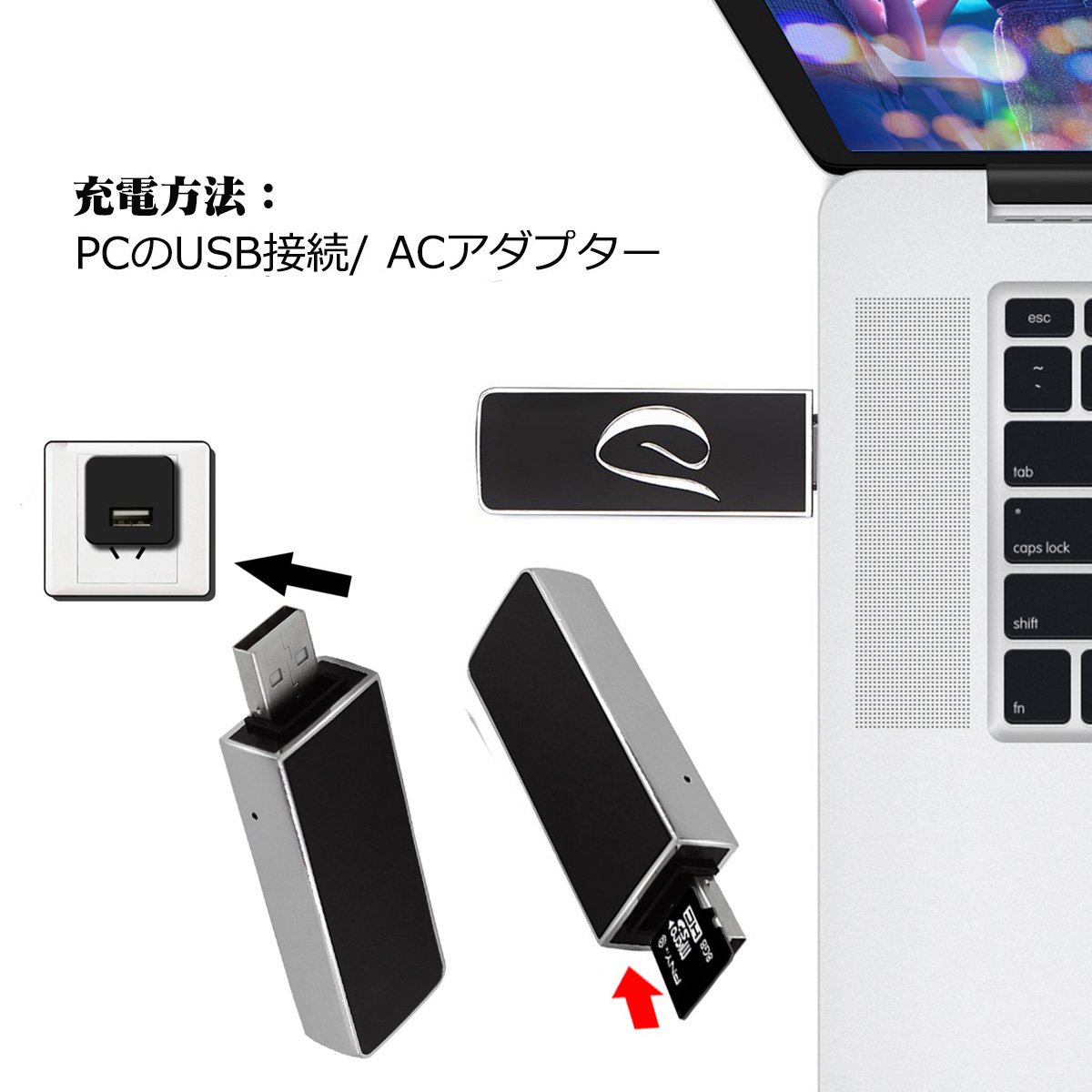

Charging method

1) With the power off, the product can be charged directly by connecting it directly to the personal computer with the USB terminal.

2) With the power off, the product itself can be charged directly by connecting the 5 V charger directly with the USB terminal.

Remark: Please use the battery every time please run out.

It can charge to full about 2 to 3 hours.

When charging is completed, please continue to charge as much as possible for 30 minutes, please use after completion of charging.

Connect to PC

It can be used as a U disk when connecting to a PC without being removed irrespective of the state of switch on standby or switch off.

Copy files, cut and paste, delete, U disk initialization, etc. can be operated freely.

When this device is inserted in the USB interface of the PC, the PC pops up the mobile disk icon after a few seconds.

When the red lamp blinks, USB equipment is recognized and data can be transmitted.

Presentation:

a. If you can not recognize the PC after connecting the device to the PC or do not pop up the mobile icon even after 30 seconds, reset this device and insert it again.

b Recommend using the microSD card reader to directly read and play the video file.

When directly reproducing the video file stored in the internal memory of this recording device by USB connection, there is a possibility that the data quantity is excessive, the transmission speed is slow, and the reproduction can not be performed smoothly.

If the microSD card is not recognized, format it.

Date setting:

METHOD: Connect to the PC and open the "time.txt" file with "Device and Drive", set the time in the document as "2016-10-10 00: 00: 00" like this,

Please complete the set and start the camera.

reset:

This device can be reset to this device when freezing, button invalid.

Please press and hold A button and B button, Reset will be done if indication lamp wipes completely.

After resetting, it can be used normally.

About operation

Switch on:

If you press and hold the A button and the blue lamp lights up, it is in the standby state.

photography:

When the blue lamp lights up, it is in the standby state, the B button is pressed for a short time, and when the red lamp flashes once, a single picture was taken.

Video shooting:

When the blue lamp lights up, it is in the standby state, when the B button is pressed for about 2 seconds and the blue lamp blinks 3 times, it disappears, recording started.

Infrared recording:

When the blue lamp lights up, it enters the standby state, when the A button is pressed briefly, when the red lamp blinks three times, the infrared night vision recording started.

accessories

Body · Japanese instruction manual, service card

【Caution】

※ This product is non waterproof.

Rain or underwater photography can cause damage.

※ When the battery capacity decreases, the operation may become unstable, or noise and noise may be mixed in movies and sounds.

※ The contents of accessories may be changed without notice.

※ This product is precision equipment.

Please handle with care.

Features:

• Please enter model number Confirm this is compatible:
• 【Product function】 Movie shooting / Still image shooting / Infrared light night vision shooting / Charging while shooting / Repeat recording / Date change function / High sound quality microphone / Recording lamp off Model / Easy operation / WEB camera
• 【High Quality / High Resolution】 FULL HD 1080P Still picture resolution "1920 * 1080pix" achieving 30 fps of the video frame rate of "1920 * 1080pix" with high picture quality and moving picture resolution.
• Like the voice recorder, audio only recording is realized.
• [Infrared night vision] Mimicry Other various functions can also be taken in the dark with infrared lights.
• 【Long Time Recording】 Maximum microSD card 32GB compatible, It can shoot while charging with repeated recording function, long-time movie shooting without worry about adopted working time.
• We will instantly deliver video in the fields of conference, business negotiation record, various business scenes, nursing care, monitoring of stores, lectures, accidents, crime records, crime prevention, do not mind, actively use as evidence backing
• I think that should be done.

Product information:

Shipping Weight: 99 g

Package Dimensions: 3.00 x 9.19 x 12.09 cm
