6-40V to 8-80V


8.5-48V to 12-50V


10-60V to 12-80V


12-60V to 13-80V






6-40V to 8-80V


8.5-48V to 12-50V


10-60V to 12-80V


12-60V to 13-80V

Product Description

Specification:

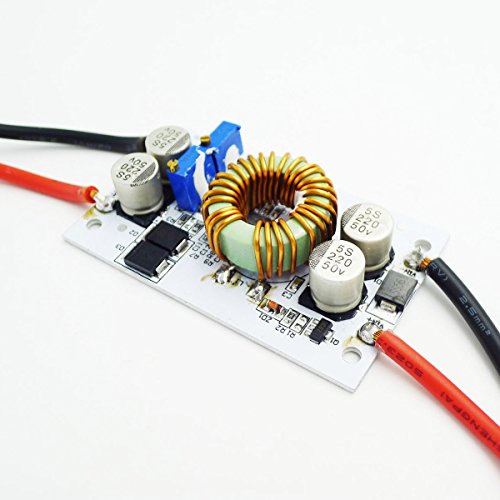

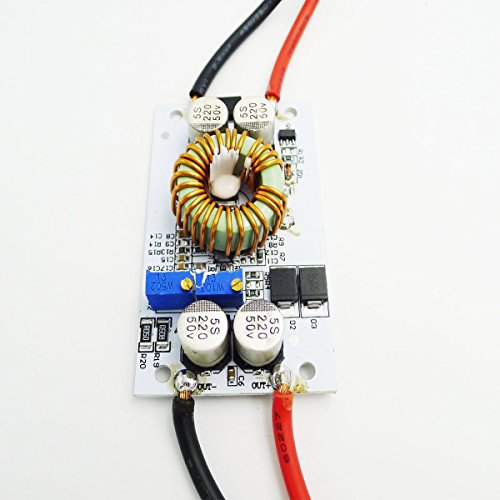

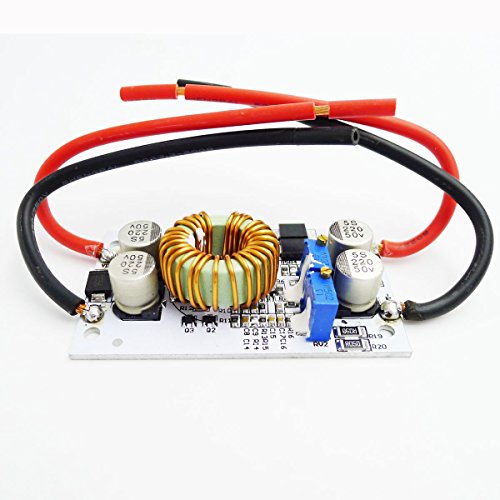

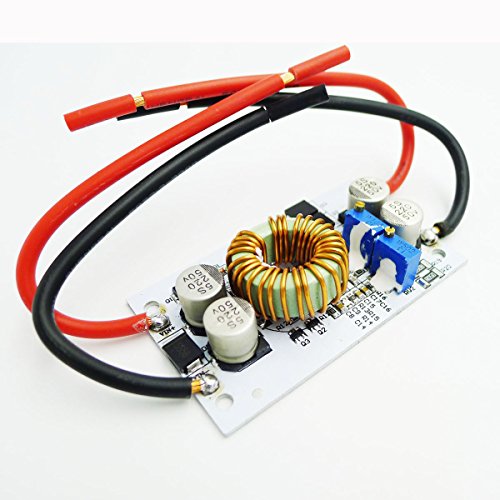

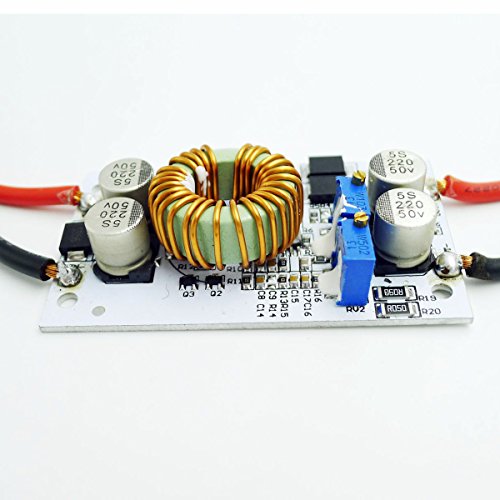

- Module Properties: non-isolated step-up module (BOOST)
- Input voltage :8.5-48V
- Output voltage: 12-50V (adjustable)
- Output Current: 10A (MAX) (Please enhance heat dissipation if more than 6A)
- Output constant Current: 0.2 - 8A (please don't short the output to adjust the current)
- Easy to drive 65W 90W dual-core notebook.
- Conversion efficiency: 96%
- working frequency: 150KHZ
- Output Ripple: 2% (MAX) 20M-bandwidth
- Operating Temperature: Industrial (-40C to +85C) (ambient temperature exceeds 40C, lower power use, or to enhance heat dissipation)
- Dynamic response speed: 5% 200uS
- over circuit protection: yes
- Input Reverse Polarity Protection: yes

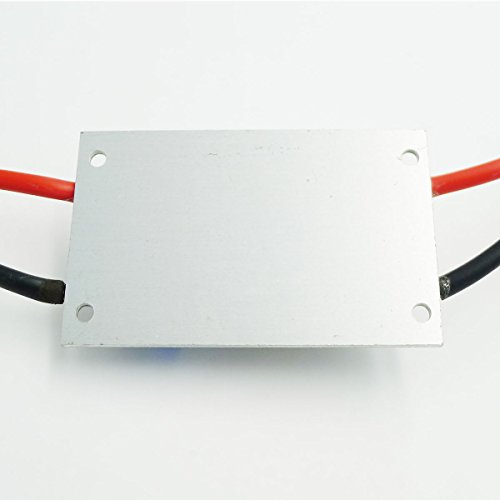

- Size: 70*46*13mm


Feature

Input voltage 8.5-48V ,Output voltage 12-50V
Output Current: 10A (MAX)
Output constant Current: 0.2 - 8A
Output Ripple: 2% (MAX) 20M-bandwidth
Easy to drive 65W 90W dual-core notebook
Brand : GEREE
Item model num : U024V
EAN : 6472005253424
