Product Description

· Very few external BOM-count to create a fully functional application circuit

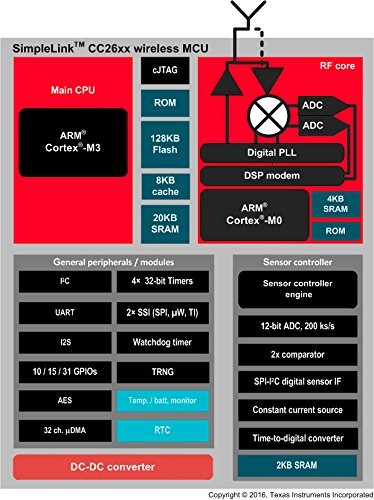

· Texas Instrument TI CC26xx SimpleLinkTM Wireless MCU
· 48MHz ARM Cortex-M3 MCU core for applications with 128K flash memory for ISP
· 8-KB SRAM for Cache and 20-KB Ultra-Low Leakage SRAM
· Dedicated ARM Cortex-M0 core, 4KB SRAM, & ROM for RF operations
· Dedicated processor and 2KB SRAM for ultra-low power sensor control
· Ultra Low power consumption, 6.5mA during Active-TX at 0dBM
· Increased modulation index providing possible range of 100m+ in open area
· Continuous Time Comparator & Ultra-Low Power Analog Comparator
· TRNG & AES-128 encryption for data encryption & authentication
· 4 General-Purpose Timer Modules (8x16-Bit or 4x32-Bit Timer, PWM Each)
· Programmable UART, SPI, I2S, I2C, & GPIO interface
· 12-Bit ADC, 200-ksamples/s, 8-Channel Analog MUX and battery monitor
· Support user-developed applications & custom profile over GATT

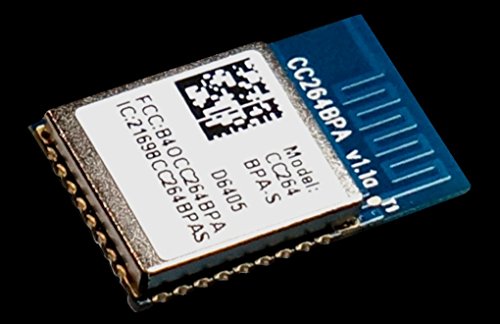

· Integrated RF Shied Cans model available (CC264BPA-S)
· Certifications: BQB / FCC / IC / CE: Available upon request
· REACH / RoHS compliant

Size:
· 14 x 21.5 x 1.8 mm

Package Content:
5 Pack Modules

Applications
· Internet of Things (IoT) Device
· iBeacon
· Wireless Keyboard & Mouse
· GamePad & Game Controller
· HID applications
· Mobile phone & tablet accessory
· Medical & healthcare monitor
· Sports & Fitness equipment
· Proximity & Lost-prevention Key Fob
· Smart Wearable
· RC & Interactive Toy
· Home/Building Automation
· Machine-to-Machine data transfer
· Remote Sensor Network
· Wireless Alarm & Security
· Automatic Meter Reading (AMR)
· Electronic Shelf Labeling
· Lighting & HAVC control
· Remote Control & Assisted Living
Standard Firmwares Available
· Heart Rate Monitor (HRP)
· Blood Glucose Monitor
· Health Thermometer (HLP)
· Blood Pressure Monitor (BLP)

Feature

High-performance and ultra low-power consumption BLE 4.x data module for IoT, wearable and Bluetooth Smart applications
Fully compliant to Bluetooth Smart (4.2 Low Energy single mode) specifications
High efficiency on-module printed PCB RF antenna
Coin battery-friendly 1.8-3.8V operation
Support for 8 Capacitive Sensing Buttons
Brand : MakerSpot
Item model num : LYSB01LZYN2K1-ELECTRNCS
MPN(PartNumber) : LYSB01LZYN2K1-CMPTRACCS
EAN : 4895173523458
Product Dimensions(LxWxH) : 2x1x3cm ; 45 g
Package Dimensions(LxWxH) : 13x8x3cm ; 45 g
