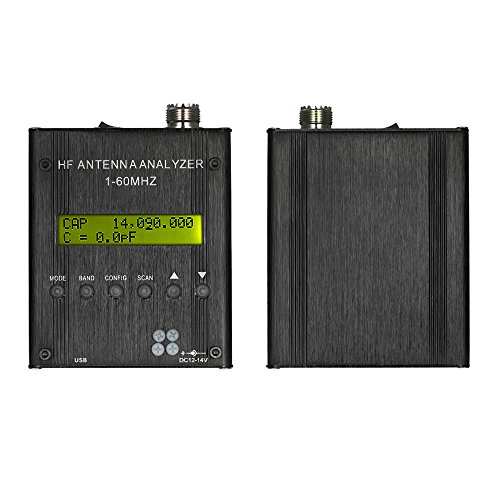

Product Description

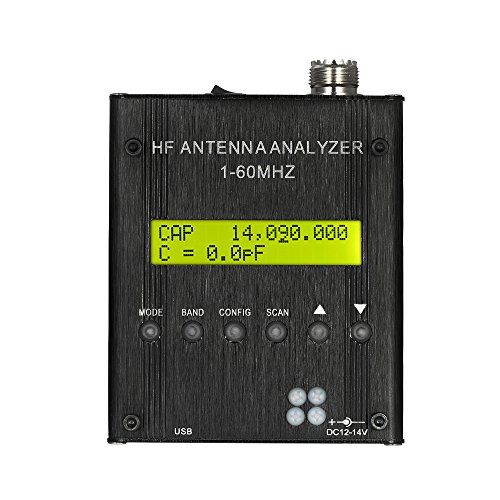

Instrument Capabilities:
Measure antenna electrical parameters: SWR, impedance(resistance reactance), capacitance, inductance;
Measure feed point impedance;
Measure ground loss;
Adjust antenna tuners and determine loss;
Measure inductors and capacitors;
Measure coax transmission line(SWR, length, velocity factor, approximate Q and loss, resonant frequency, and impedance);
Measure and determine optimum settings for tuning stubs: SWR, approximate Q, resonant frequency, bandwidth, impedance;
Determine characteristic impedance of transmission line;
Determine length of ¼ and ½ wave phasing lines;
Coaxial Cable Loss;?
Determine antenna tuner loss; ?
Measure balun loss;
Measure inductor Q;?
Estimate quartz crystal parameters;

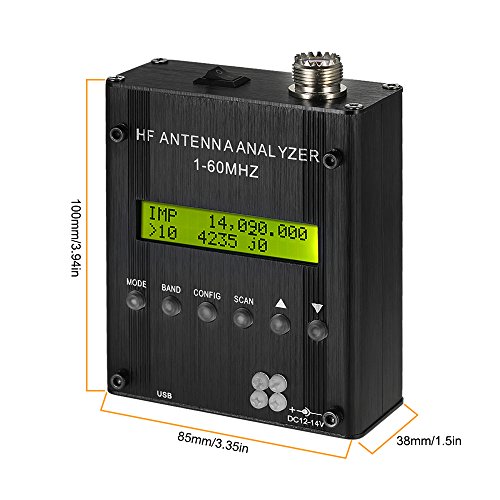

Specifications:
Version Type: Ordinary Version / Bluetooth Version(Optional)
Frequency Generation Control: 1-60MHz
Source Impedance: 50 ohms
Stability: ( /-) 100 ppm
Spectral Purity: Harmonics Down >- TBD dB beyond 60MHz
Step Size: User configurable increments of 100Hz, 1KHz, 10KHz, and 100KHz
Usable Measurement Range: SWR: 1.0 to 9.99
Impedance: Approx. 5 to 2000 ohms
RF Output: Adjustable: 2.0 Volts pp (typ) ?

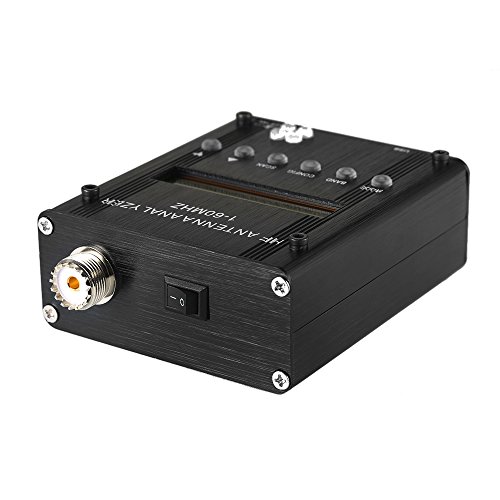

RF Out: BNC
Power Supply: Internal: 8*AAA 1000mAh Ni-MH Cells(NOT Included); External: DC 13.8~18V, 500mA
Power Requests: Internal-positive, External-negative
12V - Can drive the Analyzer to work, but can not charge the battery
13.8V~18V - Can drive the Analyzer to work, also able to charge the battery?

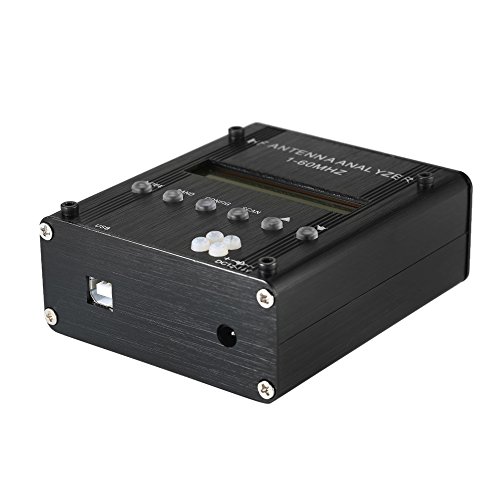

USB Interface: Mini-B Receptacle
External Power Interface: 2.1mm Power Jack(center pin positive)

Package List:
1 * Antenna Analyzer
