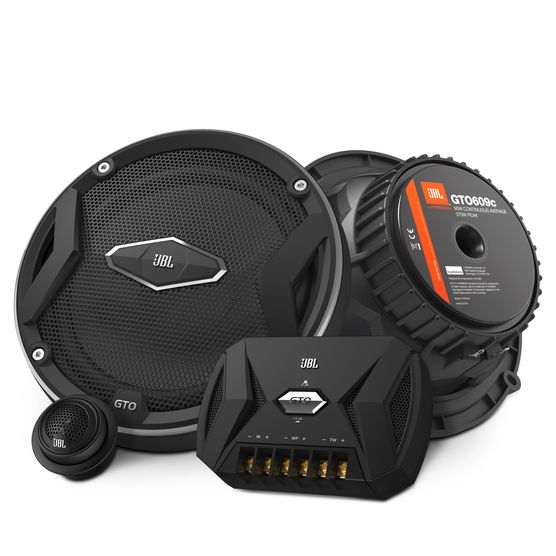

JBL GTO609C Premium 6.5-Inch Component 2-Way Speaker System Max 270Watts RMS 90Watts GTO 609C


JBL GTO609C Specifications:

General Specifications

  • Type: Two-Way
  • Size: 6-1/2"

    • Audio Specifications

  • Nominal Impedance: 3 ohms
  • Power Handling (RMS): 5W - 200W
  • Power Handling (Peak): 270W
  • Sensitivity (2.83V/1m): 92dB
  • Frequency Response: 67Hz-21kHz

    • Dimensions

  • Mounting Depth Tweeter: (in) 13/16
  • External Diameter (in): 6-7/8
  • Mounting Cutout Diameter Tweeter (in): 1-5/8
  • Mounting Depth (in): 2-1/16
  • Mounting Cutout Diameter Tweeter (mm): 41
  • External Diameter (mm): 175
  • Mounting Depth (mm): 52
  • Mounting Depth Tweeter (mm): 20
  • Mounting Cutout Diameter (in): 5
  • Mounting Cutout Diameter (mm): 127

    • JBL GTO609C Description:

    Ultimate sound experience, Mid-bass, tweeter and cross-over bring music to life in your car.

    JBL GTO 609C component speaker handles 270 watts peak power (75 watts RMS). This much power makes for an ideal match to systems powered with head-unit or factory-amplifier power levels. Even better, the speaker matches many of the GTO Series amplifier combinations. As a result, it can keep up with systems that feature one or more subwoofers and satisfy high-fidelity audiophile listeners. And its great power-handling specifications also increase reliability over the lifetime of the speaker.

    25 270 watts suggested amplifier power range

    JBL engineers designed the GTO 609C component speaker to produce strong, clear sound from a head-unit or amplifier capable of delivering up to 270 watts of power. This makes the GTO 609C an ideal match to systems powered with head-unit or factory-amplifier power levels. Even better, the speaker matches many of the GTO Series amplifier combinations. As a result, it can keep up with systems that feature one or more subwoofers and satisfy high-fidelity audiophile listeners. And its great power-handling specifications also increase reliability over the lifetime of the speaker.

    Fiberglass-reinforced plastic (FRP) frames

    The fiberglass-reinforced plastic (FRP) frames used in the GTO 609Cs 6-1/2-inch (160-millimetre) woofer/midrange drivers resist warping even when you mount them on uneven surfaces. Their nonmagnetic carbon composite helps to control the magnets energy and deliver it to the voice coil instead of wasting it as heat. Whats more, the plastic doesnt resonate. The result of this control is accurate sound in your car.

    12dB/octave passive crossovers

    A dedicated 12-decibel/octave passive crossover network in the component sets increases power handling and musical clarity in the JBL GTO 609C two-way component speakers. It provides protection for the tweeter and contoured filtering at the crossover point between the woofer and tweeter.
