Product Description

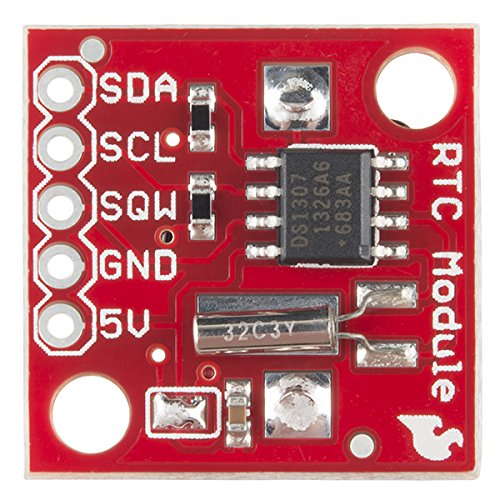

This is the SparkFun Real Time Clock (RTC) Module, this little breakout that uses the DS1307 to keep track of the current year, month, day as well as the current time. The module comes fully assembled and pre-programmed with the current time (MST) and includes a small CR1225 Lithium coin cell battery that will run the RTC for a minimum of 9 years (17 years typical) without an external 5V power supply.

The DS1307 RTC is accessed via the I2C protocol. We've written a test-bed to program the modules, this code should give you some insight on how to interface the module to any microcontroller using our example software I2C and BCD routines.

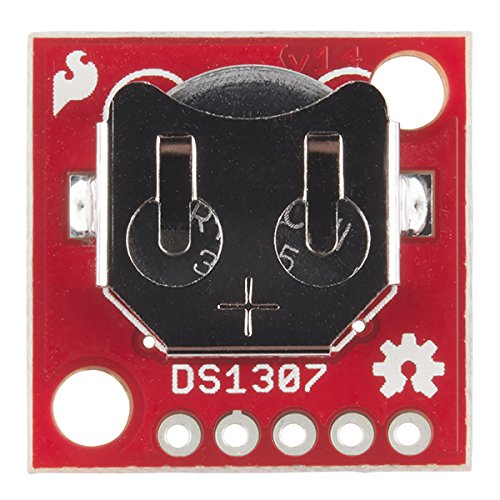

This rev of the Real Time Clock module finally adds I2C resistors and a larger battery pad to fix the problems with the battery shorting to the board.

i2c address: 0x68

Feature

Two wire I2C interface
Hour : Minutes : Seconds AM/PM Day Month, Date - Year Leap year compensation
Accurate calendar up to year 2100
Battery backup included. 1Hz output pin
56 Bytes of Non-volatile memory available to user. 0x68 I2C Address
Brand : SparkFun
EAN : 0717520028109

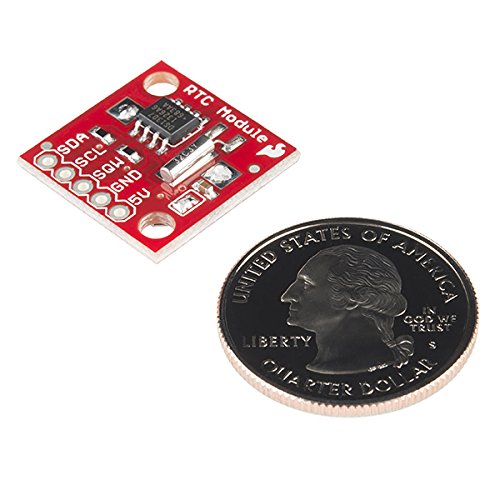

Product Dimensions(LxWxH) : 3x3x3cm ; 9 g
Package Dimensions(LxWxH) : 11x6x1cm ; 9 g
