Item Descriptions:

Color:

Silver

Product introduction

Dual mono configuration converter DSD 5.6 MHz native playback possible.

From Amazon

New standard that condenses high performance to desktop size, high resort era.

Dual A / D converter with dual monaural configuration.

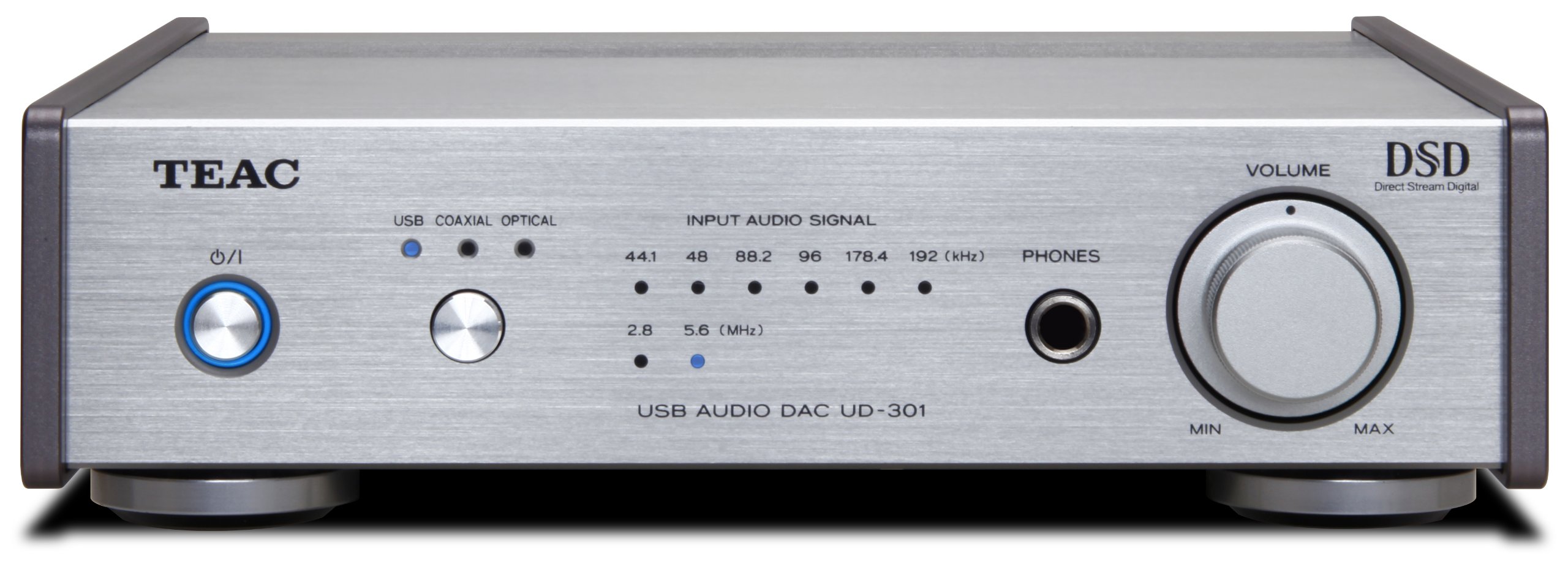

"UD-301" is a D / A converter with dual monaural configuration supporting USB input of DSD 5.6 MHz and PCM 32 bit / 192 kHz.

USB input from the personal computer corresponds to DSD 5.6 MHz and PCM 32 bit / 192 kHz.

Everyone can easily enjoy the world of Hi-reso audio from TEAC HR Audio Player, which is a high-resolution sound source playback software installed on a personal computer.

The USB input supports the asynchronous mode in which USB transmission jitter can theoretically be ignored, and transfers the digital audio signal in a pure state.

In addition, it has two S / PDIF inputs, coaxial digital input supports up to 24 bit / 192 kHz, optical digital input supports up to 24 bit / 96 kHz.

Also, it is possible to up-convert the input digital signal to a maximum of 192 kHz.

You can also enjoy the 44.1 kHz sound source equivalent to the CD sound quality in the high resolution environment.

BurrBrown PCM 1795 is independently mounted on the D / A converter which processes huge information of the high resolution sound source.

The analog circuit which decides the sound quality also adopted the dual monaural configuration which eliminated the interference between the left and right channels, such as using the MUSES 8920 op-amp specially designed for Hi-Fi equipment one by one exclusively for the left and right.

Furthermore, the headphone amplifier adopting the CCLC (Coupling Capacitor Less Circuit) system is also a dual monaural configuration with independent left and right circuits.

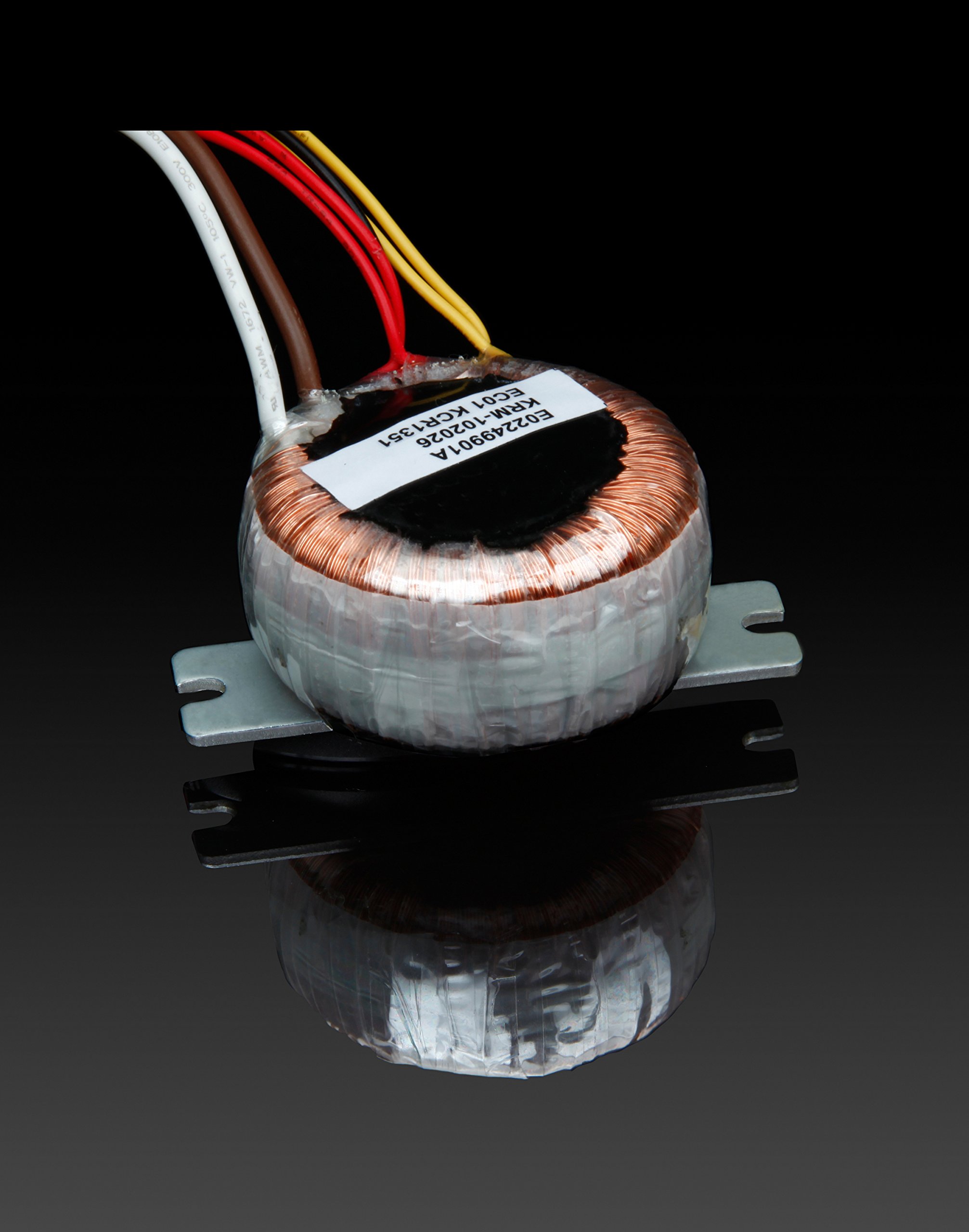

Adopt toroidal core power transformer for power supply.

Steady current is supplied even in situations where a large amount of current is instantaneously required, such as when a sudden sound rises.

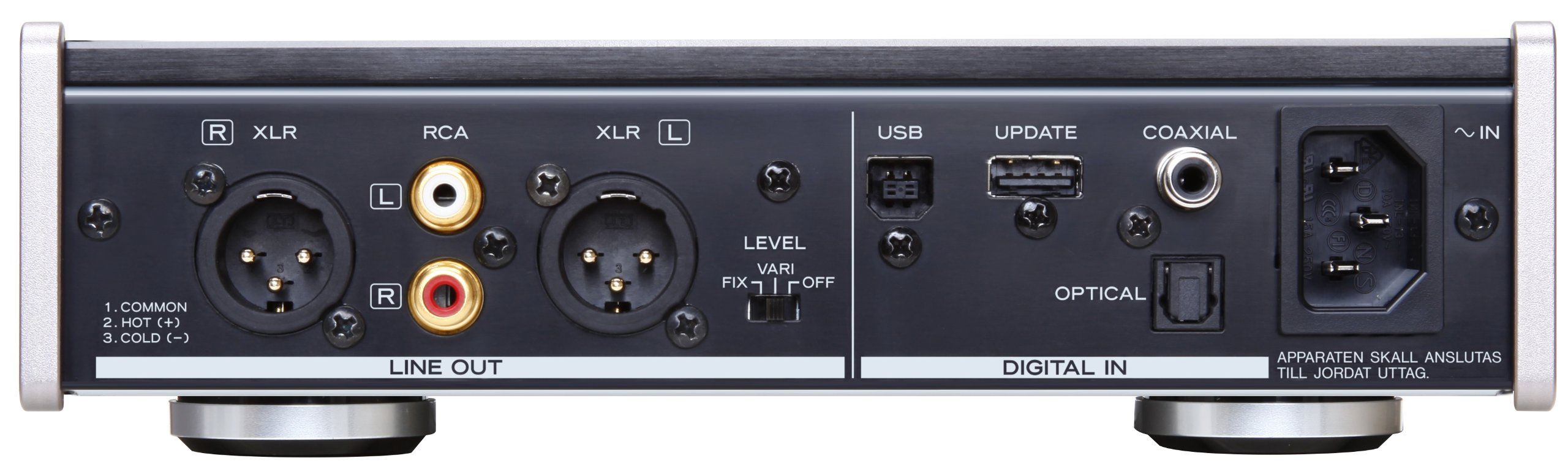

In addition to RCA unbalanced output, audio output is equipped with XLR balanced output.

Furthermore, these audio output levels can be selected from fixed, variable, and output off.

When it is set to be variable, it can be connected directly from "UD - 301" to the power amplifier and active speaker, and when set to output OFF, the circuit which does not participate in the headphone output is cut off.

It can concentrate on the performance of "UD-301" on the headphone output, and it also functions as a high-performance headphone amplifier.

"UD-301" is a new standard in the high-res era era that can be used not only as a D / A converter compatible with USB input, but also as a USB DAC preamplifier or as a high-performance headphone amplifier with DAC.

DSD high resolution, dual monaural configuration

Supports DSD 5.6 MHz native playback

Expanding

DSD 5.6 MHz Equipped with USB input compatible with DSD native playback that directly converts analog signals without PCM conversion.

With ASIO 2.1 or DoP (DSD over PCM) method supported, TEAC HR Audio Player for personal computer compatible high resolution sound source makes it easy for anyone to easily set DSD 5.6 MHz or PCM 32 bit / 192 kHz

Experience the world of high-spec digital audio such as files.

* TEAC HR Audio Player can be downloaded for free from TEAC's website.

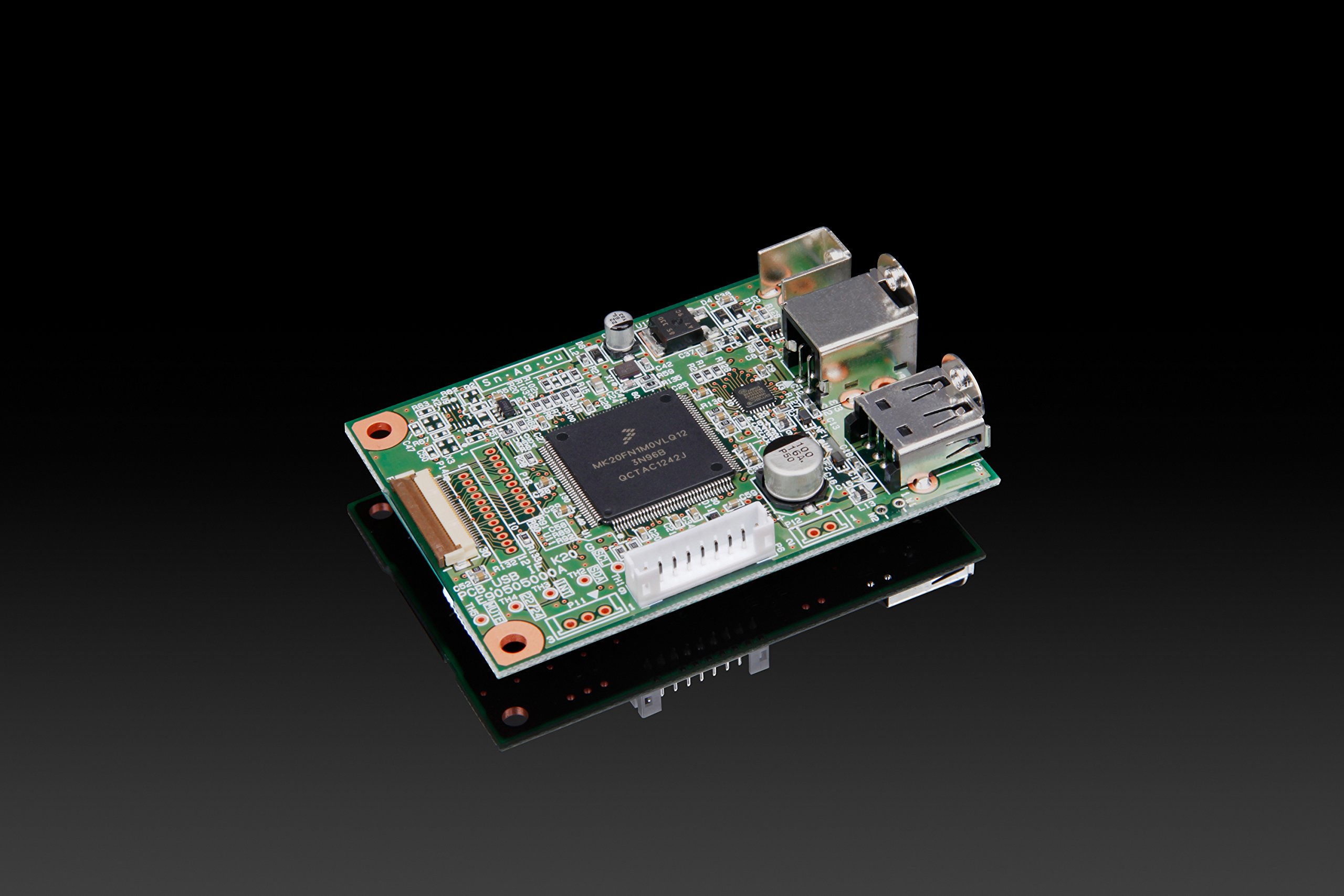

USB input compatible with asynchronous mode

When transferring the digital audio signal from the personal computer via the USB cable, a clock for controlling the timing of the input signal

UD-501

But it corresponds to asynchronous mode (asynchronous mode) controlled by the built-in clock adopted.

Transmits digital audio signals in a pure state using an asynchronous transmission method that can theoretically ignore USB transmission jitter.

Up conversion up to 192 kHz

Up conversion processing of 2 times or 4 times can be selected for digital input signals of 96 kHz or less.

Even when reproducing a 44.1 kHz PCM sound source equivalent to the CD sound quality, it converts it to a higher-definition digital signal and then performs D / A processing, resulting in a smoother analog audio signal.

Of course, it is also possible to turn off this up-conversion function so that you can enjoy the original tone.

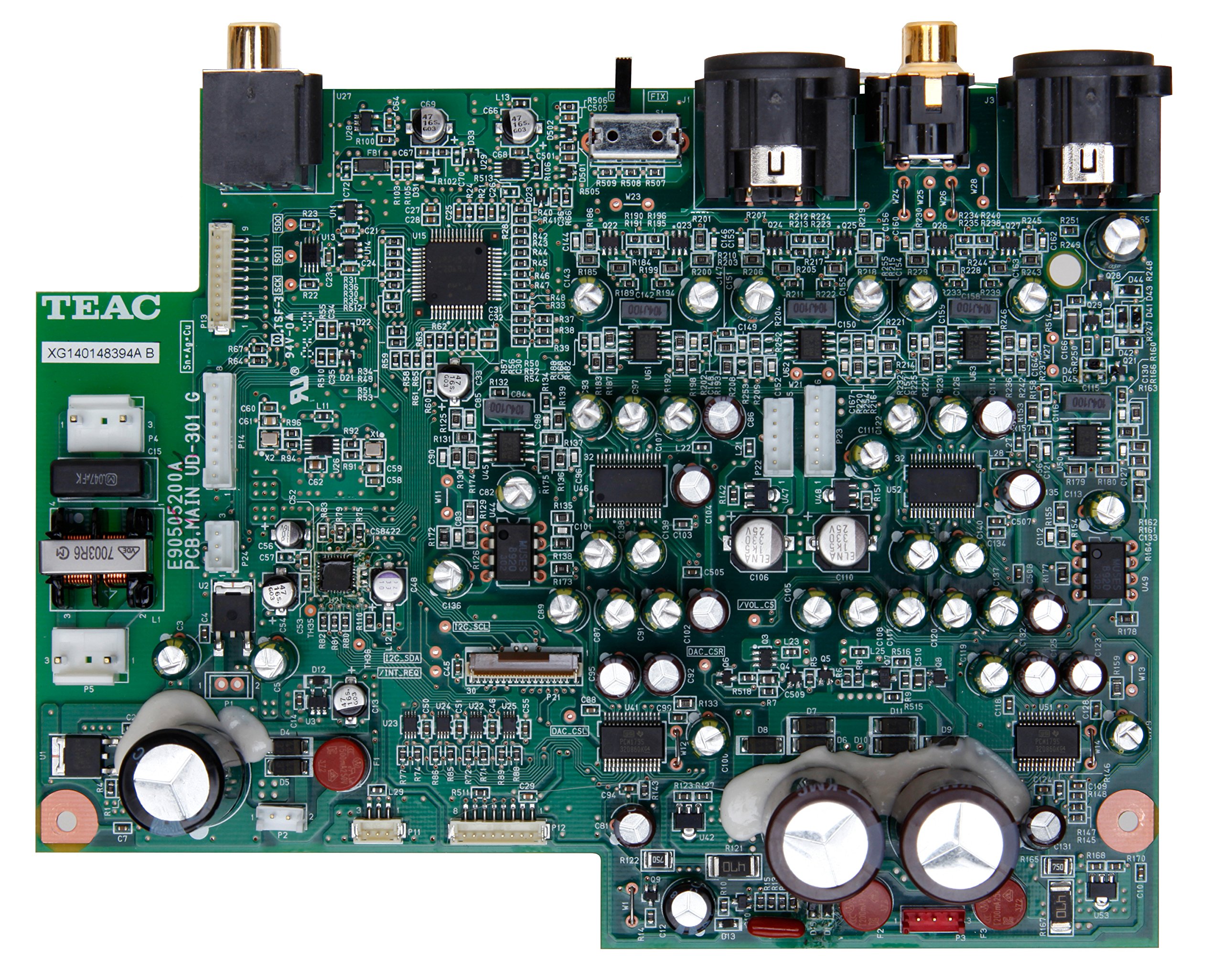

Dual monaural structure suppressing interference of left and right channels

In order to process the audio signal of the high resolution sound source in a more pure state, we adopted a dual monaural configuration in which each of the right and left channels is designed as one monaural circuit.

It prevents mutual interference between the left and right channels and enables pure stereo playback.

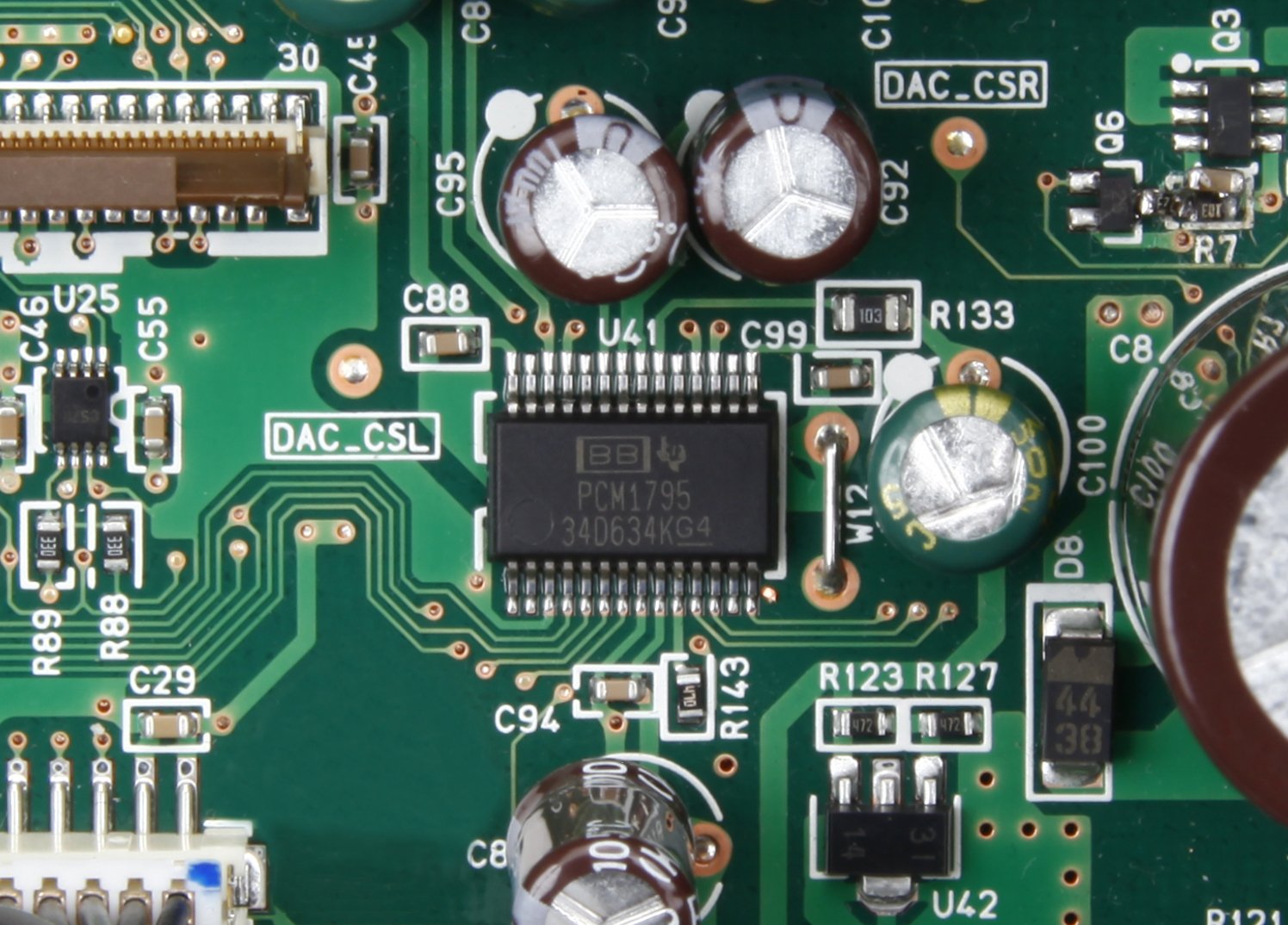

High Performance D / A Converter BurrBrown PCM 1795 adopted

Expanding

Features:

• Please enter model number Confirm this is compatible:
• 4907034218738

Product information:

Shipping Weight: 3039 g

Package Dimensions: 15.59 x 34.01 x 38.99 cm
