Item Descriptions:
It is ultra low hardness heat dissipation silicone pad which realizes both high thermal conductivity and electric insulation.

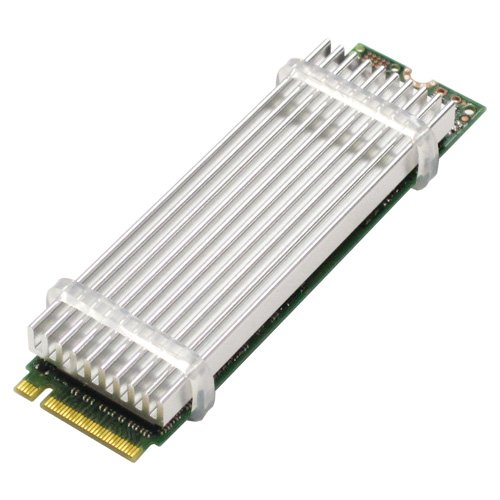

Secure the M.2 SSD and heat sink with the included silicone rubber ring.
By using a silicone pad instead of a double-sided tape, it reduces damage to the label of the SSD.
M.2 Ideal for use with SSD heat sink (HM - 21).
please note
Since there is no adhesive strength, please use it in the environment fixing the heat sink etc. with pins and screws.
Although the protective film differs in the back and front, there is no back side on the pasting face.
Various data of the specification is maker measurement value, not standard value.
Features:
- Please enter model number Confirm this is compatible:

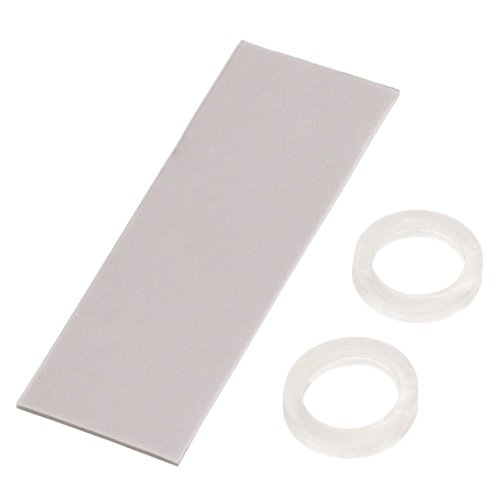

- M.2 Heat sink silicone pad for heat sink for SSD.
- Ultra low hardness heat-dissipating silicone pad: TC-100CAF-40 made by Shin-Etsu Chemical Co., Ltd. 1 piece
- Breakdown voltage: 20 kV / mm
- Breakdown voltage: 20 kV / mm
- Thermal conductivity: 5.2 W / m · K
- Flame retardancy: UL 94 V-0
- Size: W21 × D66 × H1 mm
- Silicone rubber ring: 2 pieces
- Silicone rubber ring (outer diameter / inner diameter): 16 mm / 12 mm
- Silicone rubber ring (temperature / thickness): -30 to 200 ° C / 2.5 mm
Product information:
Shipping Weight: 9 g
Package Dimensions: 0.71 x 5.89 x 18.11 cm
