Product Description

Operation Instructions:

1. Receiving Visitors: When a visitor presses the doorbell button on the outdoor video doorbell unit, not only will one of 16 selectable melodies ring on the indoor monitors but the doorbell will also automatically take and store a photo of the visitor.
2. Answering the Doorbell: Simply press the "Talk" button on the indoor monitor and you'll be able to see video of the visitor as you communicate with him or her.
3. Monitoring: Even when a visitor has not pressed the doorbell button, you can still activate the doorbell's video feed by pressing the "Monitor" button to see a live view outside your door.
4. Opening the Door/Gate: Purchase the additional Electric Door Lock and you can open the door or gate for your visitor with a touch of a button without leaving the security of your home.
5. Settings: Adjust for brightness, volume, and select one of 16 polyphonic doorbell melodies.
6. Videos and Photos: Browse stored videos and photos, and delete or transfer them to an SD card. Set the time and date on the monitor unit for accurate video/picture tracking.

Important notes:

1. This video doorbell kit includes a 49 feet (15 meters ) wires. If wanting to add addition wire to extend up to 82 feet (25 meters), please use 2 x 0.75mm wire; If wanting to extend more than 82 feet, please use the 2 x 1.0mm wire.

Specification:

Monitor:
Power: Input: AC 110-240V, 50-60Hz; Output: DC 15V, 1200mA
Display: 7-inch TFT-LCD
Ring Tone: 16 melodies.
Operation temperature: -10℃ - 40℃
Operation humidity: less than 90%
Dimension: 9.3in x 5.0in x 1.0in

Outdoor video doorbell:

Power: Input: DC 15V, 1200mA
Operation temperature: -20℃ - 50℃
Operation humidity: less than 90%
Dimension: 4.3 in x 6.2in x 2.2in

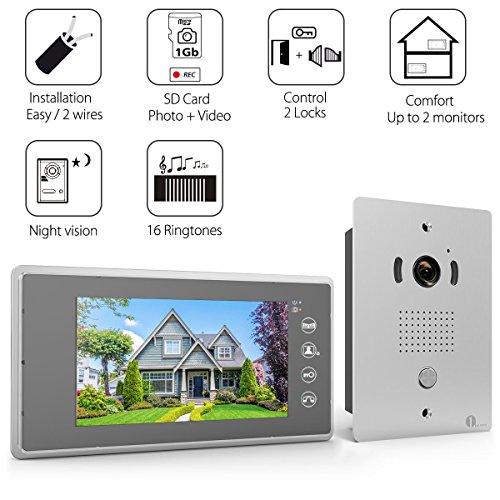

Feature

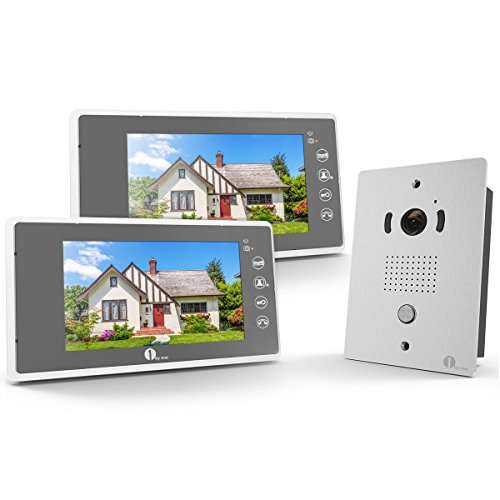

Security through Vision - The wall-mounted 7-inch color monitor and outdoor doorbell with integrated HD camera ensures you can both see and speak with all visitors

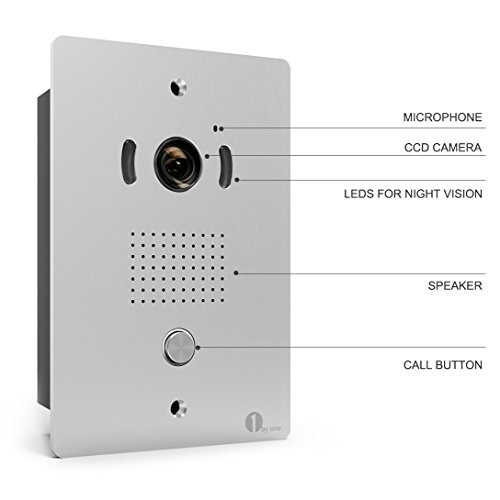

Durable Construction - The Outdoor doorbell is constructed using a full aluminum front panel for protection from vandalism, while waterproofing protects from the elements. IR (infrared) LED projection provides clear vision of visitors even in the darkness of night.
Save Videos and Photos - Videos and photos taken from the outdoor doorbell can be stored on an inserted SD cards or the monitor's internal memory for later viewing. (Note: Saving video requires an SD card, up to 32gb, not included)

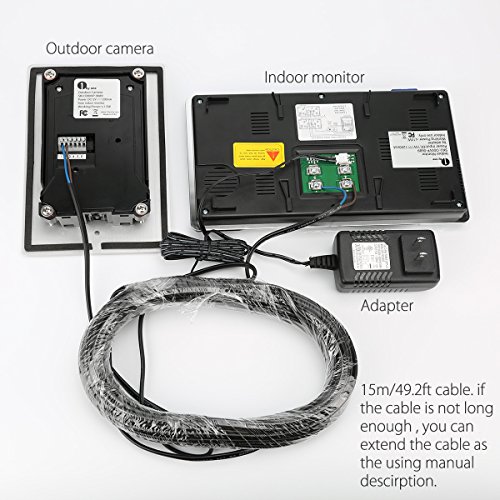

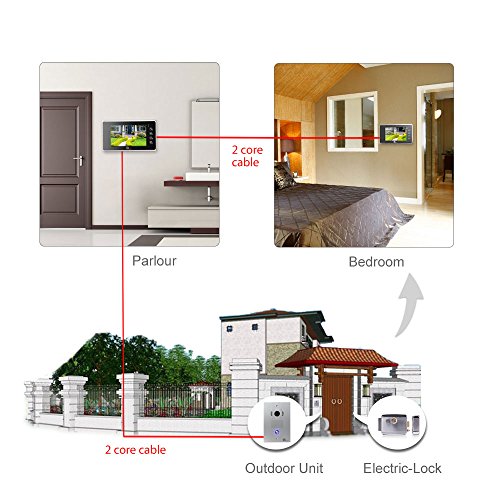

Easy installation: Easy 2-wire setup system includes installation materials and 49-foot (15-meter) connection cable.

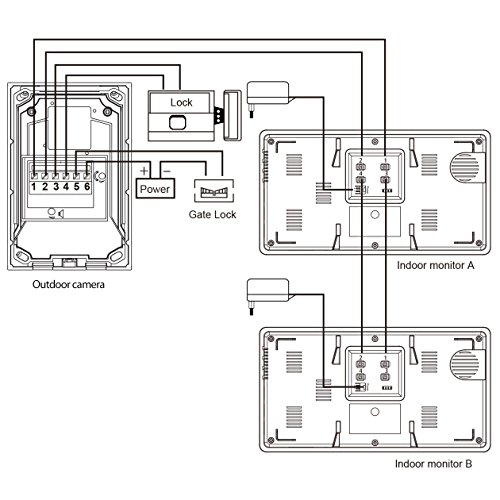

Lock Control - Control up to 2 electric door/gate locks directly from the color monitor for even further security and convenience.
Brand : 1byone
MPN(PartNumber) : O00VP-0689
Package Dimensions(LxWxH) : 36x31x14cm ; 2790 g
