Module parameters:

1voltage: 3V~6V

2current: & lt; 10 ma

3volume: X 15.24mm X 2mm 15.24mm

4pad spacing: up and down 100mil (2.54mm)left and right 600mil (15.24mm)

5measuring dimensions: acceleration: 3 dangular velocity3 dattitude Angle: 3 d

6range: acceleration: plus or minus 16 gangular velocity: + 2000/ s.

7resolution: acceleration: 6.1e-5gangular velocity: 7.6e-3 degree /s.

8stability: acceleration: 0.001gangular velocity of 0.02 degrees /s.

9attitude measurement stability: 0.01 degrees.

10the data output frequency 100Hz (115200 baud) /20Hz (baud rate 9600).

11data interface: serial port. TTL levelI2C (direct connect MPU6050no attitude output)

10115200 KPS / 9600 baud rate KPS.

Product selling point:
1internal module is integrated with the attitude solverwith the dynamic Kalman filtering algorithmcan under the dynamic environment accurate output module of current attitudeattitude measurement accuracy is 0.01 degreehigh stability performance even better than some of the professional inclinometer.
2USES the high precision gyro accelerometer MPU6050reading MPU6050 measurement data from the processor and then through the serial port outputremoves the users themselves to develop MPU6050 complex of I2C protocol.
3adopting the elaborate PCB layout and process to ensure the minimum MPU6050 received external interferencemeasurement accuracy is the highest.

4the module itself voltage stabilizing circuitthe embedded system that can be compatible with 3.3 V / 5 Vconvenient connection.

5module MPU6050 retained the I2C interfacein order to meet the demand of the advanced users want access to the underlying data.

6the use of advanced digital filtering technologycan effectively reduce the measurement noiseimprove the measurement accuracy.

Using the stamp hole gold plating processquality assurancecan be embedded in the user's PCB board.

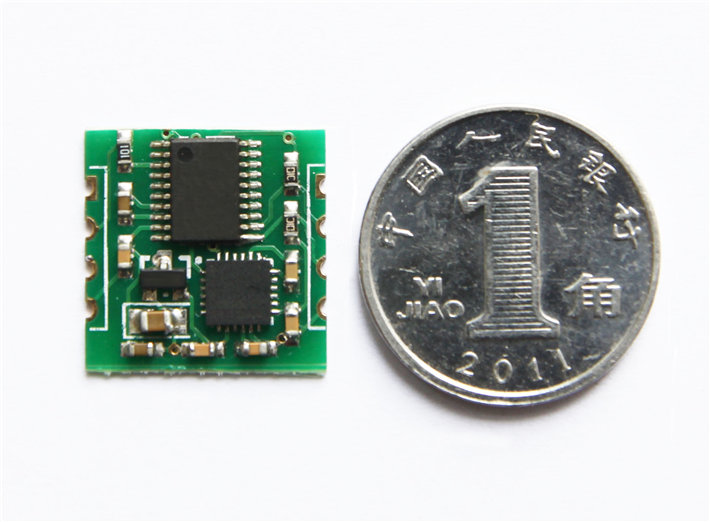

Volume less than a 1 MAO coin sizethickness 2 mm modulestamp hole design can users to embed the modules in the circuit board.

Connection methods:

USBSerial port module connection6050The modulesquaremethodyes :USBA serial port of the module+5VTXDRXDGNDmeet6050modelBlock TheVCCRXTXGNDPay attention toTXDandRXDThe cross.

The interface of computer and need to use TTL serialsugested using a mix of the two USB to serial port module ofin order to avoid other brands of serial port module compatibility issues lead to 6050 module can not be normal output datadelay your valuable time:

(1) multi function USB serial port module:

(2) USB to TTL module

Even the MCU microcontroller

MCUEven SCM and output debuging information.

Under normal circumstancesMCUthestrand mouth Capitalsource thanrelativelytightZhangThere areThe single slicemachineonly yesOneindividual strand mouthwhileAnd adjustabletry ThewhenHouneed tothroughtoo strandmouthtransportAtransfertryletter interestthistime canwith take MCUThe TXPin connected toUSBturn stringmouth Module RXOn6050dieblock theTXreceivedMCUTheRXPinssoMCUCan be received6050Module dataand can output debuging information.MCUUnable to output serial instruction6050Modulebut the configuration of the module can be savedand calibration can be automatically executed after power up third secondsusually do not send any instructions to work.

The communication between the monitoring module and the single chip microcomputer is used.

If you need toMCUaccept6050Module output data at the same timeusing a machine to monitor the current datacan beUSBSerial port moduleRXReceiving moduleTXPin and common ground.

Exquisite big picture:

positive






Packaging Details
Unit Type: piece Package Weight: 0.060kg (0.13lb.) Package Size: 15cm x 14cm x 16cm (5.91in x 5.51in x 6.30in)
