On / Off: Open the back cover， insert the SIM card holder automatically boot. When turned on， the indicator light 10 seconds， until the light goes out， the back cover can be used. When not in use， you can come directly to the card.

Environmental investigation Listen: boot properly， call the alarm number， wait five seconds after time connectivity to hear the status of the investigation location within 10 meters around the machine.

Voice Callback: using a mobile phone or landline to get through the alarm in the SIM number， hear the sound around 3 seconds， hang up that is set successfully. When a 45-decibel alarm sounds within 10 meters， the alarm will automatically dial to set a good number.

1111 - Voice Open 0000 - Sound Off

LBS positioning: the user to edit capital letters "DW" (foreign users edit the "GPS") to the alarm， a minute or so will return a message containing information address / latitude / Website Content

.

SOS emergency call: edit text content directly long uppercase "SOS" to the alarm， press the SOS button after successfully set more than three seconds， the alarm call back directly bind number.

Operating Frequency: GSM850/900/1800/1900MHz

Standby time: When using voice， stand 5-7 days; do not have a voice， the standby 12-15 days.Note:

1， the new machine is fully charged before use in order to achieve the best results.

2， Charger Standard: 5.0V 500MA， to avoid damage to the host.

3， the installation， please note that GSM network signal strength， do not install in the absence of signal or weak signal areas， so as not to affect the results.

4， the light is not lit， the battery is dead， charge， re-use.

5， could not get through the phone， and then re-boot card or charge test.

6， do not automatically answer， re-boot card.

7， do not return it， please check whether the arrears sim card， sim card SMS check whether full， try again emptied.

8， the need for other anti-theft feature users can contact the seller directly customization.

9， the product used for illegal purposes is strictly prohibited peril.



Description

SMS

Voice Callback open

1111

Voice Callback Off

0000

LBS positioning (1) Domestic

DW

LBS positioning (2) domestic and foreign users

GPS

Emergency

SOS







Available countries:



Thailand

Spain

Russia

Arab

Portugal

Vietnam

Indonesia

India

Pakistan

Bengal

Taiwan



































 Project category prefix = o ns = "urn: schemas-microsoft-com: office: office"

Parameter Description

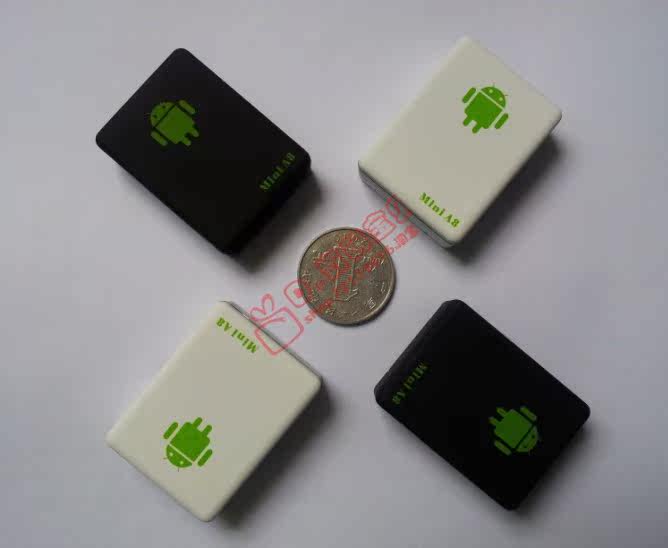

Size

43.2mm x 32mm x 13.6mm

Weight

30g

Network standard

GSM / GPRS

Communication frequency

850 / 900/1800/1900Mhz

Charging input

Input AC110-220V 50/60Hz

Charging output

Output DC5.0V 500mA

Battery Standard

Chargeable changeable 3.7V 500mAh Li-ion battery

Storage Temperature

-40 ° C to +85 ° C

Operating Temperature

-20 ° C to +55 ° C

Humidity Range

5% - 95% non-condensing



The biggest advantage: 1， voice callback， dual mic， voice IC independently controlled， high sensitivity.

2， positioning platform lifelong free platform fees， once the purchase， lifetime use. Someone to maintain timely upgrade the database.

Instructions for use

This product uses the latest technology in Taiwan， with a compact， clear voice， long standby time， simple operation， stable performance， easy installation， and other advantages. Mainly used home monitoring， children， the elderly， pet care supervision， cars， warehouses anti-theft tracking and other functions. )
