Item Descriptions:

This product is aimed at crime prevention and personal security for protecting important families and property.

It is a practical tool required at the home in areas such as safety and life.

【New model function】

Motion picture shooting · Motion detection function · Repeat recording function · External power supply compatible · Automatic monitoring system · High sound quality microphone · Date setting function · File high speed transmission Charged to a long-selling smartphone of the masterpiece.

■ Film and dream high-tech items reality!

A spy item that a professional detective also practices!

■ Evidence collection item to protect yourself in daily life such as stalkers and suspicious people, DV damage!

■ To protect important people such as nursing homes and babysitters as suspected abuse.

■ This product is intended for crime prevention and security to protect important family and property.

Simple design of only the moving picture shooting function sticking to ease of use focusing on practicality ■!

■ Just plug into an outlet when you want to shoot!

As crime prevention measures at the time of emergency!

【Ultra-simple shooting with no button operation required, plugging into an outlet, automatically start movie shooting】

Continuous recording shooting

Uninterrupted recording

):

When changed to "2017-03-20 10: 00: 00N" of the time set, when the machine is connected to the power supply, the recording starts.

Turning off the power to record state, recording stops.

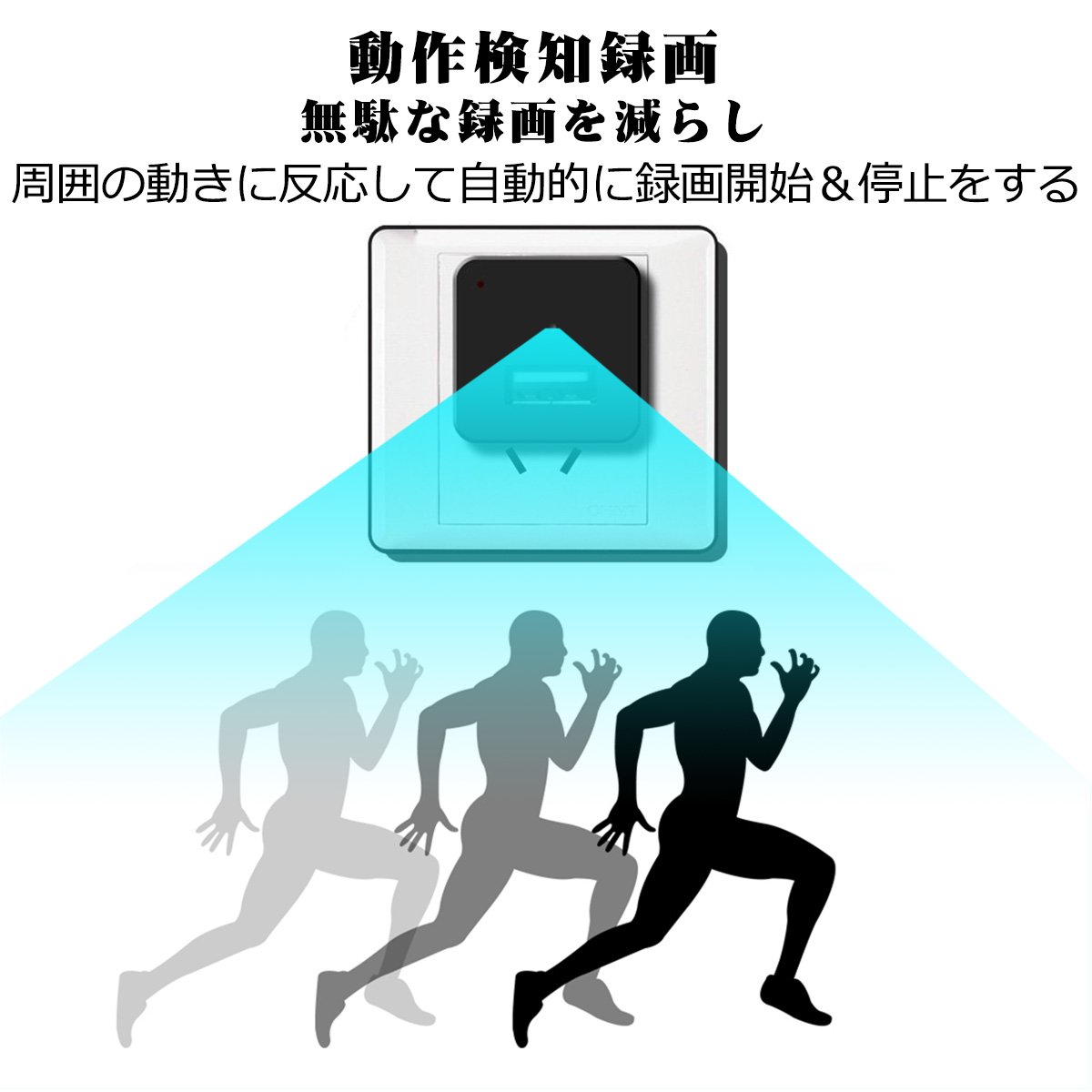

Motion detection Recording:

When changed to "2017-03-20 10: 00: 00 Y" of the time set, when the machine is connected to the power supply, if it searches for a moving object that has switched to standby for moving subject detection,

Recording starts automatically, if there is no moving object in three minutes, it returns to the standby mode of motion detection.

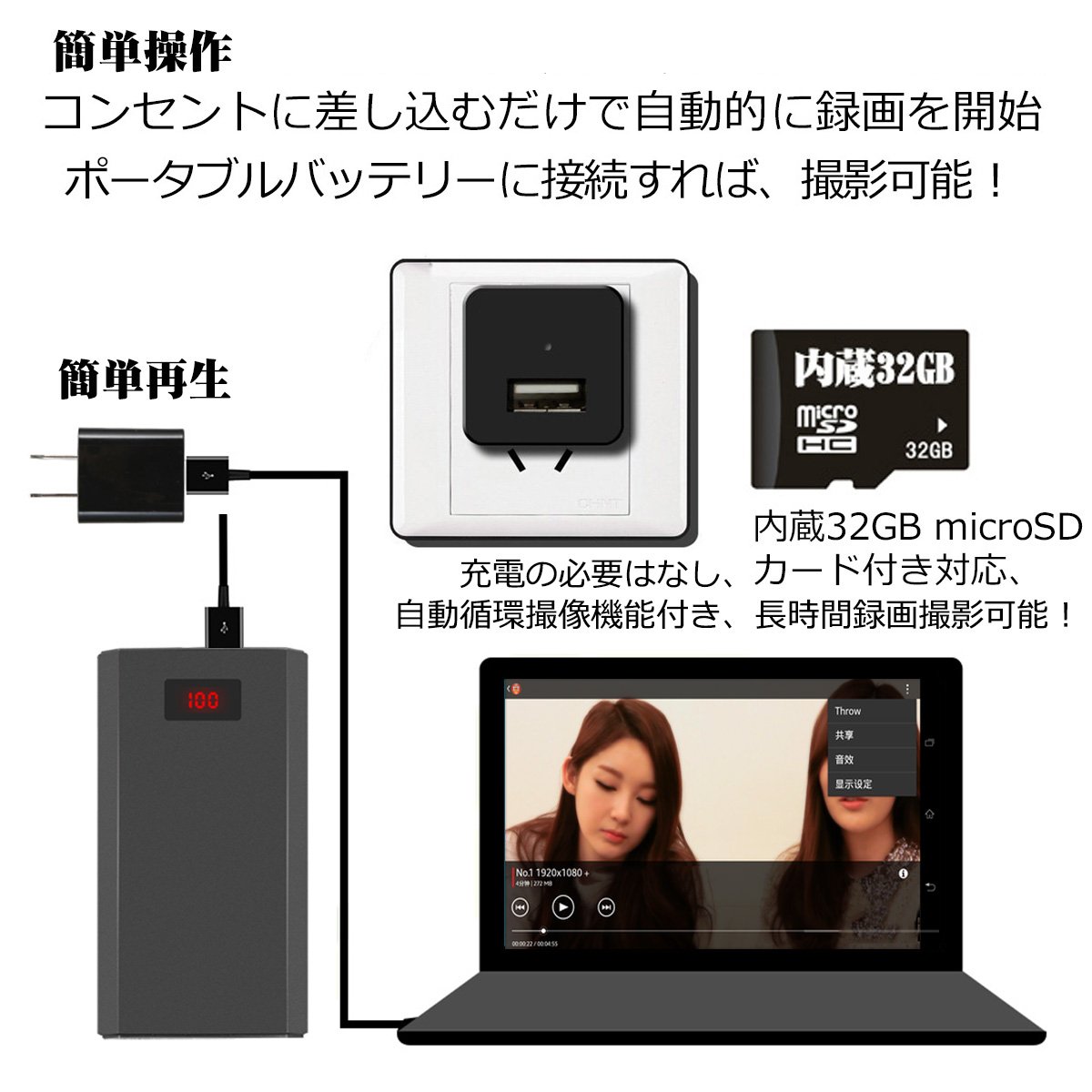

Shooting in Other Ways

1) If you do not have a receptacle, connect it to the portable battery with the included USB cable, you can shoot.

2) This device can shoot by connecting the 5 V USB power supply from the outside with the supplied USB cable.

For playback, please connect to the PC (PC) with the included USB cable】

When inserting this device into the PC, the PC pops up a mobile disk icon after a few seconds.

USB equipment is recognized and data can be transmitted.

Copy of files, cut and paste, delete, etc. can be operated freely.

【Time set and mode setting】

Machine provides display of video file recording time function, you can set the time according to the actual needs.

If you connect to a PC without being unmounted, open the "Time" folder, which can be used as U disk, the format of the content is as follows:

For example: when you want to adjust to 9:10:05 on March 20, 2017

"2017-03-20 09: 10: 05 N"

(Recording mode)

"2017-03-20 09: 10: 05 Y"

Motion detection

Recording

mode

Then save the file.

After restarting, setting the time, the time of the video file became the same as the set time.

Machine is initialized

2016-01-01 10: 00: 00N

I entered the recording mode.

Repeat recording function

: The memory card becomes full.

The machine deletes the earliest video file, pending the previous video file.

reset:

When the equipment stops moving, the status lamp glows long.

Unplug the device from the outlet, after about 1 minute, the status lamp disappears and the device can reset automatically

Practicality

In addition to shooting video of the product, there is a USB5V charging / charging terminal of the main body, and it can charge to various smartphones such as iPhone and iPod.

First

Be sure to plug it into an outlet, then charge it when you connect to the next smartphone.

Product specification

Video format:

AVI

Video Resolution:

1920 * 1080 P

Video frame rate

: 30 fps

Built-in microphone:

New high performance microphone

Motion detection distance:

4 meters

Subject illuminance:

1.0 Lux or more

Interface:

2.0 USB

Save support:

Built-in 32GB microSD card

Supported OS:

Windows me / xp / 2003 / vista; Mac OS; Linux

◆ Accessories:

Body · USB cable · Japanese instruction manual · service card

Features:

• Please enter model number Confirm this is compatible:

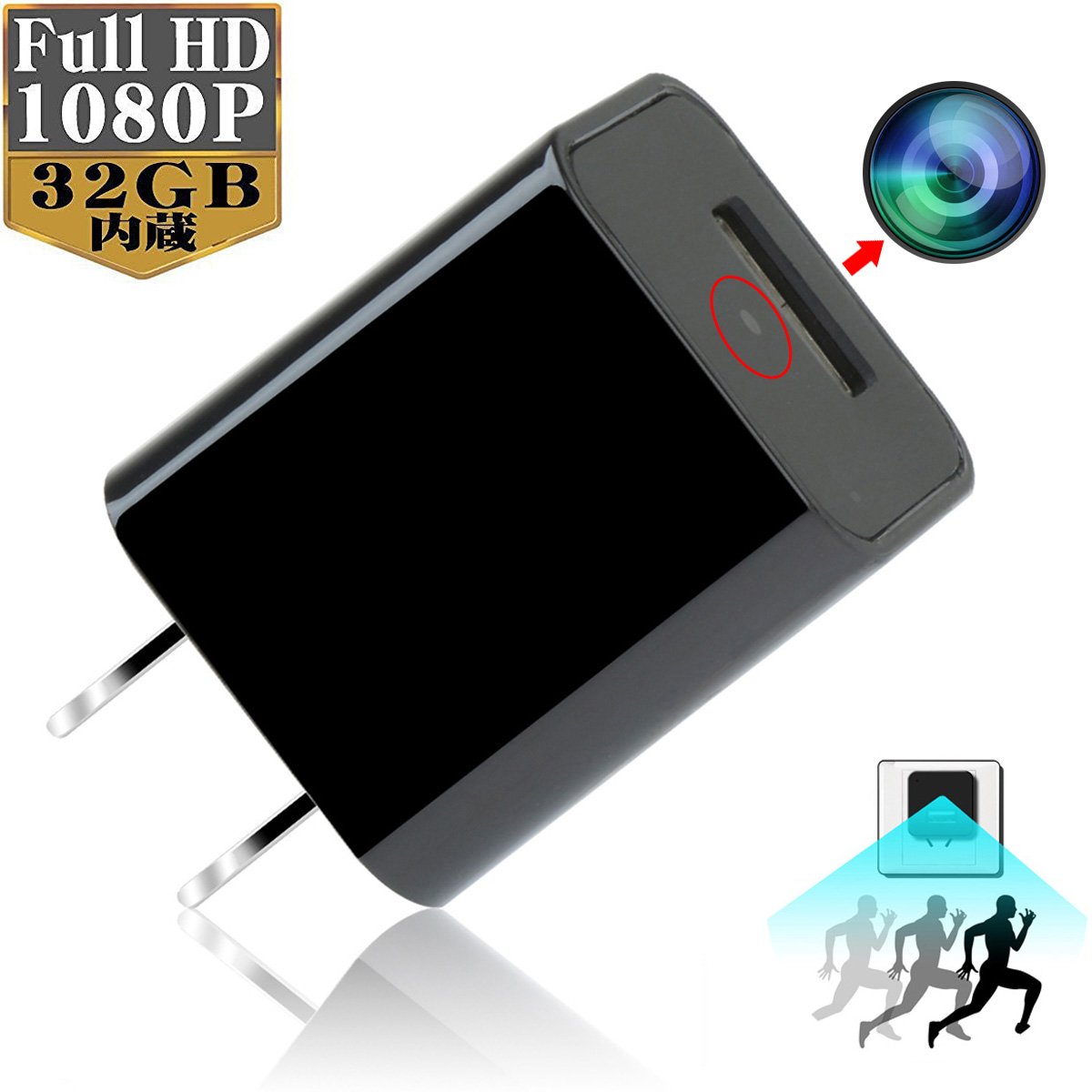

• 【New model】 It is a hidden camera that looks exactly like a small USB AC adapter.
• Motion picture shooting · Motion detection function · Repeat recording function · External power supply compatible · Automatic monitoring system · High sound quality microphone · Date setting function · File high speed transmission Charged to a long-selling smartphone of the masterpiece.
• 【High Resolution】 We realized overwhelmingly beautiful movie shooting which has never been possible with high image quality & high resolution which realizes movie resolution "1920 × 1080pix" and image frame rate of 30 fps.
• 【Motion detection recording】 Automatically start and stop recording in response to surrounding movement, Reduce useless recording by motion detection recording, and it is also ideal for crime prevention measures at your home / office.
• 【Easy operation】 Just plug in the power outlet and start recording automatically, easy shooting without button operation.
• By connecting to a portable battery you can shoot even in places without outlet.
• There is no need to charge with the external power supply function, built-in 32GB microSD card is compatible, shooting is possible without worrying about the adopted operation time.
• [Practicality] In addition to video shooting of the product, there is a USB 5 V charging and charging terminal, it can charge a smartphone such as iPhone and iPod.

Product information:

Shipping Weight: 136 g

Package Dimensions: 3.91 x 9.91 x 12.39 cm
