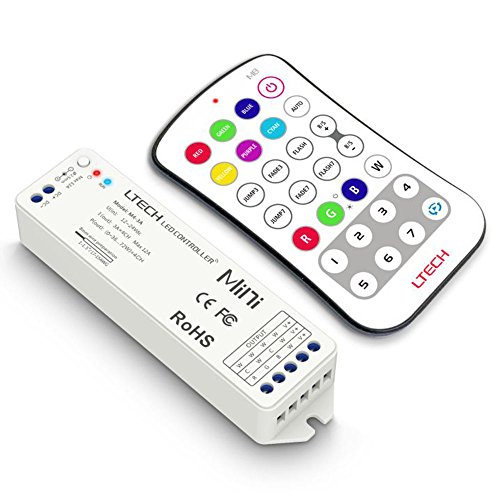

LEDENET RGBW LED Strip Light RF Controller Mini LED Controller Remote RF Wireless Control RGBW RGBWW LED Ribbon Tape Lamp (M8-Button)









M8-Button


M4-Touch

Product Description

LED RGBW Controller

Parameter:

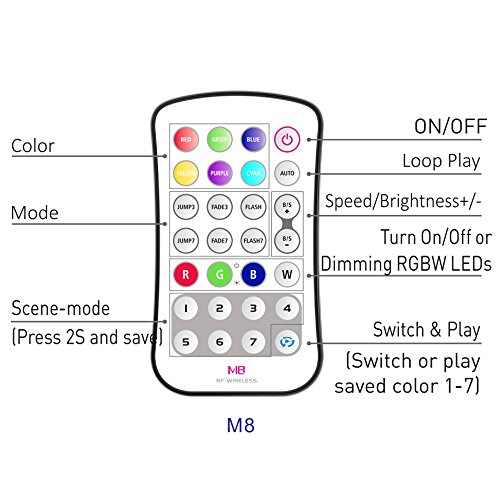

RGBW remote:
Model: M8
Working Voltage: 3V (battery CR2032)
Working Frequency: 433.92MHz
Remote Distance: 40m~50m
Working Temp: -30 ~55 degrees Celsius

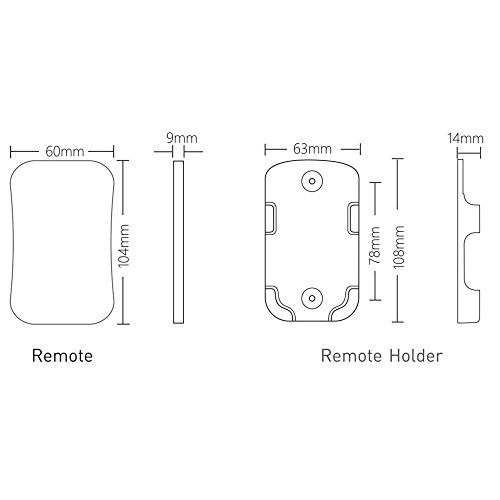

Remote Dimensions: L104*W58*H9(mm)
Remote Weight (N.W.): 42g

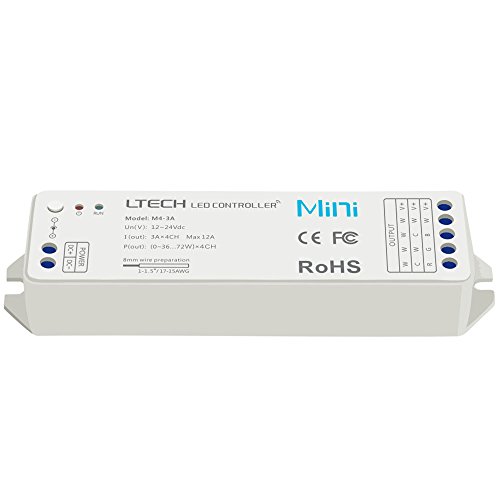

RGBW receiver:
Model: M4-3A
Input voltage: 12~24V DC
Max Current Load: 3A*4CH Max 12A
Max Output Power: (0~36...72W)*4CH, 144W (12V DC), 288W (24V DC)
Working Temp: -30 ~55 degrees Celsius

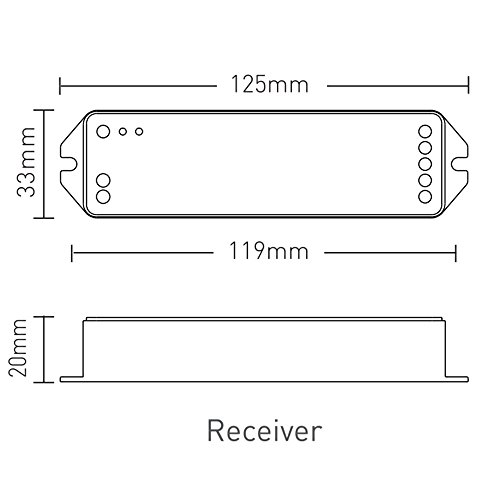

Dimensions: L125*W33*H20(mm)
Weight (N.W.): 60g

The Learning ID Method:
Remote has been matched the receiver before leave factory, if deleted accidentally, you can learn ID as follow.

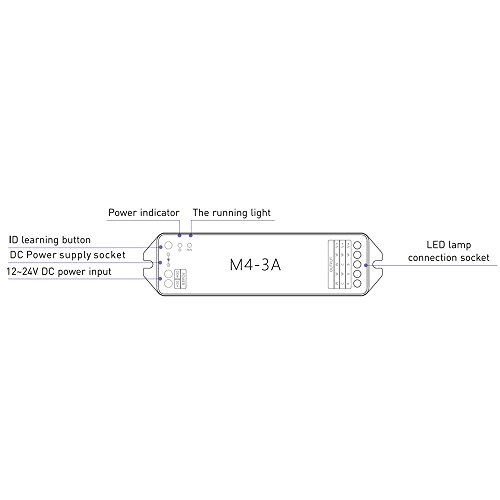

Learning ID: Short Press "ID learning button on the M4-3A receiver, the running light is on, then press any key on M8 remote, the running light flashes several times, activated.
Canceling ID: Press "ID learning button" on the M4-3A receiver for 5 seconds.


Feature

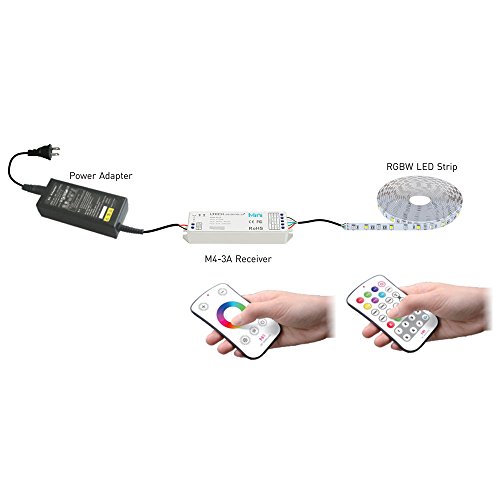

RF LED controller for RGBW RGBWW LED strip lighting tape lamp
Input voltage: DC12V-24V. DC power socket is 5.5mm*2.5mm.
Max Current Load: 3A*4CH, Max 12A.
Max output power is 144 Watt (12VDC), 288 Watt (24VDC).
Package included: 1pc receiver, 1pc remote, 1pc Mounting bracket
Brand : LEDENET
MPN(PartNumber) : LEDENET-MINI-M8
Package Dimensions(LxWxH) : 21x14x13cm ; 136 g
