Item Descriptions:
size:
SN - 28 B Crimp capacity: 0.5 - 1.0 mm 2
Iwiss Electric Co., Ltd
We specialize in manufacturing electric tools for crimping, cutting and striping such as crimping tool, wire stripper, cable cutter, hydraulic crimping tool, network tool, cable tie tool, wire stripper and hose crimping machine.
For over 15 years in China, we have manufactured CE approved tools.
We are currently developing and extending domestic, industrial, municipal, commercial supply piping, heating, and domestic gas solutions.

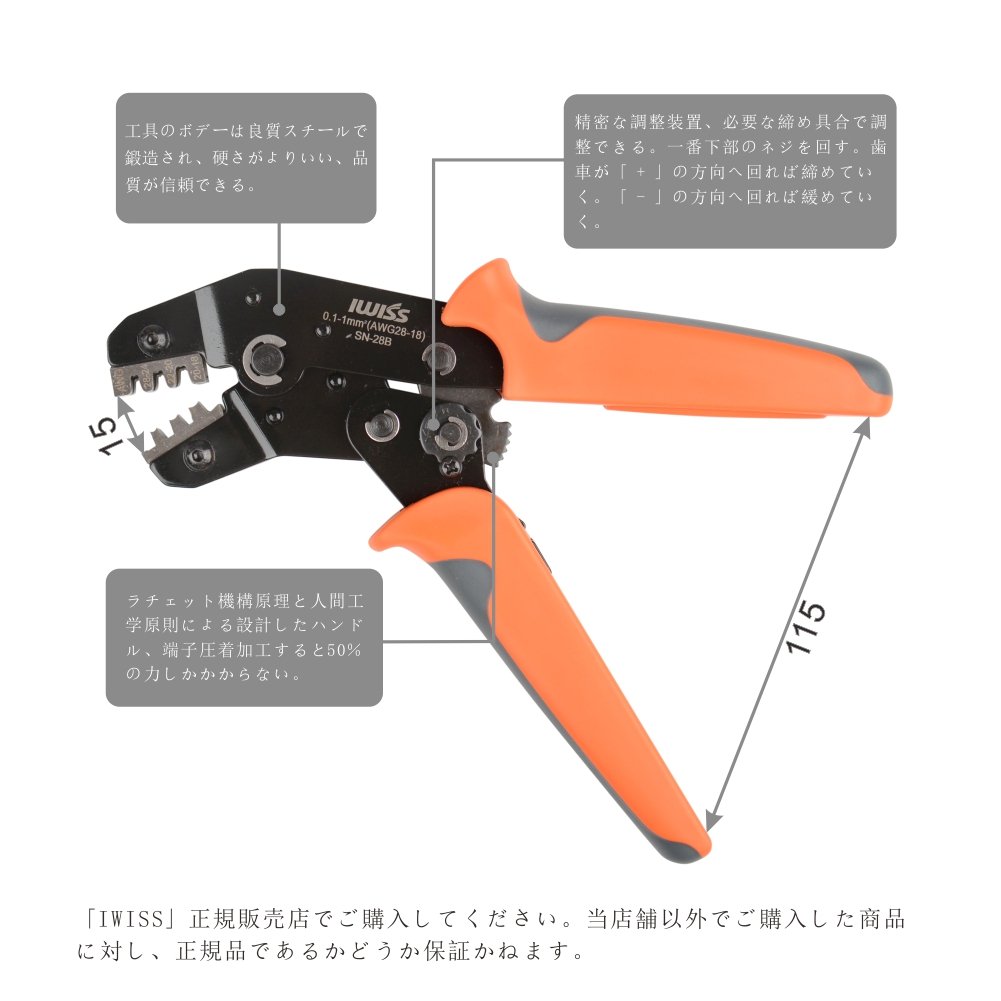

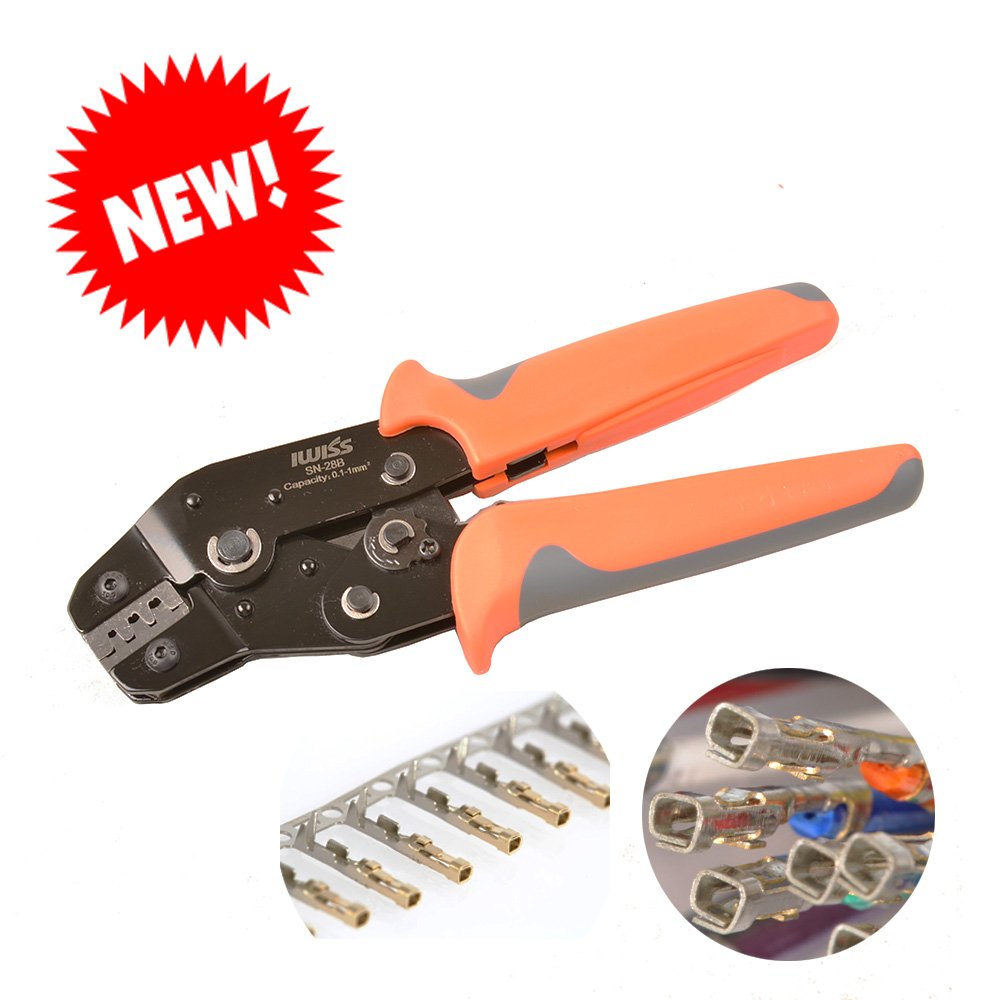

IWISS SN-28B Crimper Clipper for Dopunt Molex 2.54 3.96 Connector
Caution:

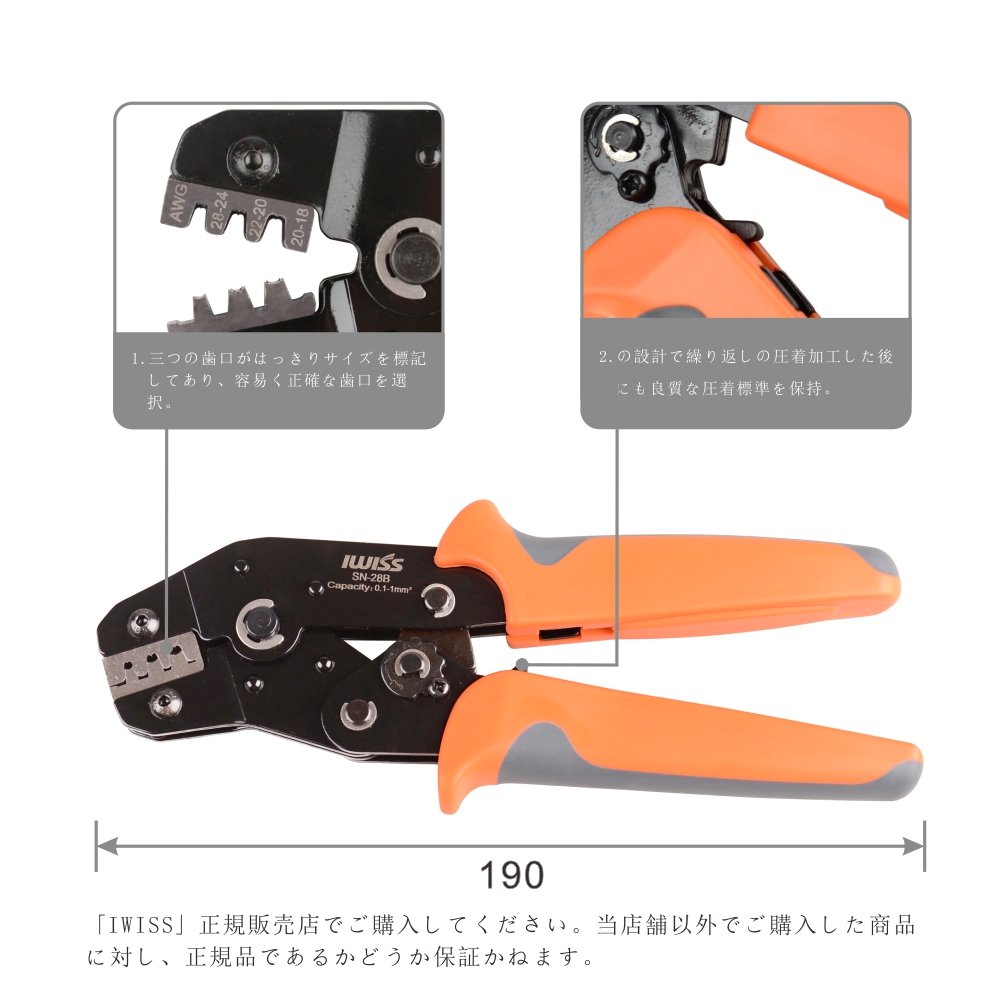

(1) The tool has three different sizes embedded in the jaw, different
Size wire / pin.
Each jaw has a small "step" to align the wire and sheath
Suitable for ideal crimp
(2) # 22 gauge works well in the center lower slot.
# 18 gauge is
Most inside the bottom slot.
(3) If there is any doubt about the electrical quality of crimping,
Please apply solder to wire metal crimp.
Not too many, connector does not fit
And is disposed in the connector housing.

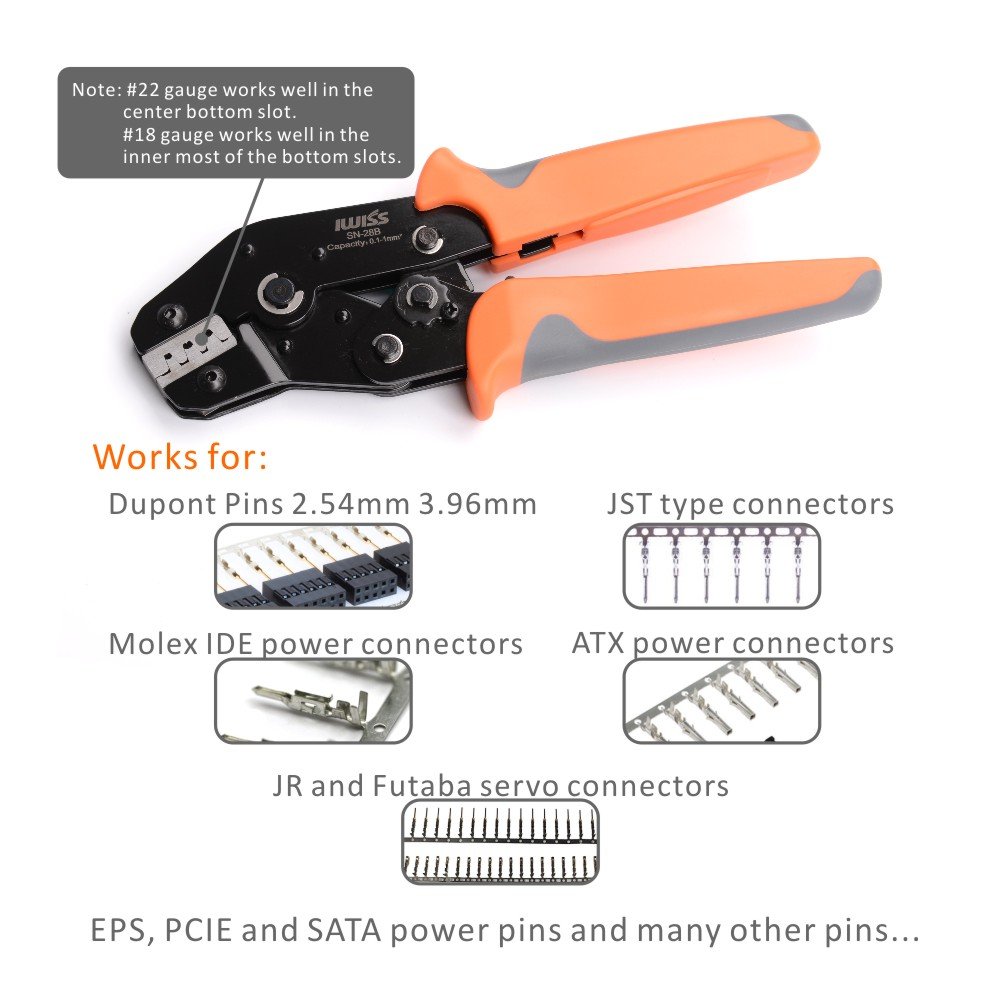

It can work:
DuPont Professional Pin 2.54 mm 3.96 mm 28 - 18 AWG
JST type connector
ATX power connector
Molex IDE power connector
EPS, PCIE and SATA power supply pins
How to use it?
Step 1: Select the appropriate slot and place the pin in one of the three slots.
Step 2: Peel off the wire and insert the wire into the connector.
Step 3: Close the tool slightly until the ratchet meshes and grasps the connector.
Step 4: Finally we got a cleanly crimped wire with a fastening pin.
Features:
- Please be sure to check out the pliers purchased from Iwiss for real reasons, not other sellers
- Board connection connector Crimping pliers compatible with 2.54 mm pitch
- Pin contact Crimping pliers Crimp size: AWG 28 - 18 0.1 - 1.0 mm 2
- 2.54 mm 3.96 mm for KF 2510 connector
- Ideal tool Electric tweezers DIY supplies hand tools
Product information:
Shipping Weight: 390 g
Package Dimensions: 3.30 x 15.59 x 27.79 cm
