Product Description

Parameters:

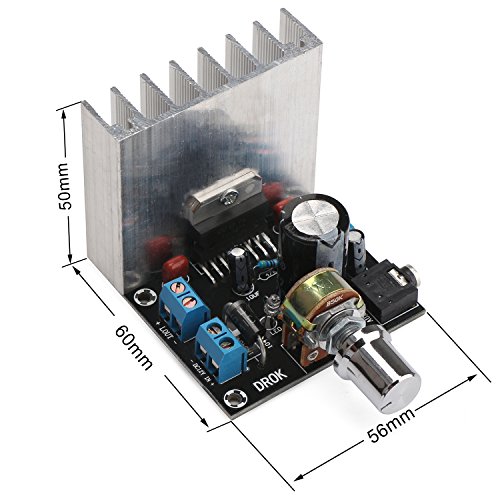

Dimension: 60×56×50
Output power: 35W+35W
Power supply: DC 9-15V/50-100W
Channel type: 2.0 stereo
Response frequency: 20Hz-20KHz
Matching speakers: 4-8Ω 20-120W 3''-10'' bookshelf speaker, floor speaker

Instructions:

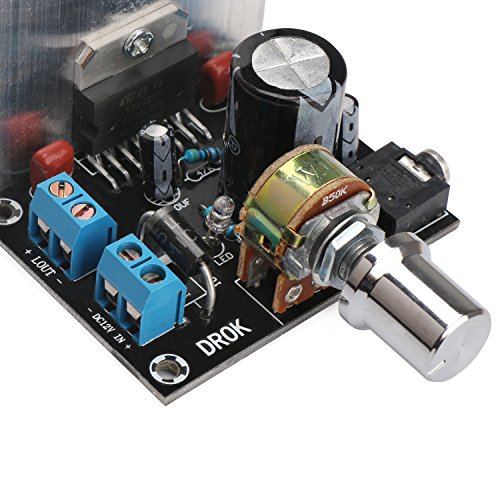

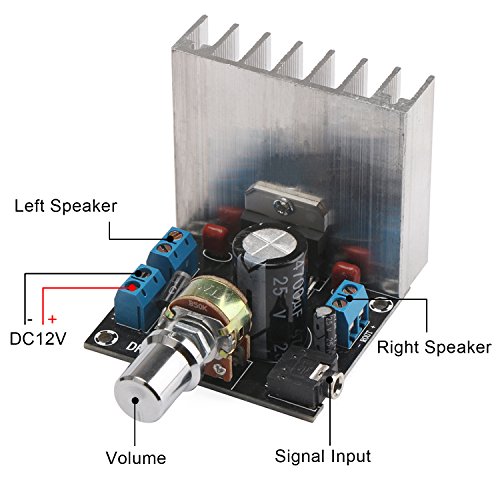

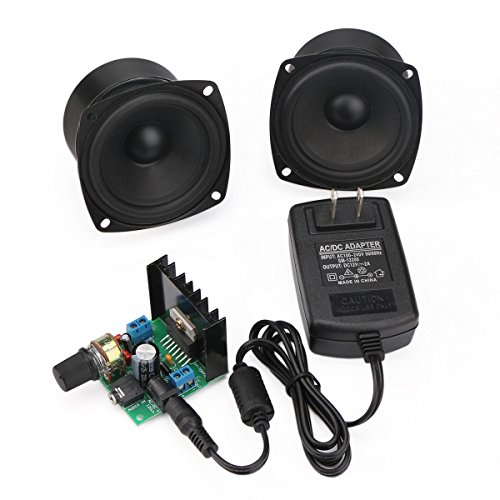

1. Connect to speakers
Connect the two wires of the speakers to the audio output port of the power amplifier, the left channel speaker is connected to the LOUT port of the amplifier
and the right channel speaker is connected to the ROUT port, the positive connects to "+",the negative connects to "-".
2. Connect to sound source
Use an audio cable with a end of 3.5mm stereo headphone plug and plug in 3.5 stereo headphone jack of the amplifier.
The other end of the audio cable is connected to the audio source (such as computers, mobile phones, MP3, DVD).

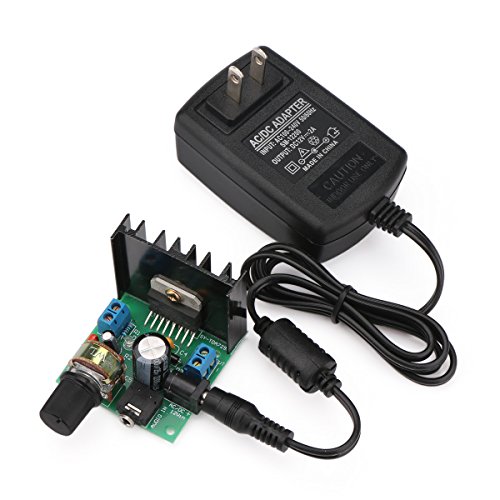

3. Connecting to power supply
1)Connect to the adapter of power supply
Use the power supply which the output is above DC12V3A.
Connect the output cable of the adapter to the 12V port of the power amplifier board.
The positive connects to "+" of the port while the negative connects to "-".
2)Connect voltage converter
Use the voltage converter which the output is above AC12V3A.
Connect the two output cables of the converter to the 12V port of the power amplifier board.
Because the output of the converter is alternating current, it is not positive or negative.
4. Play music
Plug in the power, the blue power indicator will light up which means that the power amplifier board start working.
You can adjust the volume knob according to their own preferences.

Package Includes:
1× TDA7377 Amplifier

Feature

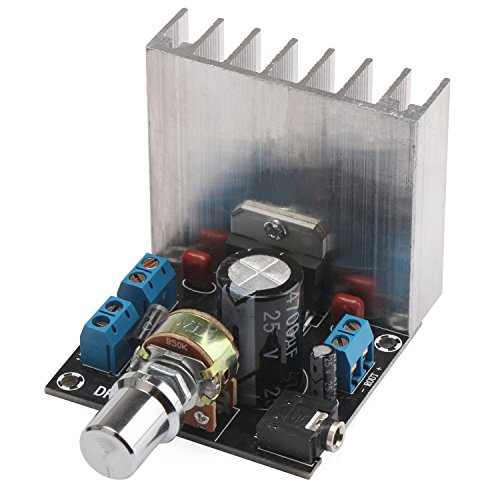

Adopt TDA7377 four-channel power amplifier chip, good sound quality.
2.0 dual-channel 35W+35W power amplifier can support 4-8Ω 20-120W 3''-10'' bookshelf speaker, floor speaker.
Both power supply input and the audio output use terminal block, easy to install without electric iron.
Audio input adopts 3.5mm Universal stereo jack, you can easily connect the amplifier to phone,computer,MP3,IPAD.

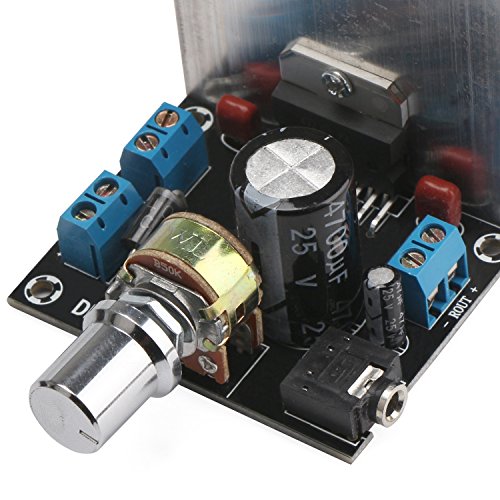

The power supply uses 4700uf filter capacitor which provides abundant power to the power amplifier.
Brand : DROK
Item model num : 200142
MPN(PartNumber) : 200142
