Product Description

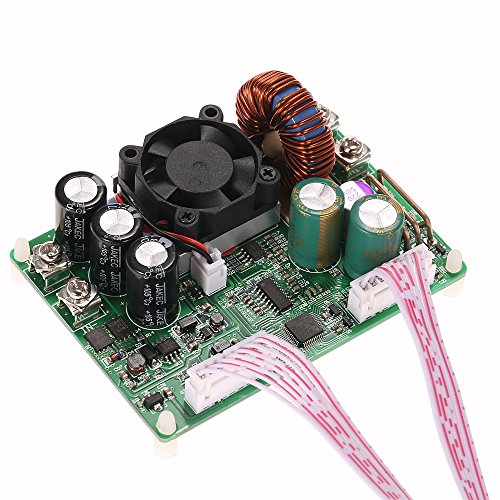

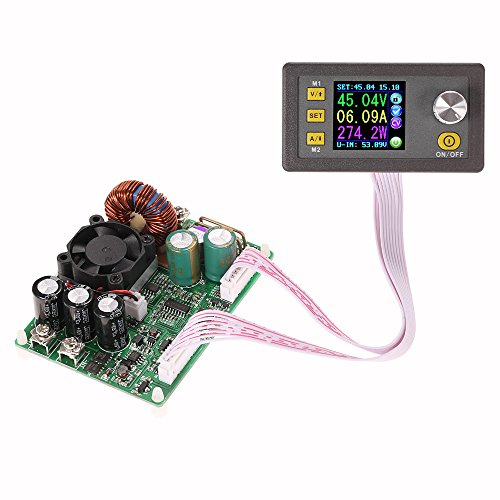

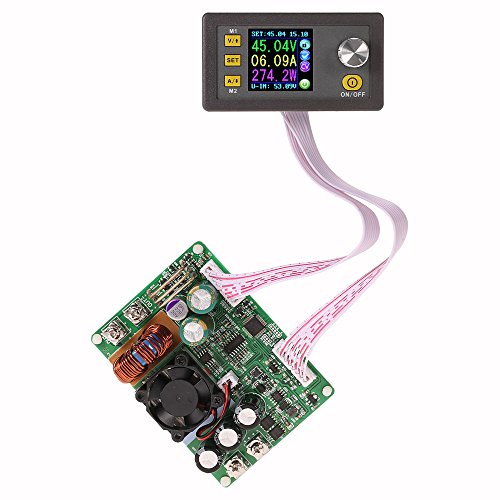

This constant voltage and constant current programmable control power supply module makes analog integration and digital control functions combined in one. This module has power-down stored function that it can store 10 groups of preset values and extract 2 groups of stored values. With LCD display, user can view the preset voltage/current, output voltage/current, output power, input voltage, etc. This product, with small size, advanced functions, good visual effect, high operability and high precision, can not only be used independently, but also inset into the device for wide application range.

Note:
1. It is better to make the input voltage lower than the Max. value, otherwise the item maybe be damaged.
2. Please ensure that the input voltage is higher than output voltage above 1.1 times. Notice heat dissipation under high current operation.
3. Please connect the connecting wire(between display module and power module) correctly, or it can not work normally. ?

Specifications:

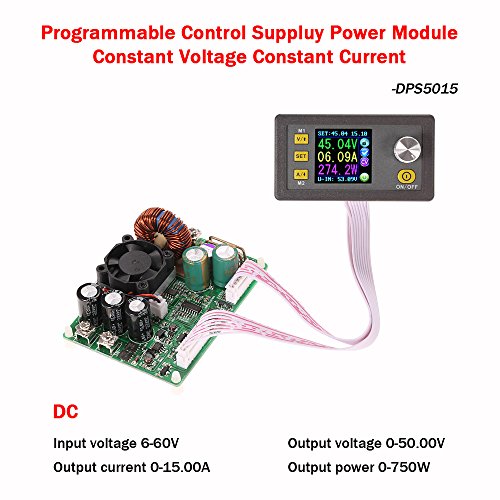

Model Type: DPS5015

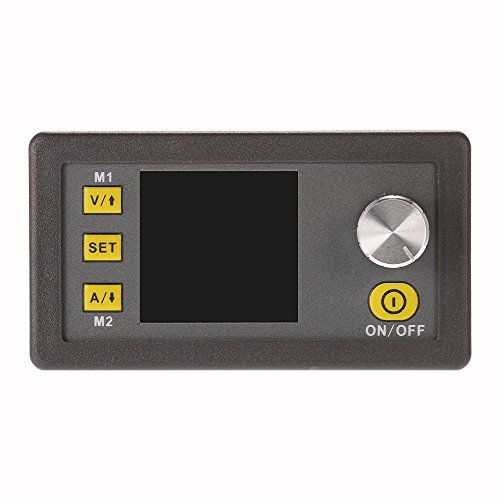

Display: 1.44" Colorful LCD
Input Voltage: DC 6-60V
Output Voltage: 0-50.00V?
Output Current: 0-15.00A
Output Power: 0-750W
Voltage Resolution: 0.01V
Current Resolution: 0.01A

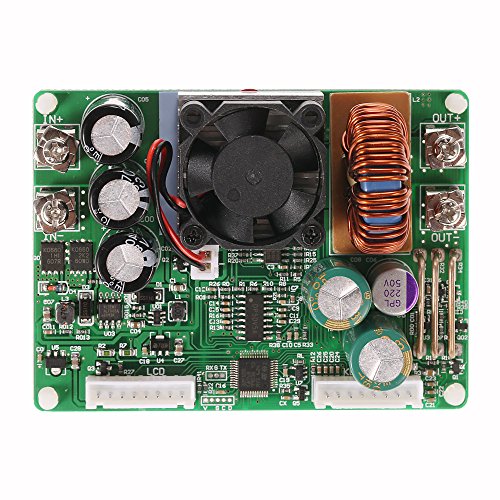

IN : Input Positive
IN-: Input Negative
OUT : Output Positive
OUT-: Output Negative
Connecting Wire Length: 200mm / 7.87in

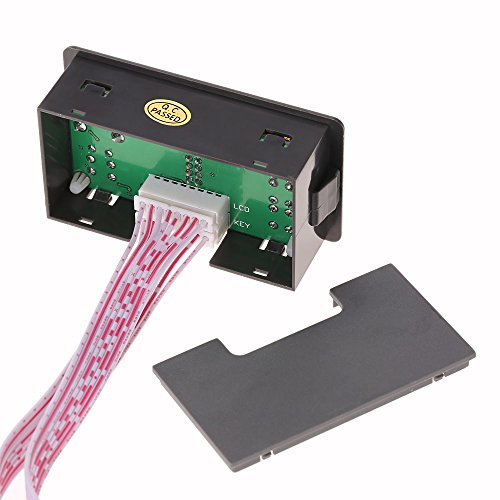

Display Module Size: 80 * 42 * 45mm / 3.1 * 1.7 * 1.8in
Display Module Weight: 40g / 1.44oz
Power Module Size: 91 * 67 * 40mm / 3.58 * 2.64 * 1.57in
Power Module Weight: 112g / 3.95oz
Package Size: 15 * 12 * 6cm / 5.9 * 4.72 * 2.36in
Package Weight: 223g / 7.88oz

Package List:
1 * Display Module
1 * Power Module
1 * User Manual (English)?
