Product Description

Introduction

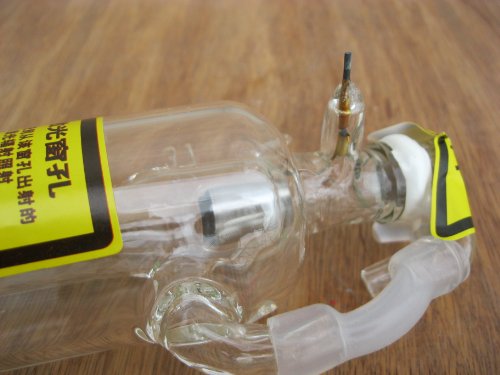

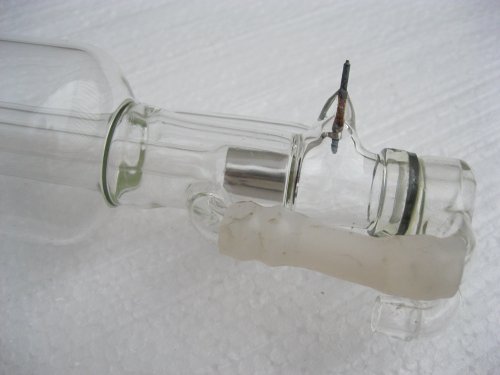

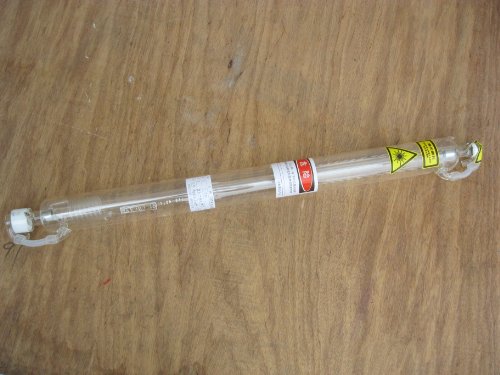

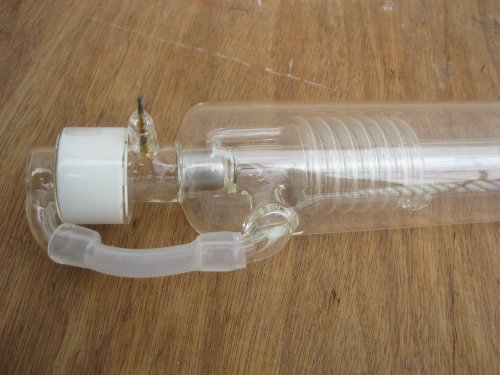

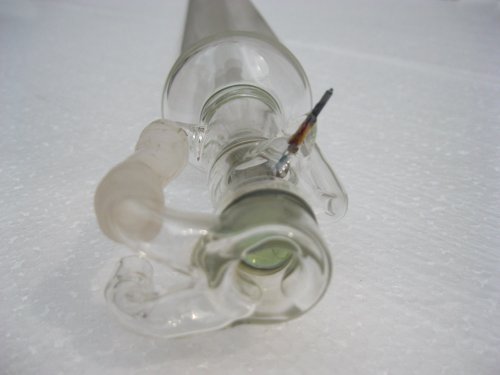

Model:CO2-TUBE-40W-70CM
Output Power:40W
Wavelength:10600nm
Working Voltage:15KV (Trigging Voltage=22KV)
Working Current:18mA
Divergence:1.95(beam diameter)
Dimensions:Length 700mm
Input voltage: AC 220V+30 or AC 110V+20 (to be specified when placing order).
Maximum output voltage:DC25KV (40W;50W) / DC28KV (60W) / DC35KV (80W)
Maximum output current: DC20mA (40W;50W)/ DC23mA (60W) / DC28mA (80W)
Isolation Withstand voltage: Input-output, input-enclosure: AC2000V-10mA-60s; negative pole of output connected to enclosure.
Protection: with well-grounded enclosure, output circuit of power supply can be open for short time (but arc between positive pole and enclosure should be avoided).
Response time (from time of input being available to the output current being up to nominal value)<1ms Protection switch: for detection of cooling water, to protect laser device; or activate with enclosure is opened.
> Laser power adjustment: (1) by adjusting the output current of power supply through resistor; (2) through PWM
control (magnitude being TTL voltage level).
Environmental requirements: temperature (-10~ 40centidegree), relative humidity<85%.

Feature

Isolation Withstand voltage,Response time<1ms
Protection: with well-grounded enclosure, output circuit of power supply can be open for short time
TTL voltage level control: effective voltage level can be high or low through setting
Protection switch: for detection of cooling water, to protect laser device
Laser power adjustment:adjusting the output current of power supply through resistor/PWM control
Brand : Ten-high
Item model num : TH-40wCO2LT
MPN(PartNumber) : TH-40wCO2LT
EAN : 0619046158998
