LED for downlight Flat light bulb Telescopic type perfectly fitted to the ceiling surface Embedding hole φ 125 ~ 150 mm Corresponding E26 Base cap Daylight color 1700 lumens (1 piece)

Item Descriptions:

size:

Daylight color: 1 piece

Dimensions of the corresponding downlight

E 26 base

The light bulb (incandescent light bulb, LED light bulb, bulb type fluorescent tube) is attached down light which corresponds to the following size.

【See the left figure】

(Diameter of embedded hole): 125 ~ 150 mm

(Depth of downlight): 108 to 174 mm

Depth = length from the ceiling surface to the E26 socket bottom electrode in the back light down

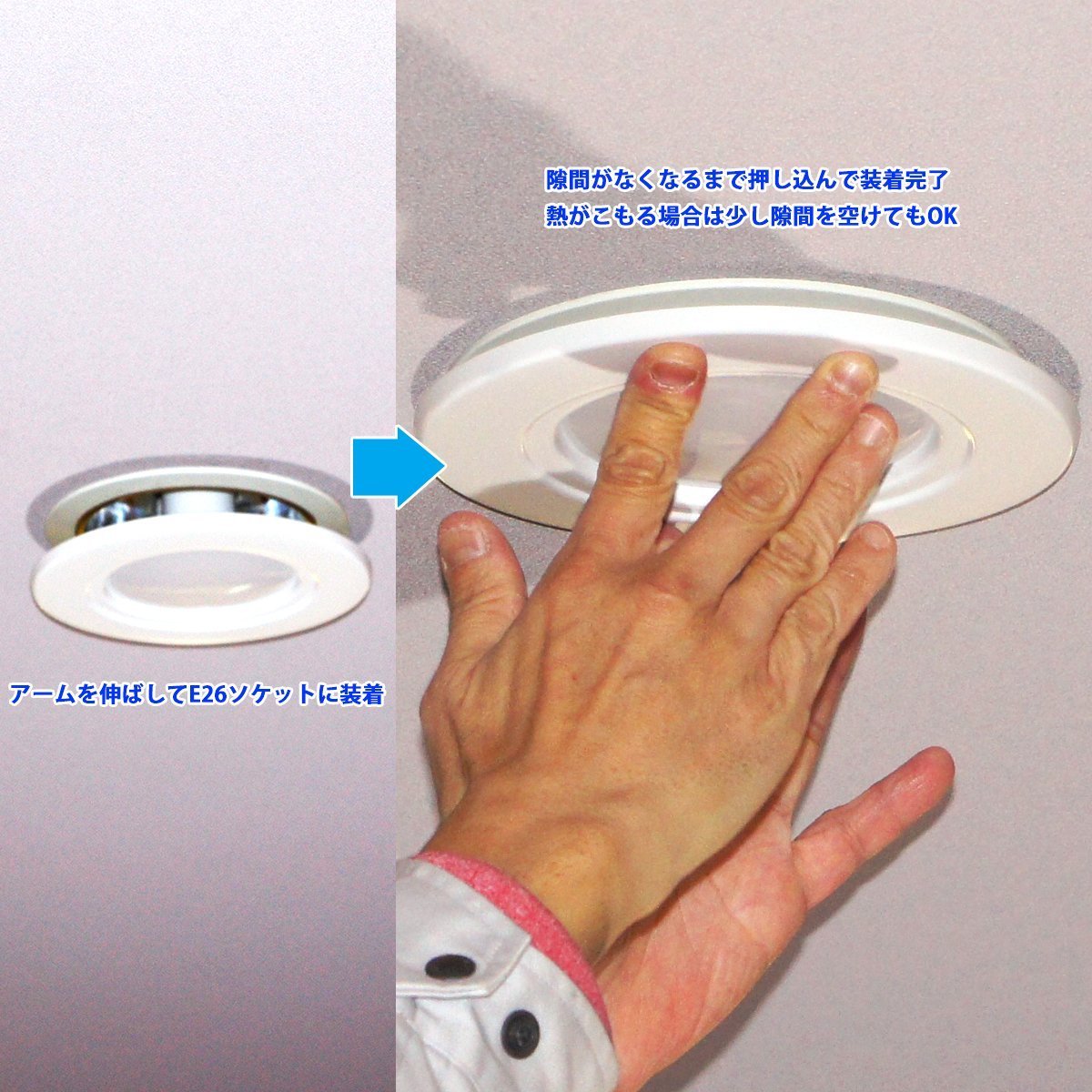

Mounting procedure

Pull the axis and stretch.

If you do not reach the E26 socket even if the axis is extended to the longest, please attach the attached E26 extension adapter.

Turn it clockwise and securely attach the cap to the E26 socket.

Push up the circumference and align it with the ceiling surface.

【please note】

■ Downlights with E17 socket,

Base adapter for E17-E26 adapter

It is possible to install using.

■ Using a fluorescent tube or a mercury lamp, downlights should be connected directly to the stabilizer / inverter (fluorescent lamp) or ballast (mercury lamp), converted to E26 using the base conversion adapter

It is possible to install.

When you do construction work, please be sure to be done by a qualified electrician.

■ Equipment not supported · Environment ※ Please do not use in the following equipment / environment.

· Insulation material construction equipment, outdoor sign lighting fixtures etc. High-temperature equipment

· Circuit with dimming function

· Human switch · Circuit with delay switch

· Places with high humidity such as bathrooms and environment where water drops hit

Features:

Flat and beautiful ceiling with uneven ceiling covered with holes.
E26 LED light designed exclusively for downlight using a lamp bulb.
The light emitting surface is flat and the shaft part is telescopic type.
Compatible with downlight for E26 base lamp for bulb hole φ 125-150 mm.

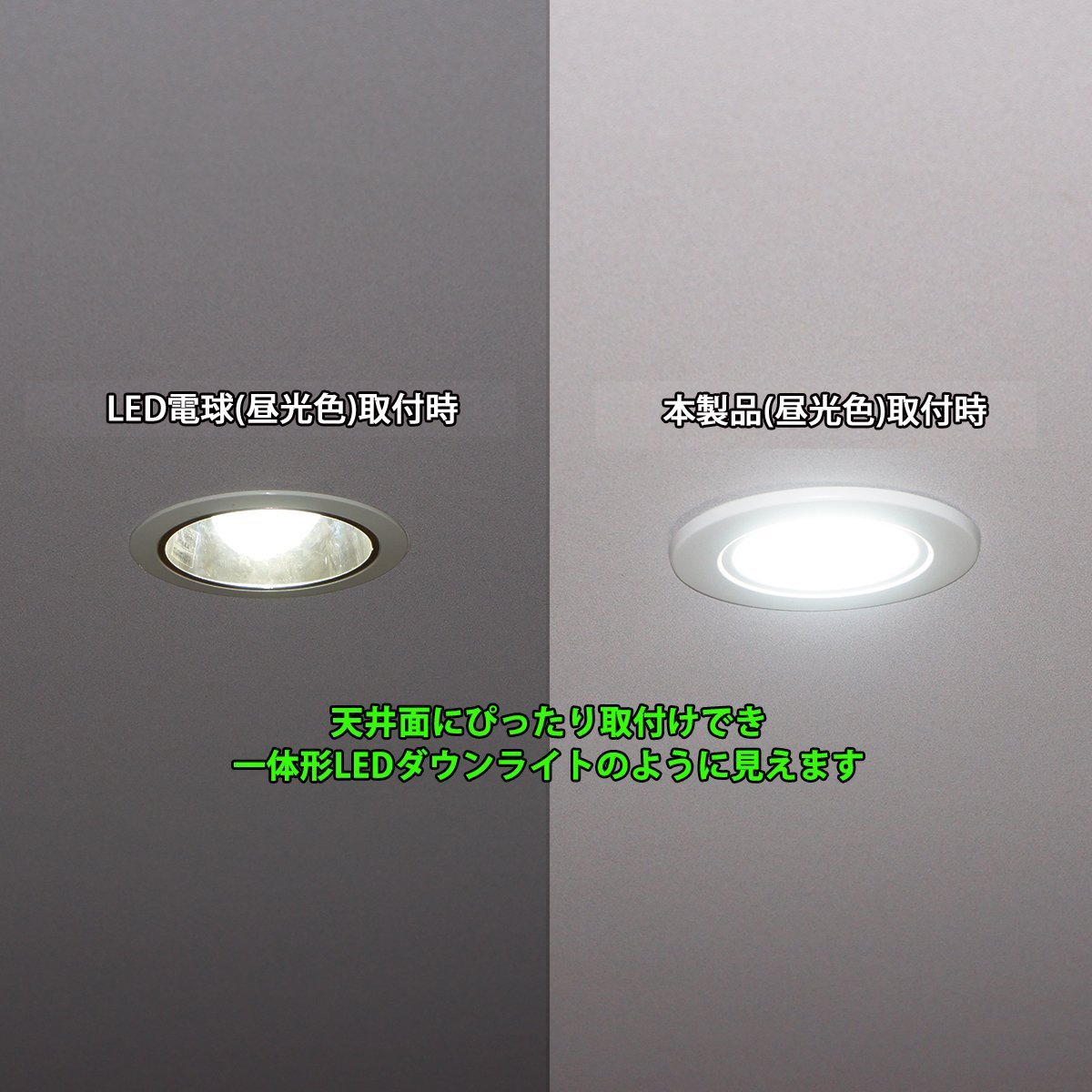

Adjusting the length of the shaft according to the depth of the embedding hole makes it perfectly fitted to the ceiling surface and it looks like an integrated LED downlight.

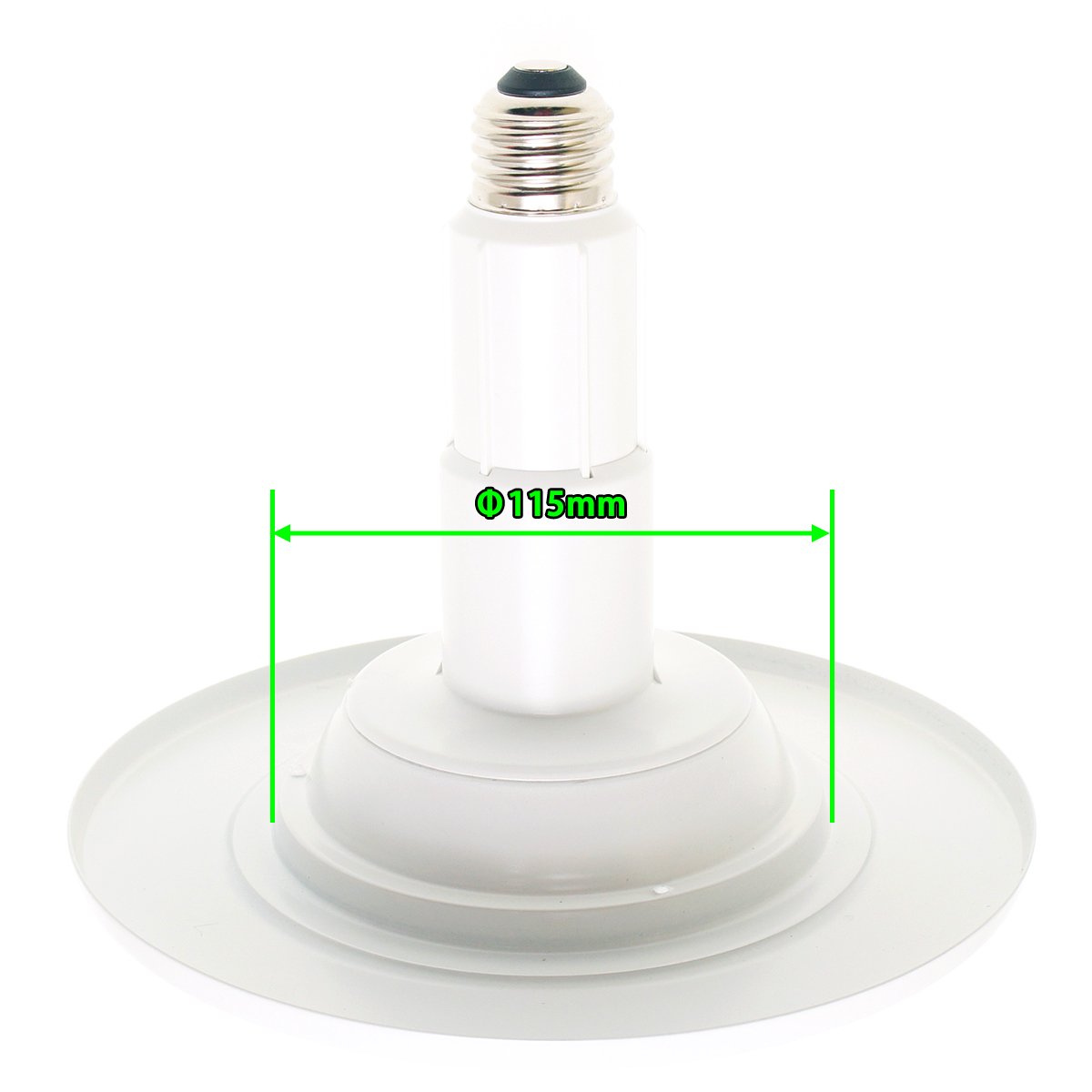

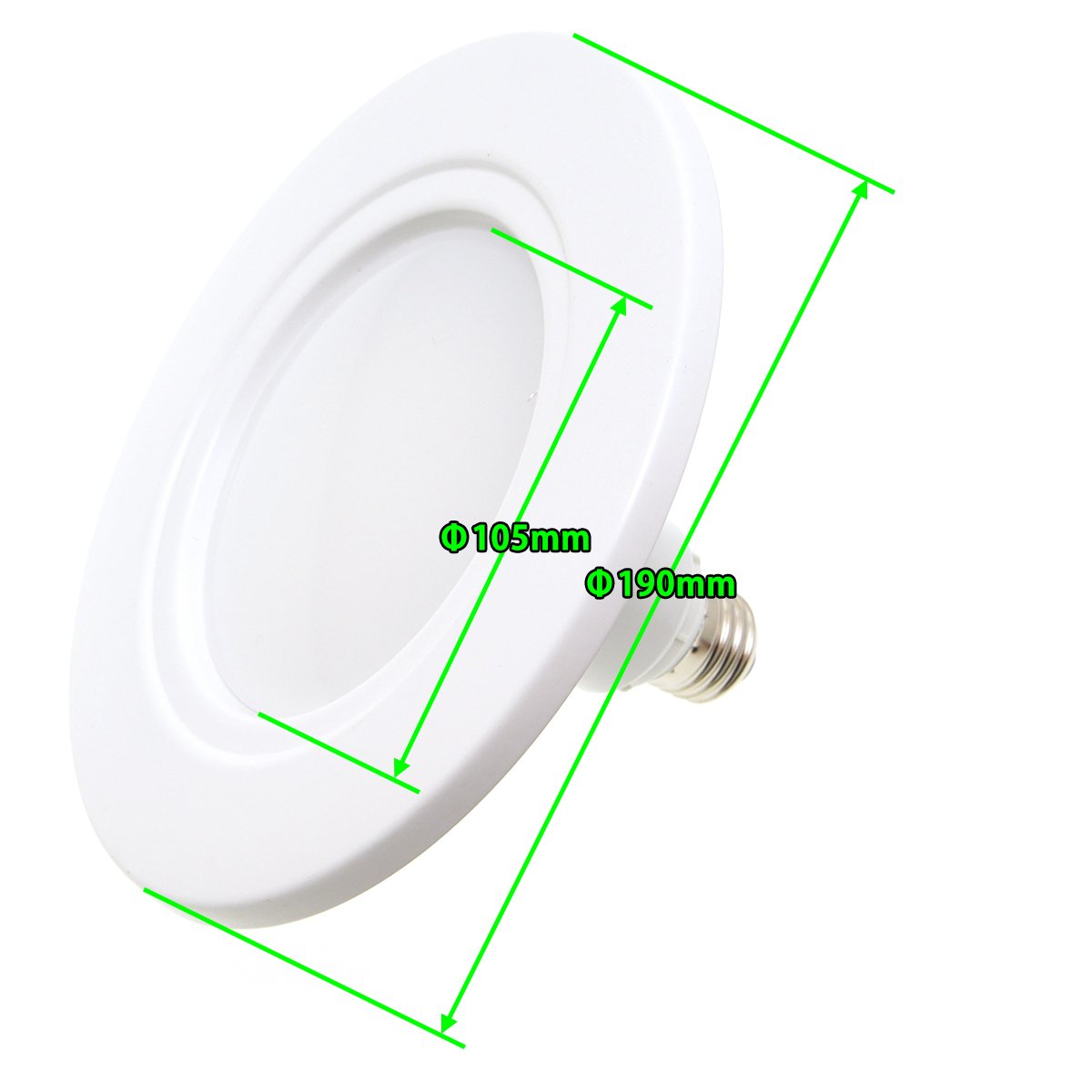

Light emitting surface outer diameter: φ 190 mm (light emitting part: φ 105 mm), the corresponding down light depth (distance from the ceiling surface to the inner bottom of the E 26 socket): 108 mm - 144 mm (telescopic, if using the attached E 26 extension adapter up to 174 mm
Corresponding power supply: AC 100-200 V, 50/60 Hz, power consumption: 18 W, light distribution angle: 110 °, color rendering performance (Ra): equivalent to 150 light bulbs (total luminous flux 1700 lm), daylight color (color temperature 6500 K)
85, Weight: 150 g, Color: White
Notes: It can not be used for insulation material construction equipment.
It can not be used for circuits with dimming function.
Indoor use (non waterproof), design life: 25000 hours, warranty period: 1 year

Product information:

Shipping Weight: 308 g

Package Dimensions: 12.70 x 19.81 x 19.89 cm

Customer reviews from Japan:

Received today.

I arrived earlier this time. Since I was glad I could purchase one before, I bought a set to try all downlight. I changed it all at once. As a normal light bulb, just turn it around and just wear it ♪ Even a woman ♪ Even if it is not a special hole it does not need an extension socket. After installation, the entrance aisle, the toilet and the washing machine storage have become refreshing as well. It prevents moisture and dirt and it is three birds and four birds with no complaints in appearance and brightness as well as one stone two birds. Although it is a bit expensive, it is much more recommended than a regular bulb when considering the life span of the LED! ! The image is the ceiling of the toilet. To the left that is too bright. The image on the right side tried to make the image quality dark as the appearance's flat feeling and refreshing feeling are conveyed. Until now the toilet was using colors of warm colors, but here is a white wallpaper. I want to purchase again if the light bulb has run out. I hope it will not be out of print ... m (_ _) m

Familiar with the ceiling Good looking down light

Since the item sent first was an imported item, it seems that it is checked and shipping, but it did not light up and it was a defective item. However, the dealer 's telephone correspondence response was good, and it quickly replaced me with a new one. I am surprised to be light, light for size, and because the projecting surface is thin and telescopic, it fits well in the ceiling appliances and looks good. Brightness is sufficient and cost performance is high. This type of product that becomes a downlight in a telescoping type is a unique idea product nothing else.

This is good!

Downlight becomes stylish ceiling in one stroke. Also, because the ceiling surface serves as the light source, the light will spread more than the down lights up to that point. The brightness is also very bright. I was impressed that this was a wonderful item, I bought a set of 4 additional items.

It is a good idea to be able to change the length depending on installation location

I used the previous installation location and socket, but the idea of this product survived. It would have been better if we could replace the light bulb. However, the LED also made progress 17 w even bright.
