Item Descriptions:

(Dew car / motorcycle goods selling TRD products are all genuine, it will be delivered to Amazon warehouse after all the items have been inspected before shipping.Please note that this item is definitely a product before buying.

merit:

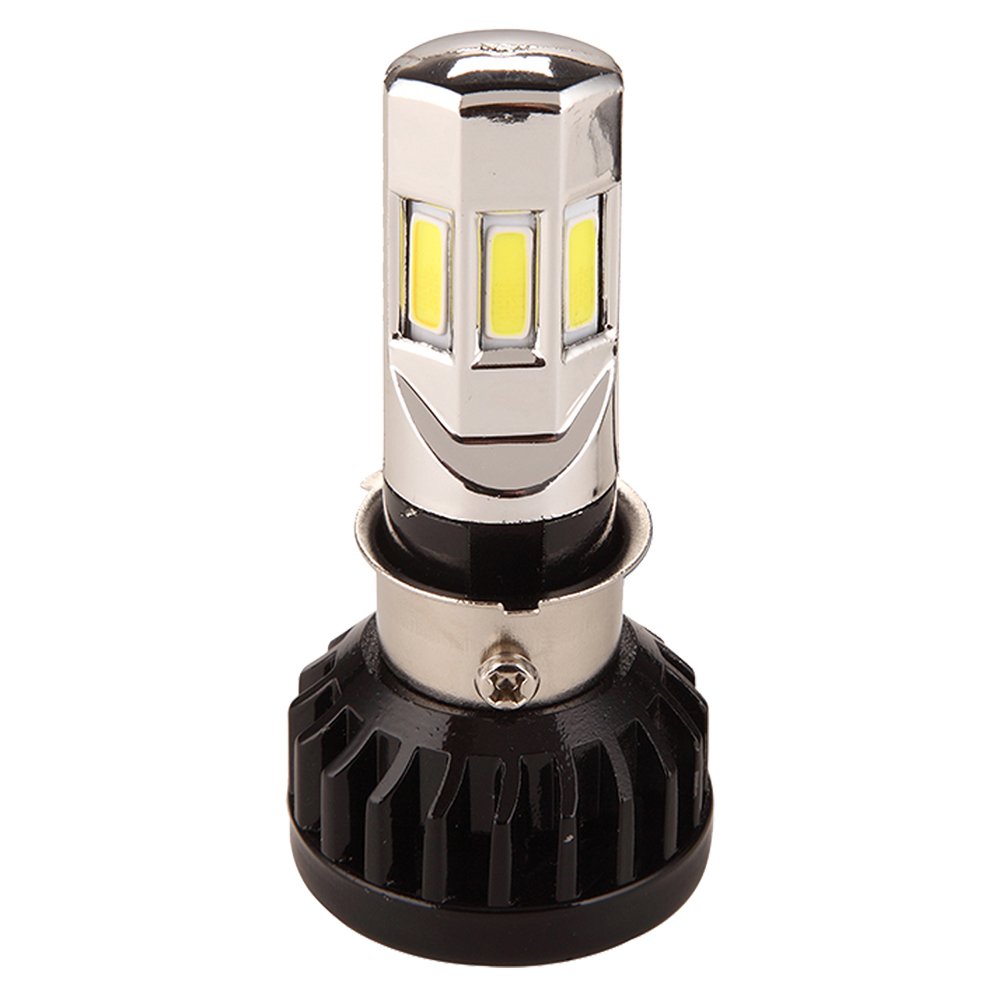

① The 6-sided design, the COB chip mounted, the light intensity as high as double the halogen has become the brightness equivalent to that of a car.

Light color is too white and it is quite nice feeling.

② When the optical axis is aligned with the Lo position of the halogen lamp, the Hi side is too upward, so it is possible to adjust to the optical axis with almost no problem by adjusting the projection of the light emitting surface to the reflector side (back) as much as possible.

(The adjustment width in the front and rear is about 10 mm.)

③ Easy installation!

Easy installation is possible simply by cutting the interference part (rubber) of the valve rubber cap and the fixed spring a little.

The controller can also be stored in the light case with easy victory.

④ The sound of the cooling fan can hardly be heard even after the engine is started.

You can hear it when you approach the ear.

So, the sound of the fans is very quiet and I do not mind at all.

Excellent heat dissipation!

1. Heat radiation performance Special aluminum alloy

Characteristics used for six-sided led headlight body Aluminum alloy is excellent in heat conductivity and heat resistance so that other metals can not be compared.

A material with good heat dissipation is the guarantee that light can always be lit normally.

2. Heat Sink Heat Sink

The wider the heat dissipation area, the faster the heat dissipation speed.

The six-sided LED headlights did not destroy the original shape of the light body, but by adding ventilation openings throughout, the heat dissipation area was increased, and it became much faster with convection of heat.

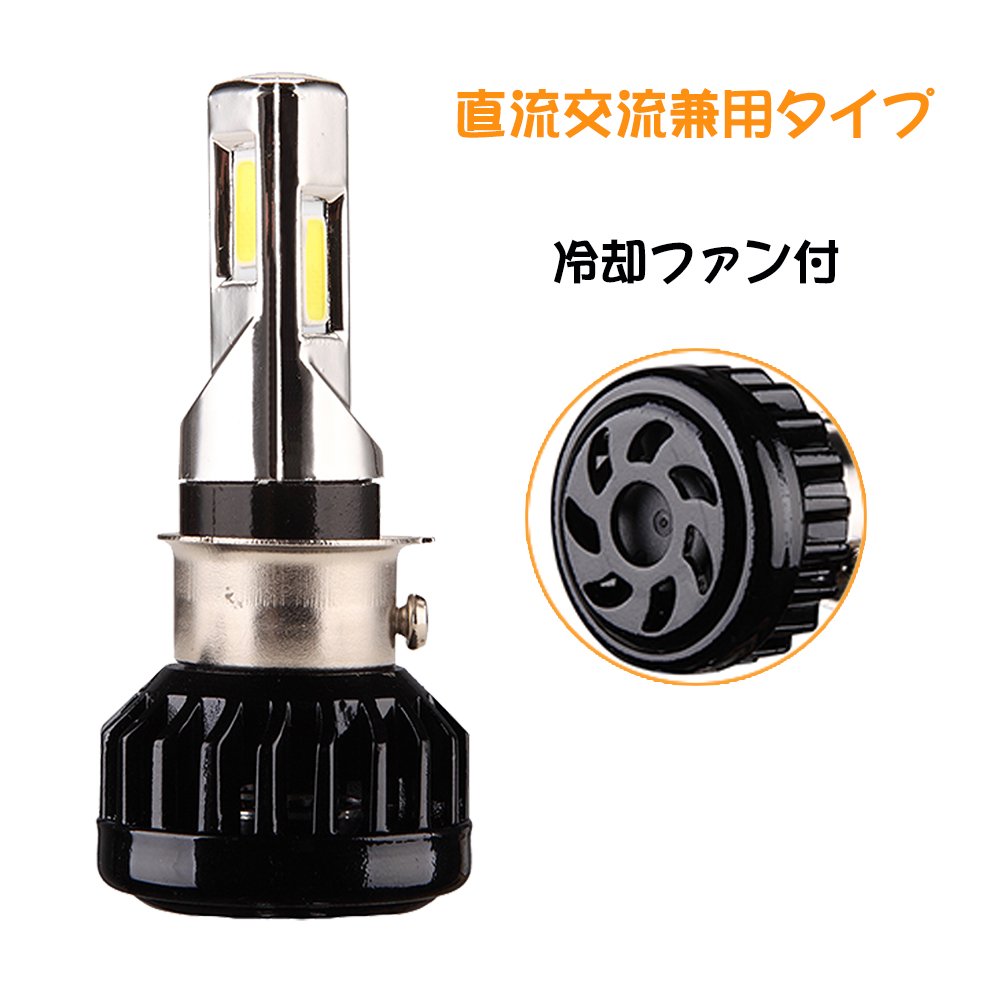

3. Heat dissipation speed cooling fan

A mechanical double ball bearing fan excellent in wear resistance is carried.

A fan that rotates at a high speed turns the air more and can diffuse heat quickly.

In addition, the cover of the pedestal also has some ventilation openings, so the heat dissipation speed became much faster with air convection.

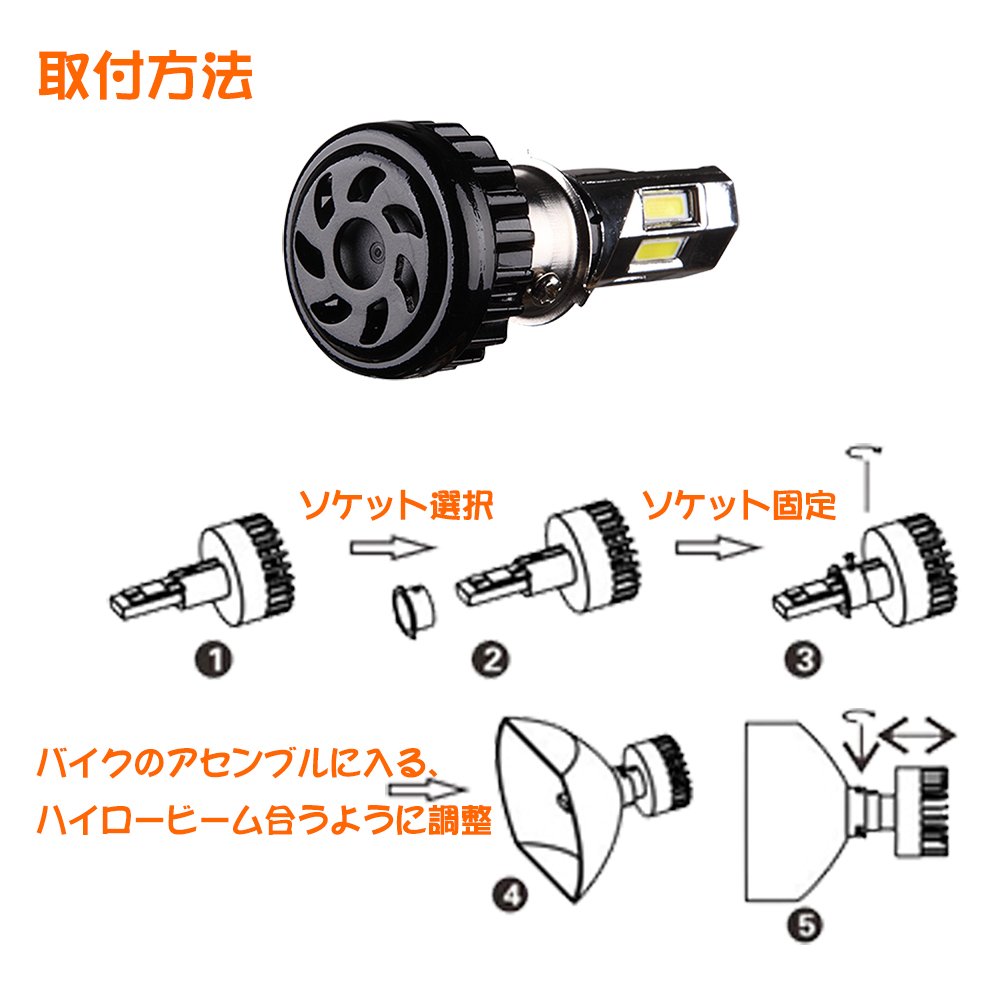

Easy installation

Remove the genuine halogen bulb.

Select the socket suitable for the bike and attach it to the bike.

Remove the valve socket.

Insert the LED headlight and fix it with bolts.

Tighten the bolts and connect the wires.

Blue / white / green / red 4 wires connect to the bike light switching line.

Blue line Hi light

White line Low light

Green line minus / earth

specification

Operating voltage: DC & AC 9 to 18 V

Power consumption: 35 W

Lumens: Hi 3500 LM / Lo 1750 LM

Light Color: White (6000 K ± 500)

Main body: Aviation aluminum material

Chip: COB-LED

Waterproof Classification: IP65

Product life: over 30000 hours

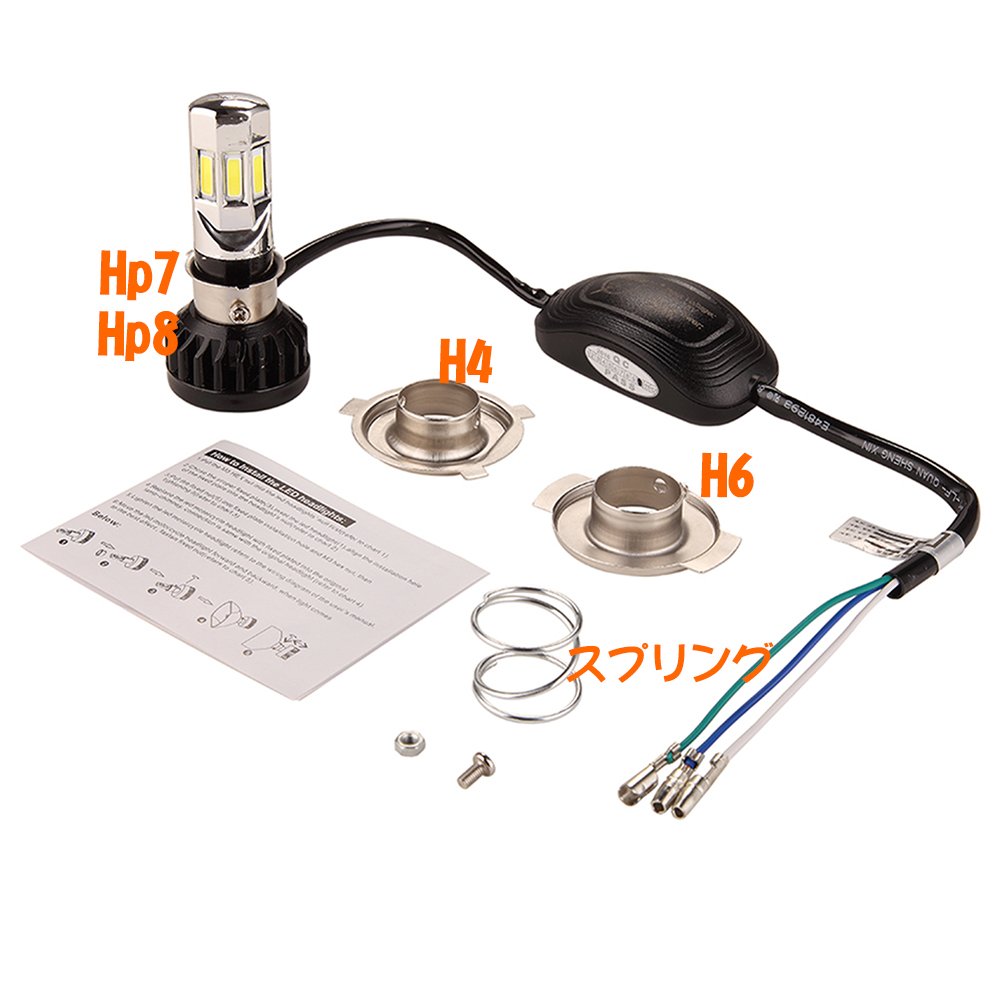

set content

One LED bulb x 1

One controller x (Connect with the main unit)

Sockets x 3 (H4 & H6 & PH7 / PH8)

1 Spring

1 bolt

English simplified operation manual x 1

Notes

Before purchasing please be sure to check the shape of the vehicle, please check the measurement before purchasing.

Although there is an English manual, if you are concerned about installation, please ask a special shop such as a motorcycle shop near you.

Although we are shooting actual products, there may be cases where the color tone appears wrong due to the monitor environment of the personal computer.

For very strong light emission, please install so as not to look directly at the time of wearing.

Features:

• Ultrahigh luminance COB LED chip mounted, 6 surface emission, 35 W, the luminous flux amount of the LED bulb increases, the irradiation distance is longer than the halogen lamp, it is about 30% higher.
• It was as bright as cars with the light intensity as high as that of halogen.
• Light color is too white and it is quite nice feeling.
• Brightness of 3,500 lm is 2 to 2.5 times brighter than halogen and safe at night.
• Easy installation!
• Easy installation is possible simply by cutting the interference part (rubber) of the valve rubber cap and the fixed spring a little.
• The controller can be stored in the light case with easy victory.
• It is a high performance controller tailored to the original electric circuit board design and it can be used for motorcycles such as Honda, Yamaha, Kawasaki, BMW, KTM.
• The sound of the cooling fan can hardly be heard even after the engine is started.
• You can hear it when you approach the ear.
• So, the sound of the fans is very quiet and I do not mind at all.
• Durability is improved by using mechanical double ball pairing.
• Achieve a long life of over 30000 hours!
• When the optical axis is aligned with the Lo position of the halogen lamp, the Hi side is too upward, so it is possible to adjust to the optical axis with almost no problem by adjusting the projection of the light emitting surface to the reflector side (back) as much as possible.
• (The adjustment width in the front and rear is about 10 mm.)
• Notes: I will explain that the plating cover that covers the LED from the customer drops out in the review.
• Actually, the plating cover that covers the LED on the main body is removable, I am making plating cover design for fashion appearance and socket exchange convenience.
• Also, since this product comes with 3 types of sockets (H4 / H6 / PH7 / PH8 compatible), you can replace the socket that you apply easily after removing the plating cover first by motorcycle.

Product information:

Shipping Weight: 208 g

Package Dimensions: 6.30 x 10.31 x 14.20 cm
