Item Descriptions:
HDMI splitter 1 input 4 output

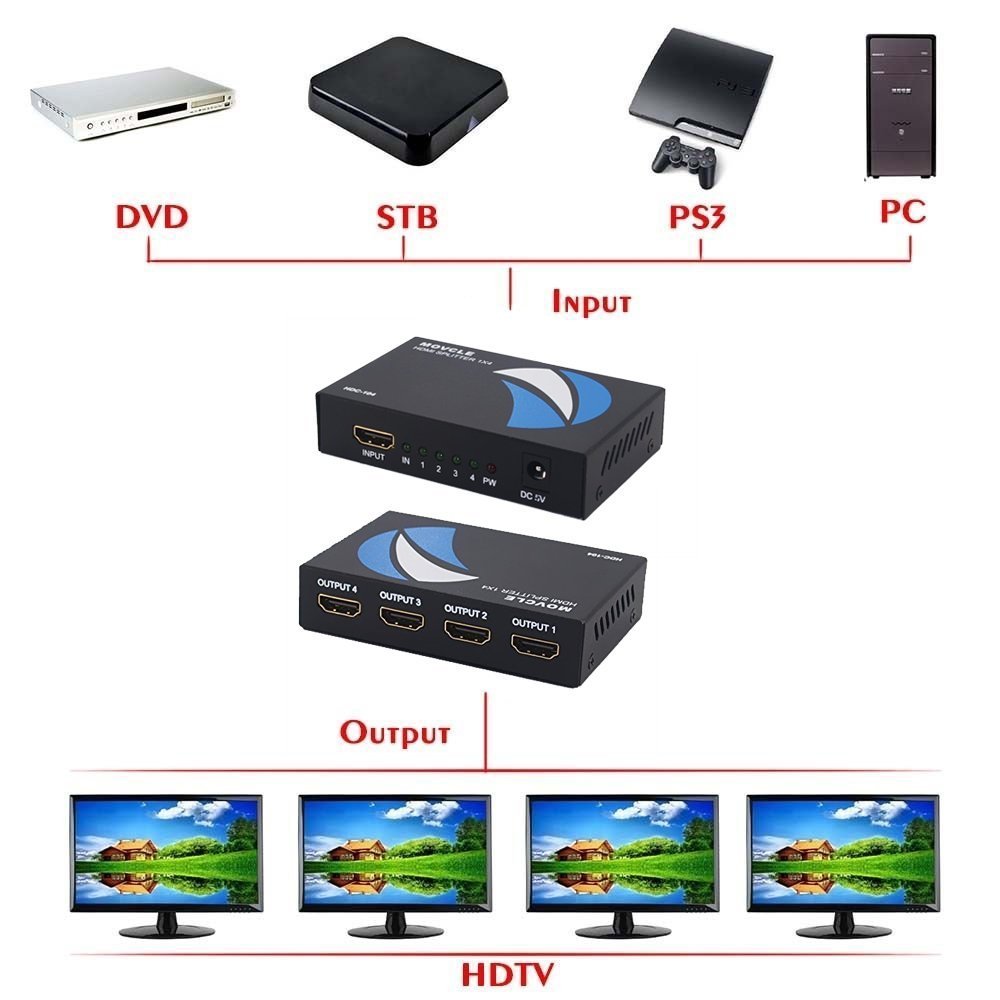

1: 1 input 4 output HDMI distributor You can distribute one source to four displays.
An ideal showroom is realized, HDMI demonstration is possible from one source to multi display.
The state of each HDMI output is displayed in the LED light.
When using, there is no need to set up HDMI, USB charging cable is connected and it is possible to output video easily by turning on this product and LCD TV etc etc.
By setting the version to 1.4 ver, work on the latest model has become possible efficiently.
When power is insufficient, please use while supplying power from the supplied AC adapter.
2. Product specification input: HDMI × 1 port output: HDMI × 4 port HDMI maximum resolution: 1080p compatible HDMI resolution: 480i / 576i / 480p / 576p / 720p / 1080i / 1080p HDMI standard: HDMI 1.4 frequency band: ~ 225 MHz
Power supply: DC 5V / 2A Weight: Approx 230g
3. Product Features Distribute Hi-Vision signals from one HDTV signal source to displays or projectors that support 4 Hi-Vision signals.
Also, when connecting the signal output end of one HDMI cable, you can amplify the HDMI signal.
It applies to places where noise, transmission distance and safety restrictions, data center control, information distribution, meeting room demo and educational environment and company training place

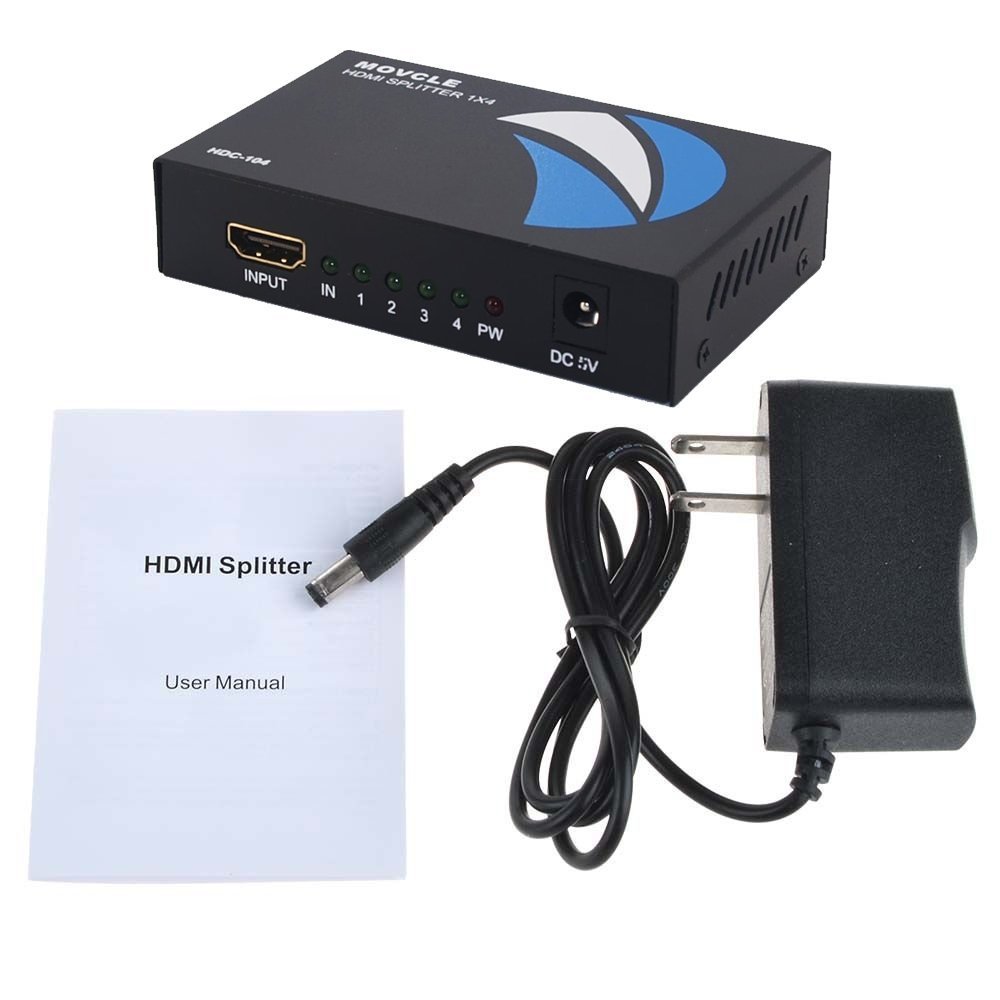

4. Package Contents 1 input 4 output HDMI distributor AC power adapter English manual ※ notes There is no switching machine (selector) function.
HDMI cable is not included.
When the resolution of the output destination is different, it is output according to the lower resolution.
Depending on the settings and specifications of the TV / monitor side of the output destination, it may not be output normally.
It is necessary to support both input and output devices for 3D video and full high definition video
specification
Lightweight and compact HDMI distributor.
It is possible to output one image source simultaneously to four televisions and a monitor without image deterioration!
In case
Distributor splitter supports 480p, 576i, 576p, 720i, 720p, 1080i, und 1080p with digital television, high quality HDTV 480i, 576i, 480p, 576p, 720p, 1080i 1080p and DVI connector.
Details
- Maximum resolution 1920 × 1080
- Frequency: Up to 225 Mhz
- HDMI 1.3, HDCP 1.0 / 1.1 / 1.2 compatible
- Output signal Connectable up to 10 meters with AWG 26 cable and 15 meters with AWG 24 cable.
- EDID response within 4 seconds
Features:
- Please enter model number Confirm this is compatible:
- It can distribute 1 input HDMI signal and can output to 4 or high resolution TV, display and projector simultaneously.
- Audio transfer is also supported.
- It corresponds to the bandwidth of 3.4 Gbps / 340 MHz at the maximum, it can be used in various places such as shops, factories, monitoring centers, conference rooms, educational institutions, exhibitions, living at home.
- It accepts HDTV signal via HDMI terminal and divides it into 4 HMDI so that 4 screen simultaneous display is possible.
- Even if only one video source can be divided into multiple monitor TVs.
- Just connecting it, you can use it with no need to set up.
- It is easy to use just by connecting the AC adapter and HDMI cable and turning on the power of the TV and playback player.
- Package contents: 1 input 4 output HDMI distributor; AC power adapter; Japanese manual
Product information:
Shipping Weight: 281 g
Package Dimensions: 5.51 x 12.29 x 17.09 cm
Customer reviews from Japan:
Although it can be used normally, there is compatibility depending on PC and monitor?
I bought it for copying 3 screens on Windows 7 for conference. Because the output of the original PC (workstation) is only DVI and DP, INPUT to the machine using DP → HDMI cable. OUTPUT 1 was output to the PC monitor (full HD), but there was bleeding on the screen, OUTPUT 2, OUTPUT 3 was a full HD TV, there was no problem. I tried input with various combinations such as PC DVI → HDMI, but the results were the same. If you connect directly from the PC to the PC monitor you will see it beautifully. After all it was able to display duplicate settings on the PC side on the PC side and somehow managed well with PC → PC monitor, PC → this machine → TV 1, TV 2 somehow.
Why is it cool and robust?
Nico Raw purchased for PS3 game delivery. I was relieved to make it so robust that the item reached and opened without bone. Making it really simple can have a good impression. A foreign language instruction will come with it, but it will not help much. It is a silo monster that you can master the actual thing with intuition. There is no difficult thing "There is not!" It is such impression. HDMI cable is purchased separately as it will be necessary in the usage situation. Since the AC adapter is made horizontally, it is a place where you want a margin around the outlet. There is no dissatisfaction with the picture. It is pointed out "Adapter problem" in the review of the other that does not make it star 5, so star evaluation became painful in that part. Personally I like "good product".
It was good
It was OK even if connecting a cheap cable without disturbing the image. It is hard to come off because the insertion mouth is solid, yet this cheapness is five stars ♪
You can use this!
I attached 3 monitors of one PC and presented different screens. I use it for Excel, the Internet, and other software quite conveniently. 4 If you want to make it to a monitor, it seems useless unless the motherboard is compatible.
I am moving to the present place
Splitter is the second one. Although I was using the object of 2 distribution, it did not show up on one screen and got tired of various wirings and games, but I gave up and replaced it. I use the output from the HDD recorder distributed to REGZA 32 inch and REGZA 50 inch, PC monitor. It was good for about 2 months because it is in use, but it is moving with no instability.
This distributor was what I was seeking.
The distributor I bought before was not output unless I could input and output one or more. (Type to recognize and output) This distributor will receive only input, and will transmit immediately as soon as the output is connected. (Drip-flowing type) Try using, you can use three until the same time without problems. I have not tried four at the same time, but there was no problem in the test after replacing the port. Because the price was cheap, I thought it was dangerous, but I think I did a good shopping.
Easy to use
Purchased for using two monitors and liquid tab. It was awesome if I could connect the outlet, but I am satisfied even this.
Rarely faulty
The reason is unknown, but there is a problem that sound does not come out rarely Resolved by restarting this machine
