Item Descriptions:

Product Specifications

FM transmission frequency: 76.0 to 90.0 MHz Bluetooth specification: Version 3.0 + EDR

Supported protocol: A2DP microphone transmission distance: maximum 2 m

Communication distance: 10 m Output terminal: USB terminal for charging × 2 (maximum 5 V / 2.1 A)

Power supply: DC 12 V voltage display: 9 - 30 V (error: ± 1 V)

Current indication: ≥ 0.13 A (error: 0.1 A)

External dimensions: about 105 × 29 × 21 mm Weight: about 30 g

Operating temperature range: about 0 to 50 ° C Operating humidity range: about 10 to 90% RH

Usage notes

※ Since wired connection with this product and mobile phone can not be done, please be sure to confirm that the Bluetooth function is attached.

※ This product can be used with mobile and wireless connection, FM transmitter mode, audio mode two ways.

Please select according to the actual situation.

Automobiles not equipped with AUX can not use the audio mode.

* The USB port can be charged (up to 5 V / 2.1 A).

FM transmitter mode operation procedure

① Insert the product firmly into the cigarette lighter.

Turn on the power switch.

② The FM frequency currently set for this product is displayed.

It automatically enters standby state of Bluetooth pairing.

③ Turn on the Bluetooth function on the connected tablet, PC, etc., and search for "Bluetooth device" from "Setting" etc.

④ Since this product is displayed under the name "BESTEK 06S", pair it.

After successful pairing you can enjoy music playing and hands-free calling.

* You can enjoy music wirelessly even with a car not equipped with AUX.

How to set the frequency

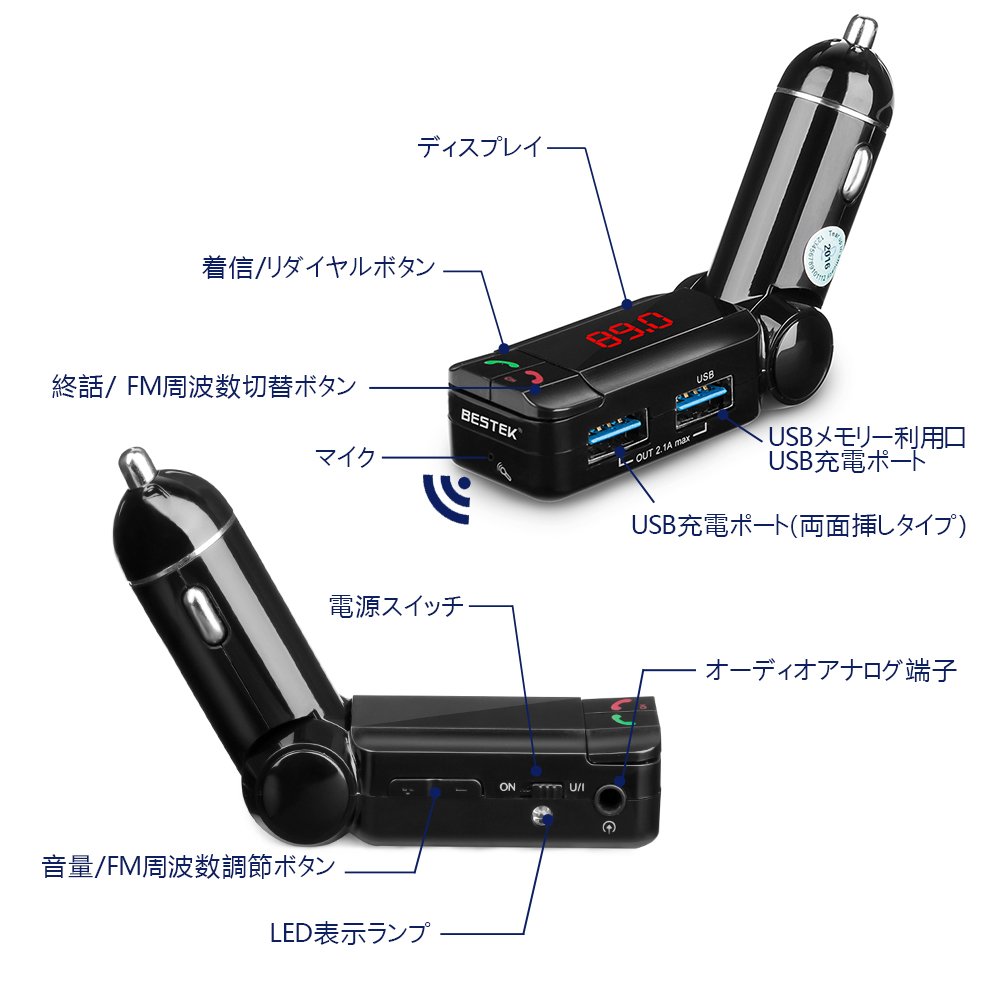

① Please press and hold the end button of the product.

② The digital display of the FM frequency displayed on the display of this product will flash.

③ Please adjust the frequency with "+" and "-" of this product.

④ When the frequency of the FM radio of the car stereo matches the frequency of this product, the noise disappears and it becomes silent.

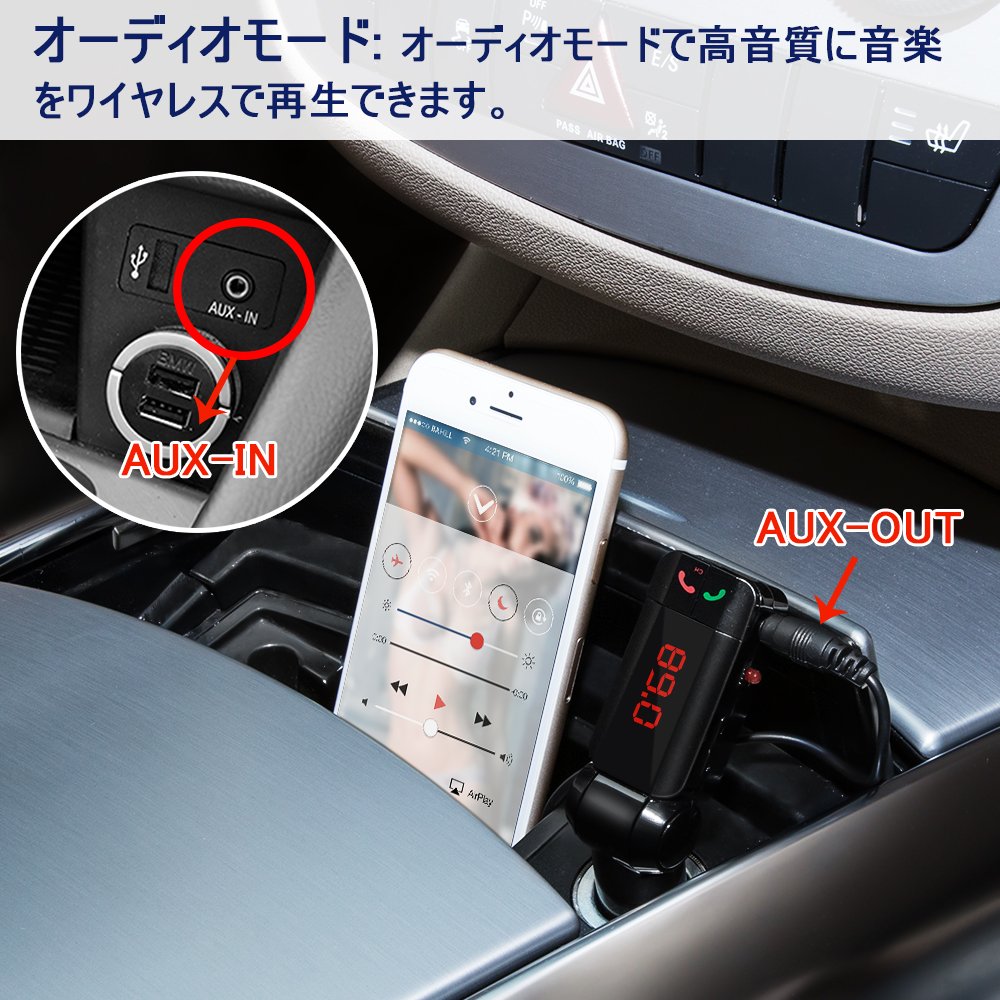

Audio mode operation procedure

① Insert the product firmly into the cigarette lighter.

Turn on the power switch.

② Connect this product to the audio analog terminal of the car.

(Audio cable is attached.)

③ Pair with this product and Bluetooth device (iPhone 6s etc.).

(Same as FM mode)

④ Set the broadcast mode of the car to AUX.

(Depending on the type of car, it is different.

* You can play music wirelessly with high sound quality in audio mode.

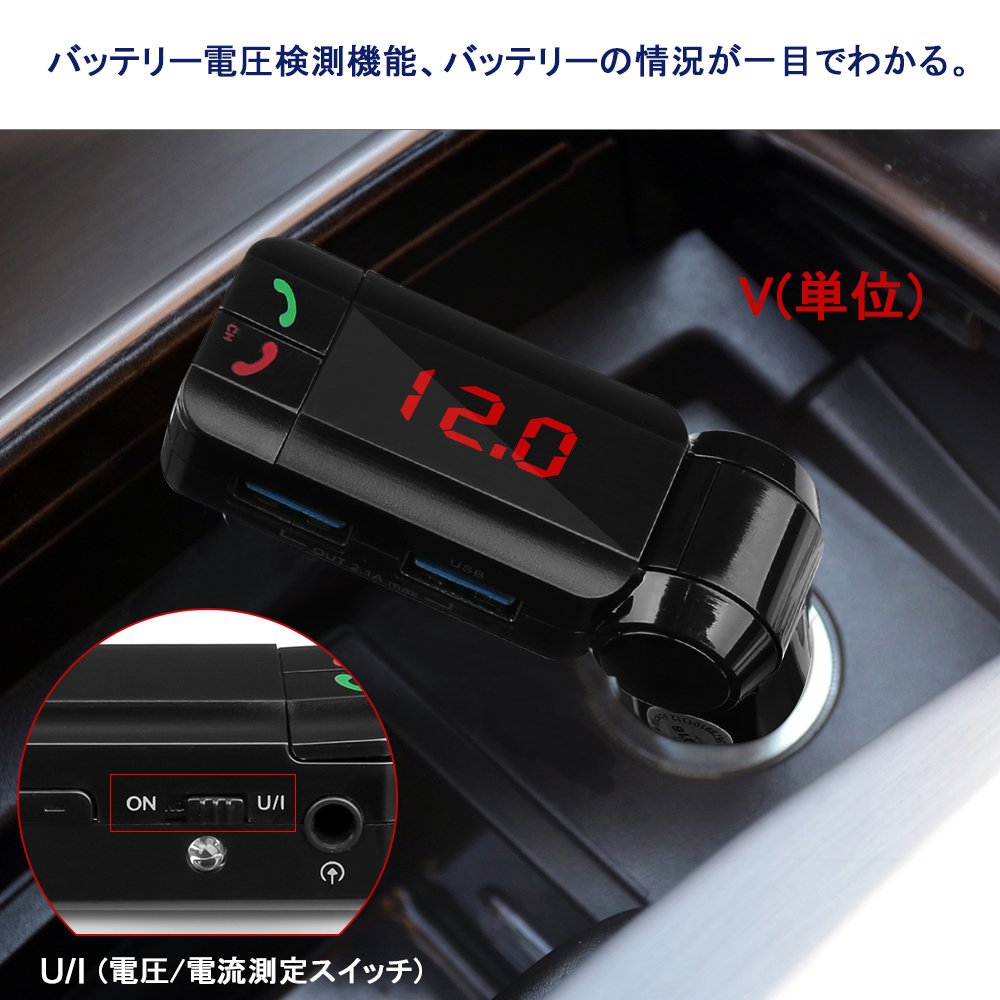

Battery voltage check function

When pressing the power switch to the I / U side, the display shows the voltage of the car battery.

The displayed voltage range is 9 - 30V.

When it exceeds the range, "HHH" is displayed.

(Error: ± 1 V)

※ When the voltage of the car battery drops to 11.5V, the number blinks and warns that it is low voltage.

※ Although we do strict quality inspection before exhibiting this product, if there is a problem such as initial malfunction by any chance, although it is very troublesome, in the account service, "order history, exhibitor

Please contact us "Please contact us so that we can contact you.

I will correspond the new article exchange.

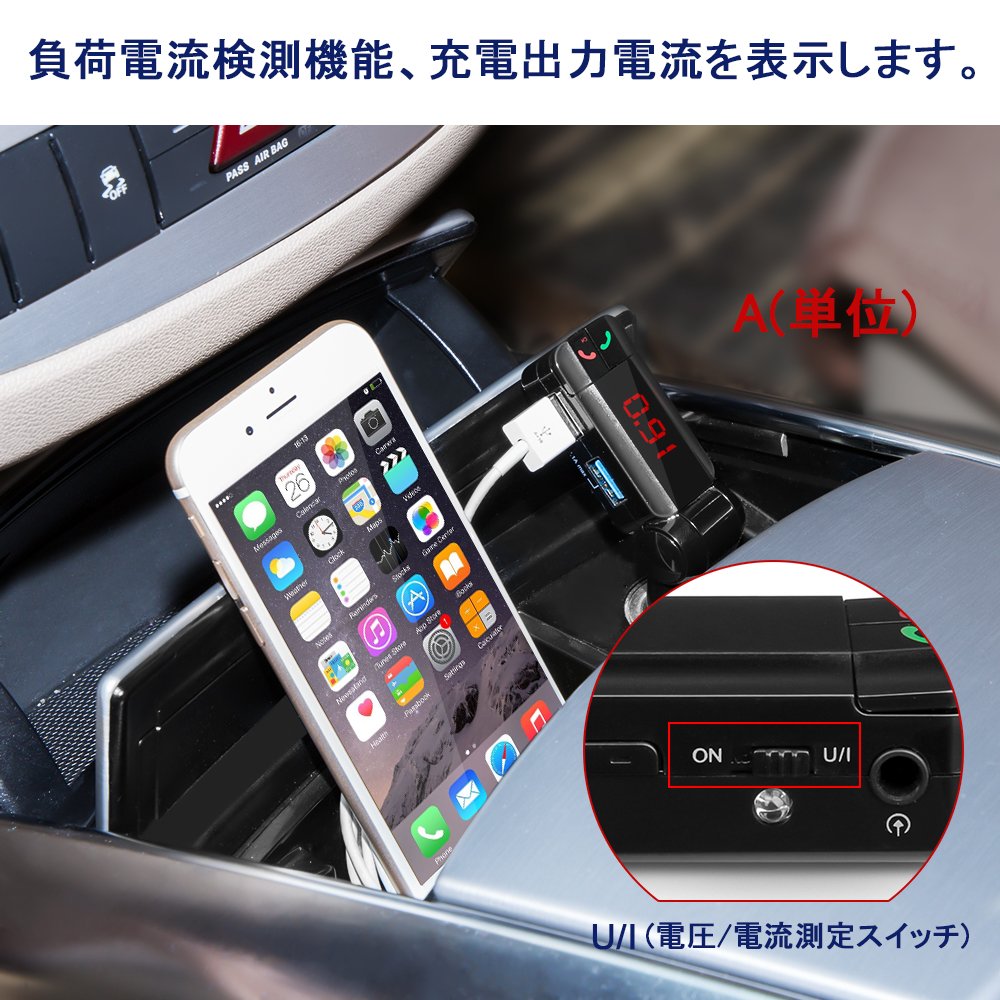

Load current detection function

Push the power switch to the I / U side and connect the device you are using, the display will show the output current.

When the output current becomes 0.13 A or less, it is not displayed.

(Error: 0.1 A)

USB port can be inserted on both sides

USB is a double-sided plug type.

Easy plugging in either direction is possible.

Features:

• You can use this product with mobile and wireless connection, FM transmitter mode, audio mode two ways.

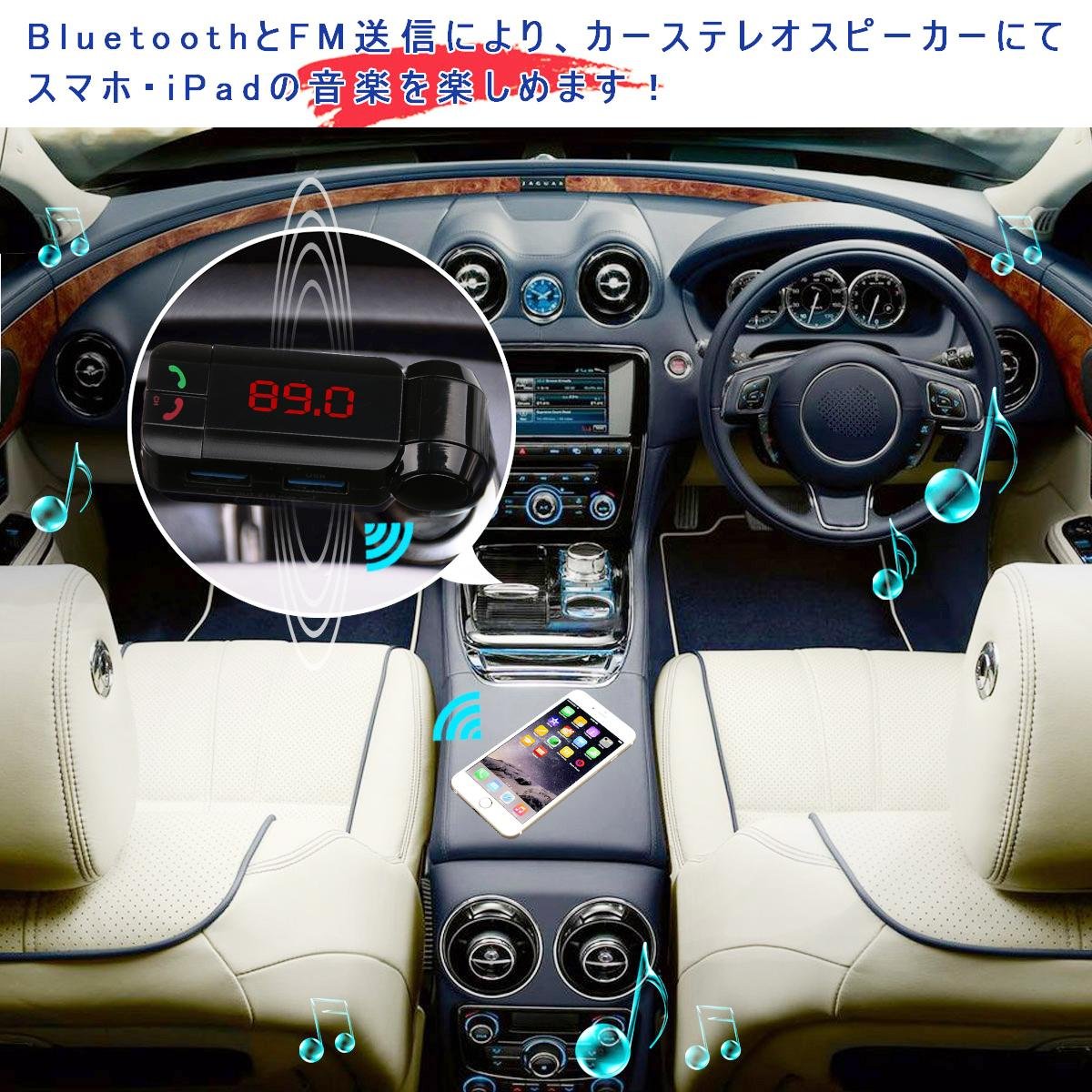

• With Bluetooth and FM transmission, you can enjoy the music of the smartphone / iPad with the car stereo speaker!

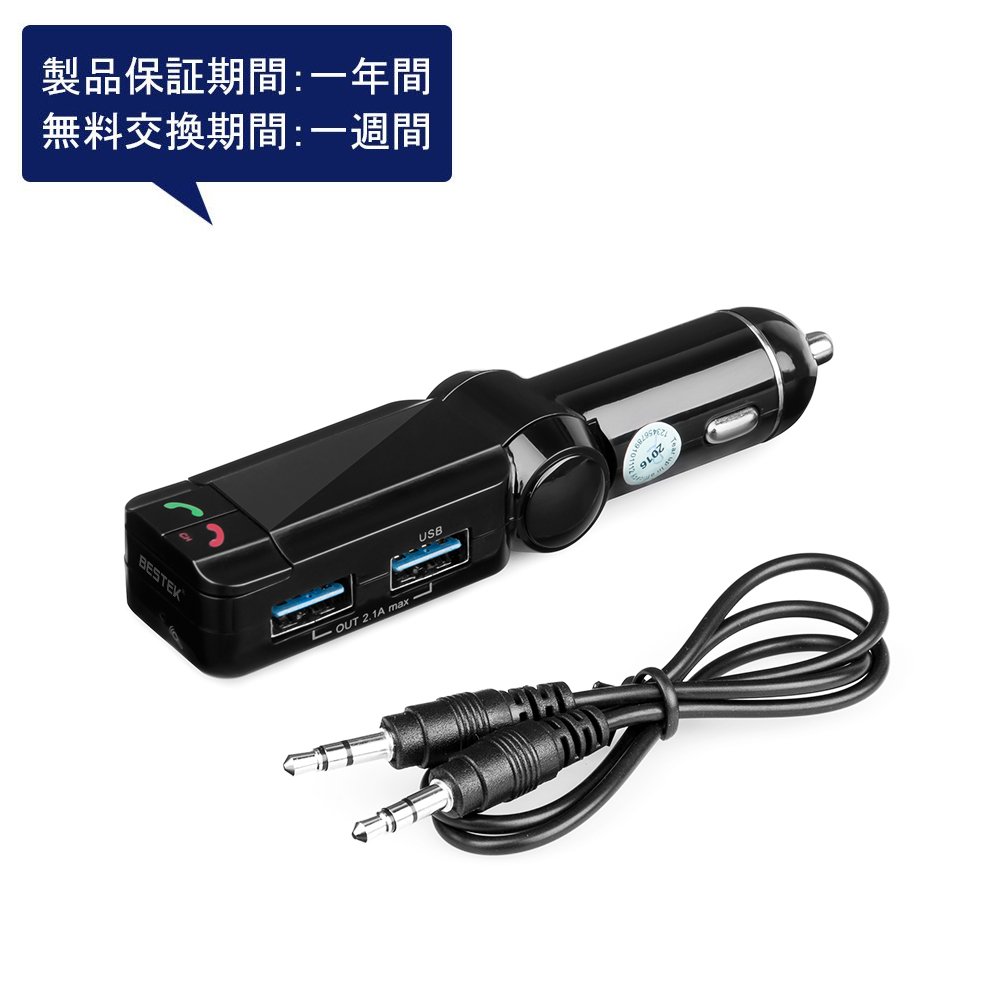

• Aux audio cable and USB flash memory are also available!
• Evolution version!
• USB port can be inserted on both sides!

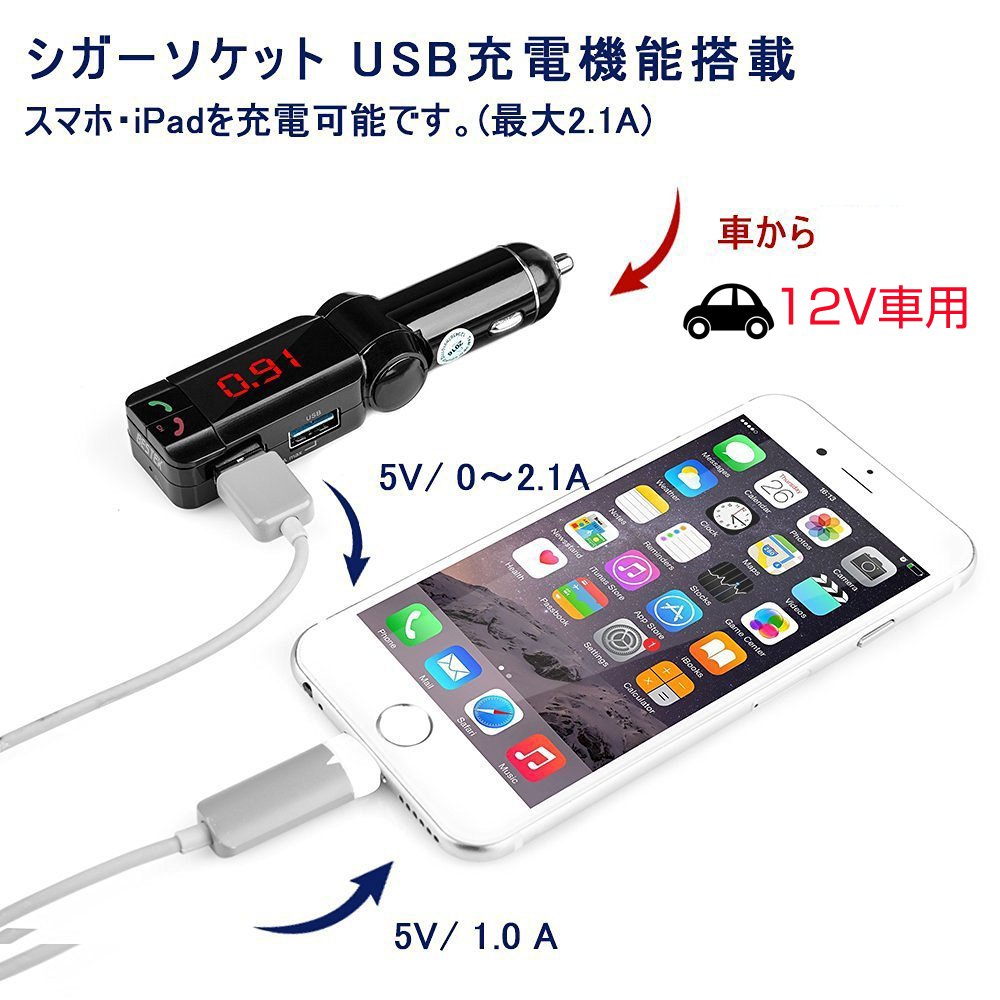

• USB2 port output 0 to 2.1 A, you can charge electronic equipment such as smartphone and iPad.

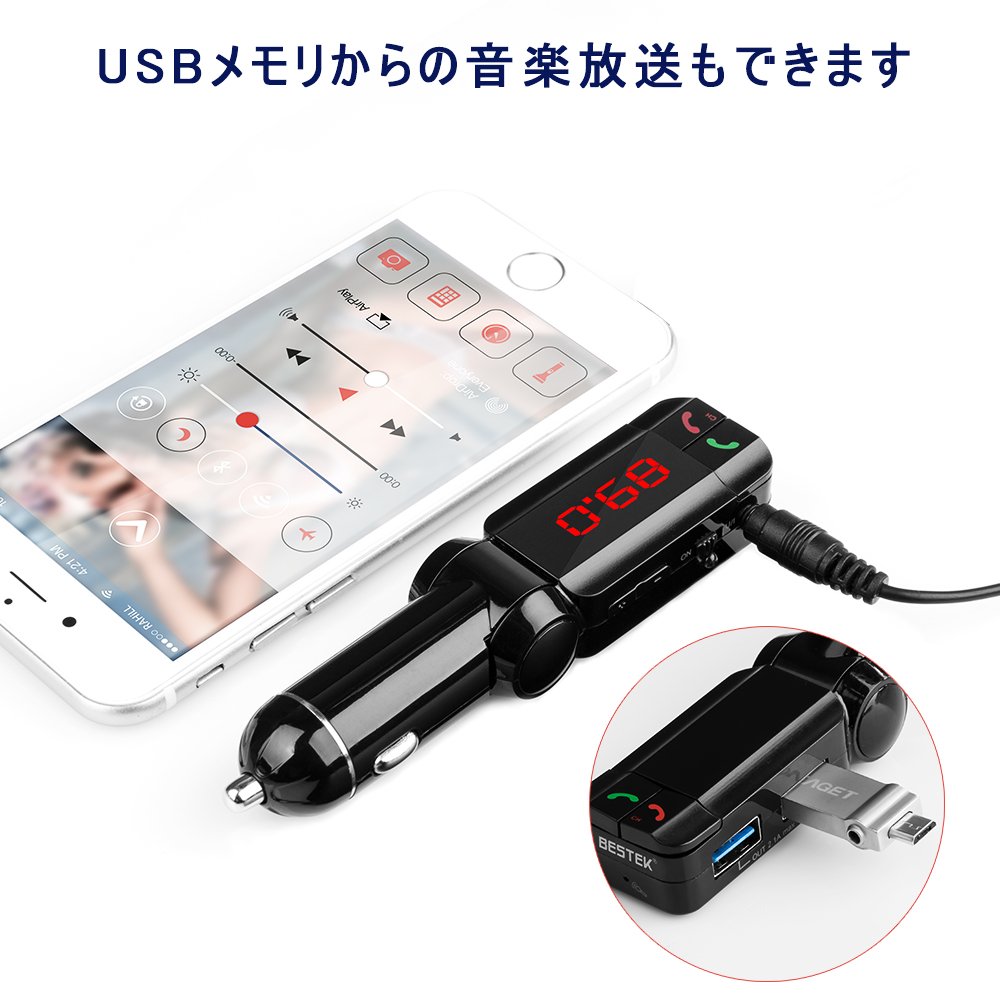

• You can also broadcast music from a USB memory.
• Hands-free calling is possible with built-in microphone.
• Because it is hands-free, you can safely make calls while driving.
• * When you press the call button, you will make a call to the newest number from the outgoing call history.
• You can not select a phone number.
• Voltage / current measurement function is attached, it is convenient also for prevention of rise of battery.
• ※ Product warranty period: One year free exchange period: One week ※ Can not be used with special sun cars (foreign cars or some domestic cars).
• ※ Since wired connection with this product and mobile phone can not be done, please be sure to confirm that the Bluetooth function is attached.
• 【※ Note: BESTEK products are only authorized dealers, please be careful, please be careful

Product information:

Shipping Weight: 72 g

Package Dimensions: 2.79 x 5.10 x 14.10 cm
