Item Descriptions:
● Two optical / coaxial digital inputs and 192 kHz / 24 bit compatible DAC and 192 kHz optical output DDC with optical digital / analog voice / headphone output ● Two optical / coaxial digital inputs, each with switch
DAC that can also be used as an audio selector.

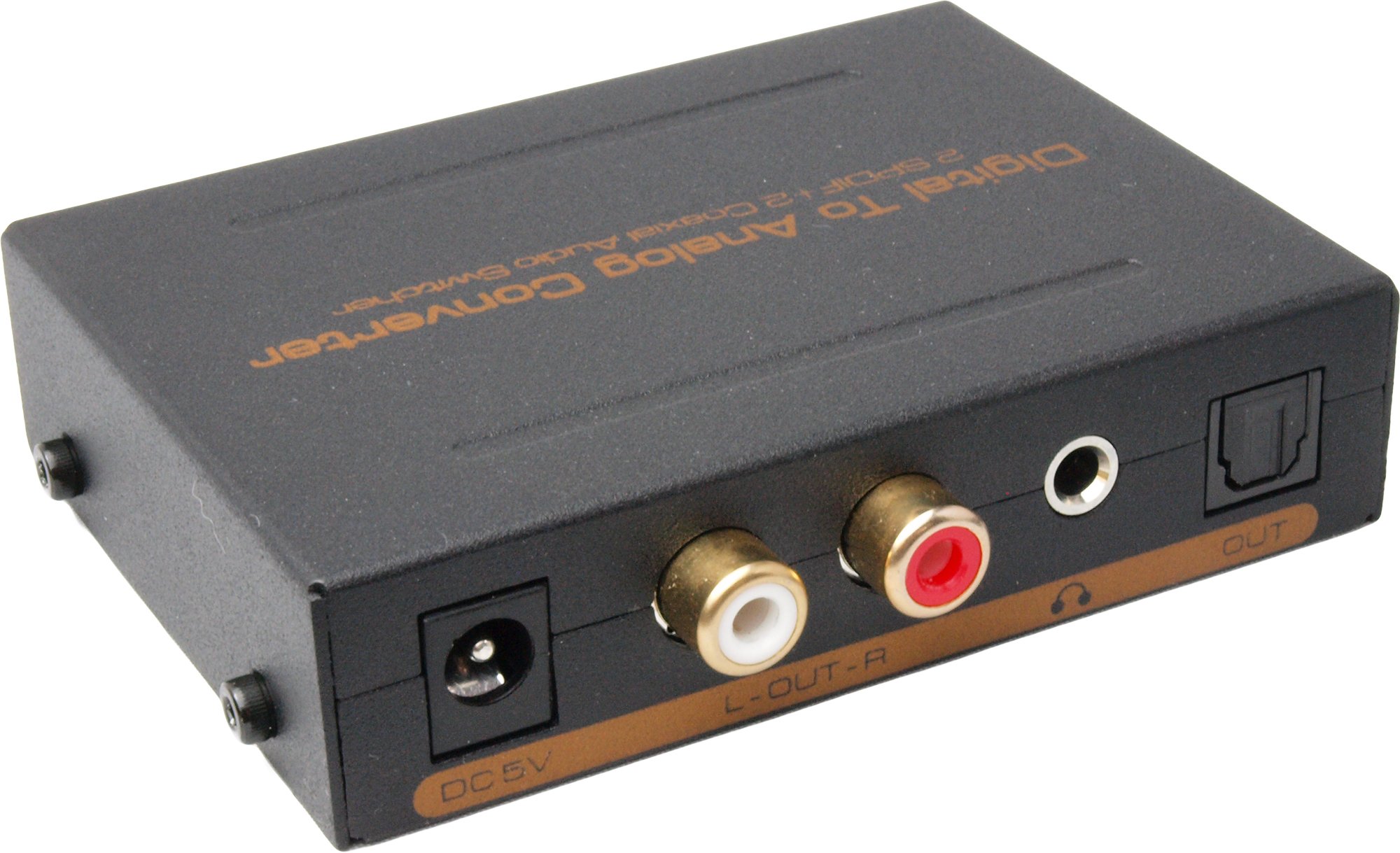

The DDC output is equipped with one 192 KHz optical digital system, one analog RCA, one stereo mini headphone output.
* Caution Since the volume adjustment volume is not attached to the headphone output, a maximum of 50 mW (32 Ω) is output.
Please pay attention to the burden on the ear, please use earphone with volume or headphone extension cord with volume.
● CS4344 is used for DAC chip.
It supports PCM up to 192 kHz / 24 bit, and the sampling frequency supports 32 / 44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz.
When using the DDC function, it corresponds to PCM / AC3 / DTS / THK / HDCD / LPCM format ● Power supply operates not only with the included AC adapter but also with USB bus power.
● Our development original firmware has already been updated.
Features:
- Please enter model number Confirm this is compatible:
- Equipped with two systems of optical / coaxial digital inputs, 192 kHz / 24 bit compatible DAC and 192 kHz optical output DDC with optical digital / analog voice / headphone output
- It is a DAC which has two optical / coaxial digital inputs and can also be used as an audio selector by switching the switch.
- DDC output is one 192 KHz / 16 Bit / / 24 Bit optical digital system and each one line of analog RCA, stereo mini headphone output is equipped. * Note Headphone output does not fit the volume adjustment volume, so a maximum of 50 mW (32 Ω) is output
- It will be.
- Please pay attention to the burden on the ear, please use earphone with volume or headphone extension cord with volume.
- The DAC chip uses CS 4344.
- It supports PCM up to 192 kHz / 24 bit, and the sampling frequency supports 32 / 44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz.
- When using the DDC function, it supports PCM / AC3 / DTS / THK / HDCD / LPCM format

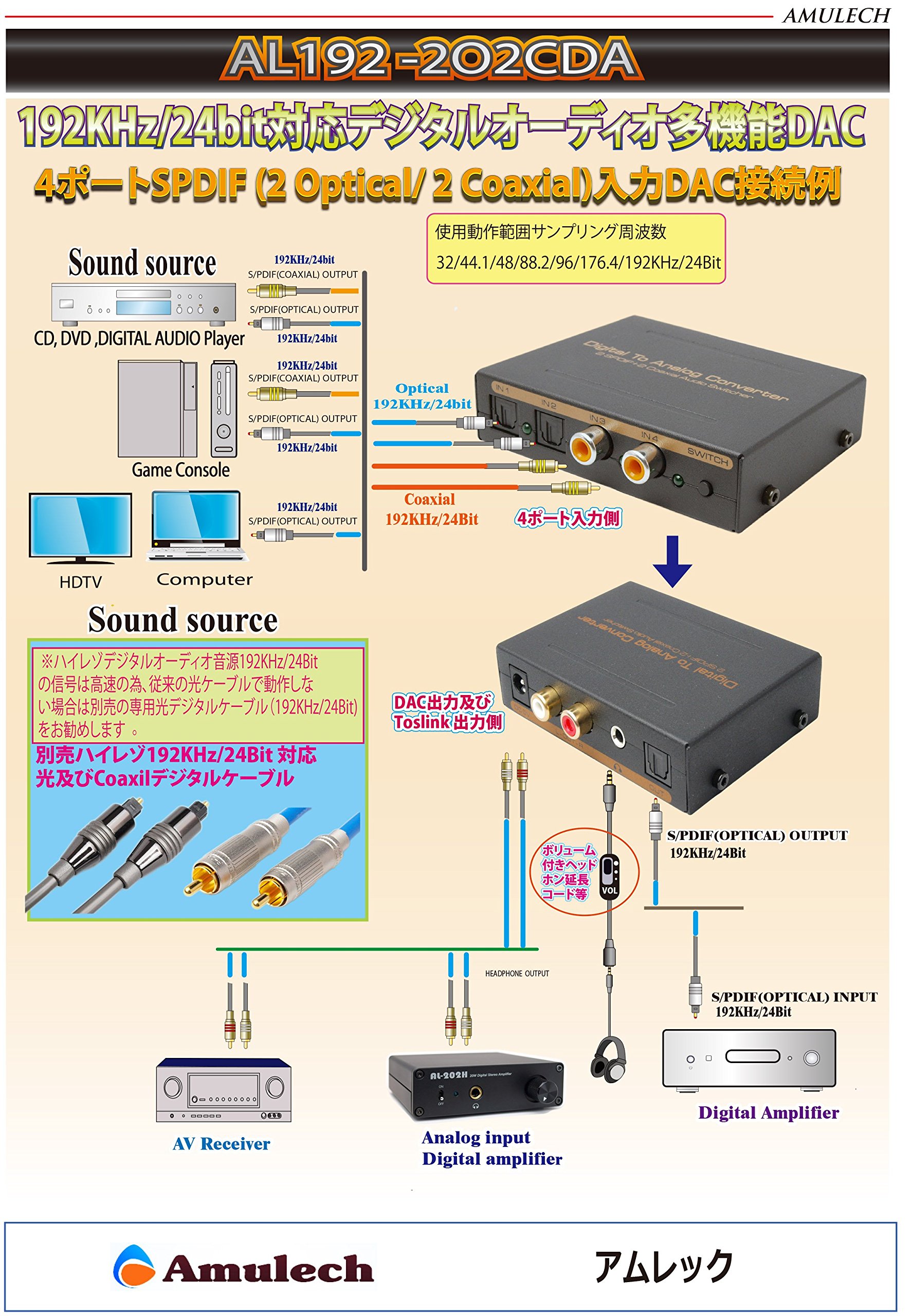

- It can connect to USB / DDC and TV, CD / DVD / Blu-ray player, game machine etc. digitally, output to active speaker, headphone, amplifier is possible.
- In addition to operating with the supplied AC adapter, the power supply can also be used with USB bus power.
- ● Our development original firmware has already been updated.
Product information:
Shipping Weight: 272 g
Package Dimensions: 6.20 x 12.50 x 15.59 cm
