Product Description

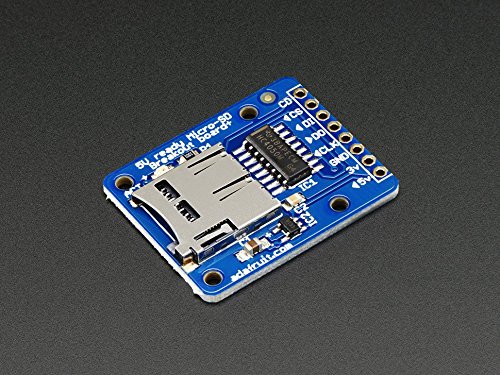

Not just a simple breakout board, this microSD adapter goes the extra mile - designed for ease of use.

Onboard 5v->3v regulator provides 150mA for power-hungry cards
3v level shifting means you can use this with ease on either 3v or 5v systems
Uses a proper level shifting chip, not resistors: less problems, and faster read/write access
Use 3 or 4 digital pins to read and write 2Gb+ of storage!
Activity LED lights up when the SD card is being read or written
Four #2 mounting holes
Push-push socket with card slightly over the edge of the PCB so its easy to insert and remove

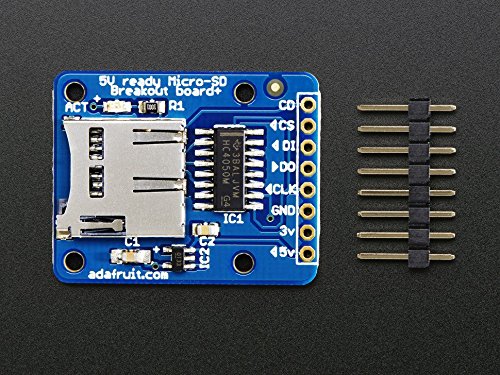

Comes with 0.1" header (unattached) so you can get it on a breadboard or use wires - your choice
Tested and assembled here at the Adafruit factory
Works great with Arduino, with tons of example code and wiring diagrams

To use with an Arduino, connect GND to ground, 5V to 5V, CLK to pin 13, DO to pin 12, DI to pin 11, and CS to pin 10. Then you can use the Arduino IDE's SD library which supports FAT and FAT32 SD cards. For details on getting started, check out Adafruit detailed tutorial discusses microSD cards, wiring and how to use this breakout board with an Arduino

Feature

microSD adapter
Onboard 5V->3.3V regulator provides 150mA power
3V level shifting (can use with either 3V or 5V systems)
3 or 4 digital pins to read and write 2Gb+ of storage
Activity LED and 4 #2 mounting holes
Brand : Adafruit
EAN : 0717520031215
Product Dimensions(LxWxH) : 8x6x3cm ; 86 g
Package Dimensions(LxWxH) : 8x6x3cm ; 86 g
