Item Descriptions:

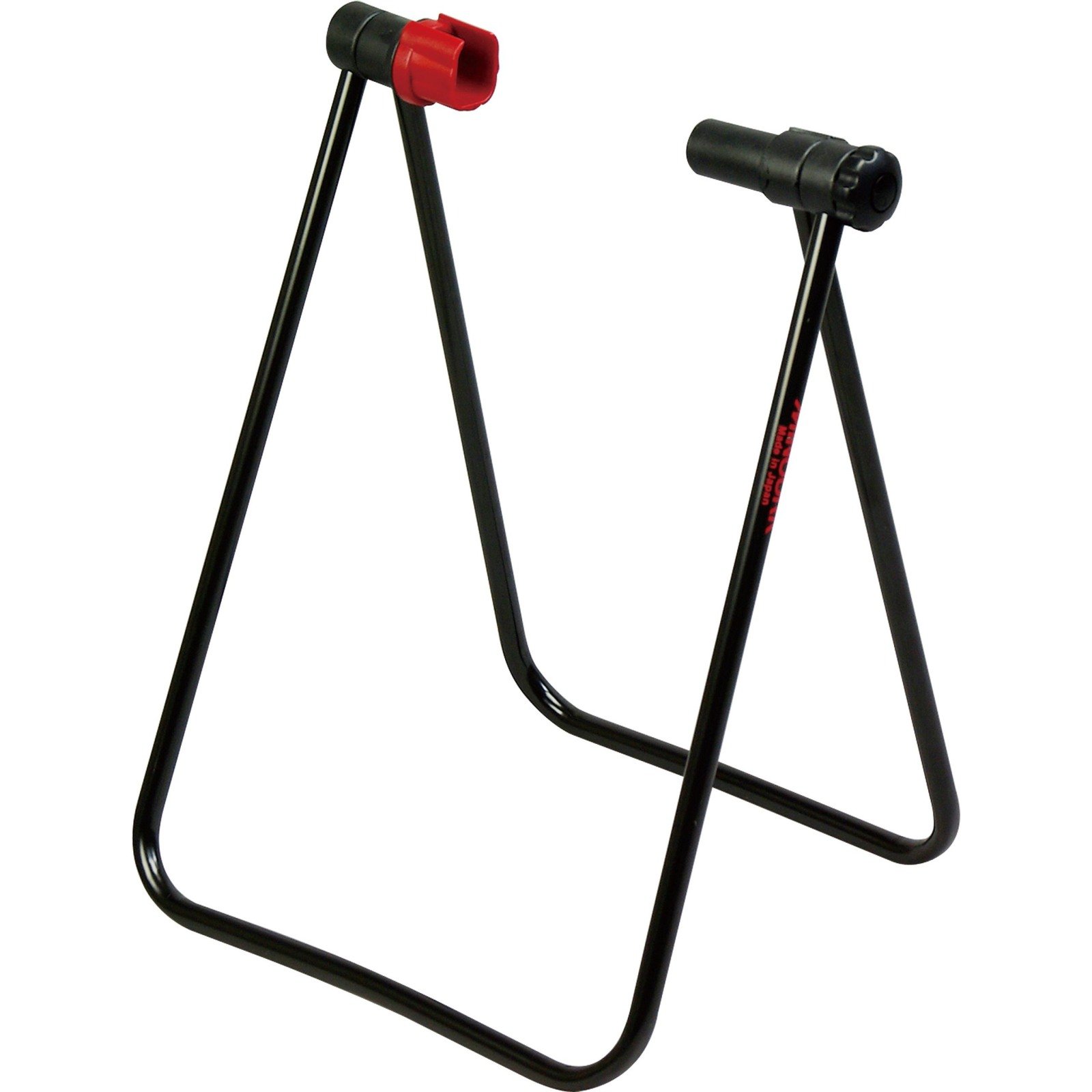

Minolaura's standard display stand DS-30 series.

Campagnolo not attached in DS30 - BLT, Fulcrum,

CFB is a model that corresponds to wide quick such as Bontrager.

Two kinds of couplings (blue and red) are attached,

Please use it according to the model (width) of the quick lever.

The DS-30 series uses high quality steel pipe made in Japan.

It is rich in spring back ability, it can support the bicycle tightly and can support

Adjustable height in two steps in the opening direction (225 mm / 365 mm)

When unnecessary it is possible to fold very thin.

Specifications such as size are as usual,

The body frame made of steel uses its elasticity,

It can also be used for small diameter vehicles such as BMX from 26 inch (700 C class).

Corresponding model: wide Quick such as Campagnolo, Fulcrum, Bontrager.

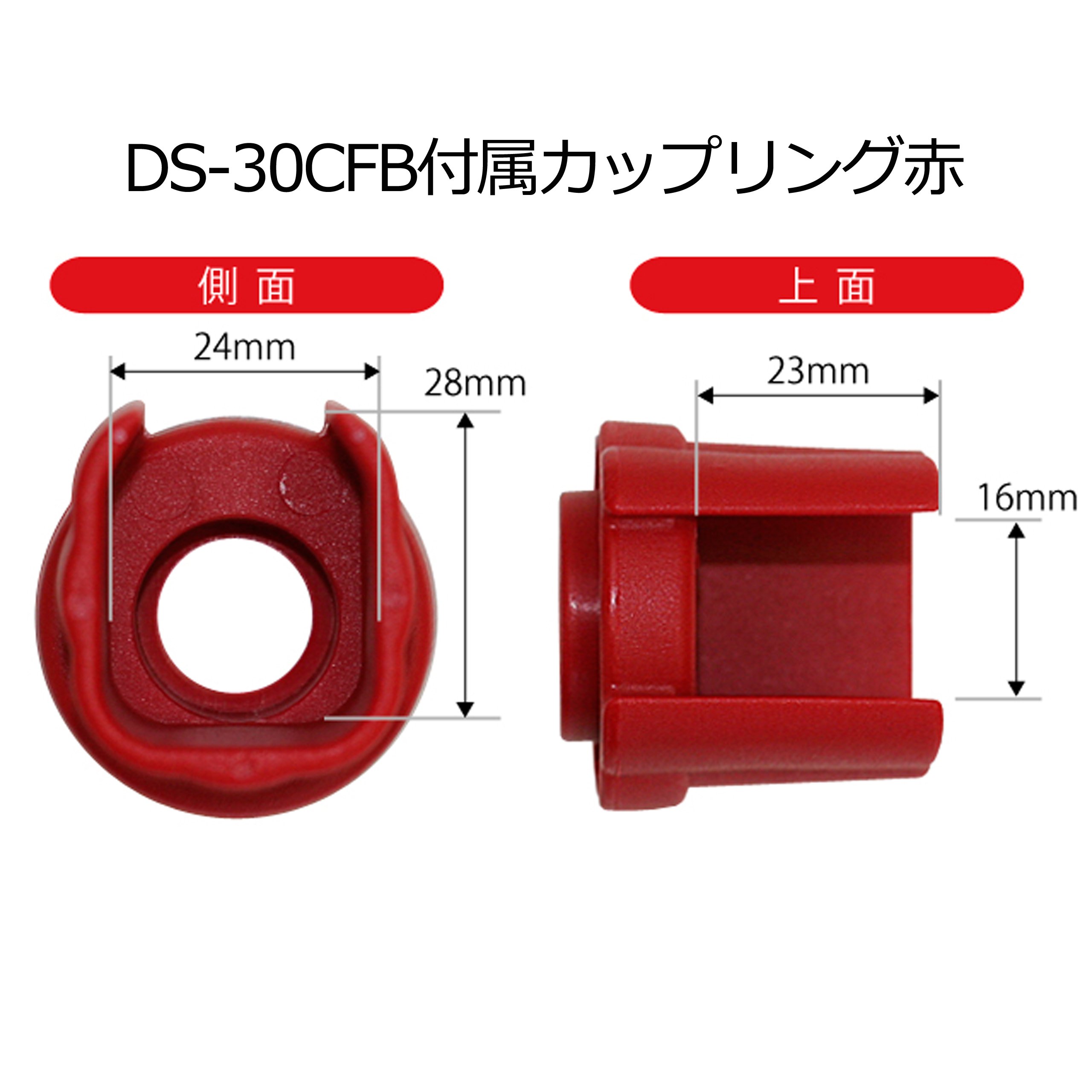

※ Please be sure to check the size of the coupling in the photo and check if it can be used for your own bicycle.

Even if it is genuine quick release of Campagnolo · Fulcrum

There are types that the lever width is too wide to enter the coupling.

Please check the shape and size referring to the photograph with the coupling size.

* It does not correspond to the quick wider which is equipped in the latest type Bullet.

※ 2014 model BORA is not supported in the current model.

* In order to be able to firmly attach some Quick,

Please use the coupling part with file etc to process.

※ The DS-30 series are display stands.

We do not recommend using in maintenance.

* Please do not ride on the bicycle which made it stand on its stand.

Some of the bicycles and wheels are not compatible due to the shape, design, specification etc. of the quick lever or the frame end.

When purchasing, please check your bike often.

Features:

• Japan
• Size: When unfolded H380 × W305 × D285 mm / when stored: L 420 × W 305 × H 40 mm
• Weight: 0.7 kg
• Height adjustment range: 2 stages (225 mm / 365 mm)
• Corresponding model: wide Quick such as Campagnolo, Fulcrum, Bontrager.
• Be sure to check the size of the coupling in the photo and check whether it can be used for your own bicycle.
• Attention! Even a genuine quick release of Campagnolo Furukuramu, there is a type that the lever width is too wide and does not enter the coupling.
• Please check the shape and size referring to the photograph with the coupling size.
• Attention! It does not correspond to the quicker which is equipped in the latest type Bullet and became wider
• Attention! The current model does not correspond to BORA of 2014 model
• * There are some bicycles / wheels that are not compatible due to the shape of the quick lever or frame end, design, specifications, etc.
• When purchasing, please check your bike often.
• ※ The DS-30 series are display stands.
• We do not recommend using in maintenance.
• ※ Please do not ride on the bicycle which made the stand independent
• ※ The color of the product may look different from the actual, depending on the type of display etc.
• Please note that the specifications of the products posted, logo design etc. are subject to change due to improvements.

Product information:

Shipping Weight: 712 g

Package Dimensions: 4.50 x 30.91 x 42.80 cm
