Product Description

Two Ways Install THE WIFI Adapter
No.1:
1. Insert CD into PC (don't plug the WiFi Adapter first)
2. Open the "Setup.exe" in CD, and install the driver
3. Insert the WiFi Adapter
No.2
1. Plug the WiFi Adapter to PC, the System prompt the PC find new hardware, don't install the recommended driver
2. Right clik "Computer", and choose the "Device manager"
3. Click the "Network adapters" and choose the new wifi adapter, right clik and choose "Update Driver Software", choose "Browse my computer for driver software", choose the "setup.exe" in CD files, install the driver.


Specification:
Wireless Standards
IEEE 802.11n
IEEE 802.11g
IEEE 802.11b
IEEE 802.11ac
IEEE 802.11a
Work Channel
13 at 2.4GHz/ 4 at 5.8GHz (3C)
11 at 2.4GHz/ 12at 5.8GHz (FFC)
Modulation Model
CCK/OFDM/DBPSK/DQPSK/16QAM/64QAM/256QAM
Work Power:17dBm (Typical)
Sensitivity
11n: -68dBm@130M; -68dBm@108M
11g: -69dBm@54M
11b: -85dBm@11M
11ac: -59dBm@867M
Wireless Security
WPA/WPA2,64/128 bit WEP
Support Operation System:Window 2000/XP/Vista/WinCE/Win7/Win8/Win10/Mac OS/Linux
Function:WPS, Soft AP
Antenna Type:2dBi Omni-directional Antennas
Environment
Operating Temperature(degree Celsius): 0~40
Storage Temperature(degree Celsius): -40~70
Operating Humidity: 10% ~ 90% RH (Non Condensing)
Storage Humidity: 5% ~ 90% RH (Non Condensing)

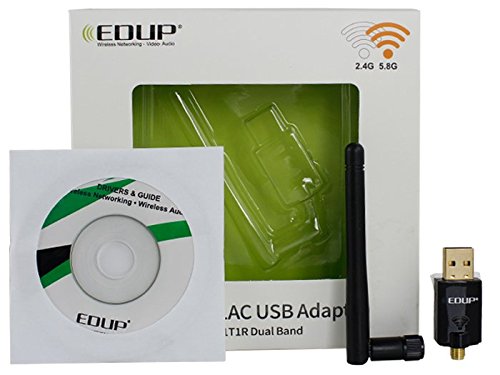

Packing list:
1 * usb wifi adapter
1 * CD driver
1 * warranty card

Feature

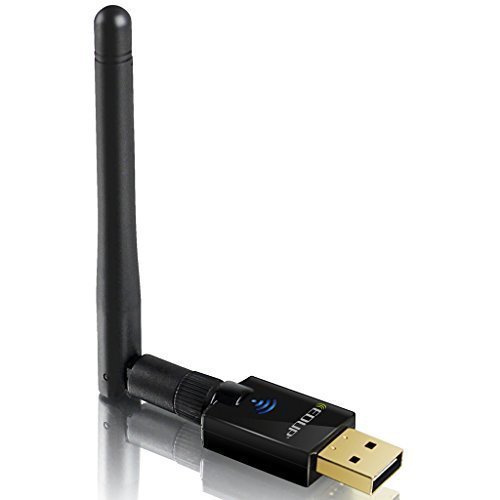

Upgrades PCs to 802.11ac, the latest & most powerful Wi-Fi technology - 3 times faster than wireless N speeds. Ideal for gaming online and seamless HD video streaming
Up to 600Mbps Wi-Fi speeds on 5.8GHz (433Mbps) and 2.4GHz (150Mbps) bands. Dual band reduces interference for better connections to more Wi-Fi devices, Use Roaming technology, promise high effective wireless connect
802.11ac Wi-Fi technology and detachable 2dBi omni-directional dual band antenna for increased coverage and stability
Antennas Support Operation System:Window 2000/XP/Vista/WinCE/Win7/Win8/Win10/Mac OS. Dual band wireless usb adapter downward compatability 802.11g/n Internet device
Wireless dongle 1 year warranty.If have any question about this usb wifi Antennas ,please contact us feel free
Brand : EDUP
MPN(PartNumber) : EDUP-EP-DB1607
EAN : 0744430502375
Product Dimensions(LxWxH) :
