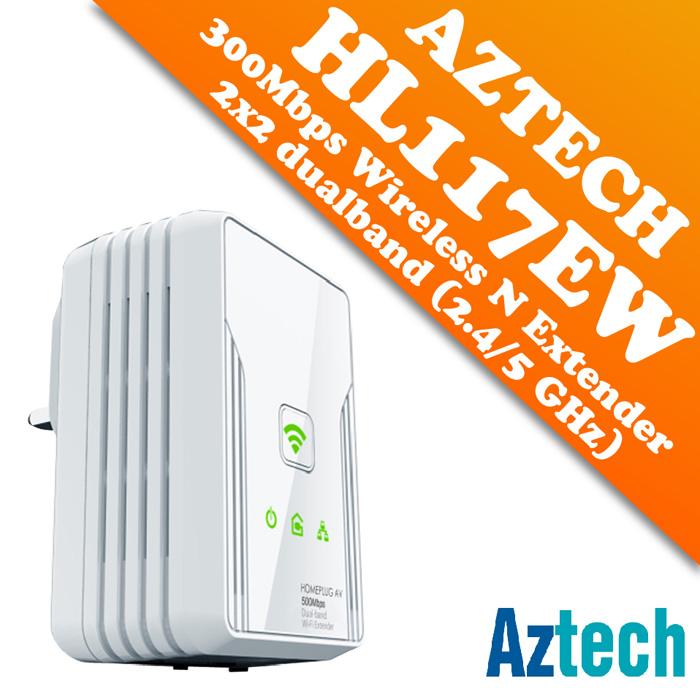

Aztech HL117EW 500Mbps HomePlug AV Ethernet Adapter [2.4GHz or 5GHz]





Product Description
Aztech HL117EW 500Mbps HomePlug AV Ethernet Adapter with 300Mbps Wireless-N Extender 2x2 Dual Band (2.4/5GHz)

Low Power Design  l  Qualcomm Atheros AR7420 Chipset  l  QOS  l WPA/WPA2/EAP  l  DDR2 SDRAM : 64Mb  l  2MHz to 68MHz Band

HL117EW





Product Specifications
Protocol/Standards
    HomePlug
  • IEEE 1901/HomePlug AV compliant
  • Co- existence with HomePlug 1.0 Nodes
  • Compliant to EuP requirements
    Wireless
  • IEEE 802.11a/b/g/n
    Ethernet
  • IEEE 802.3 10/100 Ethernet
  • IEEE 802.3az support
Data Transfer Rate
    HomePlug
  • Up to 500Mbps over powerline
    Wireless
  • Up to 300Mbps via wireless, 2x2, 2.4/5 GHz
Modulation Support
    HomePlug
  • Supports OFDM 4096/1024/256/64/16/8-QAM, QPSK, BPSK and ROBO Modulation Schemes
    Wireless
  • 2.4GHz or 5GHz
Frequency Band
    HomePlug
  • 2MHz to 68MHz band
    Wireless
  • BPSK, QPSK, 16-QAM, 64-QAM and forward error correction coding with rates of 1/2, 2/3, 3/4, 5/6
Quality of Service
  • Priority-based CSMA/CA channel access schemes maximize efficiency and throughput
  • Integrated Quality of Service (QoS) Enhancements
  • Hardware Packet Classifiers for ToS, CoS and IP Port Number
  • Supports IGMP managed multicast session
Diagnostic and Management Interface
  • Homeplug AV generic and vendor specific Management Message Entries (MME)
Security Support
    HomePlug
  • 128-bit AES Link Encryption with key management
    Wireless
  • WPA/WPA2/EAP
Memory
  • SPI Flash : 8 MB
  • DDR2 SDRAM : 64 MB
Hardware
  • PLC : Qualcomm Atheros AR7420 + AR1540 chipset
  • Wireless : Qualcomm Atheros AR9344
Platform Support
  • OS Independent with TCP/IP protocol installed
Power Supply
  • Switch Mode 100V-240V Supply for Europe/UK/US plugs
Physical Specifications
    LED Indicators
  • 1 x Green Power LED
  • 1 x Bicolor Powerline Link/Activity Status LED
  • 1 x Green Ethernet Link/Activity Status LED
  • 1 x Green WPS On/Off Status LED
    External Connectors
  • 1 x Electrical Power plugs
  • 2 x RJ45 for 10/100 Ethernet
    Push Button/Switch
  • 1 x Simple Connect/Reset Push Button
  • 1 x WPS On/Off Button
  • 1 x 2.4G/5G Select Switch
    Resin/Plastic Casing
  • Polycarbonate, FR rating UL94-V0
    Dimension
  • 62 mm x 92 mm x 42 mm
    Weight
  • 140g
    Power Consumption
  • 6.5 Watt (230Vac)
Platform Support
  • Windows 98SE, 2000, ME, XP 32bit, Vista 32bit, Window 7 (32/64-bit)
Environmental
    Temperature
  • Operating : 0° to 40° Celsius; 32° to 104° Fahrenheit
  • Non-Operating : -25° to 70°; Celsius -13° to 158° Fahrenheit
    Humidity
  • Operating : 30% to 80% Relative Humidity (Non-Condensing)
  • Non-Operating : 30% to 95% Relative Humidity (Non-Condensing)



Features/Additional Information
  • Low Power Design
  • Integrated ARM CPU & Internal memory
  • Dynamic channel adaption and channel estimation
  • Windowed OFDM with noise mitigation based on patented line synchronization techniques improves data integrity in noise condition
  • Advanced Turbo Code Forward Error Correction

Aztech HL117EW is a 500Mbps HomePlug Adapter + 300Mbps Wireless N Extender 2x2 dualband (2.4/5 GHz). HL117EW embarks on a concept of No New Wires®data communications, and it transforms your in-house powerline into a networking infrastructure and a WLAN connection. It successfully reduce "dead spot", increase throughput and increase network coverage within a home. Surf the Internet and share data at the speed up to 500Mbps Phy rates through powerline, 300Mbps via Wireless, in any outdoor environment - and rest assured with the best security from eavesdroppers through encryption on the power circuit and WLAN.

HL117EW HomePlug engine is a Qualcomm Atheros AR7420 chipset. It features faster processing power, Fast Ethernet host interfaces and an enhanced analog front end. The solution is compliance with IEEE1901 and Homeplug AV, hence allowing hassle free compatibility with existing Homeplug AV devices and other suppliers of IEEE1901 PLC (Powerline Line Communication) devices. As for the Wireless, it is using Qualcomm Atheros AR9344 2x2 2.4/5 GHz Wireless N SoC chipset.

Enhanced Quality of Service (QOS) also provides the guaranteed bandwidth reservations for multimedia payloads including TV over IP (IPTV), higher data rate broadband sharing, Online- Gaming, VoIP Calls, extending Wireless LANs coverage, Audio-Video transmission across the network as well as Network camera connectivity.

HL117EW provides a simple connect push button for a convenient way of creating HomePlug network without the need to using the Device Utility from a computer. The security feature is supported by 128-bit AES Hardware encryption. As for WLAN security feature, it is supported by WPA, WPA2, and WAP. Ensuring the network communications is free from eavesdroppers and hackers.
