Item Descriptions:

Product introduction

Applicable wire

Symbol: VVF (VA line, F cable)

JIS standard number: JIS C 3342

Type: 600V vinyl insulated vinyl sheath cable flat

Symbol: 600 V EEF / F (EM-EEF) (Eco wire)

JIS standard number: JIS C 3605

Type: 600V polyethylene insulation flame retardant polyethylene sheath cable flat

Conductor diameter × core number: φ1.6 × 2 hearts, 3 fibers · φ 2.0 × 2 hearts, 3 hearts

One corner coat of three cores is also OK.

Skill unnecessary! Everyone is quick and easy, clean cut

Electrical work professional skill test necessity tool

Cutting · measuring · peeling · bending · with 1 bottle!

- Six functions of cutting, sheath / insulator length measurement, sheath / insulator peeling, character bending are possible with one

● 2.0 × 3 insulator also eliminates bothers by one peeling

● Blade design that enables a clean cut with light load

- Electric construction professional skill test necessity tool, it is also a big success in the field work after that

● Spring effect realizing "easy", "clean"

● The long peel length can be accurately measured with a long scale

● Adopted soft touch elastomer grip, with additional mark of 15 cm & 20 cm further work speed UP

● "Bending of letters" easily with grooves matching the bending size

● Fearless black body with certain technologies gathered

■ Specification

· Peel insulation

Φ 1.6 × 2 heart · 3 heart and Φ 2.0 × 2 heart · 3 kinds of insulation can be peeled off simultaneously with 2 operations, 3 hearts each time operation.

· Bending of letters

"Letter bending" can be processed.

With a cut groove matching the bending size

To cut

Cut the cable

·measure

Measure peeling length of sheath

Measure the peeling length of the insulator

· Peel off the sheath

Peel off 4 kinds of sheaths from Φ 1.6 × 2 heart · 3 mind and Φ 2.0 × 2 heart · 3 mind

· When the handle is loosened and the handle slightly opens due to the repulsive force of the handle spring to slide sideways, the insulator is less likely to be scratched.

· Elastomer grip with soft touch with marks of 5 cm and 20 cm

* Eco wires have heavier peeling load than VVF.

* Depending on the wire manufacturer, sheath, insulation thickness and material may differ, so there may be differences in peeling condition.

From Amazon

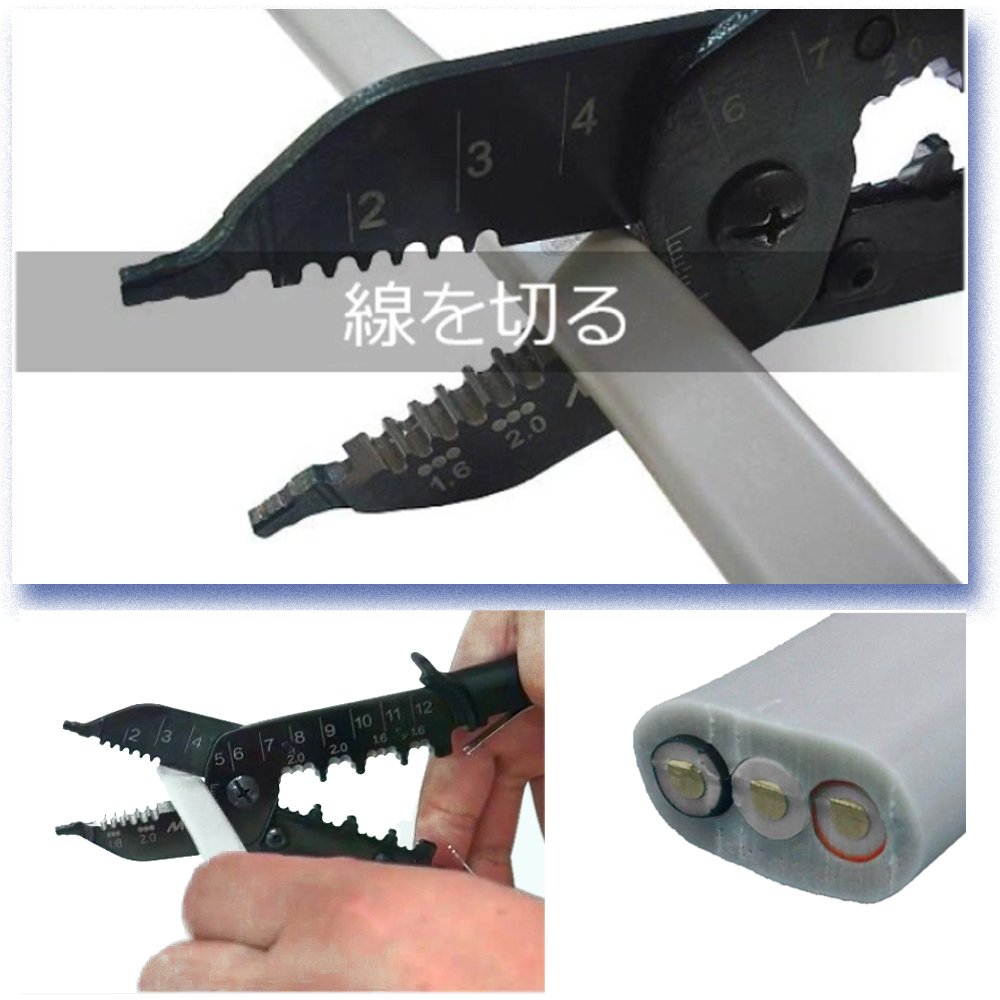

To cut a line

It is unnecessary to change to pliers, φ1.6 X 2 heart, 3 heart · φ 2.0 x 2 heart, 3 heart can also be cut.

Set so as to press the wire against the back of the blade and cut it.

By cutting edge design that enables a clean cut with light load, it becomes a clean cut surface with outstanding sharpness.

With the effect of the spring of the grip part, you can work "comfortably" "cleanly".

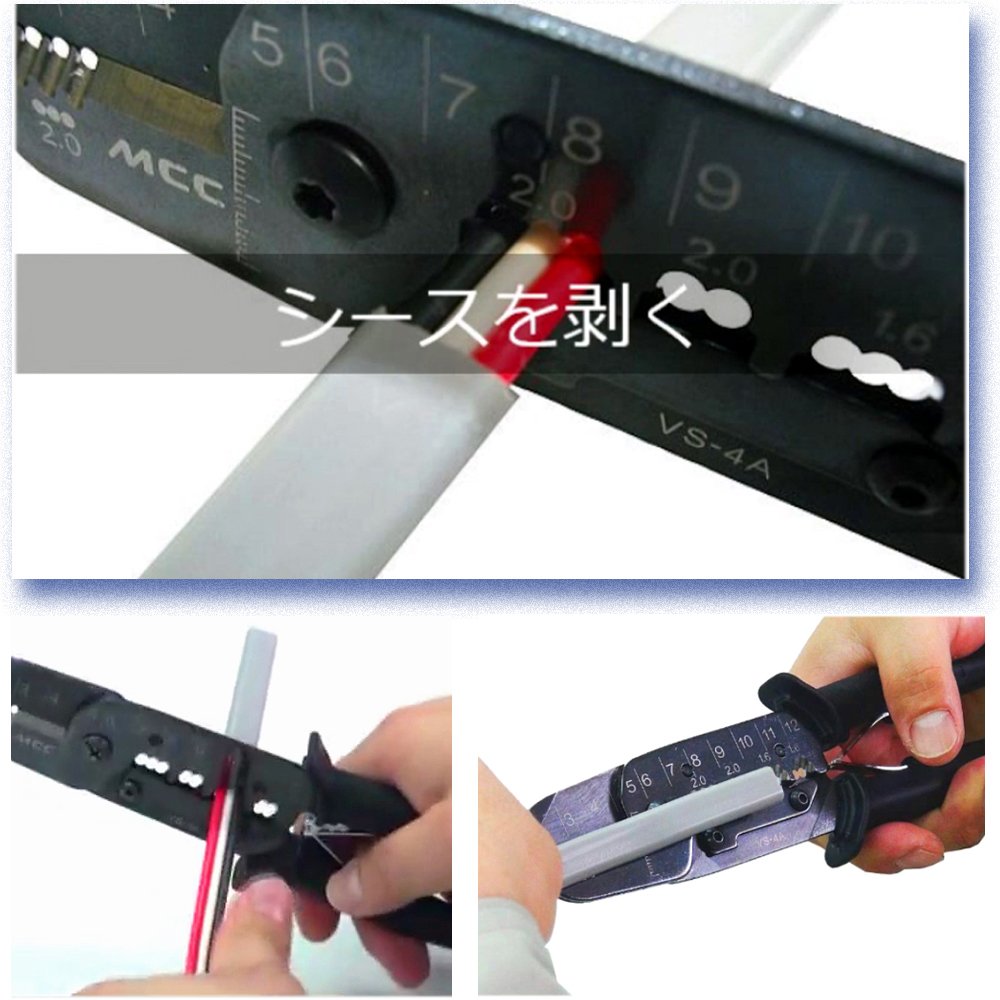

Peel off the sheath

The sheath of each wire can be peeled off with a single shot.

Since it is possible to measure the peeling length of the sheath with a scale of 1 to 12 cm, it is not necessary to change to the scale and the working time can be shortened.

Set it to the hole position that matches the size of the wire, grip the handle strongly, cut the sheath, then loosen the force, the handle will open a little, push out the tool with your thumb and slide to peel off the sheath.

In the case of eco electric wires, hold it more strongly and make a notch.

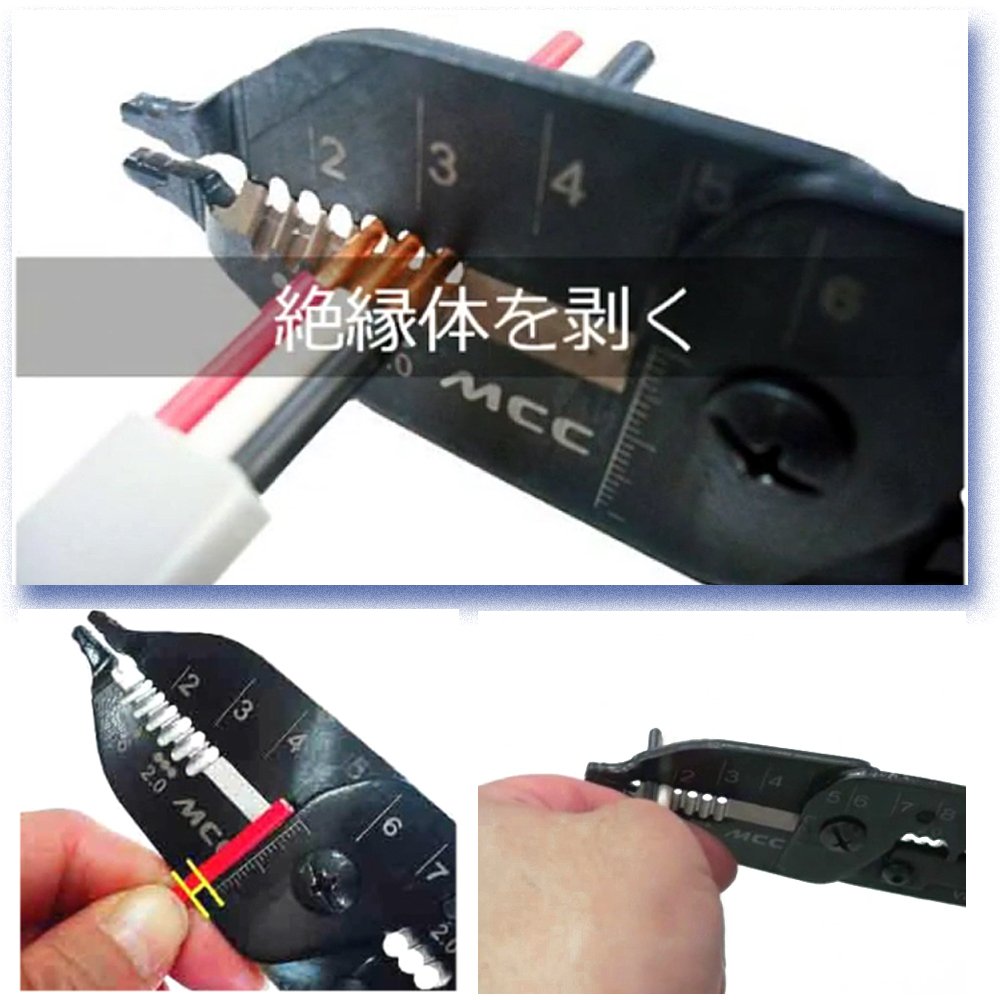

Peel insulator

Simultaneous peeling of insulator of φ1.6 × 2 heart · 3 mind and φ2.0 × 2 mind · 3 minds at the same time with each operation of 2 hearts 3 hearts at the same time.

Measure the peel length of the insulator with a scale of 1 to 20 mm.

Measure the length by applying your finger to the side of the tool.

(Since the thickness of the blade is the same as the part without the scale, it can be peeled with an accurate length.)

Set it to the hole position matching the size of the wire, squeeze the handle firmly and cut the insulator.

Loosen the gripped force and the handle opens slightly due to the force of the spring, so slide the tool and peel the insulator.

You can peel two or three cards with the same operation.

Peel the eco wire

Eco wires are peeled one by one.

Following the basic operation similar to the VVF wire, cut into the insulator, then move the tool so that it rotates up and down around the line, cut the insulator completely, then open the handle and slide the tool.

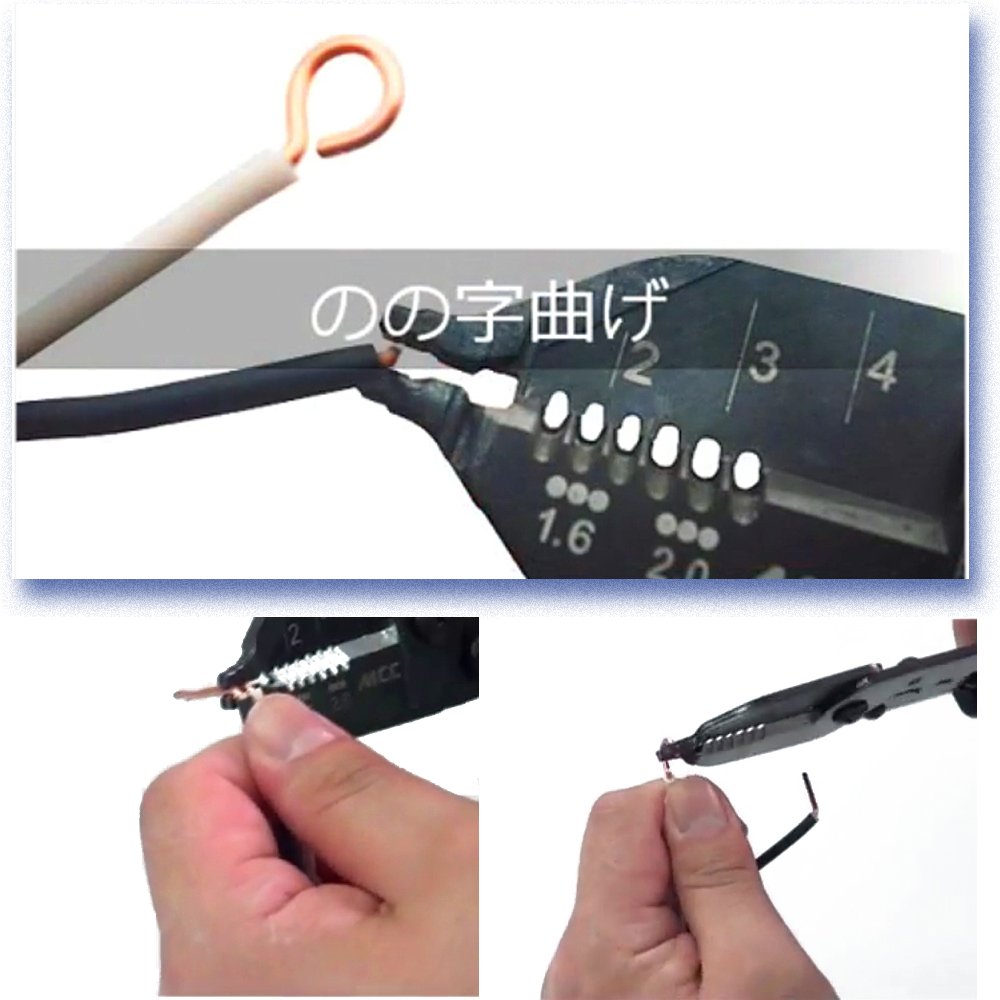

Bending of letters of

The tip pliers allow "bending of".

Bend 90 ° at the position of about 3 mm from the insulator, pinch the tip and make a loop.

You can character bend the groove properly according to the size, it will be quick and beautiful finish.

(Please choose between grooves for φ 3.5 and φ 4.

Features:

• ● Total number: 1 ● Full length (mm): 232 ● Core wire coated strip adaptation: 1.6 / 2.0 mm ● Cable armoring strip adaptation: 1.6 × 2 core / 1.6 × 3 lead / 2.0 × 2 core / 2.0 × 3 core

Product information:

Shipping Weight: 258 g

Package Dimensions: 2.79 x 9.70 x 30.61 cm
