Item Descriptions:

Product introduction

● 1/4 inch threaded shoe mount adopted (receiver: ATW - R 1700).

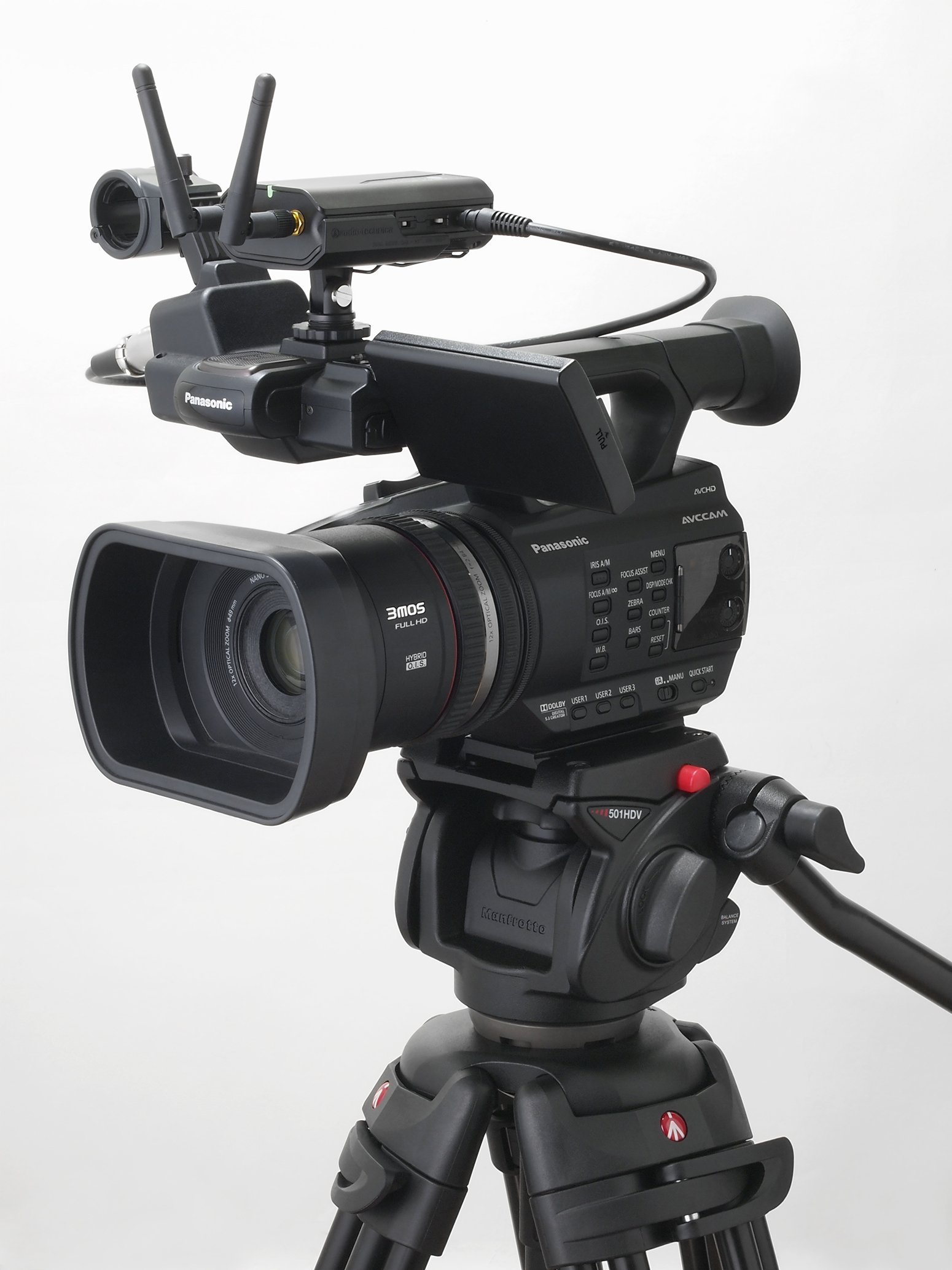

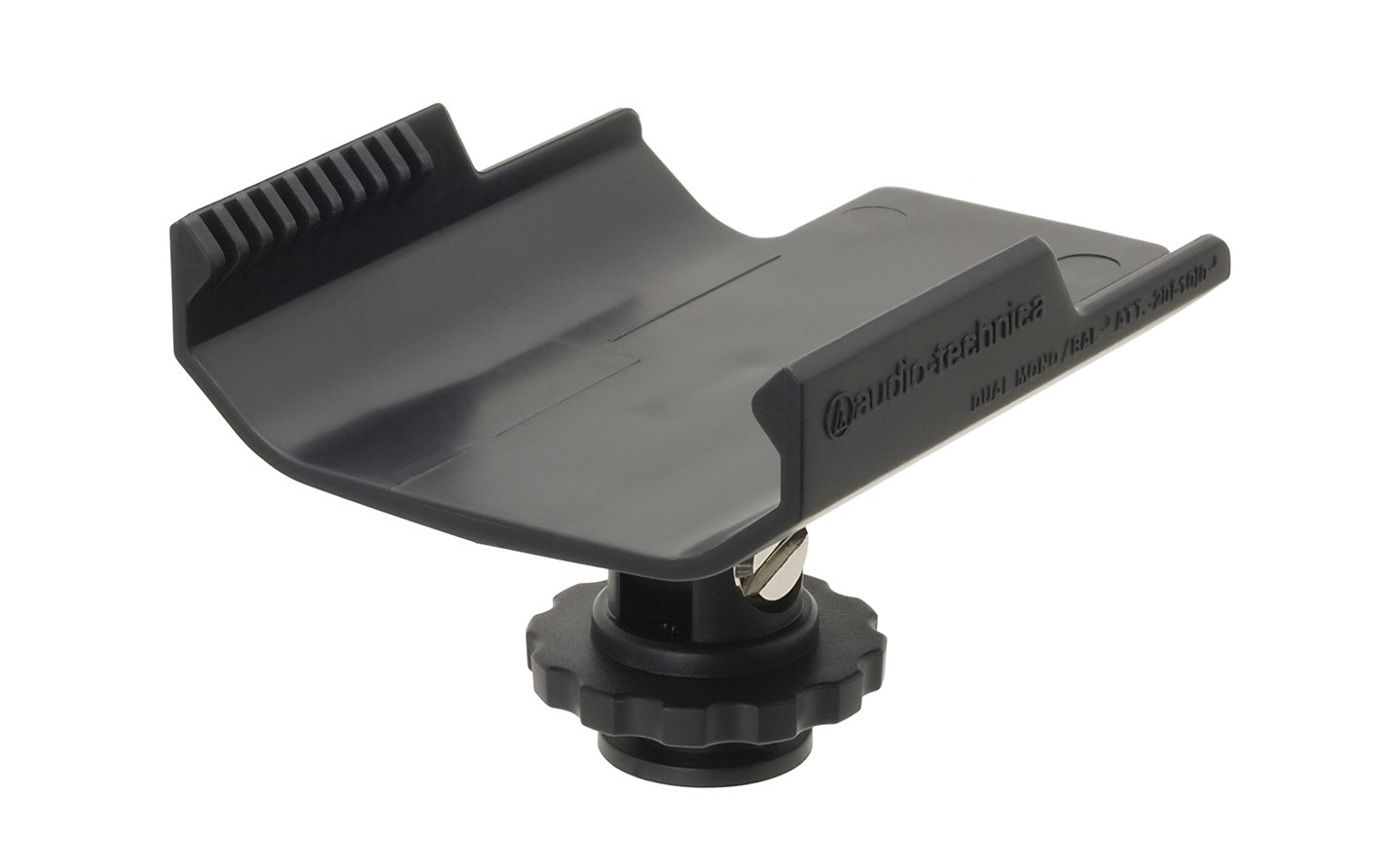

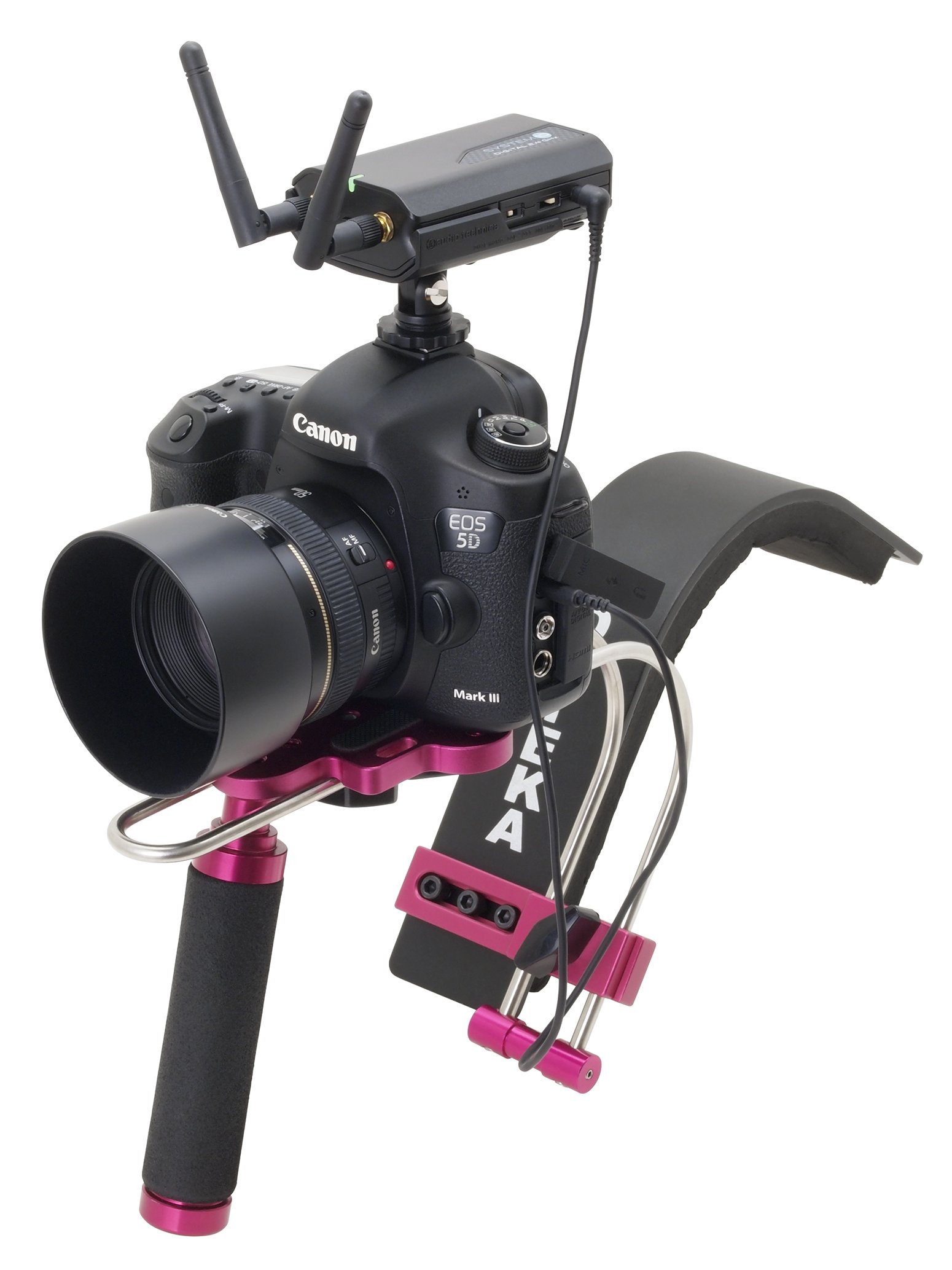

● It is possible to attach to the camera and stand by the attached receiver holder.

● Receiver capable of continuous operation for up to about 12 hours.

● Adopting a lithium ion rechargeable battery, it also supports stress for long time shooting.

Full charge is completed in about 4.5 hours.

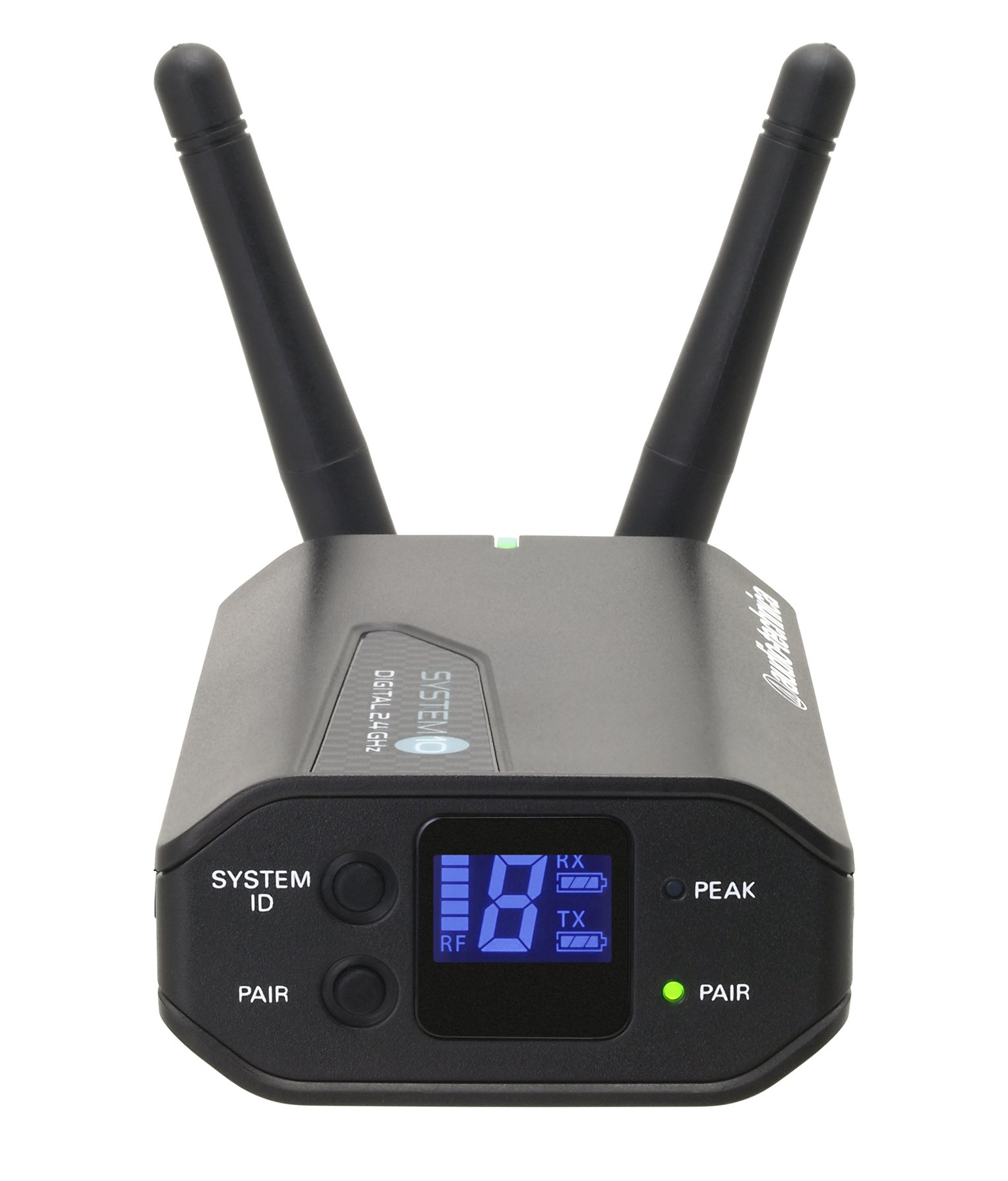

● Optimal liquid crystal display for monitoring during shooting.

● The transmitter and receiver can display the remaining battery level of 4 steps, the reception level can be displayed in 5 steps.

You can check it in real time even while shooting.

● Multi-pairing function allows you to change transmitter.

● Up to 8 transmitters can be pre-registered in one receiver.

It automatically connects to the receiver by turning on / off the power supply of the transmitter.

There is no need to pair each time, you can pick up flexible sounds according to style.

● Compact, high-performance Lavalier microphone.

It is a Lavalier microphone system that realizes high sound quality and wide range.

Small & lightweight microphones flexibly adapt to various shooting styles.

About the influence with other equipment

Sound may be interrupted due to the influence of equipment using the same 2.4 GHz band radio wave as this product, such as Bluetooth device, wireless LAN / Wi-Fi used device, digital cordless phone, microwave oven etc.

Likewise, radio waves of this product may affect these devices, so install the interfering devices at a distance from each other.

● System specification

· Operational radio band: 2.4 GHz ISM band

· Audio dynamic range: 109 dB

Distortion ratio: 0.05% or less Communication distance: Radius 30 m, diameter 60 m (when viewing, no jammer)

• Operating temperature range: 0 to 40 ° C

Audio frequency characteristics: 20 to 20,000 Hz

· Audio sampling: 24 bit / 48 kHz

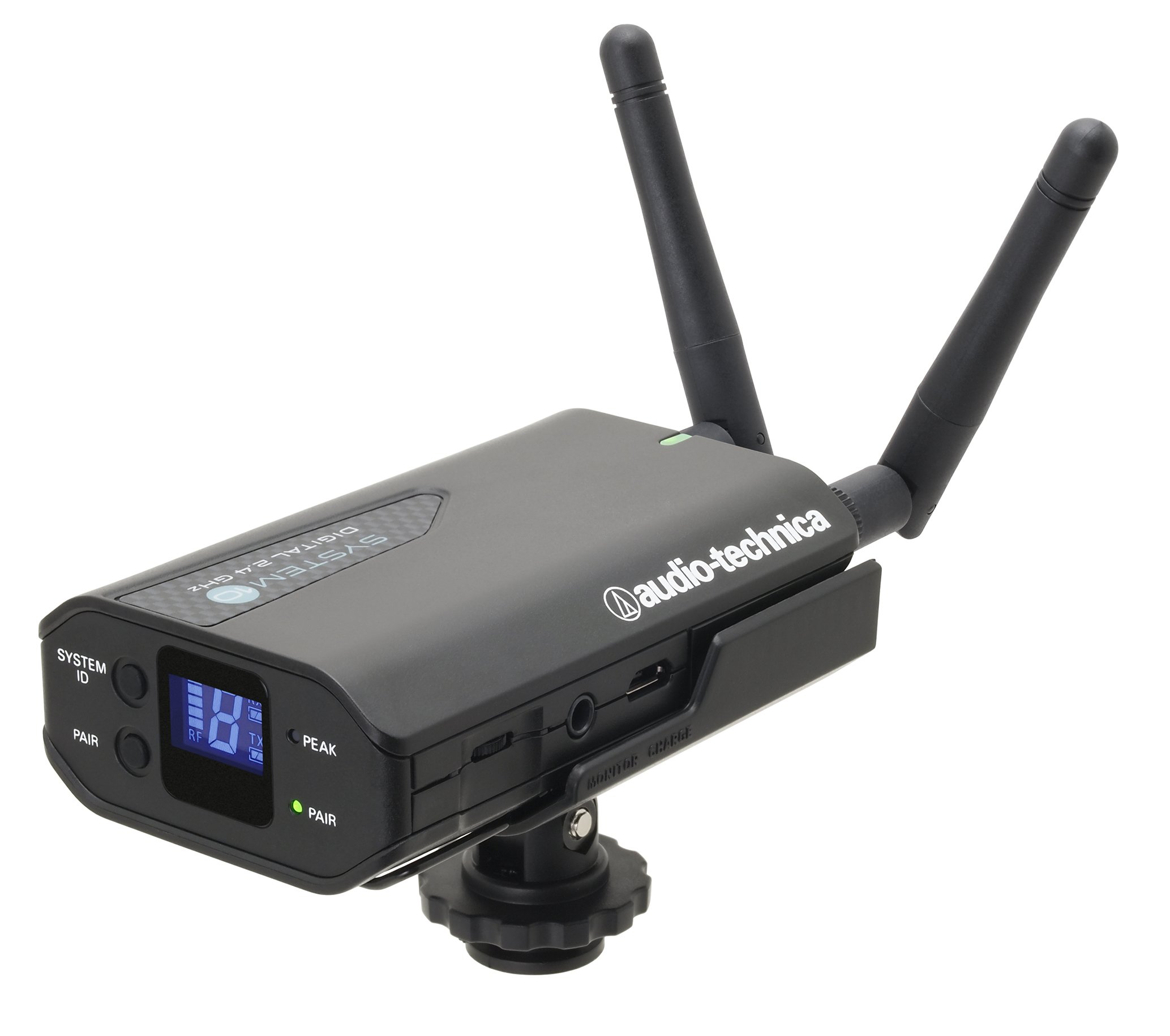

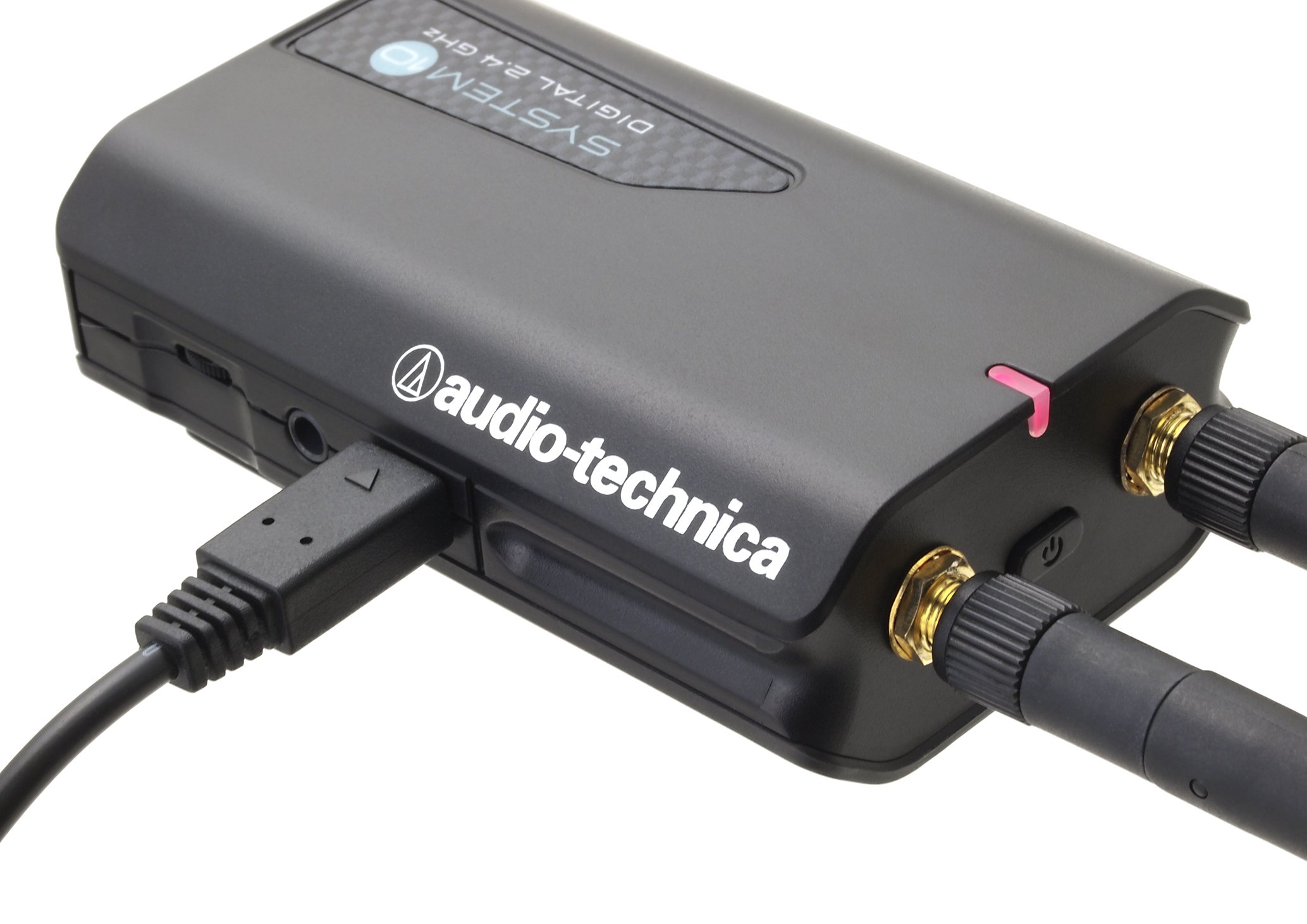

● Receiver: ATW-R1700

· Receiving method: Automatic channel setting method

· Maximum audio output level: + 6 dBV (φ 3.5 mm TRS balance), 0 dBV (φ 3.5 mm dual mono)

· Monitor output level: 70 mW + 70 mW (φ 3.5 mm, at 32 Ω)

· Built-in battery: 3.7 V dedicated lithium ion rechargeable battery

· Battery life: Approximately 12 hours * It depends on usage environment.

· Battery charging time: About 4 hours 30 minutes ※ It depends on usage environment.

Charging temperature range: 5 to 35 ° C

· Outer dimensions: H 91.4 × W 56 × D 27.8 mm

Mass: Approximately 105 g

● 2 piece type transmitter: ATW-T1001J

Transmission output: 10 mW

· Power supply: DC 3 V (AA alkaline batteries × 2, or AA Ni-MH batteries (1900 mAh or more) × 2)

· Operating time: about 6 hours * Operation time varies depending on the type of battery used and the ambient temperature at the time of use.

· External dimensions: H 107 × W 70.2 × D 24.9 mm (excluding protrusions)

Mass: Approx 100 g (excluding batteries)

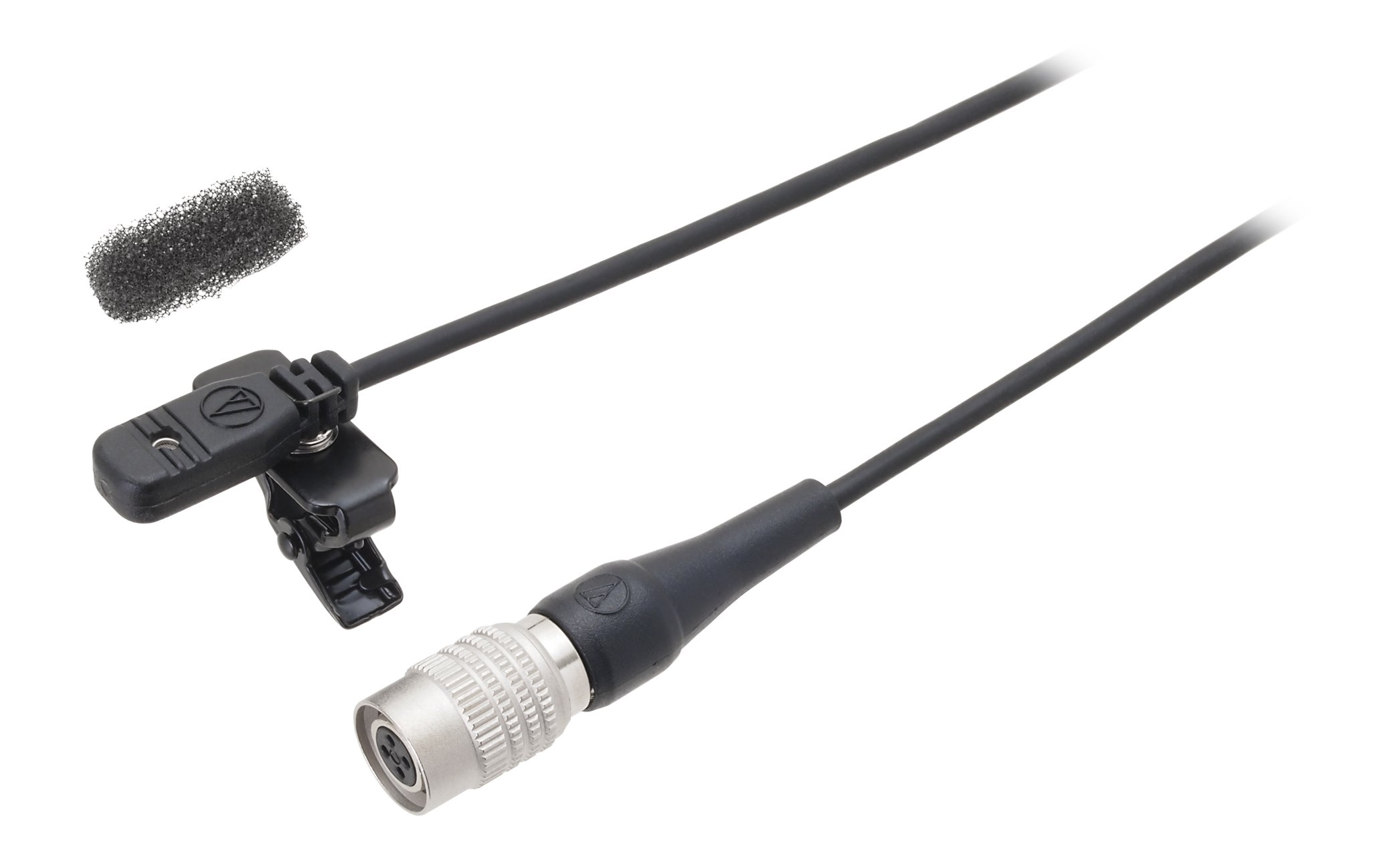

● Lavalier microphone: MT 830 cWB

· Model: back electret · condenser type

· Directional characteristics: omnidirectional

· Frequency response: 30 ~ 20,000 Hz

Sensitivity (0 dB = 1 V / Pa, 1 kHz): - 34 dB

Mass (excluding cords): Approximately 1.3 g

· Code / plug: 1.4 m / 4 pin connector for our wireless

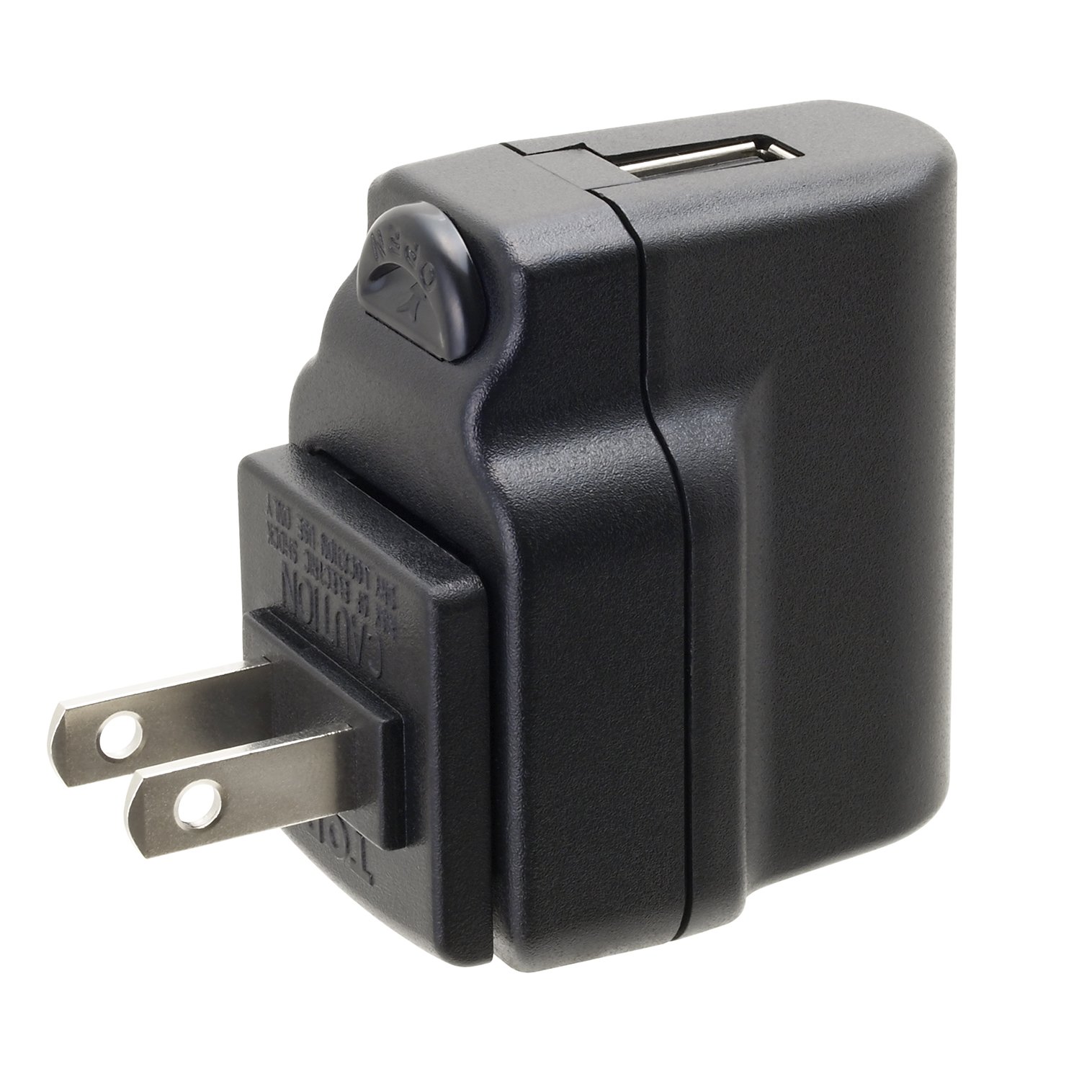

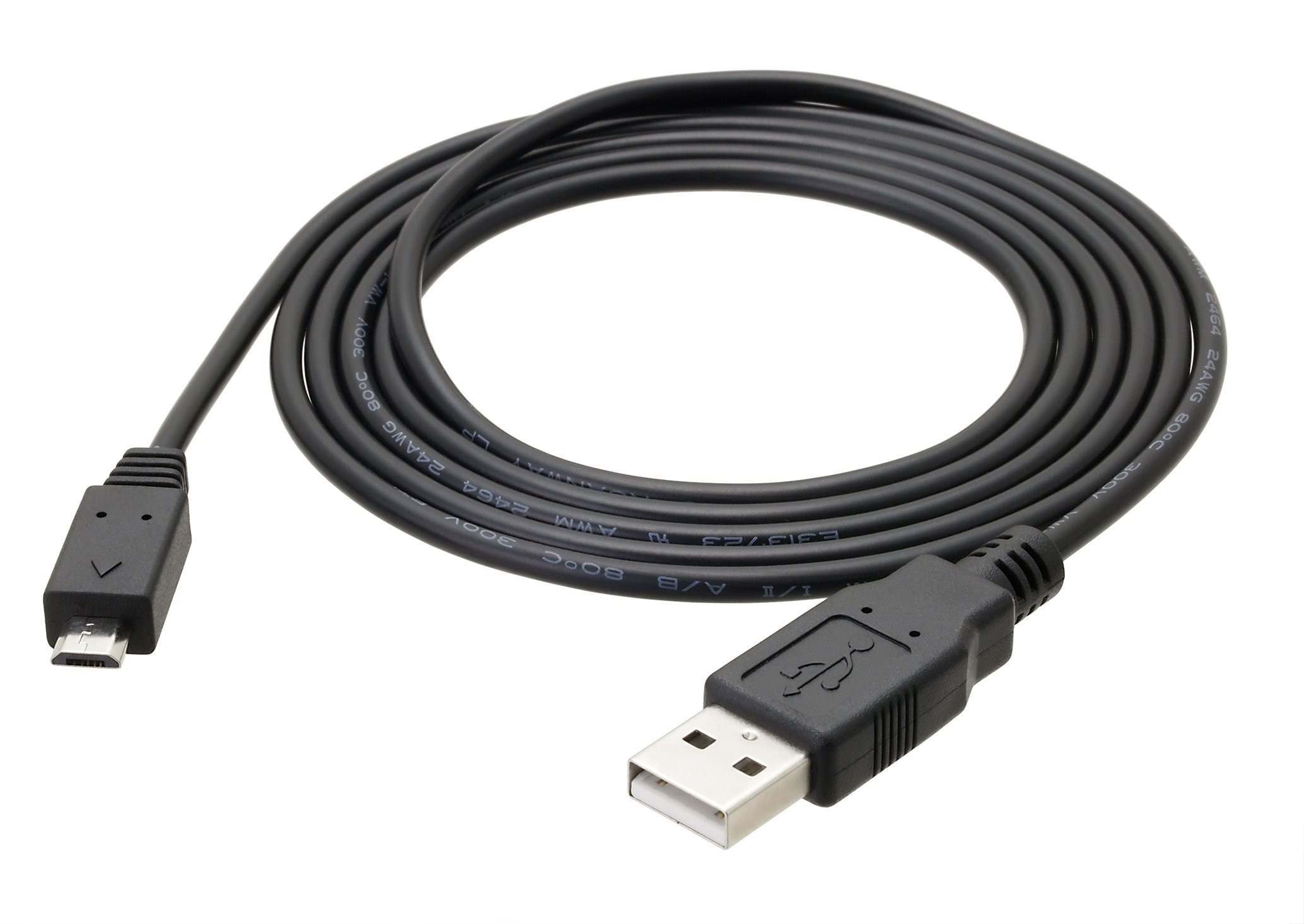

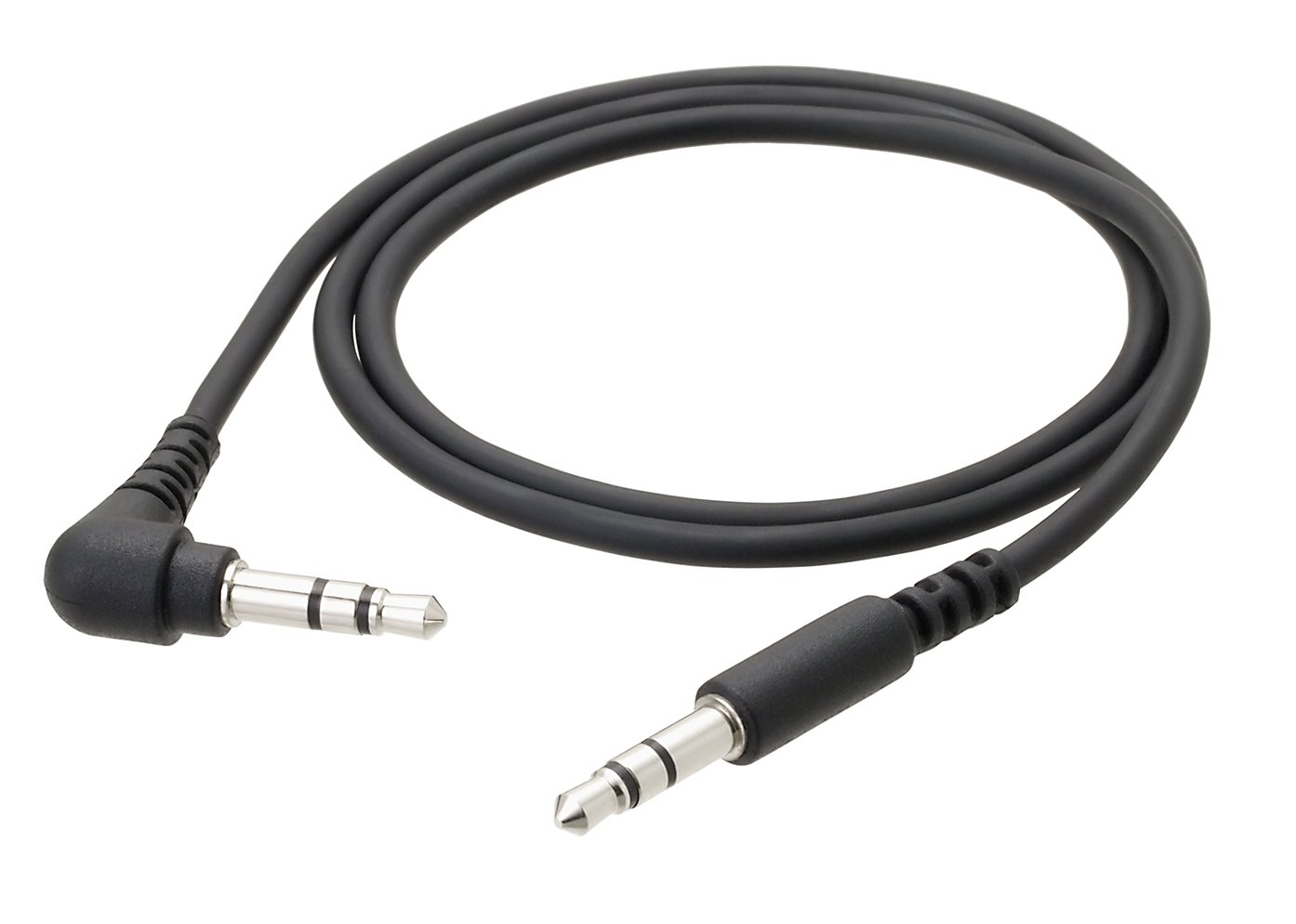

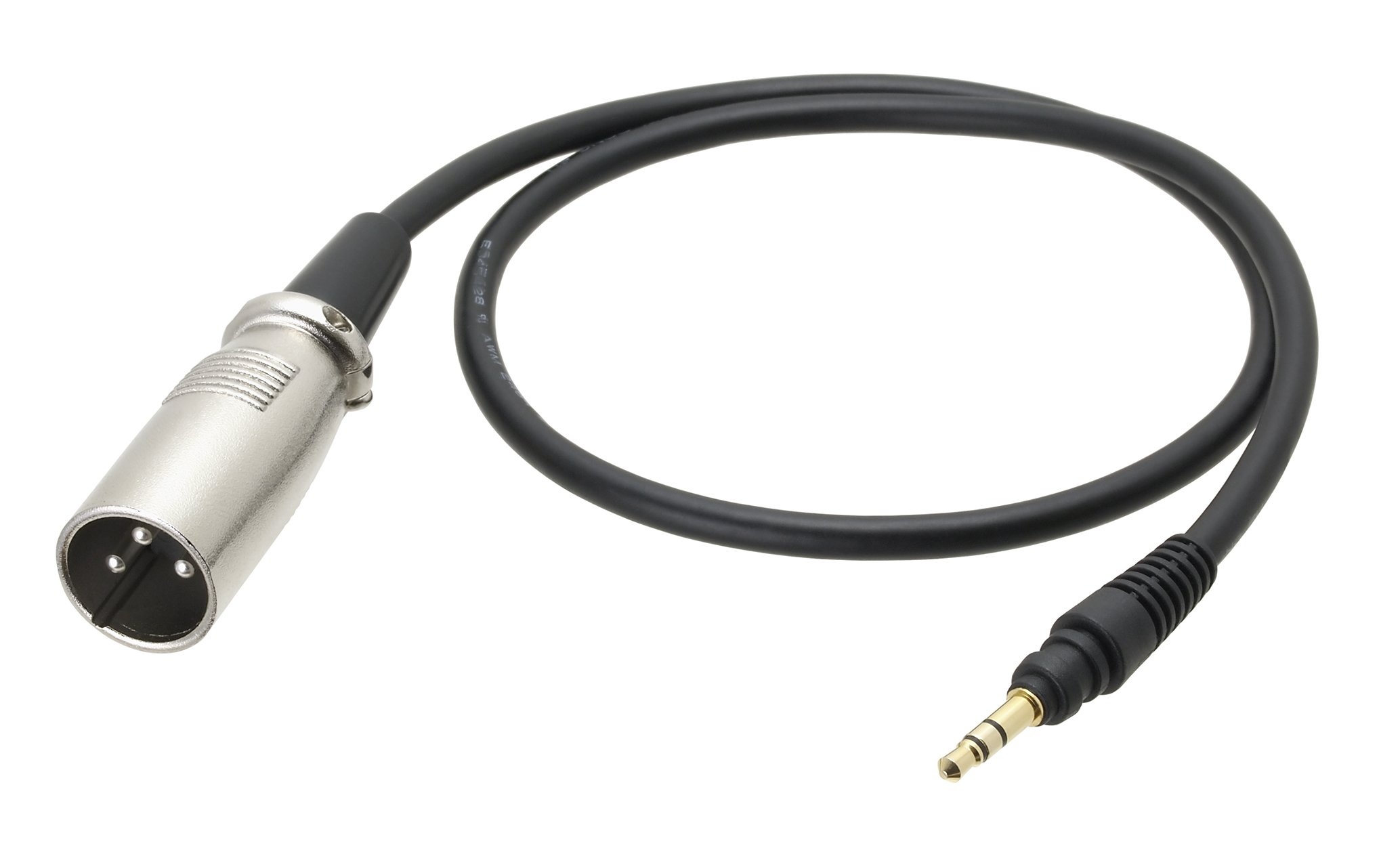

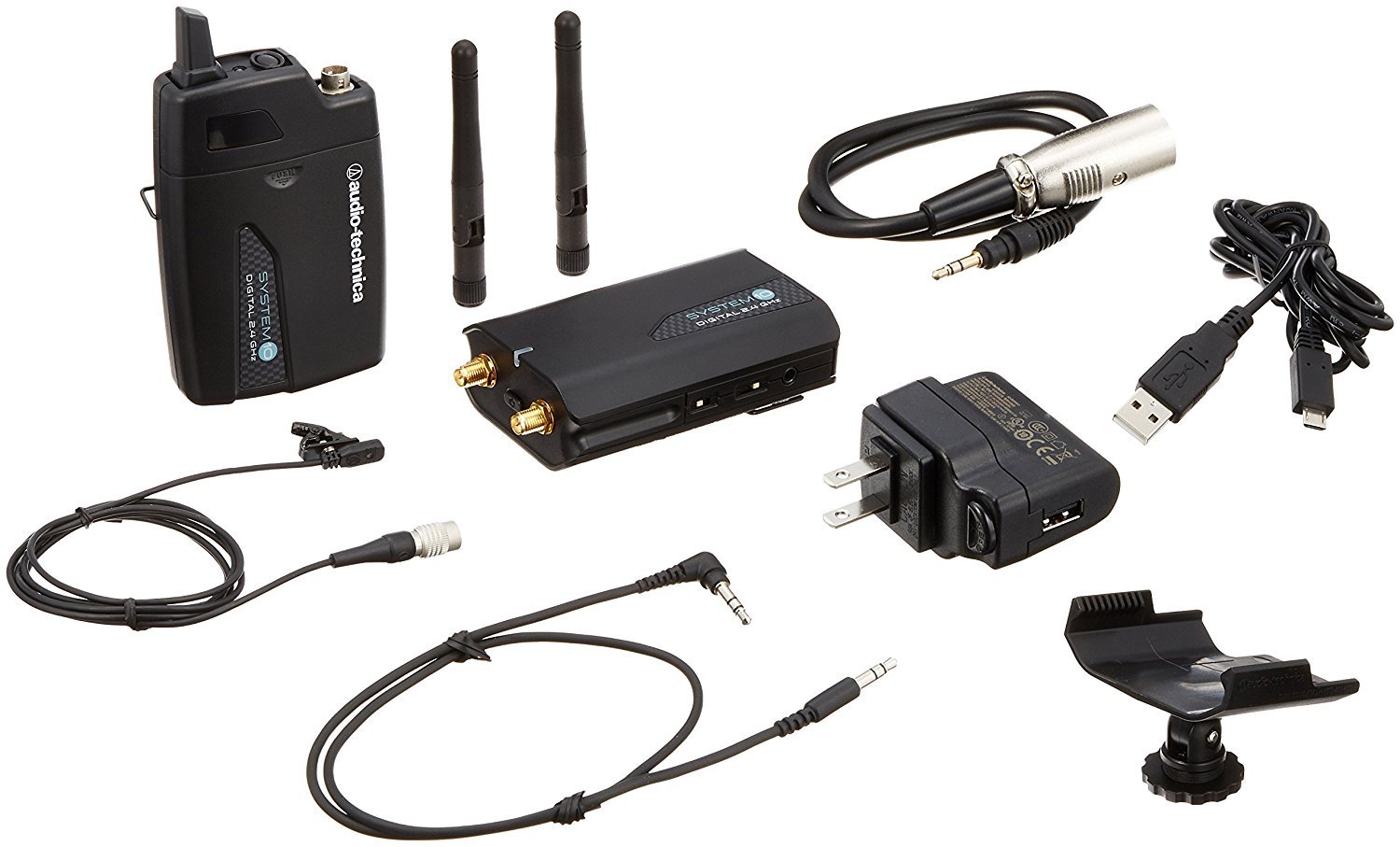

- Accessories: 2 antennas, receiver holder, AC adapter (USB type), USB cable, φ 3.5 mm stereo cable (AT 8349), φ 3.5 mm - XLR pin male (AT 8350)

Attention (Disclaimer)> Please be sure to read

About the influence with other equipment: Audio is interrupted due to the influence of the device using 2.4 GHz band radio wave same as this product, such as Bluetooth device, wireless LAN · device using Wi-Fi, digital cordless phone, microwave etc.

You may.

Likewise, radio waves of this product may affect these devices, so install the interfering devices apart from each other.

Features:

• Please enter model number Confirm this is compatible:
• Plus wireless mobility plus high sound quality pickup.

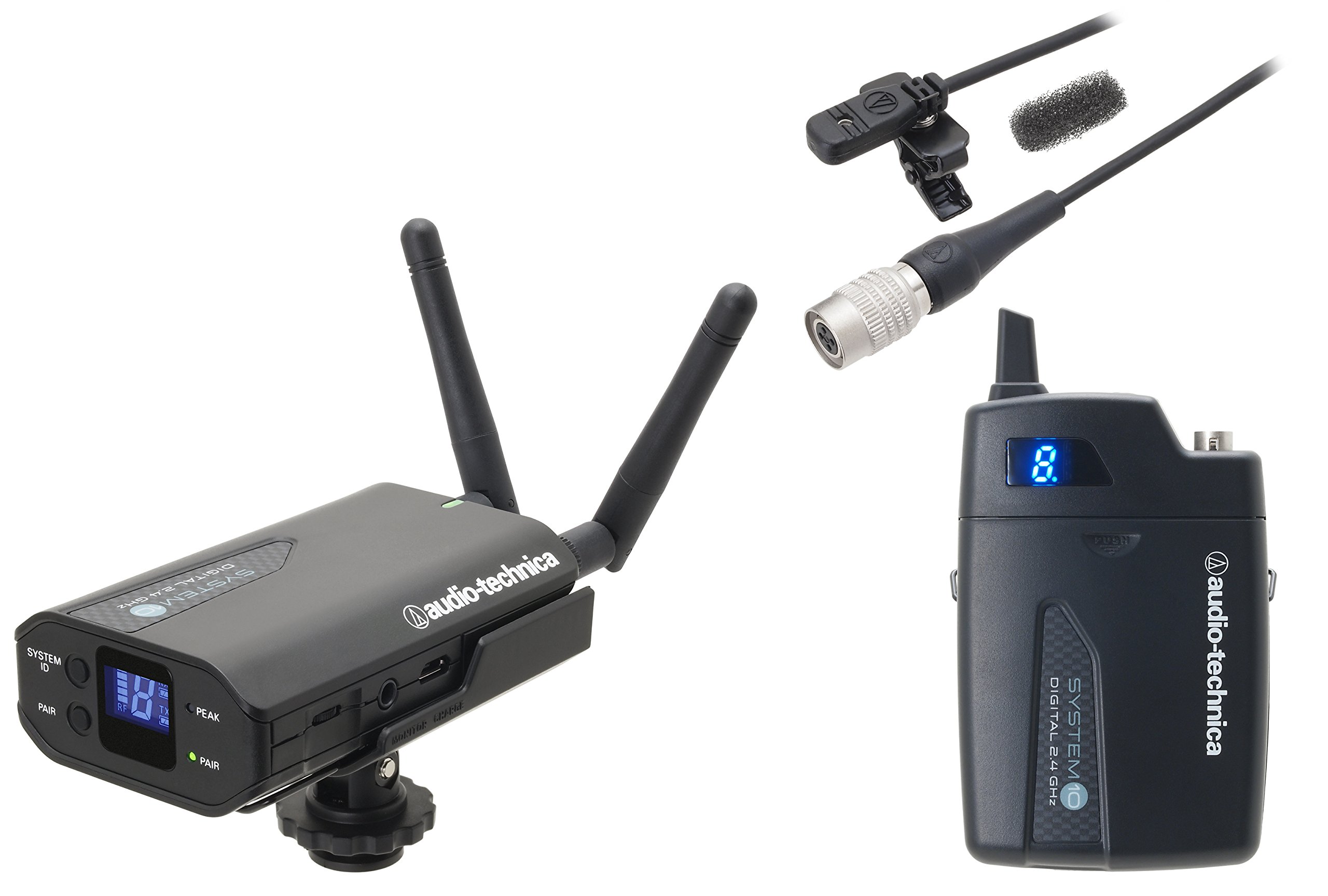

• 2.4 GHz digital wireless system combining compact & lightweight Lavalier microphone.
• Up to 8 channels can be used simultaneously.
• Easy setup.
• Just connect the cable to your shooting equipment and select the output mode to complete setup.
• It corresponds to both unbalanced / balanced audio output.
• The automatic channel setting function is carried, and troublesome setting is absolutely unnecessary at all.
• Stable communication with three diversity.
• We inherit the three diversity (space, frequency, time) which have gained high evaluation in the conventional model and realize stable voice communication.
• Automatic avoidance of interference frequency in real time bi-directional communication.
• Bidirectional communication is performed in real time between the transmitter and the receiver, and the interference frequency is automatically avoided.
• Drop out is avoided even in harsh wireless LAN environments and when sudden jamming waves are generated.

Product information:

Shipping Weight: 798 g

Package Dimensions: 8.61 x 18.01 x 35.99 cm
