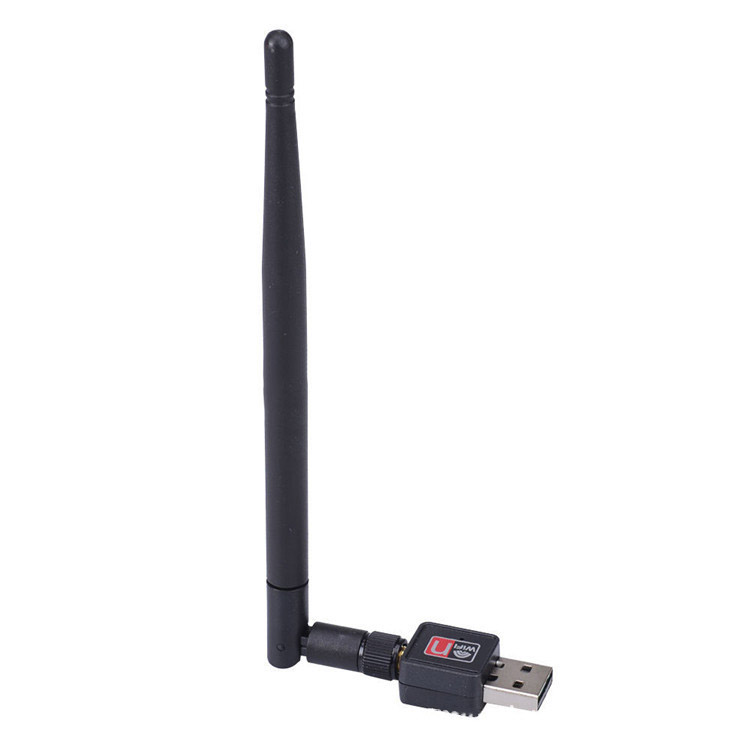

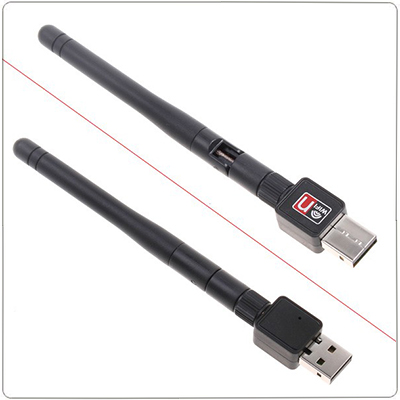

150Mbps Ralink RT5370 2dBi Antenna Wireless N Nano USB WiFi Dongle Adapter Receiver AP Client



Specifications



Ralink RT5370 Mini USB WiFi Adapter

150Mbps Speed

2dBi SMA Antenna

Support Skybox， Openbox， Raspberry Pi

Meet FCC CE



Description:

XHT-1506 is a 802.11n compliant usb wifi dongle that provides up to 4x faster wireless speeds and 3x better wireless reception over 802.11g products while staying backward compatible with 802.11g/b devices.



RF:

Antenna: SMA 2dBi antenna(1T1R)

Frequency: 2412~2483.5 MHz， ISM band

Transmit Power: 802.11b: 17+/-1.5dBm; 802.11g: 14+/-1.5dBm;

Receive Sensitivity: 802.11b: -84dBm@11Mbps; 802.11g: -68dBm@54Mbps



Software:

Operation System: Windows CE/2000/XP/Vista/Win 7; Linux;

Security: WEP 64/128， WPA， WPA2， 802.1x， Cisco CCS V1.0， 2.0 and V3.0 Compliant

Operation Conditions

Voltage Range: DC 5.0V ± 5%

Operating Temperature: 0°C - 50°C

Storage Temperature: -20°C - 70°C

Operating Humility: RH 95% (Non-Condensing)

Storage Humidity: RH 95% (Non-Condensing)



Features:

150Mbps wireless transmission rate

Provides two methods of operation: Infrastructure and Ad-Hoc

Quick Secure Setup， complies with WPS for worry free wireless security

Supports 64/128-bit WEP， complies with 128 bit WPA standard(TKIP/AES)， supports MIC， IV Expansion， Shared Key Authentication， IEEE 802.1X

Supports Sony PSP for online game

Supports Windows 2000/XP/Vista OS

Seamlessly compatible with 802.11b/g/n devices

Equipped with an elegant and stylish USB Cradle for flexible deployment



Specification:

Standard: IEEE 802.11n，IEEE 802.11g， IEEE 802.11b

Chipset: Ralink RT5370

Wireless Speed: 11n: Up to 150Mbps， 11g: Up to 54Mbps， 11b: Up to 11Mbps

Frequency Range: 2.4-2.4835GHz

Wireless Transmit Power: 20dBm(MAX EIRP)

Modulation Type: OFDM/CCK/16-QAM/64-QAM

Receiver Sensitivity: (without Standards antenna) 130M: -68dBm@10% PER 108M: -68dBm@10% PER 54M: -68dBm@10% PER 11M: -85dBm@8% PER 6M: -88dBm@10% PER 1M: -90dBm@8% PER

Work Mode: Ad-Hoc， Infrastructure

Wireless Security: 64/128 bits WEP WPA/WPA2， WPA-PSK/WPA2-PSK (TKIP/AES)

Support Operating System: Windows 2000/XP/Vista/Linux/ Win 7



Hardware Specification

Interface: USB2.0 Hi-Speed connector

Operating Temperature: 0C~40C (32F~104F)

Storage Temperature: -40C~70C (-40F~158F)

Relative Humidity: 10% ~ 90%， non condensation

Storage Humidity: 5%~90% non-condensing




5 dBi Antenna
