Item Descriptions:
Product specification:
Language: Japanese can be set
Dimension: 135 (H) * 97 (B) * 66.5 (T) mm
Memory: SD / SDHC card supported, up to 32GB ※ Optional
Lens: f = 3.1 mm, F / NO = 2.6, FOV = 73 °, Auto IR filter
Night vision distance: 3 to 15 M
Detection angle: 60 degrees
Waterproof specification: IP54
Standby time: Up to 6 months
Power consumption: 6 V 1.5 A
USB port: USB 2.0
Trigger distance: 15M
Trigger speed: 1 second
Infrared LED: 26pcs 850nm IR LEDs (max 15m)
LCD monitor: 2.4 inches 240 (RGB) * 320 DOT; 264 K color
Operating environment Humidity: 5% to 90%
Operating environment temperature: -20 degrees to 60 degrees
Video resolution: 1280 * 720 (30 FPS) / 848 * 480 (30 FPS) / 640 * 480 (30 FPS)
Image sensor: 2.0 mega pixels 1/4 "CMOS sensor
Still image shooting resolution: 8M / 5M / 3M / 2M / 1M
Video format: AVI
Still image format: JPEG
Motion format: JPEG
Power supply: 4 AA alkaline batteries or 8 AA batteries
※ Please install 4 AA size alkaline batteries or 8 pieces before use.
If it is 4, please put it all in the upper part or the lower part of the battery case.
Next, insert a TF card with a maximum of 32 GB.
Wide range of applications
Wildlife trail camera function, monitoring stealing thief, plant growth monitoring, research record, warehouse security and surveillance, ease of installation is applicable in various situations.
It can be used for crime prevention measures such as parking lot and car vandalism, countermeasures against birds and beast damage, etc. In addition, it is the most suitable camera for wildlife investigation which is installed in a place without power source such as illegal dumping of garbage.
set content
Body
battery pack
Video output cable
Fastening strap
Simple instruction (Japanese)
PIR detection angle
Since the PIR detection angle is 60 degrees, it provides a wider detection angle and improves camera response time.
It can be used at extreme temperatures between -20 ° C and 60 ° C.
Choosing an installation place
Under TEST mode, the optimum shooting angle and recording range of the camera can be measured.
* When adjusting the installation position, you can select whether or not to use auxiliary heat detection sensor.
How to choose the appropriate installation location:

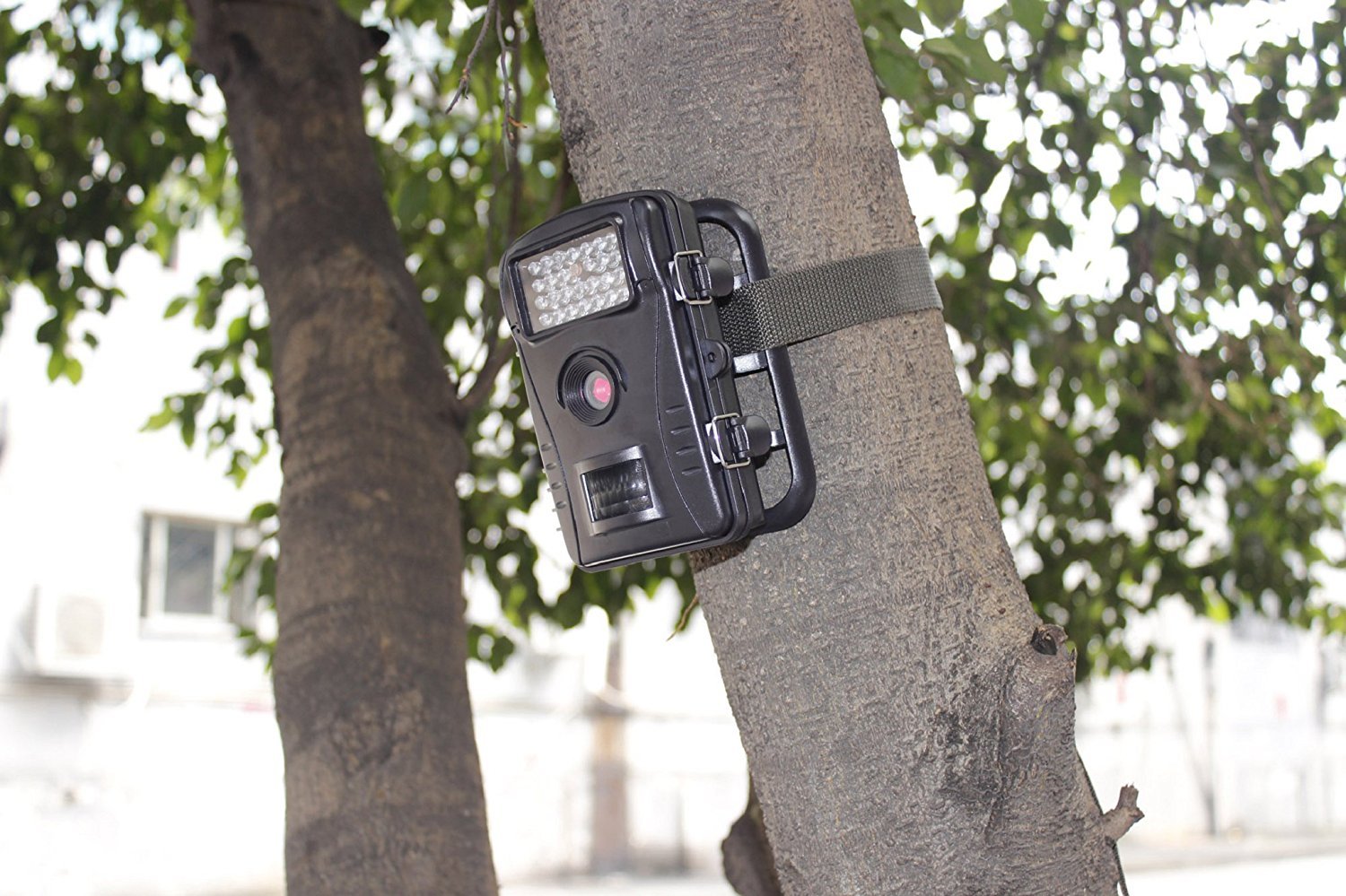

Tie the camera to trees or trees with a height of 2 to 3 M and gradually adjust the direction of the lens.
If the light turns blue, the auxiliary thermal sensitivity sensor capped the moving object, if the light turns red, the main thermal sensitivity sensor capped the moving object.
That's right, you can check the installation location of the camera.
With the TEST mode alone, the light turns on, but in the standby state the light closes.
Features:
- Please enter model number Confirm this is compatible:
- [High Image Quality] Since it is 1280 * 720 (30 FPS) movie resolution, 8 million pixels, 1 second trigger speed, it appears clearly on 2.4 inch confirmation monitor.
- [Night vision function] With an infrared sensor, you can detect infrared rays emitted by people and animals, sharp and clear color images during the day and clear black and white images at night.
- Data is stored in the internal SD card (maximum 32 GB).
- 【Ultra long standby】 It provides very low consumption voltage and long operation time in standby operation.
- If you use 8 AA batteries, it will reach up to 6 months.
- 【PIR Detection Angle】 Since the PIR detection angle is 60 degrees, it provides a wider detection angle and improves camera response time.
- It can be used at extreme temperatures between -20 ° C and 60 ° C.
- 【IP54 waterproof】 Dustproof specification allows installation outdoors.
- For ease of installation it is applicable in various situations.
- It can also be used for crime prevention measures against parking lots and car vandalism, countermeasures against birds and beast damage, etc. In addition, it is a camera that has the most wide range of applications for optimum use as a crime prevention measure to be installed in places where there is no power such as illegal dumping of garbage.
Product information:
Shipping Weight: 571 g
Package Dimensions: 10.01 x 13.21 x 18.21 cm
