Product Description

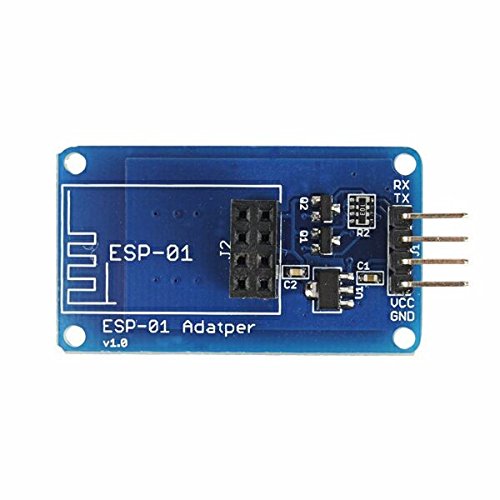

3Pcs ESP8266 Serial Wi-Fi Wireless ESP-01 Adapter Module 3.3V 5V Compatible For Arduino

Description: A adapter module for ESP-01 Wi-Fi module. 3.3V voltage regulator circuit and onboard level conversion circuit can make 5V microcontroller easy to use with ESP-01 Wi-Fi module.
Also, the item can be used with Arduino UNO R3 or compatible board.

Here is schenmatic: http://img..com/file/products/20160408023336ESP-01 Adapter module Schenmatic.pdf Features: Working voltage: 4.5~5.5V (On-board 3.3V LDO Regulator) Working current: 0-240mA Interface logic voltage: 3.3V / 5V compatible(On-board level shift circuit)

Note: The item can be used with item 947259, item 947259 is not included!
Package included:

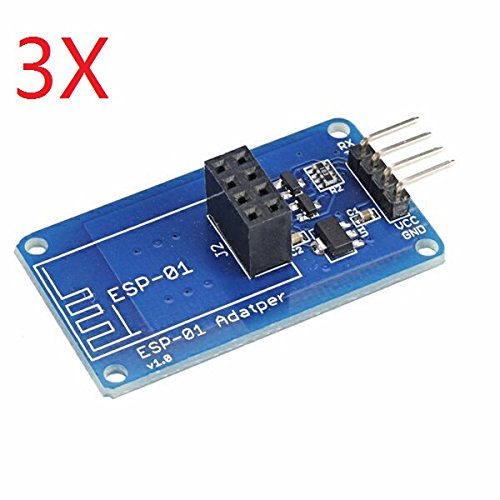

3 x ESP-01 Adapter module
